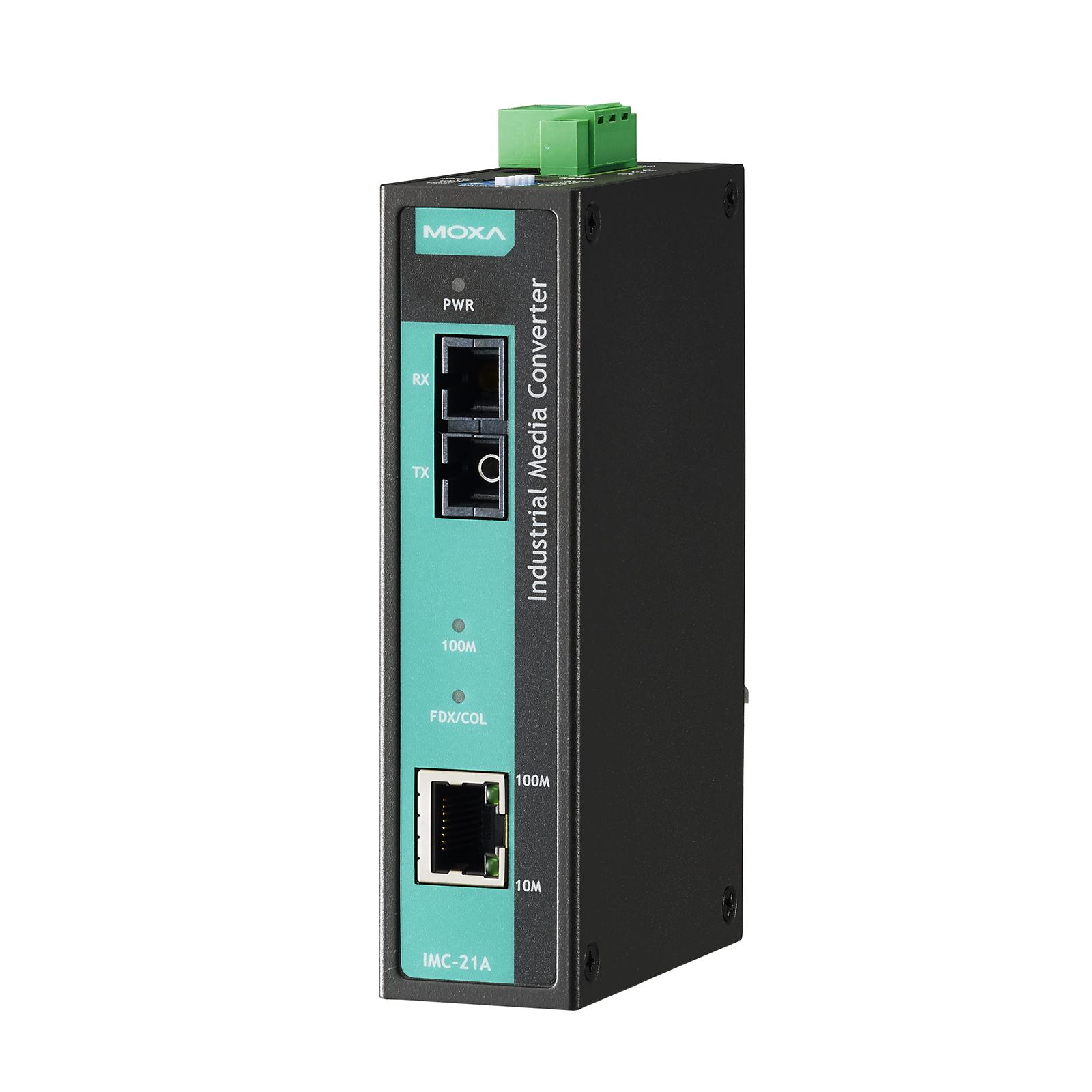

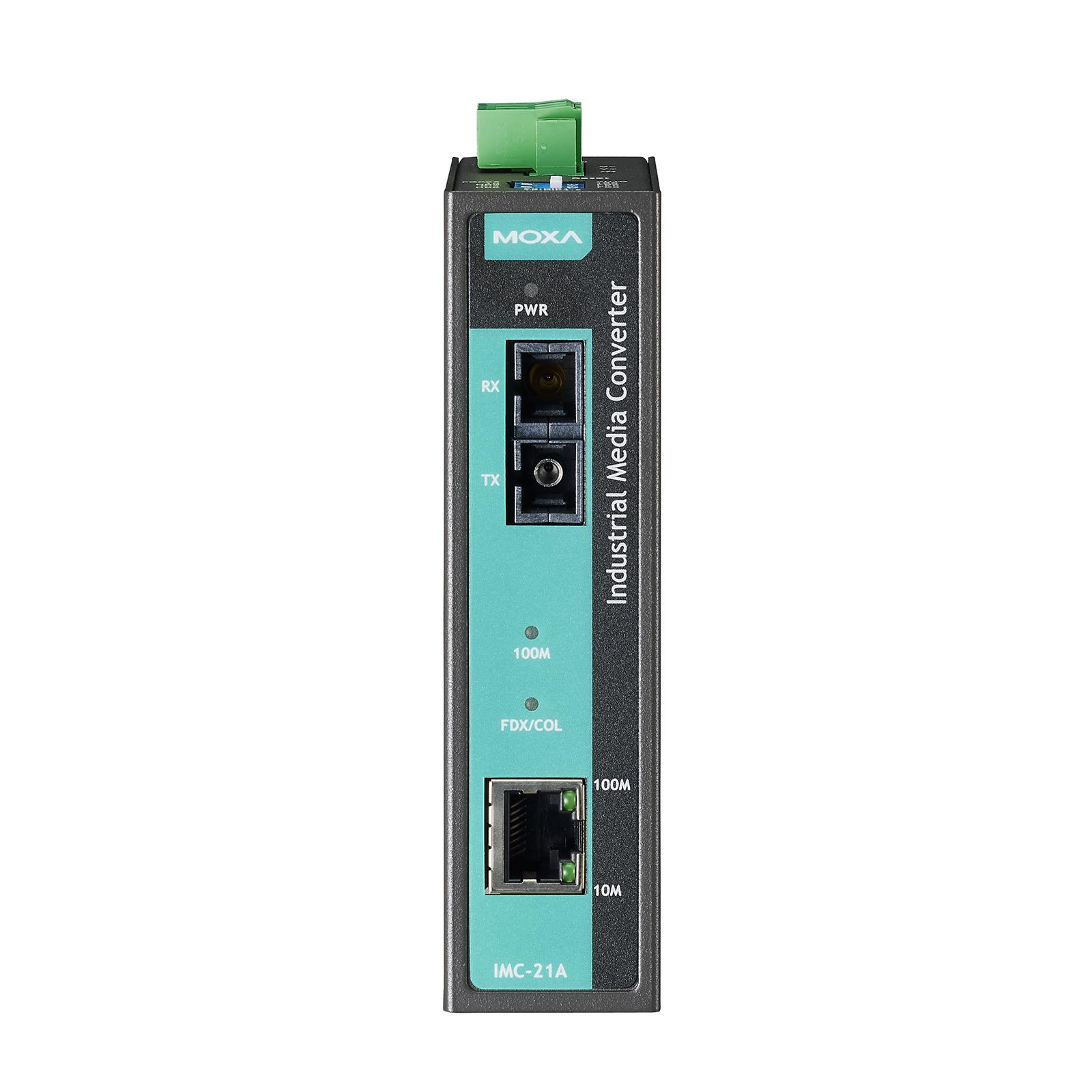

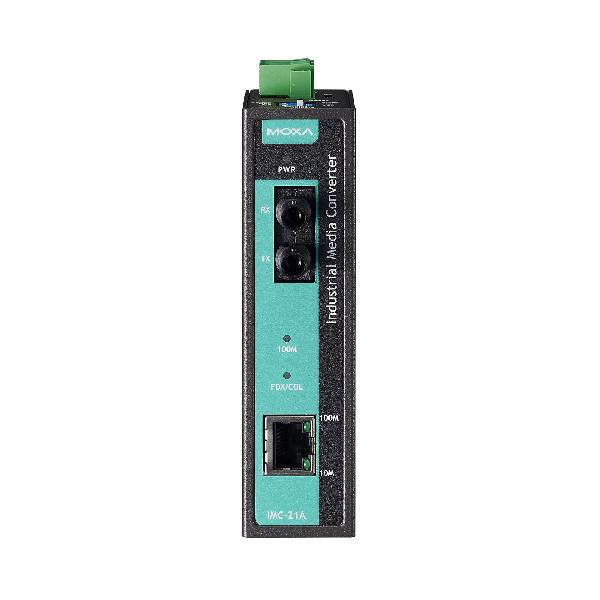

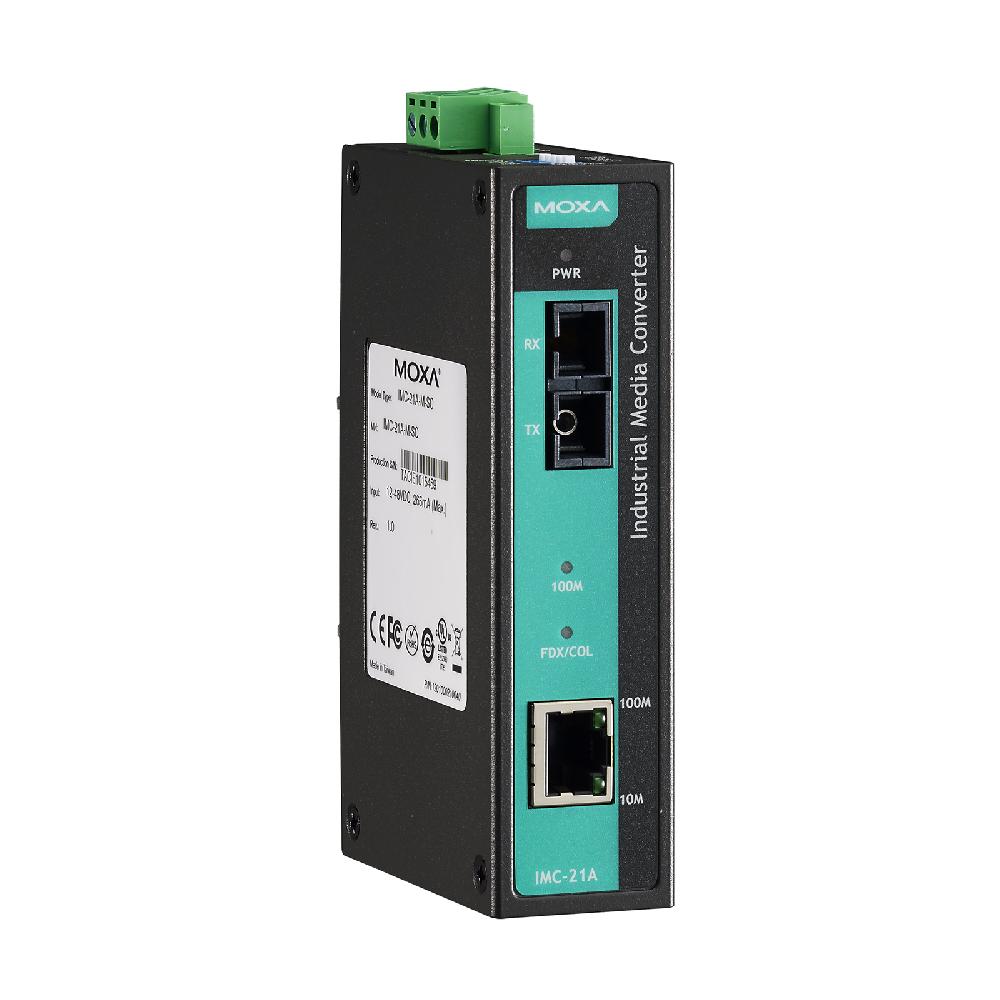

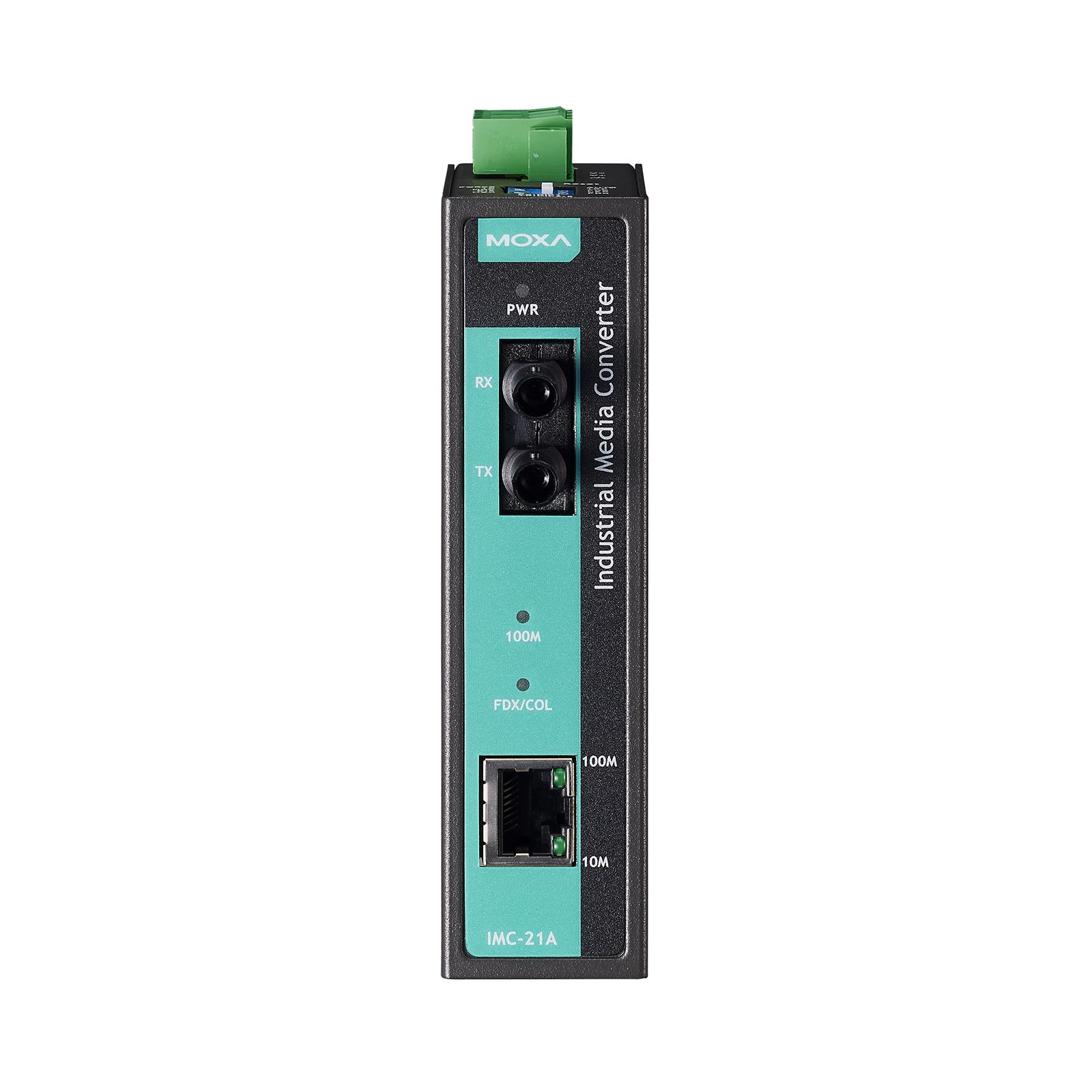

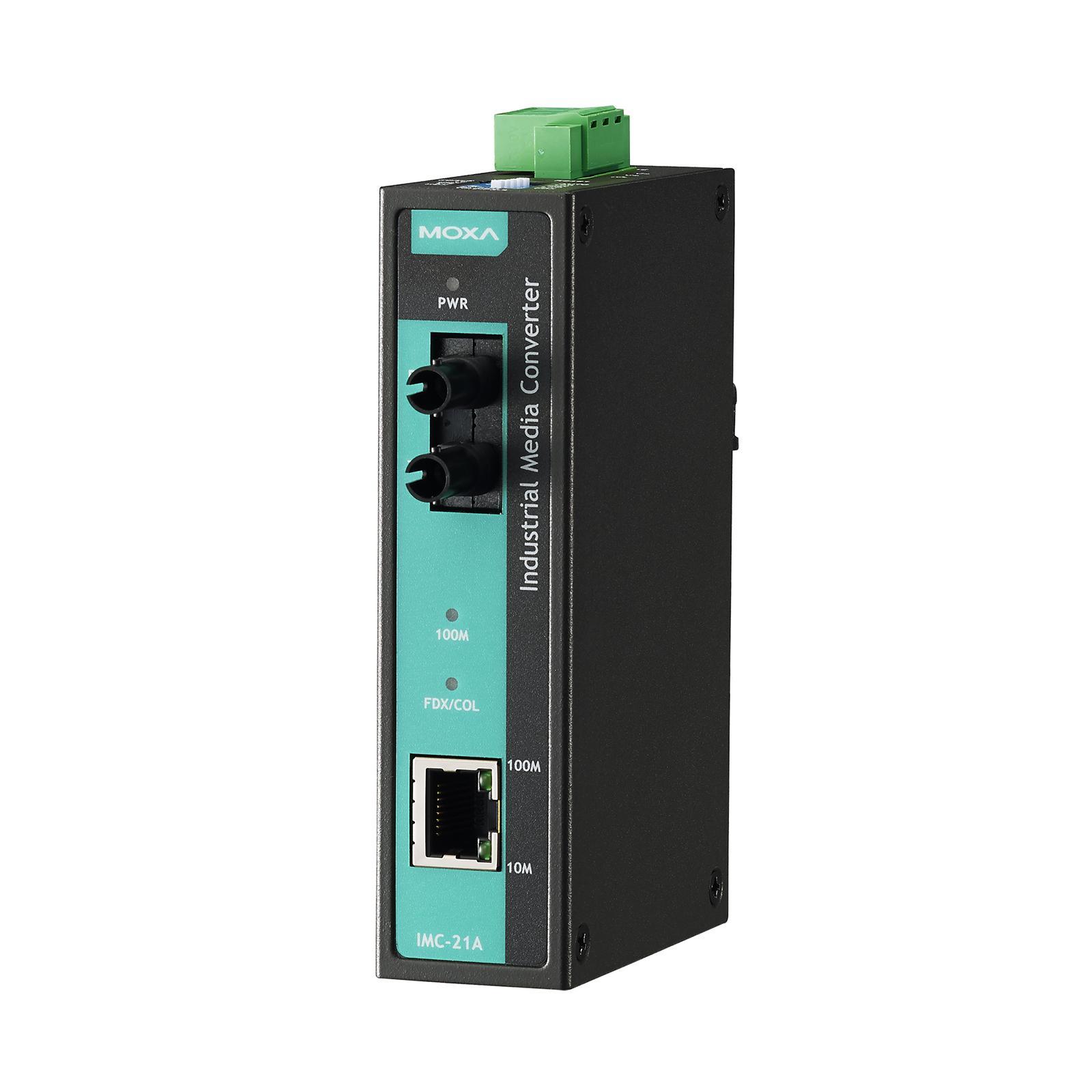

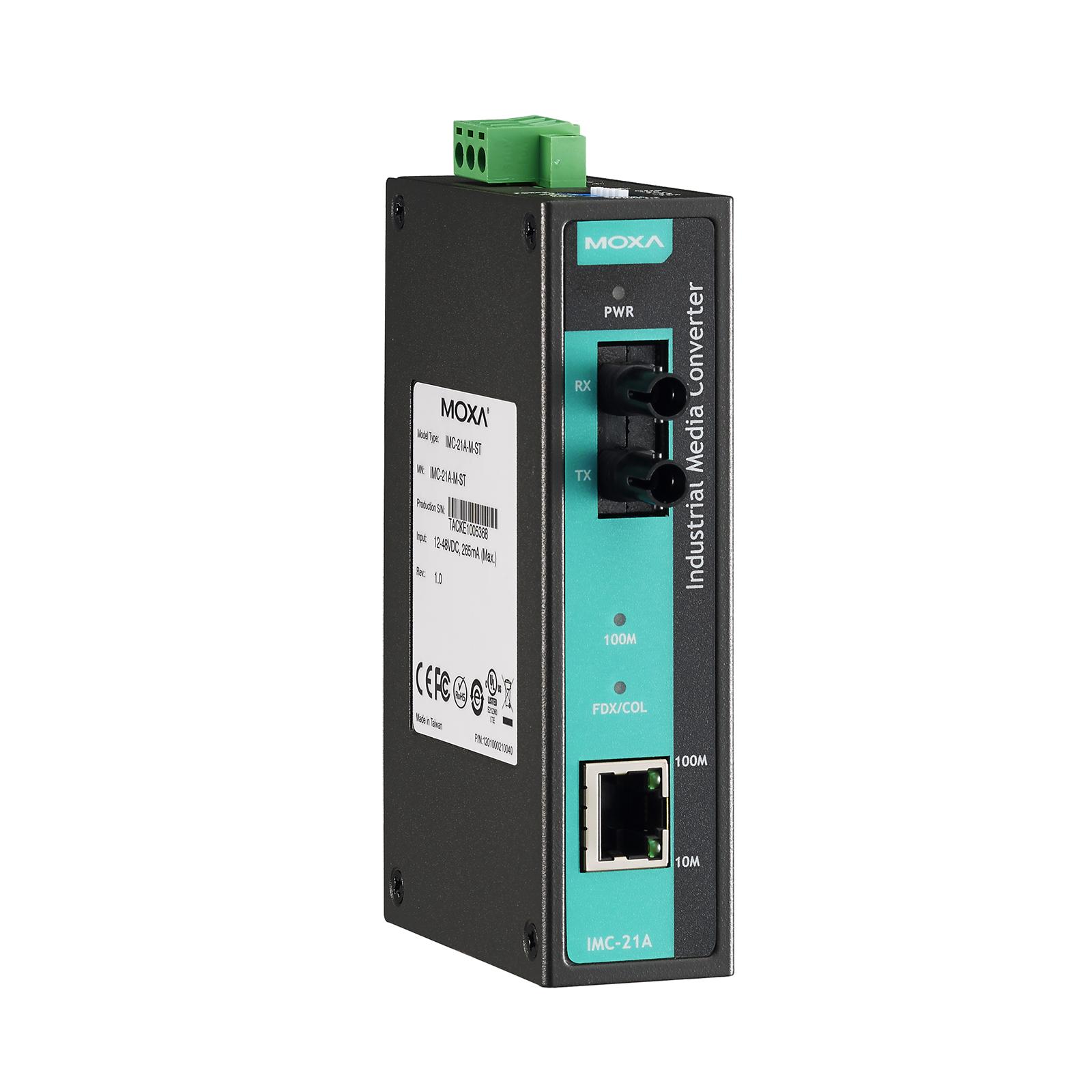

The IMC-21A industrial media converters are entry-level 10/100BaseT(X)-to-100BaseFX media converters designed to provide reliable and stable operation in harsh industrial environments. The converters can operate reliably in temperatures ranging from -40 to 75°C. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The IMC-21A converters are easy to mount on a DIN rail or in distribution boxes.
Ethernet Interface | |
10/100BaseT(X) Ports (RJ45 connector) | 1 |
100BaseFX Ports (multi-mode SC connector) | IMC-21A-M-SC Series: 1 |
100BaseFX Ports (multi-mode ST connector) | IMC-21A-M-ST Series: 1 |
100BaseFX Ports (single-mode SC connector) | IMC-21A-S-SC Series: 1 |
Magnetic Isolation Protection | 1.5 kV (built-in) |
Optical Fiber | Read more |
Power Parameters | |
Input Current | 265 mA @ 12 to 48 VDC |
Input Voltage | 12 to 48 VDC |
Overload Current Protection | Supported |
Power Connector | Terminal block |
Power Consumption | 265 mA @ 12 to 48 VDC |
Physical Characteristics | |
Housing | Metal |
IP Rating | IP30 |
Dimensions | 30 x 125 x 79 mm (1.19 x 4.92 x 3.11 in) |
Weight | 170 g (0.37 lb) |
Installation | DIN-rail mounting |
Environmental Limits | |
Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
Storage Temperature (package included) | -40 to 75°C (-40 to 167°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
EMC | EN 55032/24 |
EMI | CISPR 32, FCC Part 15B Class A |
EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 |
Environmental Testing | IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3 |
Safety | EN 60950-1, UL 60950-1 |
Vibration | IEC 60068-2-6 |
MTBF | |
Time | 353,000 hrs |
Standards | MIL-HDBK-217F |
Warranty | |
Warranty Period | 5 years |
Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for IMC-21A Series | Datasheet | V1.3 | 21 May 2020 |
| Operating Temp. | -10 to 60°C |
| Fiber Module Type | Multi-mode SC |
| Operating Temp. | -10 to 60°C |
| Fiber Module Type | Multi-mode ST |
| Operating Temp. | -10 to 60°C |
| Fiber Module Type | Single-mode SC |
| Operating Temp. | -40 to 75°C |
| Fiber Module Type | Multi-mode ST |
| Operating Temp. | -40 to 75°C |
| Fiber Module Type | Single-mode SC |
