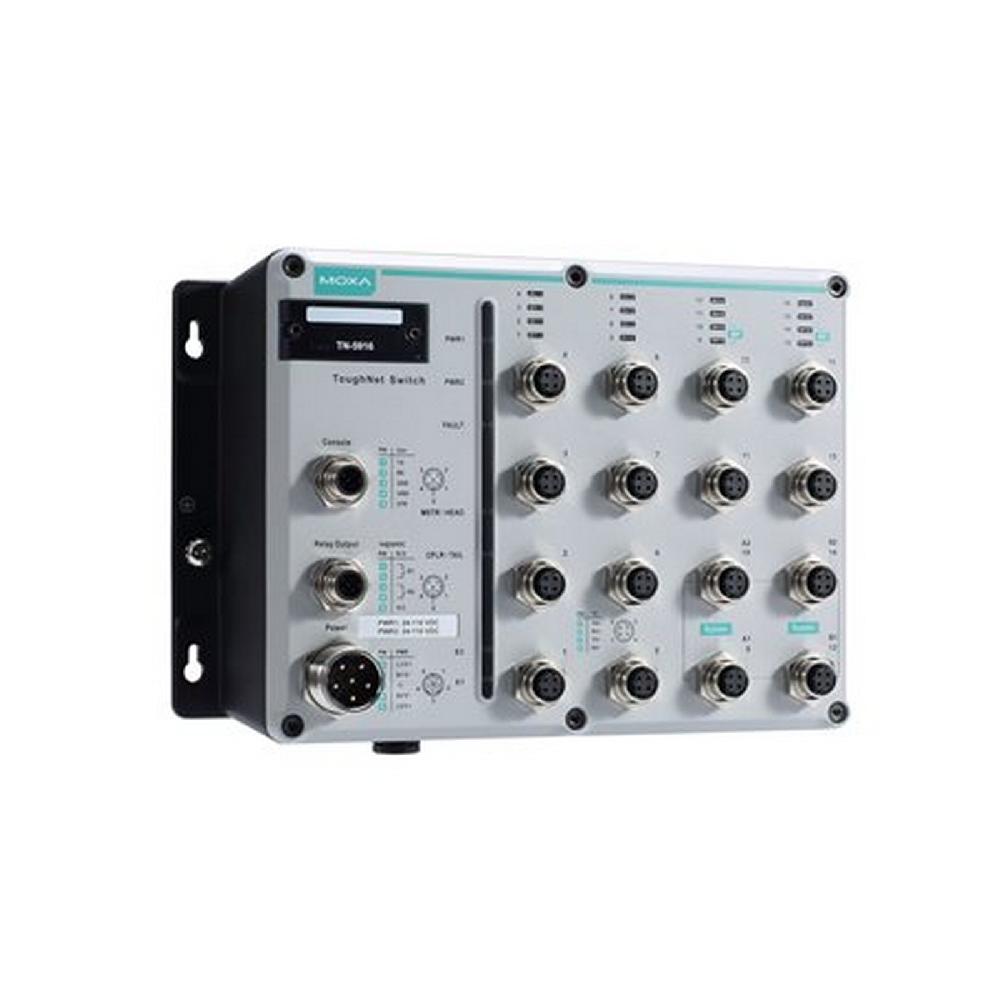

TN-5900 Series

Introduction

The ToughNet TN-5900 Series, designed for rolling stock backbone networks, are high-performance M12 routers with four bypass relay backbone ports. They support NAT and routing functionality to facilitate the deployment of applications across networks. The TN-5900 Series routers use M12 and other circular connectors to ensure tight, robust connections that guarantee reliability against environmental disturbances, such as vibration and shock.

The TN-5900 Series routers provide a wide power input range of 24 to 110 VDC. TN-5900 Series switches operate in an extended operating temperature range of -40 to 75°C and are compliant with the mandatory requirements of EN 50155/50121-4, making them suitable for a variety of industrial applications.

Additional Features and Benefits

• Routing functionality to divide a large network into hierarchical subnets and allow data and information to communicate across networks
• NAT makes IP management easier, since end devices in different carriages can use the same IP addresses
• Leading EN 50155 Ethernet router for rolling stock applications
• Turbo Ring and RSTP/STP for network redundancy
• IGMP V1/V2 snooping for filtering multicast traffic
• IEEE 802.1Q VLAN to ease network planning
• QoS (IEEE 802.1p/1Q and TOS/DiffServ) to improve reliability
• Panel mounting or DIN-rail mounting installation capability
• SNMPv3, HTTPS, and SSH to enhance network security
• SNMP v1/v2c/v3 for different levels of network management
• Port mirroring for online debugging
• Automatic warning by exception through email and relay output
• Line-swap fast recovery
• Automatic recovery of connected device’s IP addresses
• LLDP for automatic topology discovery in network management software
• Configurable by web browser, Telnet/serial console, and CLI Windows utility
