TN-5900-ETBN Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Secure Routers  >   EN 50155 Routers

EN 50155 ETBN routers

Product Feature

  • IEC 61375-2-3 and IEC 61375-2-5
  • -40 to 75°C operating temperature range
  • Dual bypass relay
  • Isolated power input range from 24 to 110 VDC
  • Turbo Ring and RSTP/STP for network redundancy
  • Complies with all EN 50155 mandatory test items

Introduction

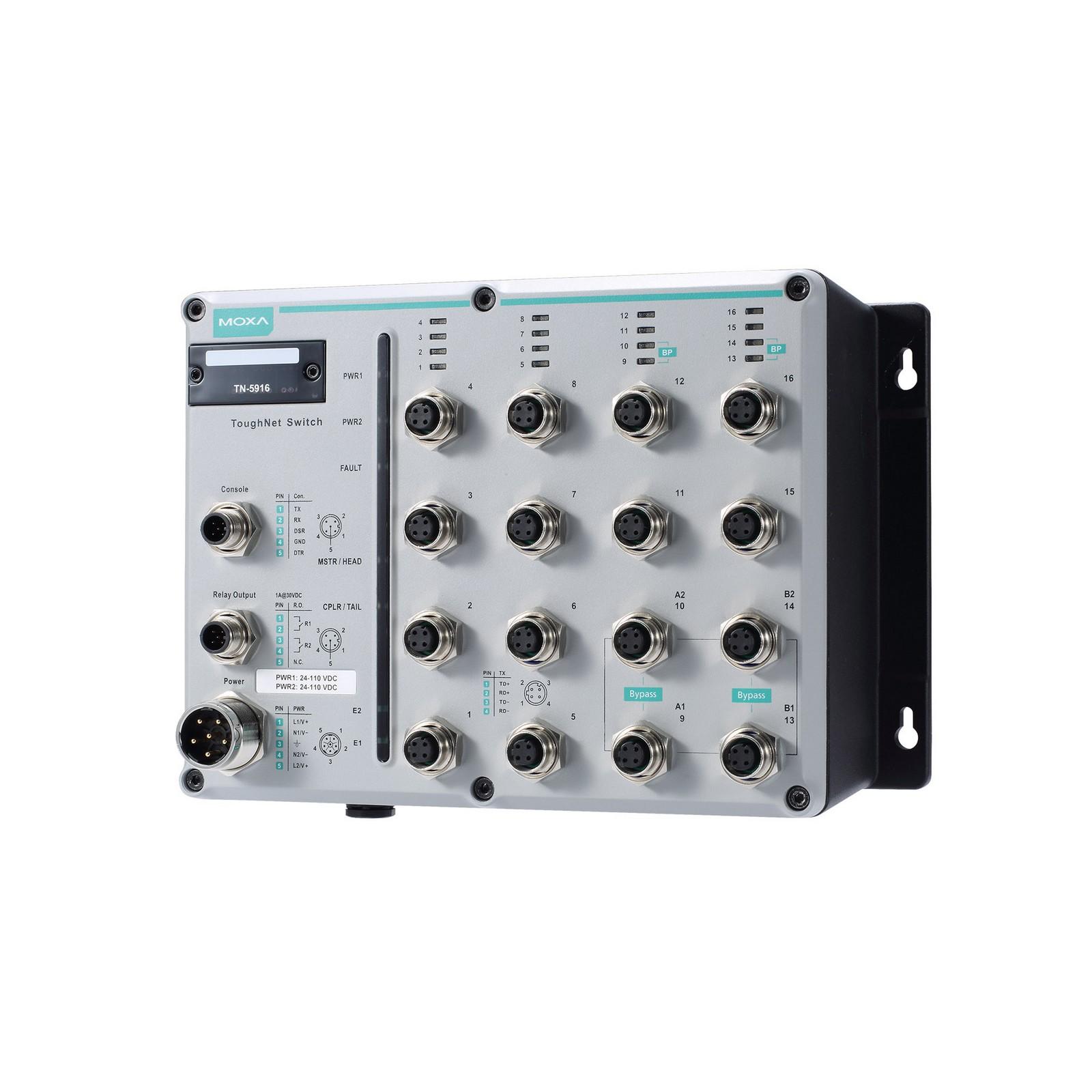

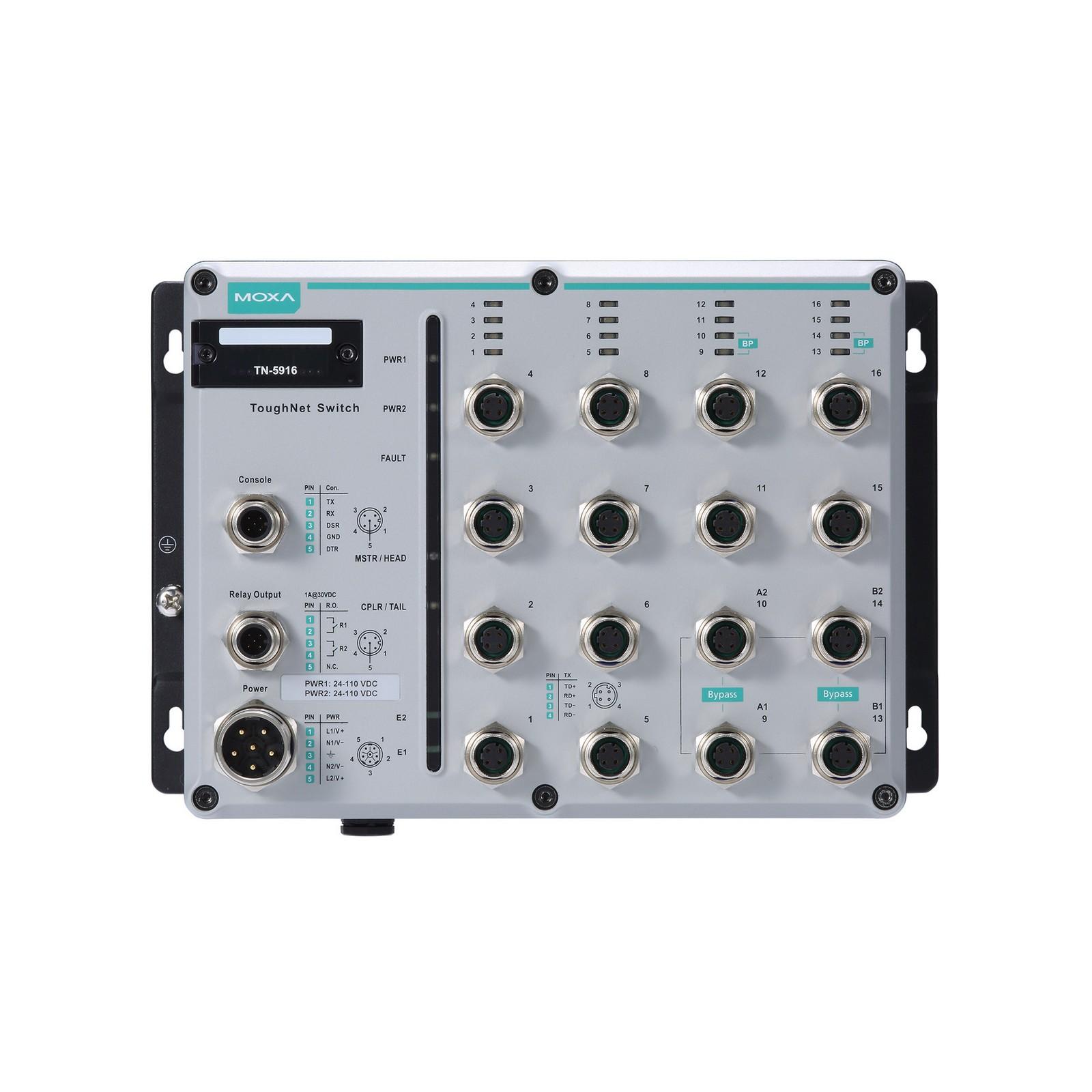

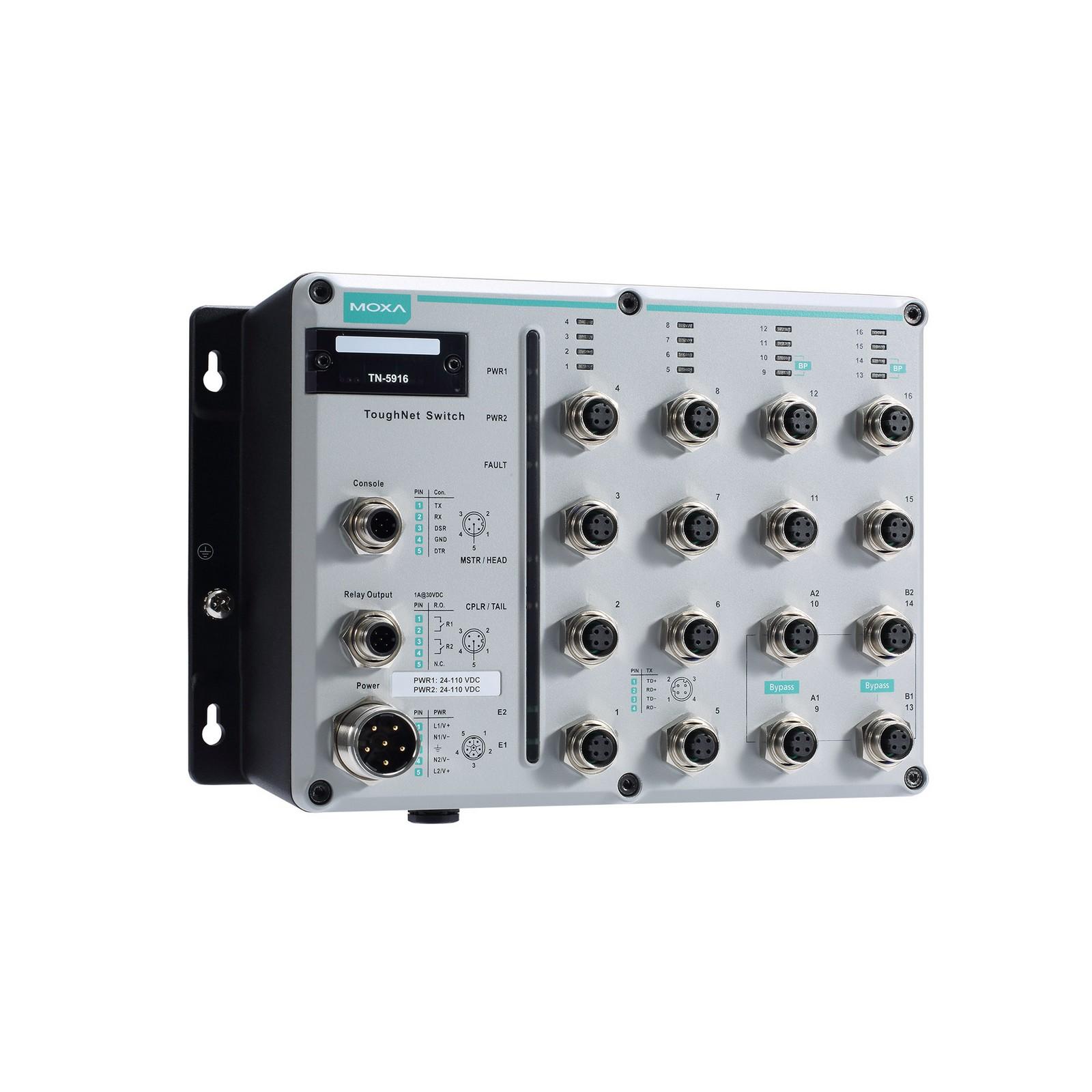

The ToughNet TN-5900–ETBN Series, designed for rolling stock backbone networks, are high-performance M12 routers with four bypass relay backbone ports. They support NAT and routing functionality to facilitate the deployment of applications across networks. The TN-5900–ETBN Series routers use M12 and other circular connectors to ensure tight, robust connections that guarantee reliability against environmental disturbances, such as vibration and shock.

The TN-5900–ETBN Series routers provide a wide power input range of 24 to 110 VDC. TN-5900–ETBN Series switches operate in an extended operating temperature range of -40 to 75°C and are compliant with the mandatory requirements of EN 50155/50121-4, making them suitable for a variety of industrial applications.



Additional Features and Benefits

  • Routing functionality to divide a large network into hierarchical subnets and allow data and information to communicate across networks
  • NAT makes IP management easier, since end devices in different carriages can use the same IP addresses
  • Leading EN 50155 Ethernet router for rolling stock applications
  • Turbo Ring and RSTP/STP for network redundancy
  • IGMP V1/V2 snooping for filtering multicast traffic
  • IEEE 802.1Q VLAN to ease network planning
  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to improve reliability
  • Panel mounting or DIN-rail mounting installation capability
  • SNMPv3, HTTPS, and SSH to enhance network security
  • SNMP v1/v2c/v3 for different levels of network management
  • Port mirroring for online debugging
  • Automatic warning by exception through email and relay output
  • Line-swap fast recovery
  • Automatic recovery of connected device’s IP addresses
  • LLDP for automatic topology discovery in network management software
  • Configurable by web browser, Telnet/serial console, and CLI Windows utility

Input/Output Interface

Alarm Contact Channels2 x relay output in one M12 A-coded 5-pin male connector with current
carrying capacity of 1 A @ 30 VDC

Ethernet Interface

10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)12
StandardsIEC 61375-2-3
IEC 61375-2-5
IEEE 802.3ad for Static Port Trunk
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.3 for 10BaseT
IEEE 802.3x for flow control
IEEE 802.3u for 100BaseT(X)
10/100BaseT(X) Ports (M12 D-coded 4-pin female connector
with bypass relay)
4

LED Interface

LED IndicatorsSTATE, PWR1, PWR2, FAULT, 10/100M

Serial Interface

Console PortM12 A-coded male connector

Physical Characteristics

ProtectionTN-5916-ETBN-WV-CT-T: PCB conformal coating
Dimensions250 x 175.8 x 116.3 mm (9.84 x 6.92 x 4.58 in)
HousingMetal
InstallationDIN-rail mounting (optional)
Wall mounting
IP RatingIP54
Weight4,030 g (8.88 lb)

Environmental Limits

Altitude2000 m
Ambient Relative Humidity5 to 95% (non-condensing)
Operating Temperature-40 to 75°C (-40 to 167°F)
Storage Temperature (package included)-40 to 85°C (-40 to 185°F)

Standards and Certifications

EMCEN 55032/24
EMSIEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
FreefallIEC 60068-2-31
Radio FrequencyFCC
RailwayEN 50121-4
EN 50155
IEC 60571
Railway Fire ProtectionEN 45545-2
SafetyIEC 60950-1
UL 61010-2-201
ShockIEC 60068-2-27, IEC 61373, EN 50155
VibrationIEC 60068-2-64, IEC 61373, EN 50155

Declaration

Green ProductRoHS, CRoHS, WEEE

Warranty

DetailsSee www.moxa.com/warranty
Warranty Period5 years
Name Type Version Release Date
Datasheet for TN-5900-ETBN Series Datasheet V1.0 09 January 2019
