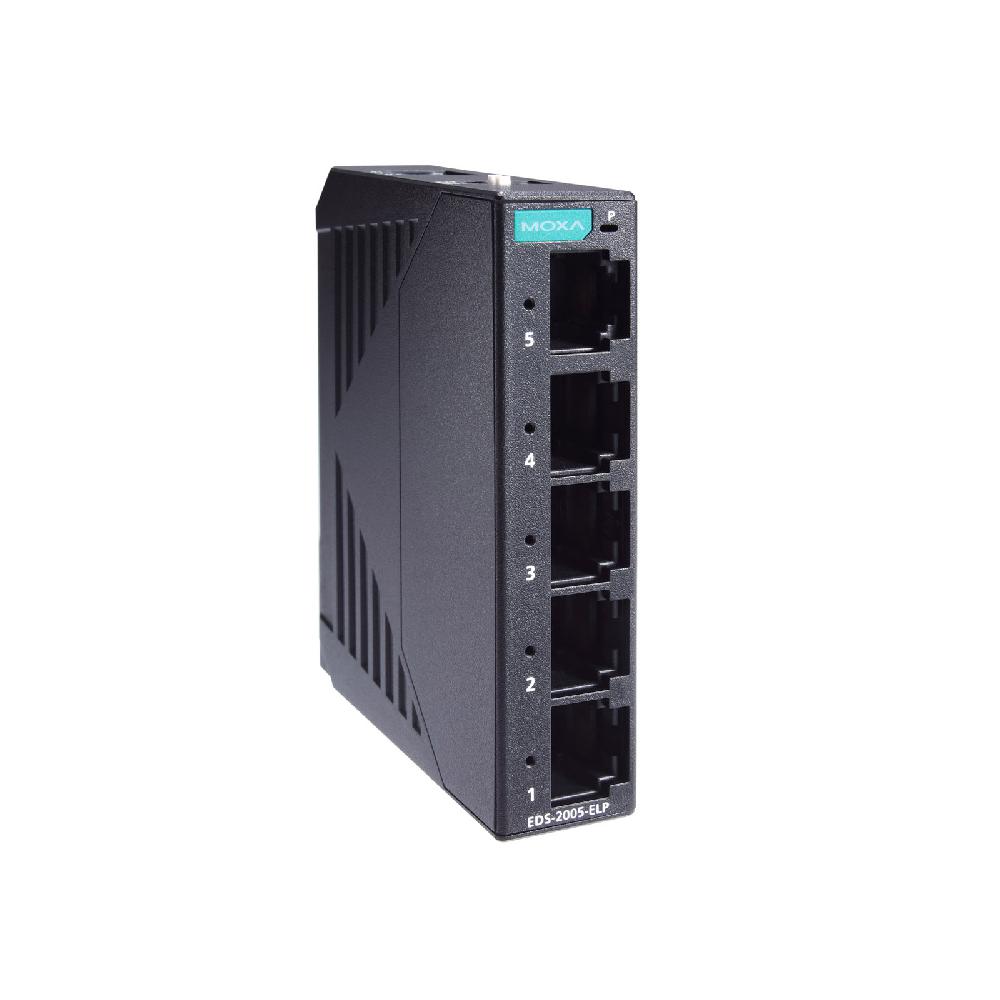

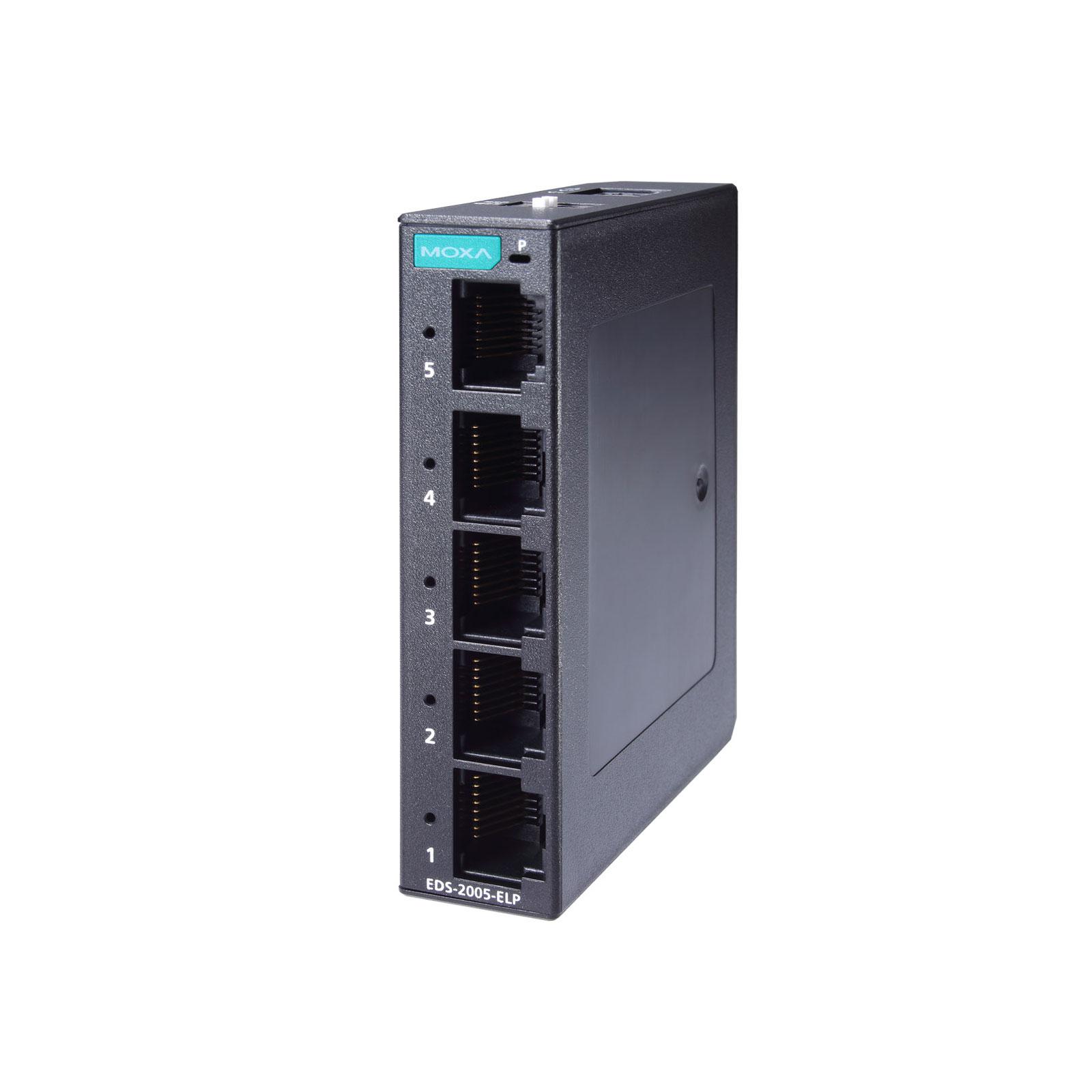

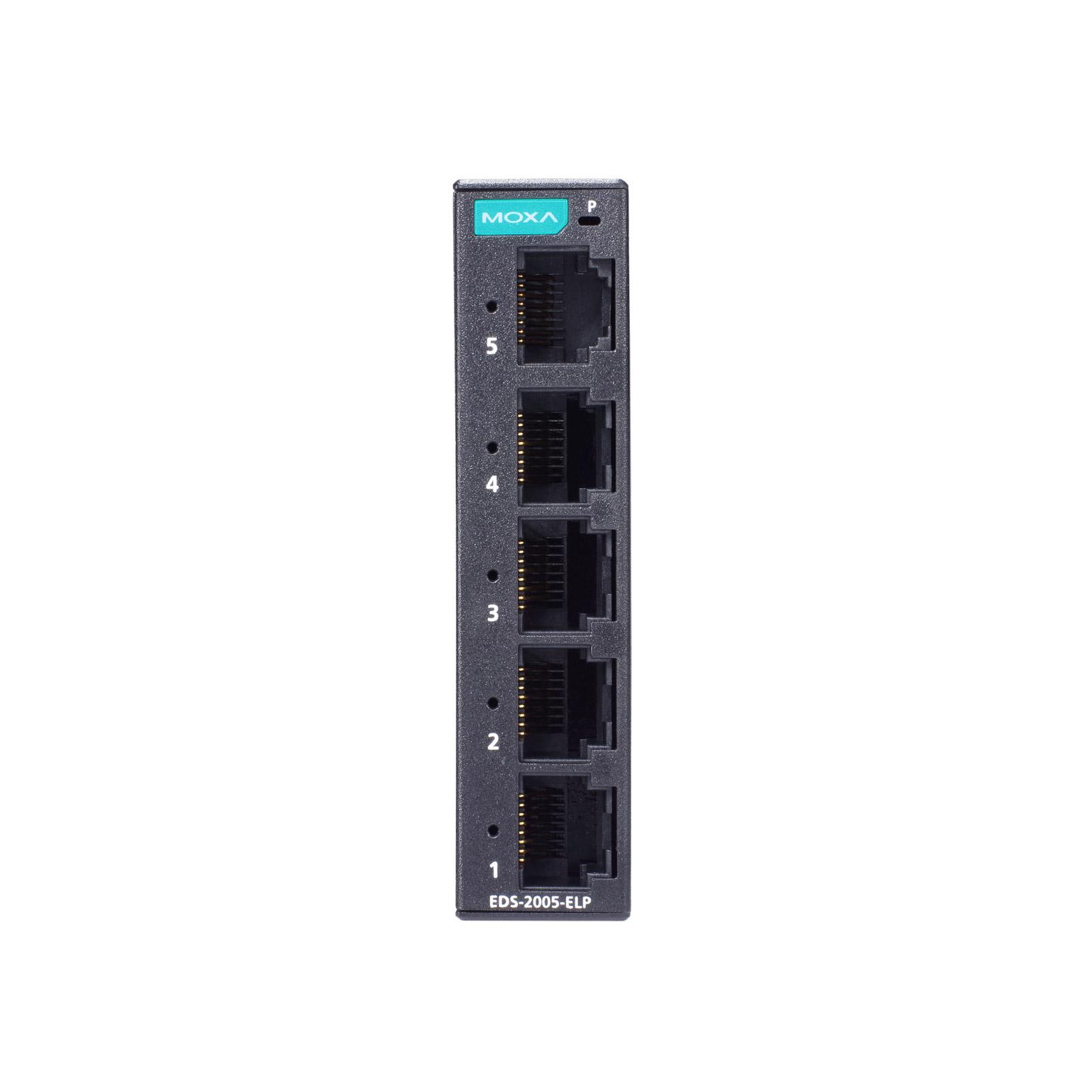

EDS-2005-ELP Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Ethernet Switches  >   Unmanaged Switches

5-port entry-level unmanaged Ethernet switches with plastic housing

Product Feature

  • 10/100BaseT(X) (RJ45 connector)
  • Compact size for easy installation
  • QoS supported to process critical data in heavy traffic
  • IP40-rated plastic housing

Introduction

The EDS-2005-ELP series of industrial Ethernet switches have five 10/100M copper ports and a plastic housing, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2005-ELP Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel.

The EDS-2005-ELP Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2005-ELP Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2005-EL Series has a standard operating temperature range of -10 to 60°C.

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
  • 5 Port
  • Full/Half duplex mode
  • Auto MDI/MDI-X connection
  • Auto negotiation speed
Standards
  • IEEE 802.3 for 10BaseT
  • IEEE 802.1p for Class of Service
  • IEEE 802.3u for 100BaseT(X)
  • IEEE 802.3x for flow control

Switch Properties

Processing TypeStore and Forward
MAC Table Size8 K
Packet Buffer Size4 Mbits

DIP Switch Configuration

Ethernet InterfaceQuality of Service (QoS), Broadcast Storm Protection (BSP)

Power Parameters

Connection1 removable 3-contact terminal block(s)
Input Current0.045 A @ 24 VDC
Input Voltage12/24/48 VDC
Operating Voltage9.6 to 60 VDC
Overload Current ProtectionSupported
Reverse Polarity ProtectionSupported

Physical Characteristics

Dimensions19 x 81 x 65 mm (0.74 x 3.19 x 2.56 in)
InstallationDIN-rail mounting, Wall mounting (with optional kit)
Weight56 g (0.12 lb)
HousingPlastic

Environmental Limits

Ambient Relative Humidity5 to 95% (non-condensing)
Operating Temperature-10 to 60°C (14 to 140°F)
Storage Temperature (package included)-40 to 85°C (-40 to 185°F)

Standards and Certifications

SafetyUL 61010-2-201, EN 62368-1 (LVD)
EMCEN 55032/35
EMICISPR 22, 32, FCC Part 15B Class A
EMS
  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  • IEC 61000-4-6 CS: 10 V
  • IEC 61000-4-8 PFMF
SHOCKIEC 60068-2-27
VibrationIEC 60068-2-6
FreefallIEC 60068-2-32

MTBF

Time4,814,369 hrs
StandardsTelcordia (Bellcore), GB

Warranty

Warranty Period5 Year
DetailsSee www.moxa.com/warranty

Package Contents

Device1 x EDS-2005 Series switch
Documentation
  • 1 x quick installation guide
  • 1 x warranty card
Name Release Date

EDS-2005-ELP

10/100BaseT(X) Ports (RJ45 connector) 5
Housing Plastic
Operating Temperature -10 to 60°C
