The ADDERLink® XD150 high-performance KVM (Keyboard, Video, Mouse) extender enables you to locate your
critical hardware in a secure and temperature controlled environment, away from the user work station, whilst
maintaining the original user desktop experience. Extension of high resolution video, USB 2.0 and audio signals is
complemented with support for a wide range of USB devices.
Hardware compatibility |
| All computers with DVI, USB and audio |
DVI Interface |
| The system supports resolutions to a maximum of 1920 x1200@60Hz. |
USB 2.0 |
| Supports USB 2.0 devices (low, full and hi-speed). Isochronous devices are supported. |
Software compatibility |
| All known operating systems. |

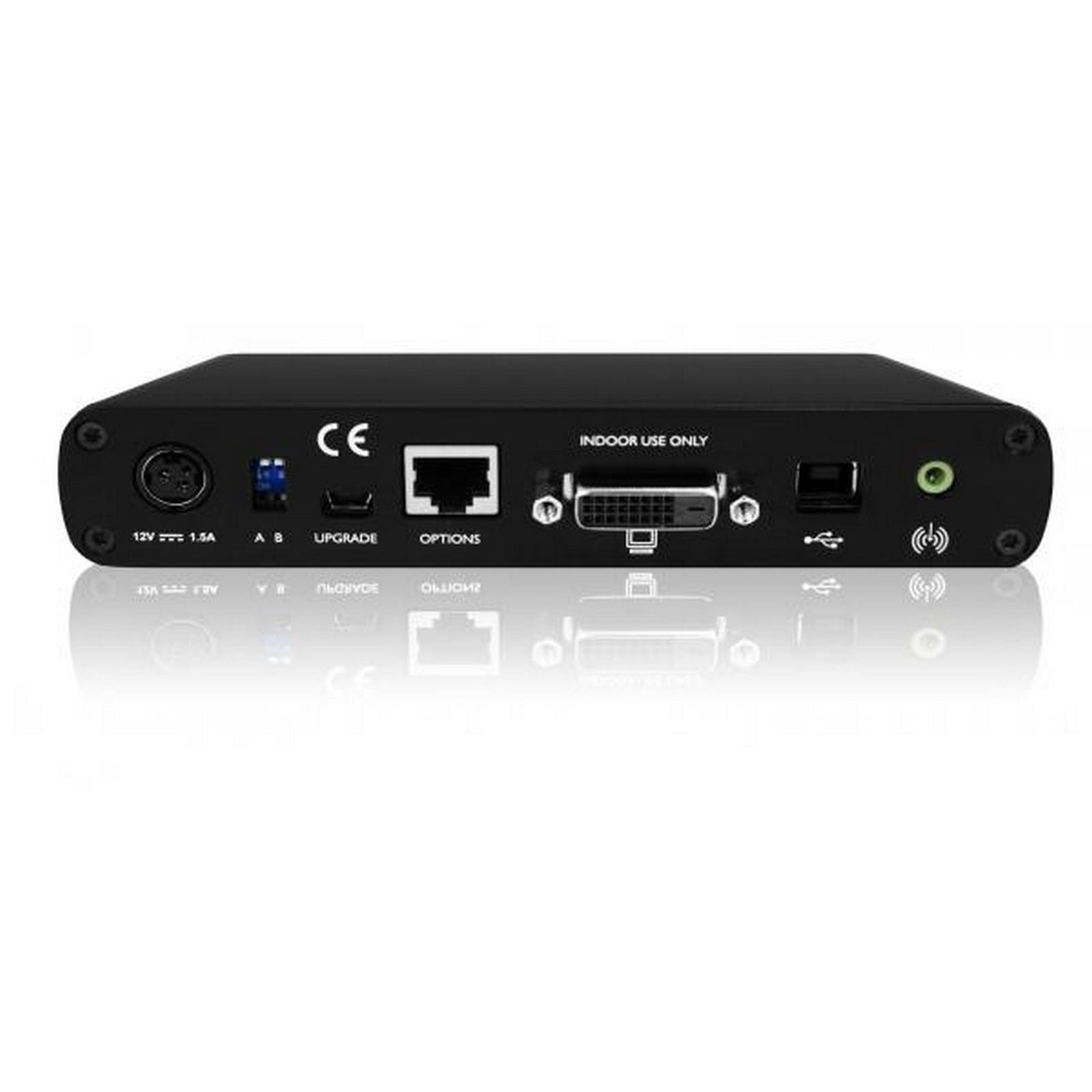

Computer connections LOCAL transmitter |
| DVI , audio 3.5mm in, USB type B, RS232 10p10c options port, Micro USB for firmware upgrade. |
Peripheral connections REMOTE receiver |
| DVI, audio 3.5mm out, USB type A x 4, RS232 10p10c options port. |
Physical design |
| Compact case, robust metal construction. 169mm/6.65” (w), 31mm/1.22” (h), 120mm/4.8” (d), 0.6kg/1.3lbs. |
| Name | Type | Version | Release Date | |
| ADDERLink XD150 Datasheet | Datasheet | 03 August 2020 |
