ADDERLink X-DVI PRO-MS

Home > Adder > Extenders >
USB Extenders

The ADDERLink X-DVI PRO-MS Dual Head extender distributes uncompressed digital video with audio over twin cables to multiple screens up to 50m away, with USB 2.0 connection to interface with a range of devices

Product Feature

AdderLink X-DVI PRO MultiScreen is a high performance KVM (Keyboard, Video and Mouse)
extender that enables you to locate your critical computing hardware in a secure and
temperature controlled environment, away from the user work station environment, whilst
maintaining the same user experience. It can transmit two Single Link DVI video streams, USB 2.0 and analog audio over two CATx cables.

Plug and play,
50 meter extension distance,
Dual screens at 1920 x 1200 @ 60Hz maximum resolution,
USB 2.0 Low and Full speed,
Keyboard, mouse, tablet and touch.

Part of the ADDERLink® X-DVI PRO range, the high-performance X-DVI PRO-MS digital KVM (Keyboard, Video and Mouse) and USB
extender enables you to locate your critical computing hardware in a secure and temperature controlled environment. Uncompressed
digital video and audio is distributed in real-time and with zero latency to multiple screens, allowing the user to maintain an at-the-PC
experience. The USB 2.0 interface ensures compatibility with a wide range of USB devices. It can transmit two Single Link DVI video
streams, USB 2.0 and analog audio up to 50m over a twin CATx cables to multiple screens.

Delivers uncompressed digital video with audio
USB 2.0 Low and Full speed connection: to interface with a range of devices
Exact content seen on the local monitor is distributed: up to 50m over a twin CATx cable
Energy efficient design: external power supplies are not needed
X-DVIPRO-MS: enables dual screens at 1920 x 1200 @ 60Hz maximum resolution

Hardware compatibility

All computers with DVI-D, USB and audio - requirement dependent.

DVI-D Interface – digital only

The system supports resolutions to a
maximum of 1920 x 1200 @ 60Hz per head.

USB 2.0 Low and Full speed

Transparent USB 2.0 (Low and Full speed) that
supports HID and mass storage devices to a
maximum of 50 meters. You may need to reduce
maximum cable length by 5 meters if a USB
hub is connected to the receiver unit.

Audio

The system delivers analog stereo audio
(Line Out). 8 channels of HDMI audio
are supported with sample sizes of 16,
20 or 24 bits at 32kHz, 44.1kHz, 48kHz,
88.2kHz, 96kHz, 176.4kHz, or 192kHz
(simultaneously with the jack audio).

Software compatibility

All known operating systems.

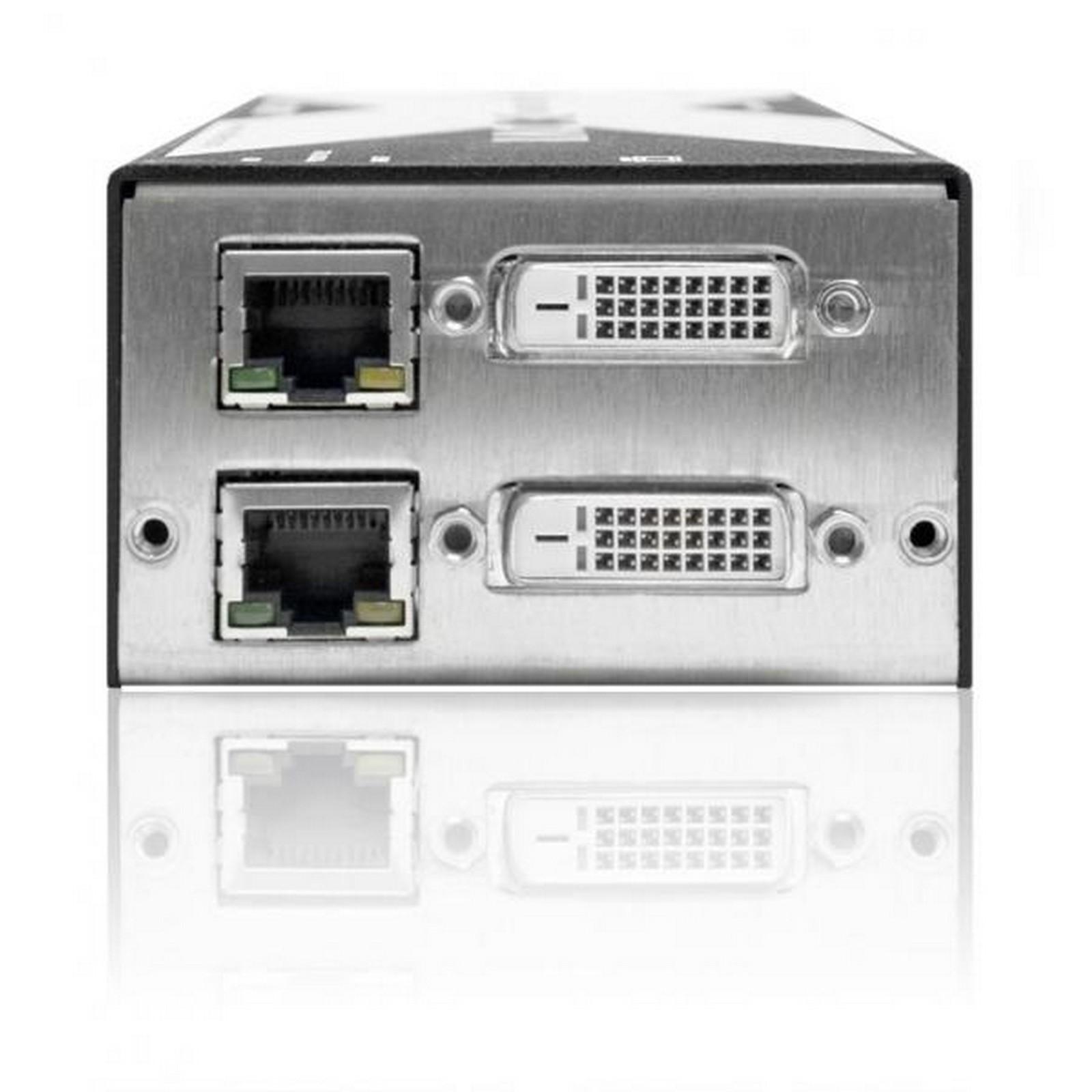

Computer connections Transmitter (TX)

2 x DVI-D, audio 3.5mm in, USB type B.

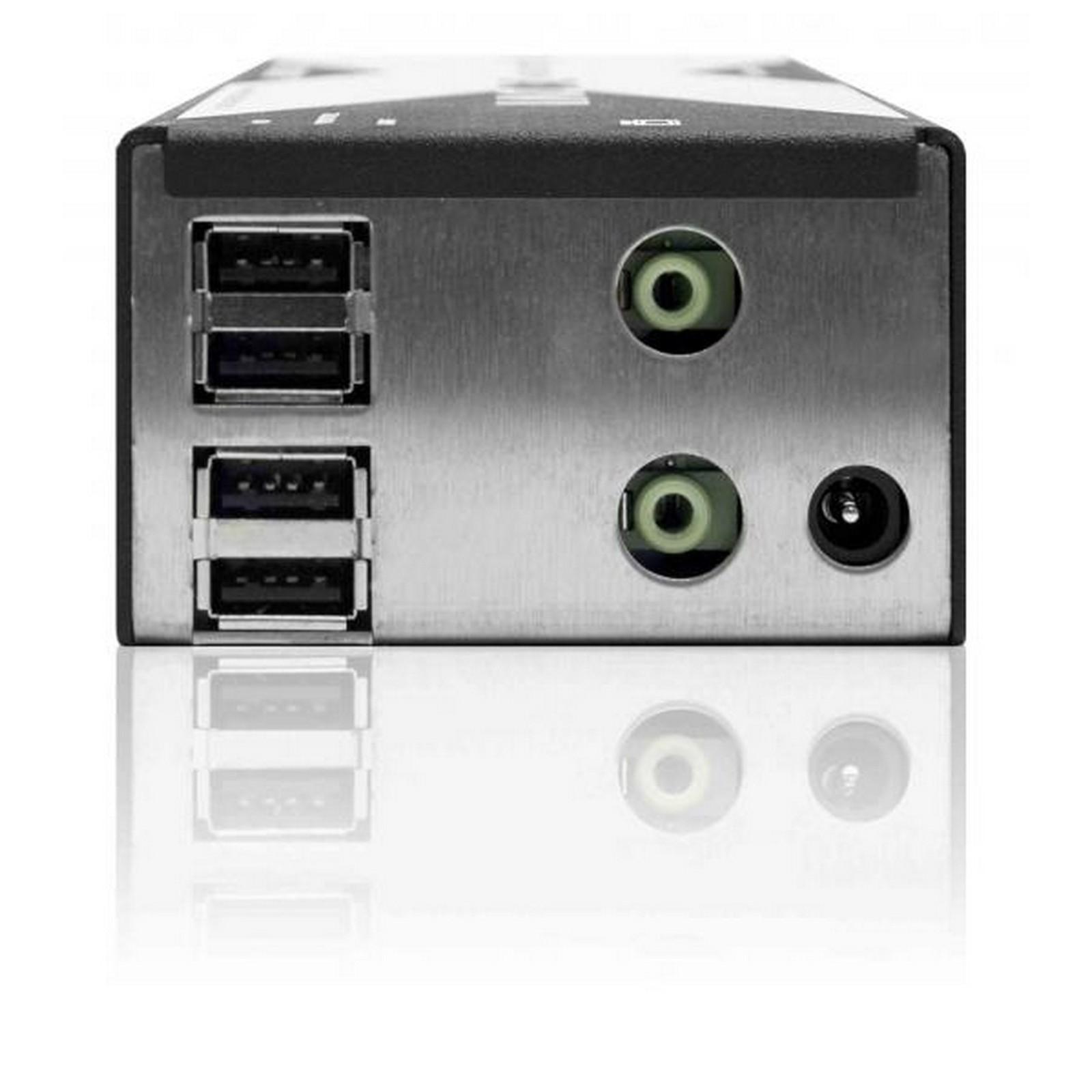

Computer connections Receiver (RX)

2 x DVI-D, audio 3.5mm out, USB type A x 4

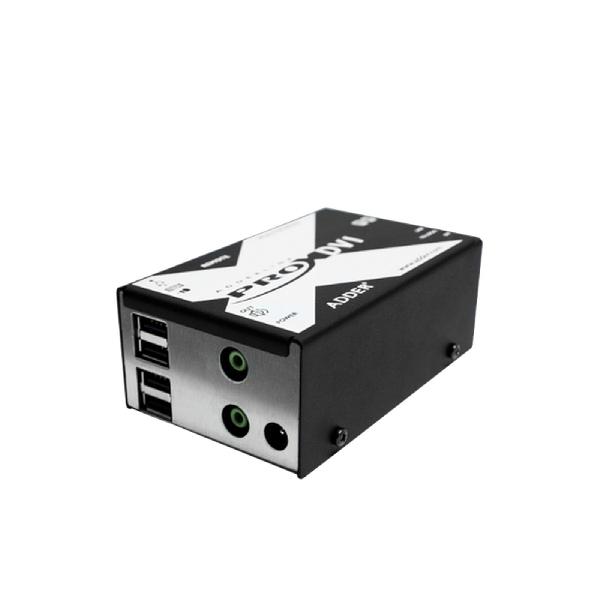

Physical design

Compact case, robust metal construction
120mm / 4.7’’ (w) x 75mm / 3’’(d) x
48mm / 2’’ (h) 500g / 1.1 lb.

Power

Rx: 2.5mm DC jack (power adapter
included),100-240VAC 50/60Hz, 0.4A,
input to power adapter, 5VDC 12.5W
output from power adapter.
Tx: Powered from two USB connections.
Optional 2.5mm DC jack (power adapter
not included.

Operating temperature

0 to 40ºC / 32 to 104ºF.

Approvals

CE, FCC.

Name		Type	Version	Release Date
ADDERLink X-DVI PRO MultiScreen Datasheet		Datasheet	V3.0	04 August 2020
