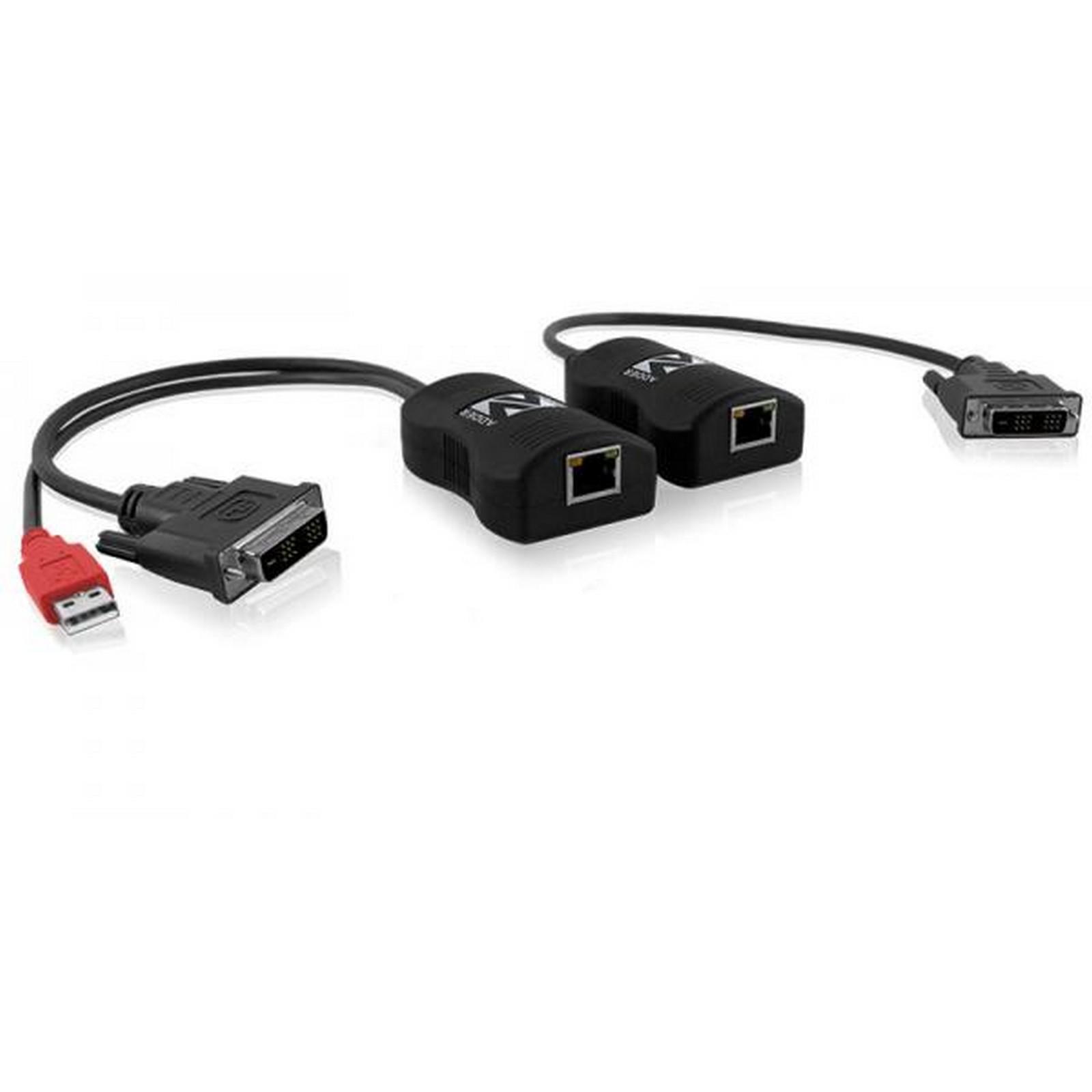

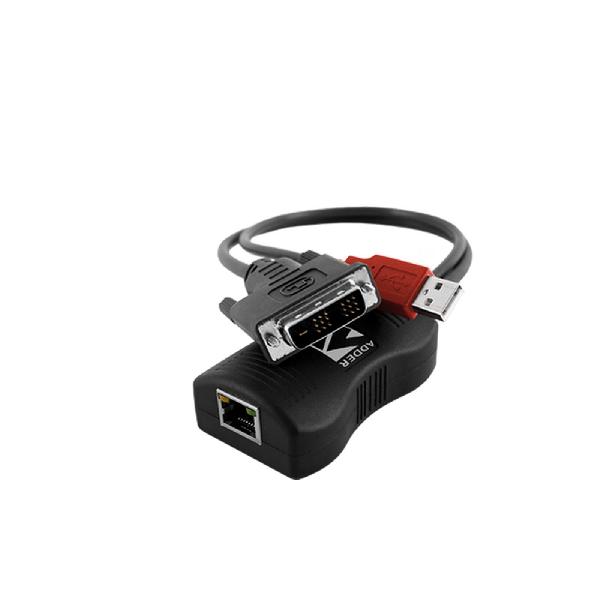

ADDERLink® DV120 is an easy to install, highly compact digital video extender system capable of transmitting an HD video stream over
a single CATx cable via a DVI connection. This allows you to locate your media playback hardware in a secure and temperature-
controlled environment. Your valuable systems are kept safely away from the display point environment whilst maintaining precisely the
same user experience.
Hardware compatibility |
| All computers with DVI-D and USB connections - requirement dependent |
DVI-D interface |
| The system supports resolutions such as 480p, 720p, 1080P or WUXGA (1920 x 1200) @ 60Hz* and 24 bit color depth * with reduced blanking |
Software compatibility |
| All known operating systems. |
Computer connections Transmitter (TX) |
| DVI-D male, USB type A (for power only) |
Computer connections Receiver (RX) |
| DVI-D male |
Power |
| USB powered, 5VDC -2.5W for both RX and TX units combined |
| Name | Type | Version | Release Date | |
| ADDERLink DV120 Datasheet | Datasheet | V2.3 | 04 August 2020 |
