ADDERLink X-DVI PRO-DL

Home > Adder > Extenders >
USB Extenders

Dual link resolutions deliver uncompressed digital video with audio to a remote screen up to 50m away, with USB 2.0 connection to interface with a range of devices

Product Feature

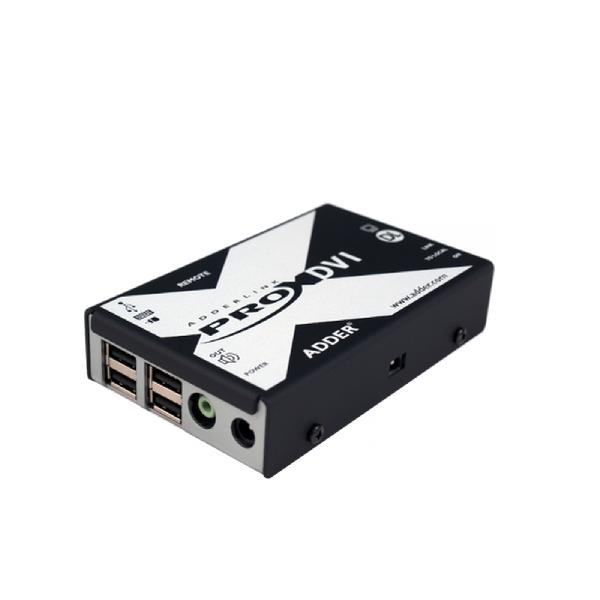

ADDERLink X-DVI PRO DL is a high performance KVM (Keyboard, Video, Mouse) extender that
enables you to locate your critical computing hardware in a secure and temperature controlled
environment away from the user work station, whilst maintaining the same user experience. It
can transmit a dual link video stream, USB 2.0 and analog audio over a single CATx cable.

Plug and play
50 meter extension distance
2560 x 1600 @ 60Hz max resolution
USB 2.0 Low and full speed
Keyboard, mouse, tablet and touch screen

Part of the ADDERLink® X-DVI PRO range, the X-DVI PRO-DL high-performance, digital KVM (Keyboard, Video and Mouse) and USB
extender enables you to locate your critical computing hardware in a secure and temperature controlled environment. Uncompressed
digital video and audio is distributed in real-time and with zero latency via a Dual Link DVI video stream, allowing the user to maintain
an at-the-PC experience. The USB 2.0 interface ensures compatibility with a wide range of USB devices.

Dual Link resolutions: deliver uncompressed digital video with audio
USB 2.0 Low and Full speed connection: to interface with a range of devices
Exact content seen on the local monitor is distributed: up to 50m over a single CATx cable
Energy efficient design: external power supplies are not needed
X-DVI PRO-DL: enables single screen at 2560 x 1600@60Hz

Product codes

Hardware compatibility

All computers with DVI-D, USB and Audio
- requirement dependent.

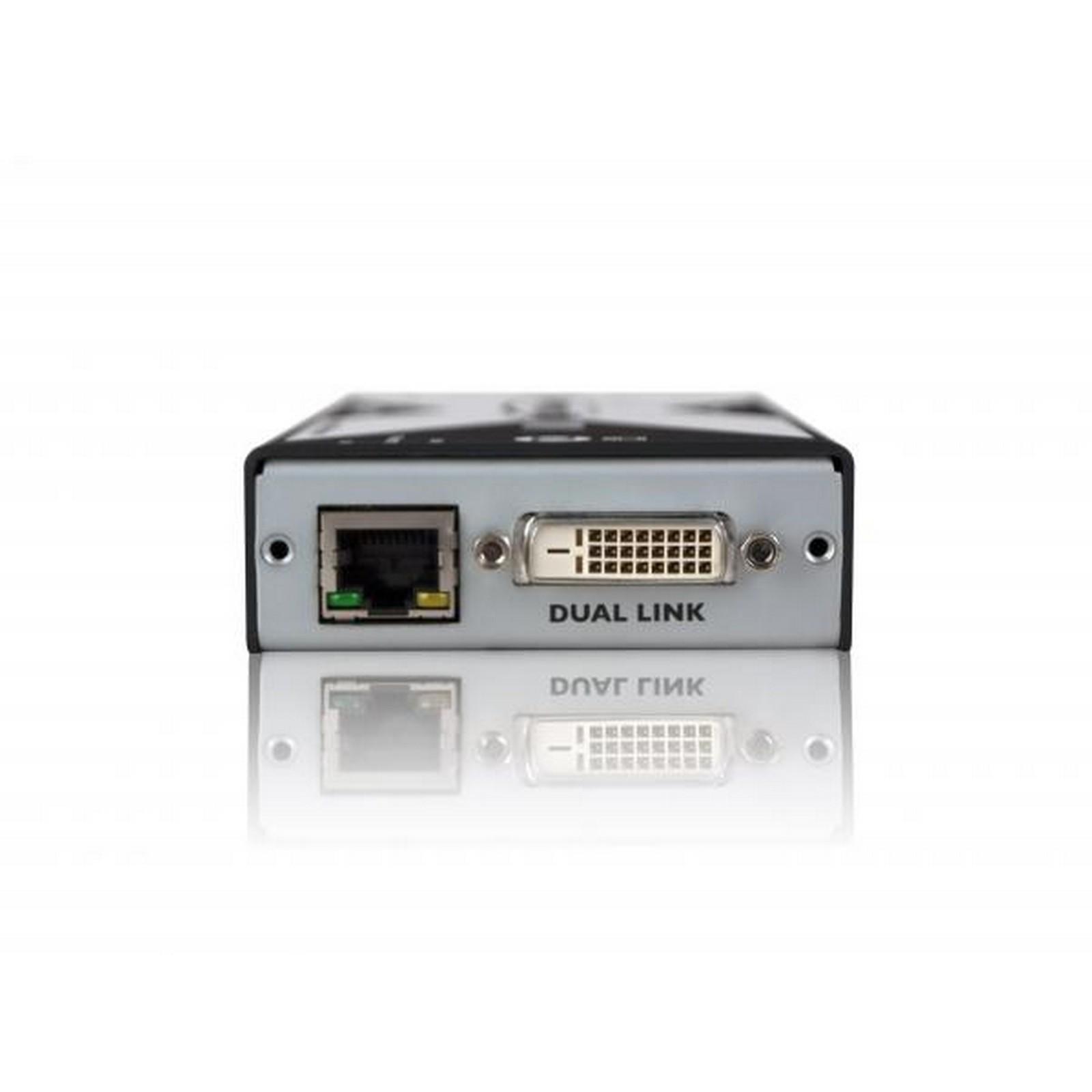

DVI-D Interface – digital only

The system supports resolutions to a
maximum of 2560x1600 @60Hz.

USB 2.0 Low and Full speed

Transparent USB 2.0 (full and low speed)
that supports HID, isochronous and
mass storage devices to a maximum
of 50 meters. Reduce maximum cable
length by 5 meters if a USB hub in
connected to the receiver unit.

Audio

The system delivers analog stereo audio
(Line Out).

Software compatibility

All known operating systems.

Computer connections Transmitter (TX)

DVI-D, Audio 3.5mm in, USB type B.

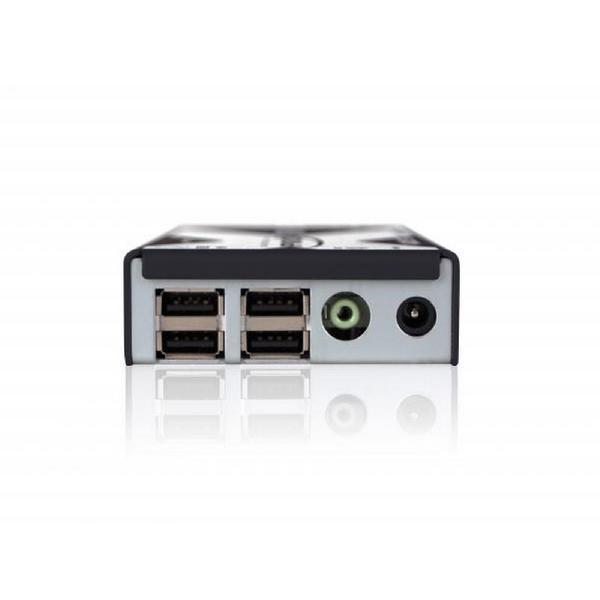

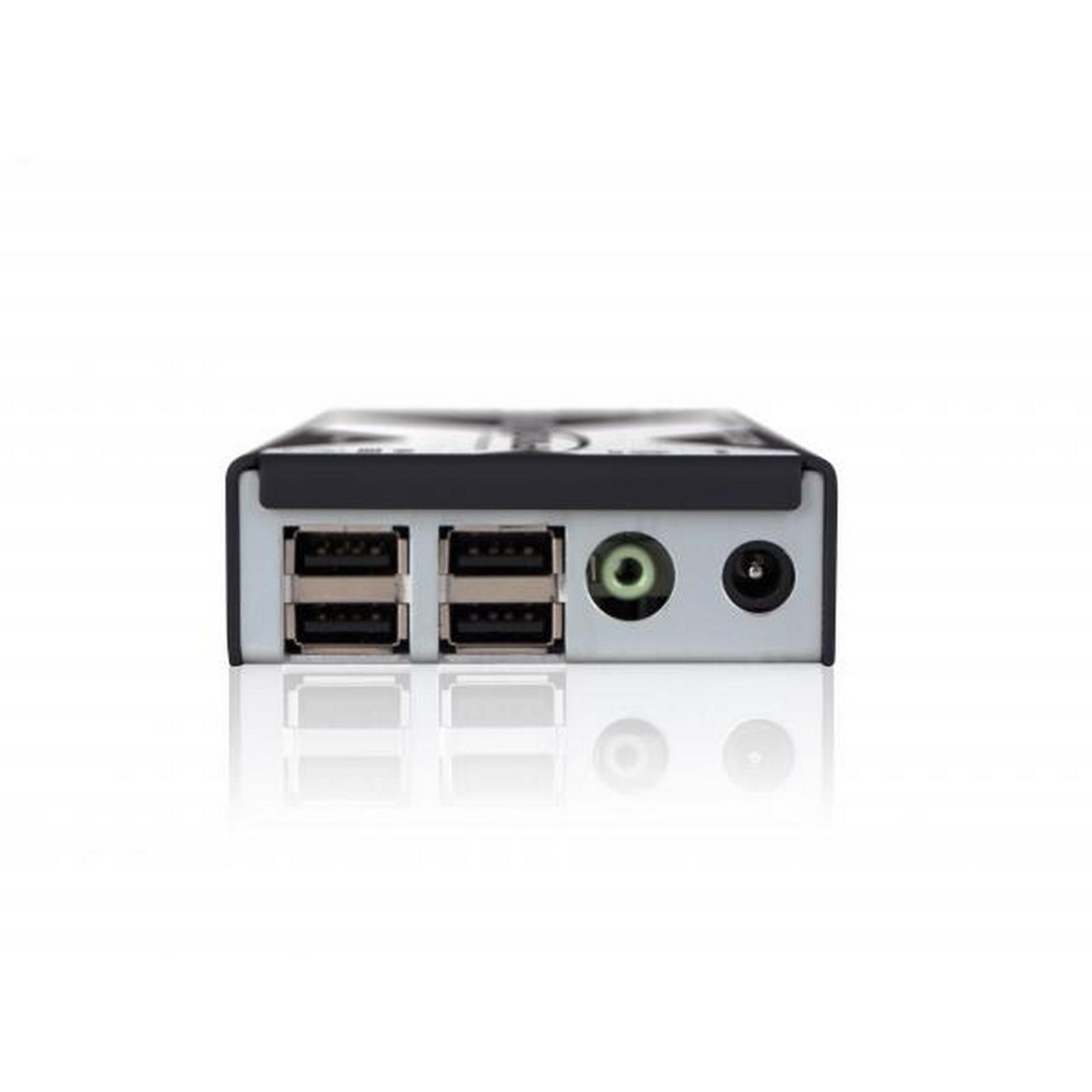

Computer connections Receiver (RX)

DVI-D, Audio 3.5mm out, USB type A x 4.

Name		Type	Version	Release Date
ADDERLink X-DVI PRO DL Datasheet		Datasheet	V2.0	04 August 2020
