Pixel-perfect digital video extension with simultaneous audio via an HDMI connection. Distributing content in line with the High-bandwidth Digital Content Protection (HDCP) standard to enable uninterrupted extension across distances of up to 50m over a single CATx cable
Product Feature
Pixel-perfect digital video: using an uncompressed communication system with zero loss of data for resolutions up to 1920 x 1200 @ 60Hz (WUXGA)
Digital audio: Supports 8 channels of HDMI audio
Support for HDCP: in line with the High-bandwidth Digital Content Protection (HDCP) of the HDMI standard, to prevent the interruption of data flow
Video, audio and power share a single cable of up to 50m: distribution up to 50m over a single CATx cable (achievable extension distance dependent on cable type and number of connection intervals)
High energy efficiency: power is harvested from a standard USB socket so external PSUs are not needed
Interchangeability amongst the ADDERLink DV family of extenders: enabling cross-connection between HDMI transmitters and DVI-D receivers
EDID management: Extended Display Identification Data (EDID) enables the remote system to exactly mirror the data coming from the source monitor
Plug and Play: ADDERLink DV100 extenders are delivered in a zero config state so they work as soon as they are connected, without the need for drivers or software
Robust yet lightweight: tough but light ABS enclosures along with reliable internal and external connectors to withstand environmental pressures

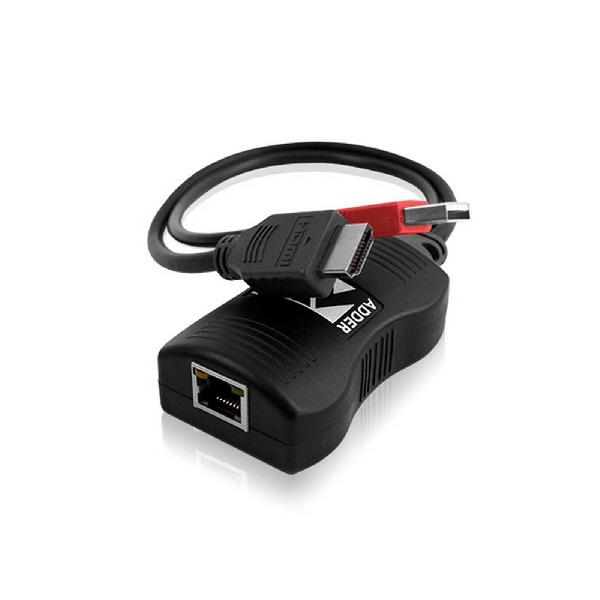

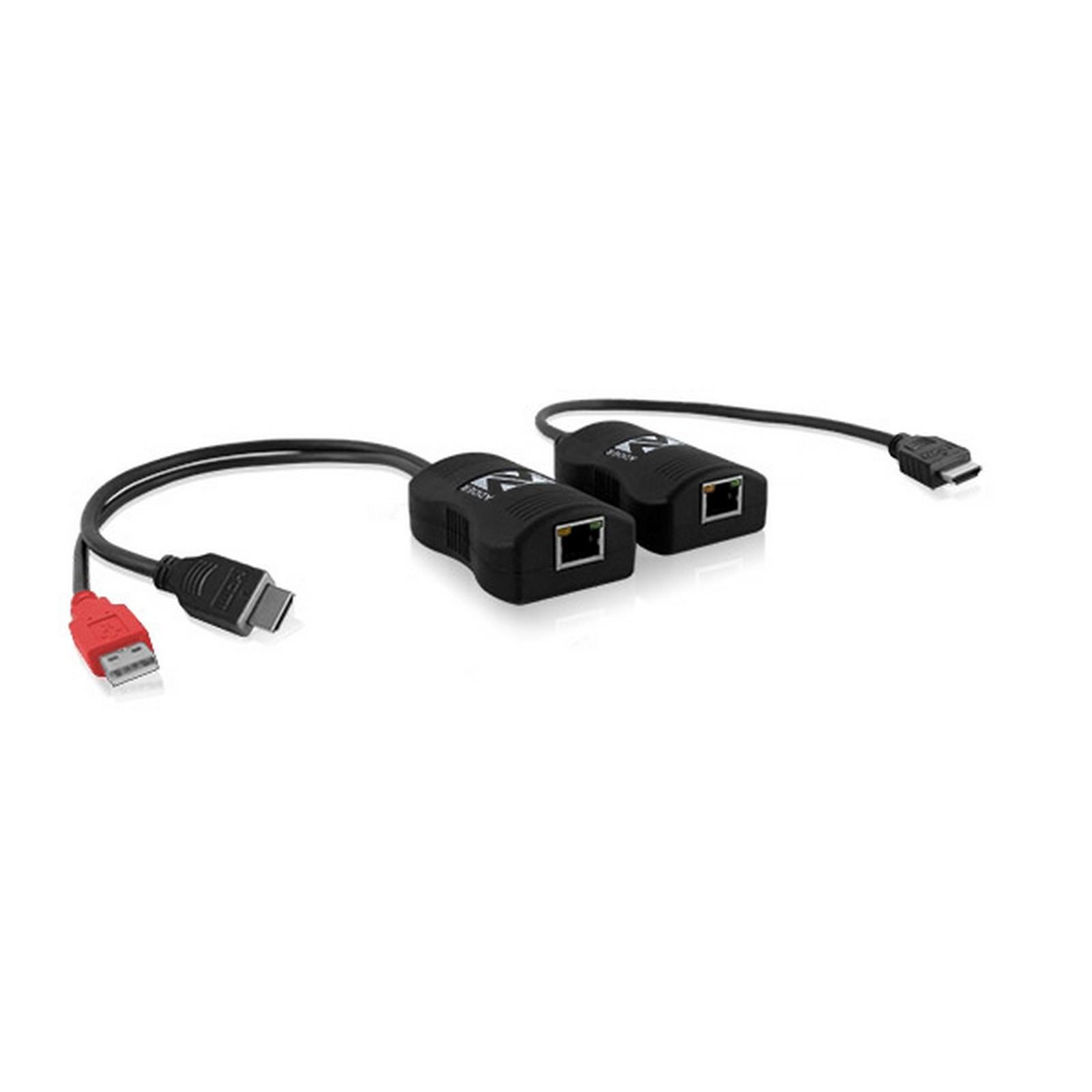

ADDERLink® DV100 - HDMI is an easy to install, highly compact digital video extender system capable of transmitting an HD video stream with simultaneous audio over a single CATx cable via HDMI connection. Allows you to locate your media playback hardware in a secure and temperature-controlled environment. Your valuable systems are kept safely away from the display point environment whilst maintaining precisely the same user experience.
Pixel-Perfect: delivers digital video and simultaneous audio with optimum clarity
Distributes the exact content seen on the local monitor: up to 50m over a single CATx cable via HDMI
External power supplies are not needed: energy efficient design uses less than an eighth of the power required by some competing systems
Small form factor dongle: ensures optimum space saving
Audio
Audio The system delivers 8 channels of HDMI audio with sample sizes of 16, 20 or 24bit at 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, or 192kHz.
Approvals / Compliance
CE,FCC
Standards
HDMI interface The system supports resolutions such as 480p, 720p, 1080p or WUXGA (1920 x 1200) @ 60Hz (with reduced blanking) and 24bit color depth.
Hardware compatibility: All computers with HDMI connections.
Cable Guidelines
Important extension distance Information: Recommended cables are CAT7 shielded foiled twisted pairs:
Daetwyler 7702 Flexible patch cable
Daetwyler 7120 Bulk Cable.
CAT6 (or better) shielded twisted pair cable must be used to connect the local and remote units in order to maintain compliance with radio frequency energy emission regulations and ensure a suitably high level of immunity to electromagnetic disturbances.
Resolution
Frequency
Patch Connections
Cable Type
Distance
1920x1200
60Hz
0
CAT7a
50 metres
1920x1200
60Hz
0
CAT6a (shielded)
50 metres
1920x1200
60Hz
2
CAT6a (shielded)
40 metres
1920x1200
60Hz
2
CAT7a
40 metres
Note: Distances are achieved using single lengths of trunk/bulk cable. For each break/patch connection reduce distance by 5m. Preferably patch cables should be of type CAT7 and less than 2m.
