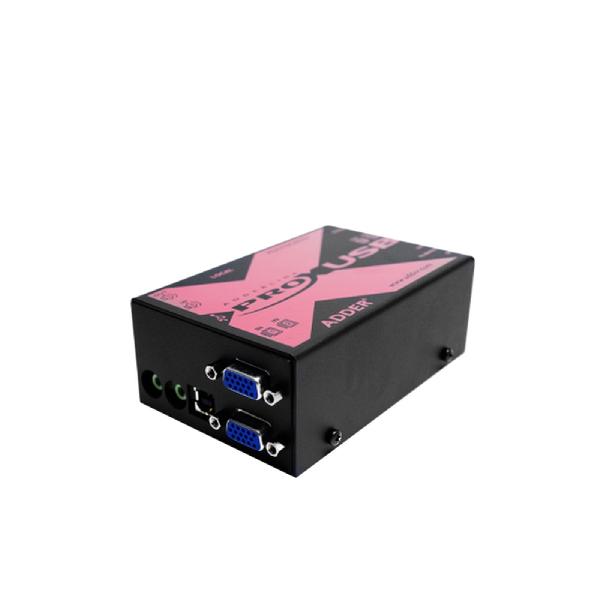

ADDERLink X-USB PRO MS

Home > Adder > Extenders >
USB Extenders

The ADDERLink X-USB PRO MS is Adder’s next generation USB, video and audio extender, distributing uncompressed data to deliver sharp, bright, high resolution video images and high quality audio to single or dual user consoles up to 300m (1000ft) away over a single CATx cable to multiple screens

Product Feature

Multiscreen: replicating the exact content shown on the local monitor
Digital-quality video: VGA resolutions of up to 1920 x 1200 @60Hz are achievable at 300m (1000ft). Variable noise filter for extension in excess of 200m
Video compensation: Multi-pole compensation technique enables uncompromised video quality at maximum distance over a single cable. Color skew compensation and gain adjustment controlled from the receiver’s keyboard to ensure crystal clear images
Local feed through port: for audio and video, enabling a local console to be used
USB powered transmitter: reduces the need for external supplies, with external power supply in place as backup

Designed for multiscreen desktop environments, ADDERLink® X-USB PRO MS delivers uncompressed USB, VGA video and audio
extension up to 300m over a single CATx cable. Two users can remotely access and interact with the same system simultaneously from
their respective multiscreen desktop configurations, benefitting from industry-leading video clarity, system compatibility and space
saving.

Video resolutions

Video resolution up to 1920x1200 at 60Hz

Skew compensation

62ns de-skew with 2ns resolution (1/4 pixel at 1600x1200)

Extension Distance

200 meters using CAT5 Trunk cable
250 meters using CAT5e Trunk cable
300 meters using CAT6 Trunk cable
300 meters using CAT7 Trunk cable
200 meters using CAT7a Patch cable

Audio (end to end)

16 bit stereo audio at 44.1 KHz
THD+N typically -80dB at 1kHz
SNR typically 85dB at 1kHz

O/S Compatability

Operating system independent

Connectors (local / remote)

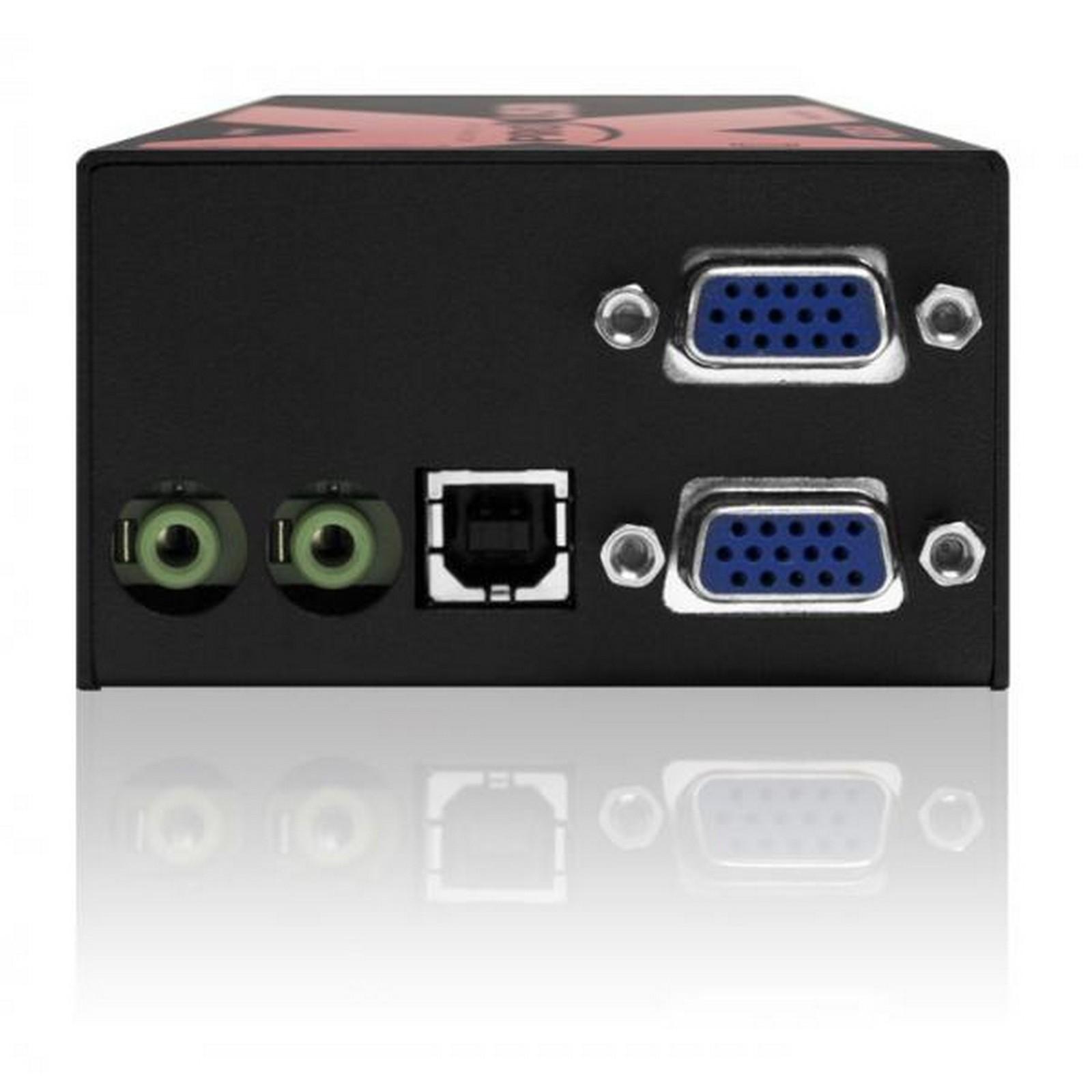

Local: 4 x 15 Pin D Type VGA, 1 x USB B,
power jack, 2 x 3.5 mm jack socket and 2
x RJ45

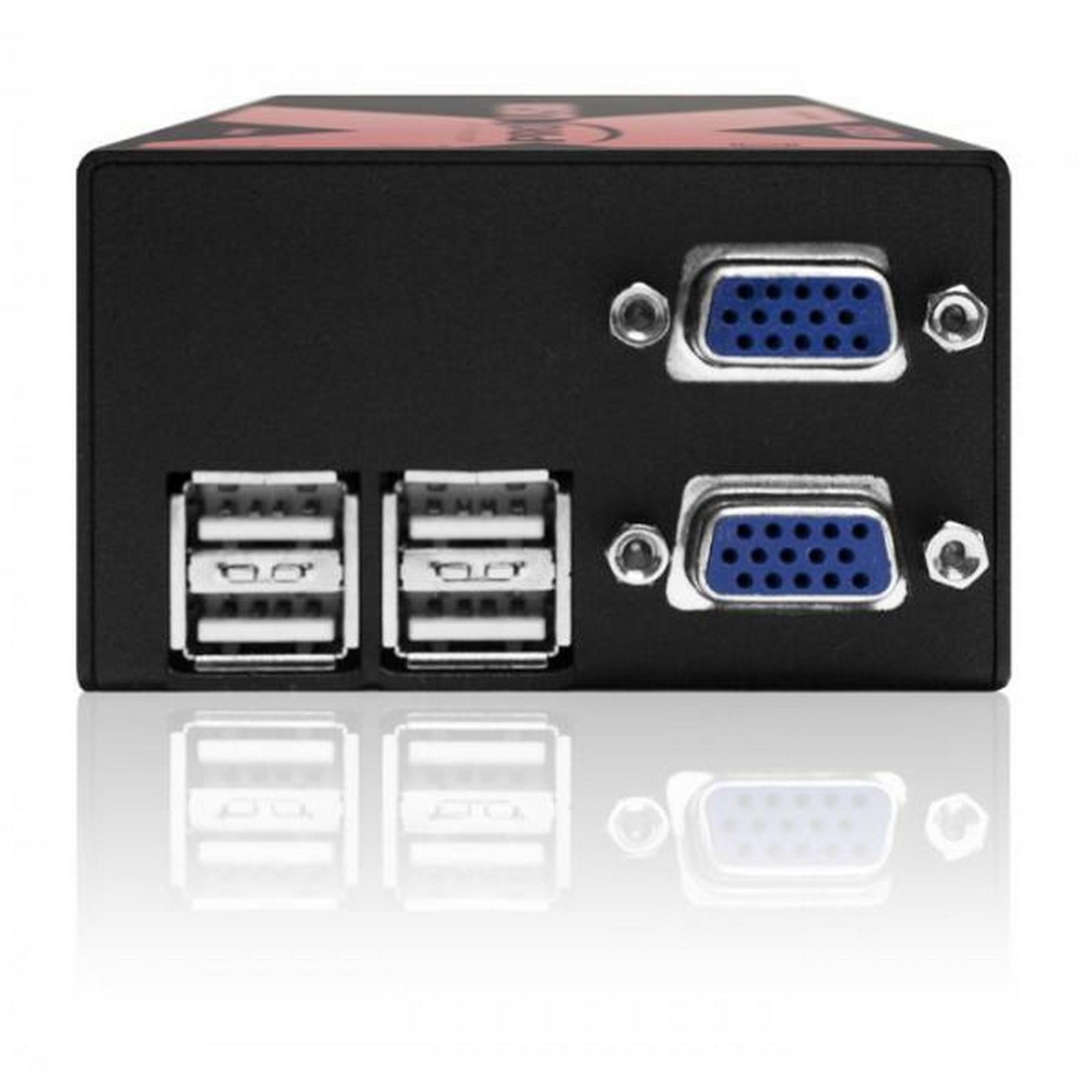

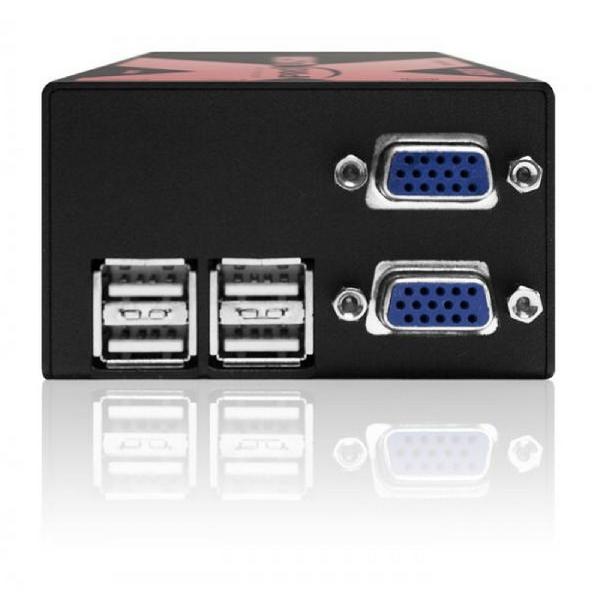

Remote: 2 x 15 Pin D Type VGA, 4 x USB A,
power jack, 3.5mm jack socket and 2
x RJ45

Physical design

Local: All metal case, 122mm / 4.7’’ (w)
x 75mm / 3’’(d) x 48mm / 2’’ (h) 500g / 1.1 lb.
Remote: All metal case, 162mm / 6.4’’ (w)
x 75mm / 3’’(d) x 48mm / 2’’ (h) 650g / 1.4 lb.

Name		Type	Version	Release Date
ADDERLink X-USB PRO Multiscreen Datasheet		Datasheet	V2.0	05 August 2020
