The CATx Dual Computer Access Modules (CAMs) are highly compact devices that allow you to share a single computer between two
sets of peripheral devices. In simple terms the CAM can be viewed as a combined video splitter and peripheral hub. This is useful for
mixing local and remote stations or mixing KVM with extension or signage systems.
The module connects to the video, USB, audio and RS232 ports of your computer and then connects via CAT 5, 5e or 6 cabling to the
ADDERView® CATx KVM switches and/or ADDER extender receivers (either ADDERLink® X100 or X200), each of which can be located
up to 300 meters from the module. Your video display, keyboard, mice and speakers are linked to the remote devices.
The CATX-USB-DA variant is not fitted with audio or serial ports but is otherwise identical to the CATX-USBA-DA model.
Video resolutions |
| Maximum of 1920x1200@60Hz |
Extension Distance |
| 300 meters at 1280x1024 @ 60Hz 200 meters at 1600x1200 @ 60Hz 100 meters at 1920x1200 @ 60Hz |
O/S Compatability |
| Operating system independent |
Connectors |

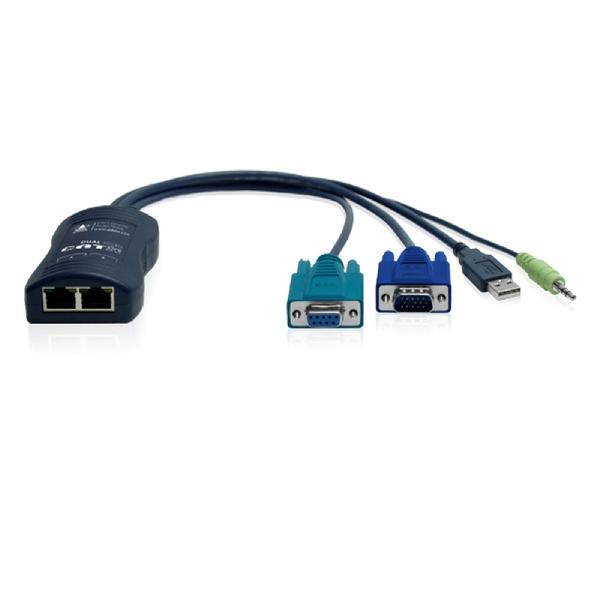

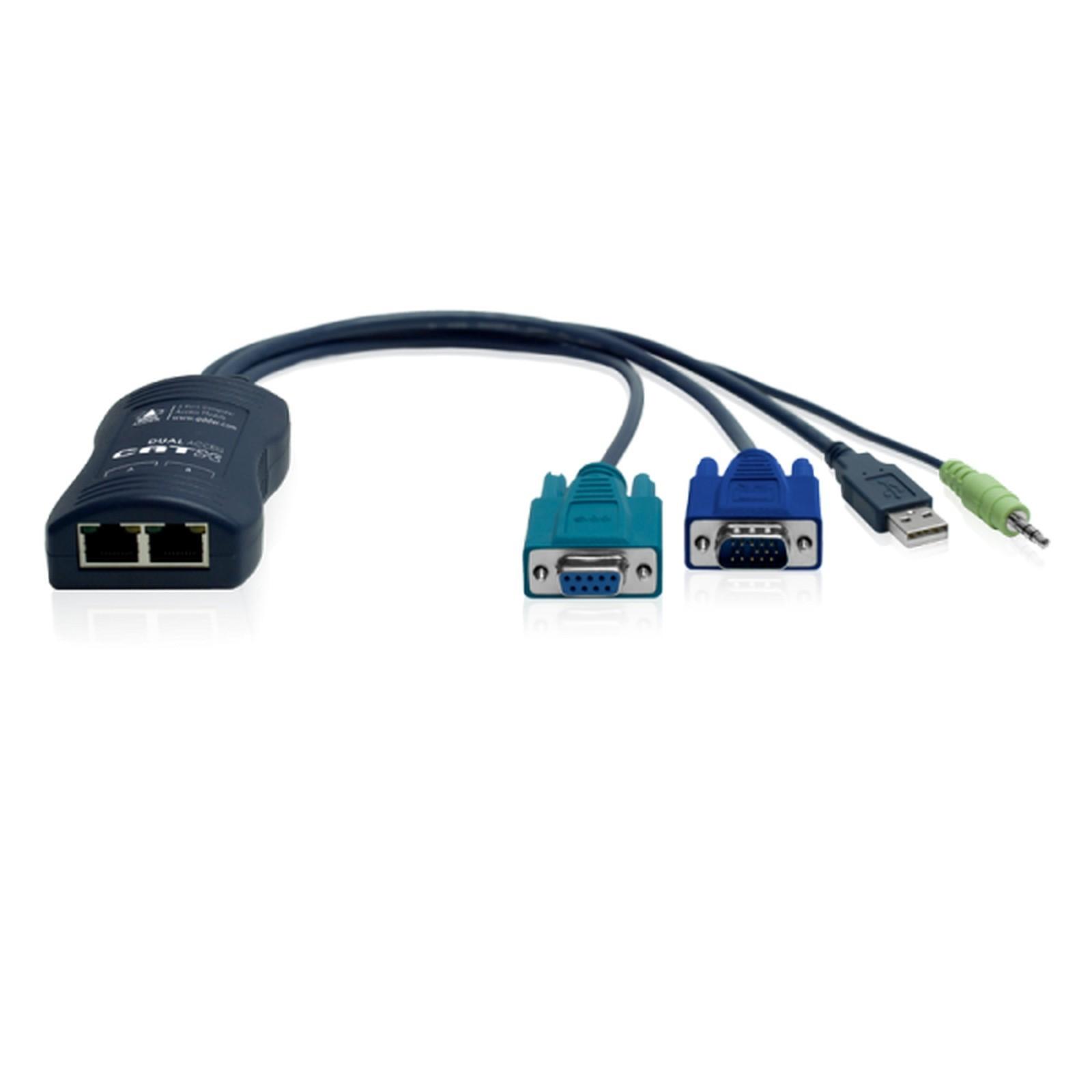

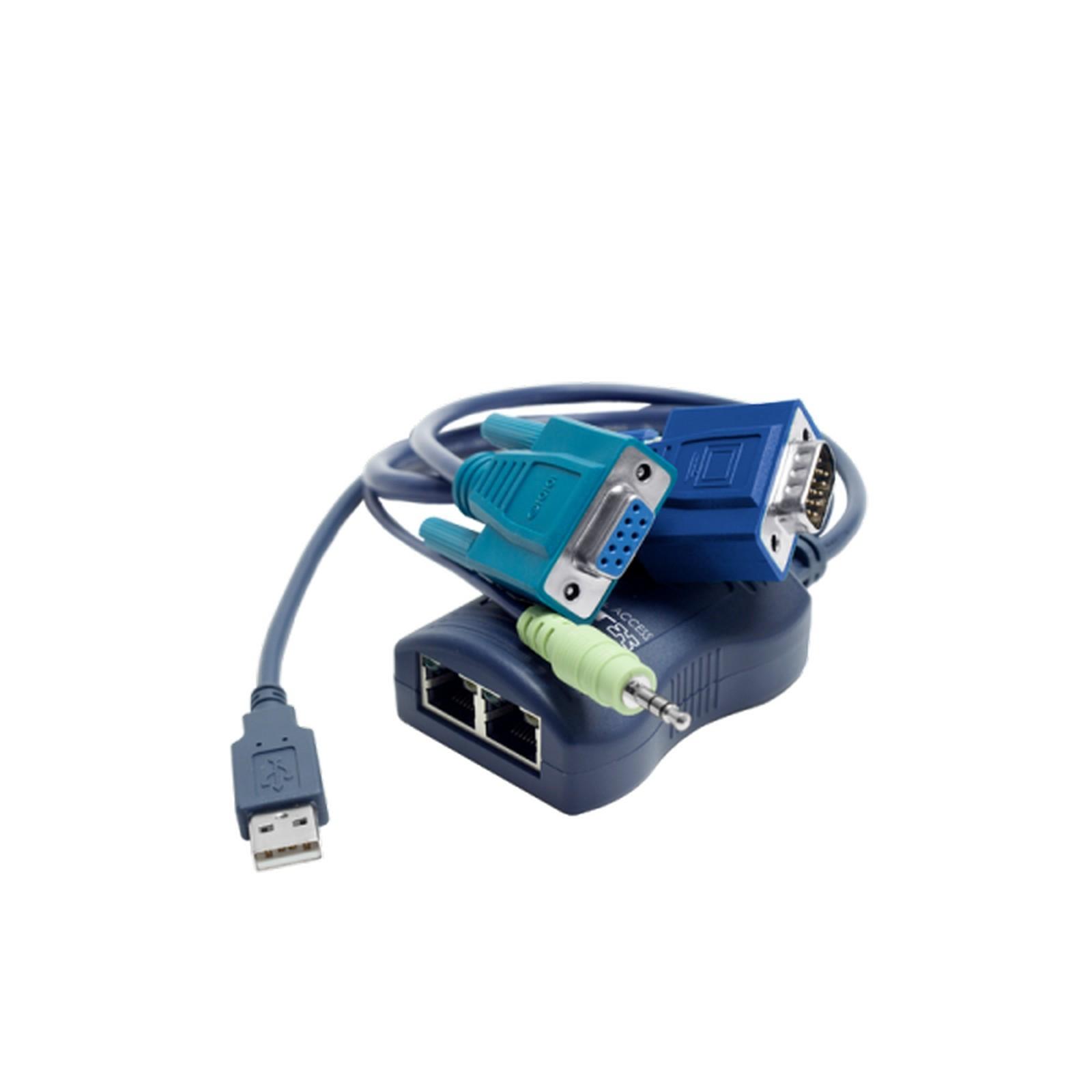

| CATX-USB-DA: USB Type A, D type 15 pin male (video) CATX-USBA-DA: As CATX-USB-DA but also including; 3.5mm male audio jack, D type 9pin female (RS232), and two RJ45 ports |
Physical Design |
| ABS moulded plastic. (H) 70mm, (W) 52mm, (D) 25mm |
Power |
| USB powered ( Max 300mA @5V DC) |
Operating temperature |
| 0-40 °C |
Approvals |
| CE, FCC |
| Name | Type | Version | Release Date | |
| ADDER CATx Dual CAM Datasheet | Datasheet | V3.0 | 05 August 2020 |
