ADDERLink LPV154T

Home  >   Adder  >   Extenders  >
AV Distribution

The ADDERLink LPV delivers HD quality digital signage video via CATx cable over distances of 150 meters

Product Feature

The ADDERLink LPV delivers HD quality digital signage video via CATx cable over distances of
150 meters This digital signage extender is possibly the easiest to install pointto-point
extender available today. By transmitting the power to the receiver via the cable it removes
the need for extra power supplies and sockets at the screen A 4-way transmitter is available
for point-to-multipoint transmissions

This digital signage extender is possibly the easiest to install point-to-point extender available today. By transmitting the power to the
receiver via the cable it removes the need for extra power supplies and sockets at the screen.

A 4-way transmitter is available for point-to-multipoint transmission.

Video Resolutions

A maximum of 1920x1080@60Hz

Extension distance

150 meters at 1920 x1080@60Hz

Max cable skew allowed:

25ns over maximum cable length. Recommend
low skew cables over 50 meters

O/S Compatibility

Operating system independent

Connectors (local / remote):

USB Type A ,15 pin VGA and one RJ45 port.

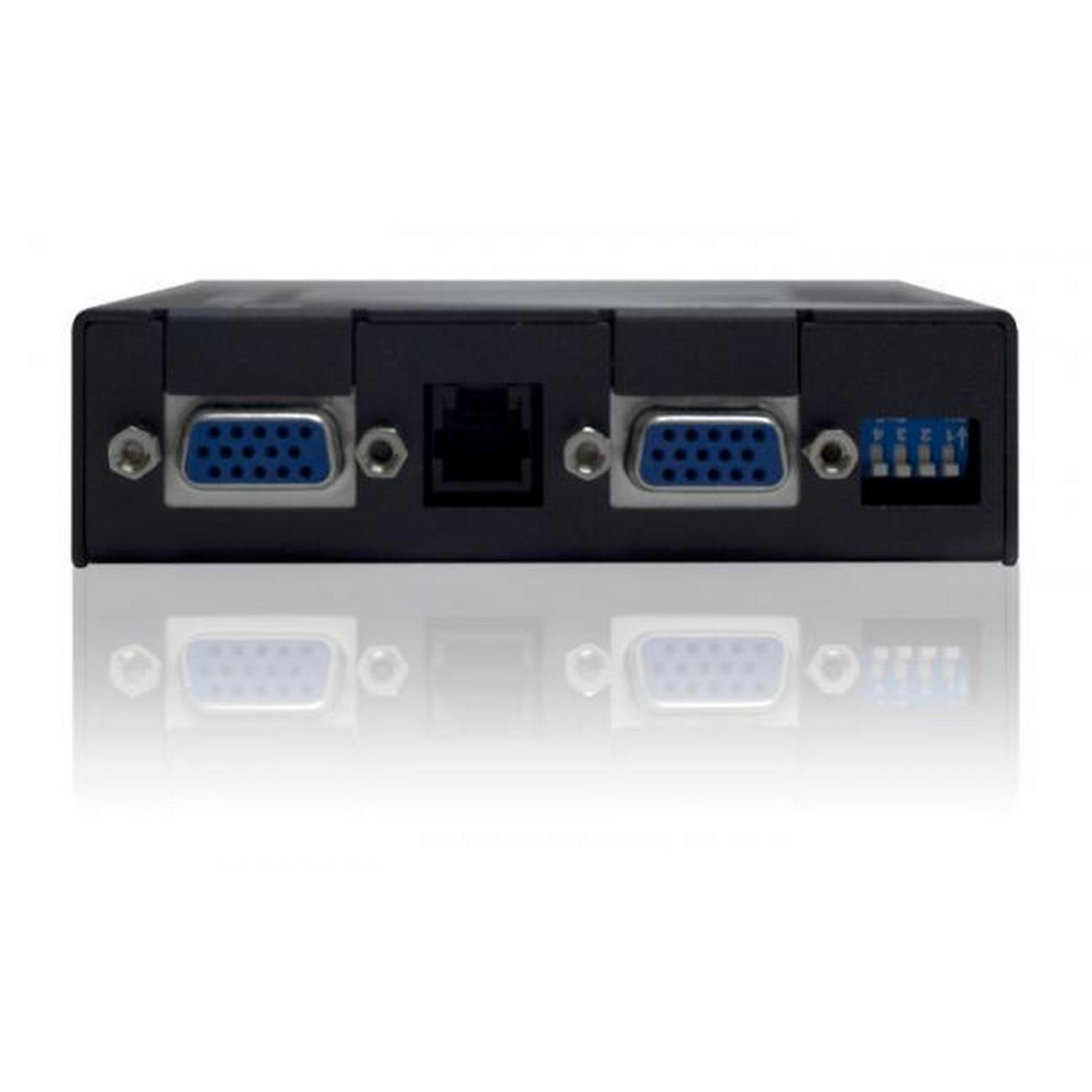

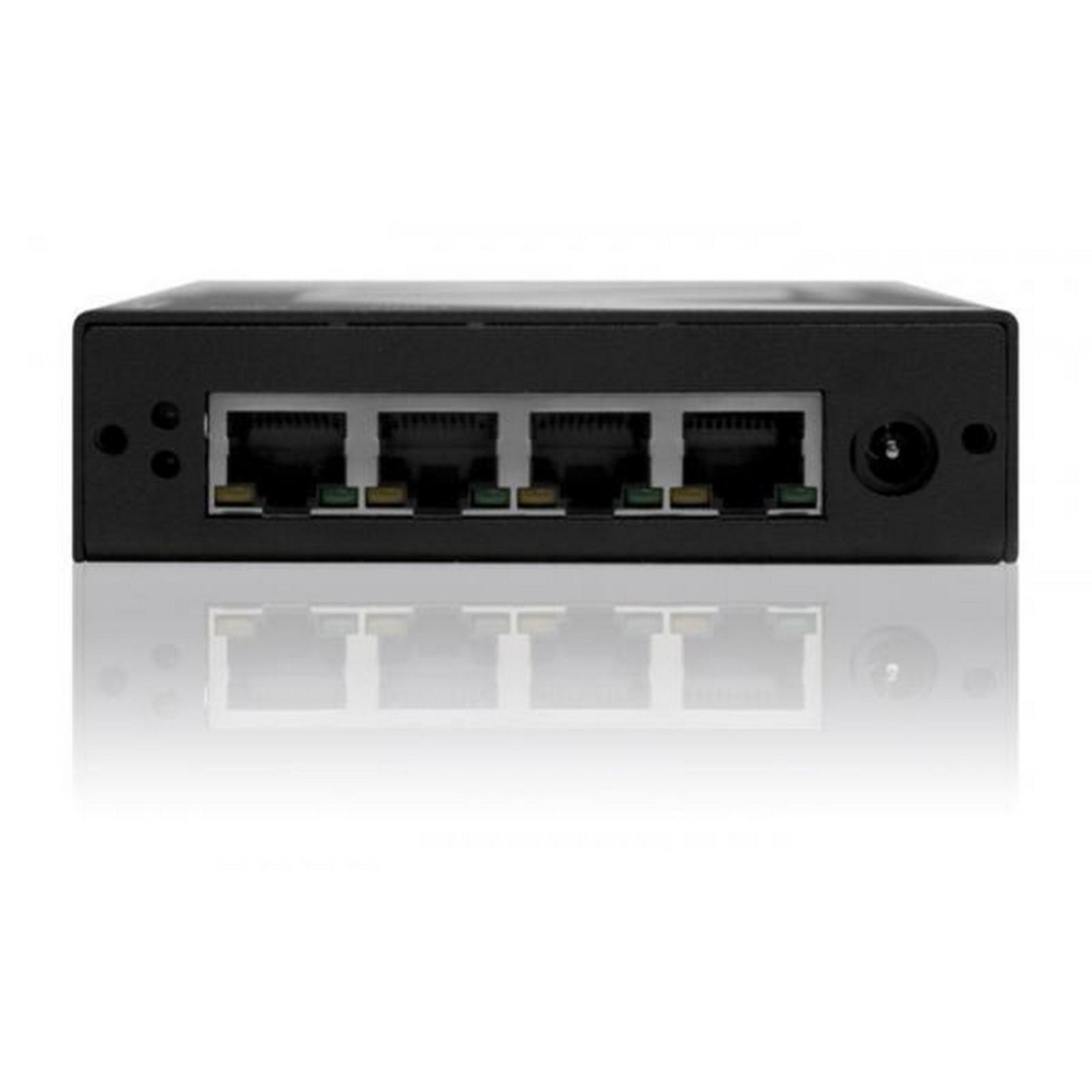

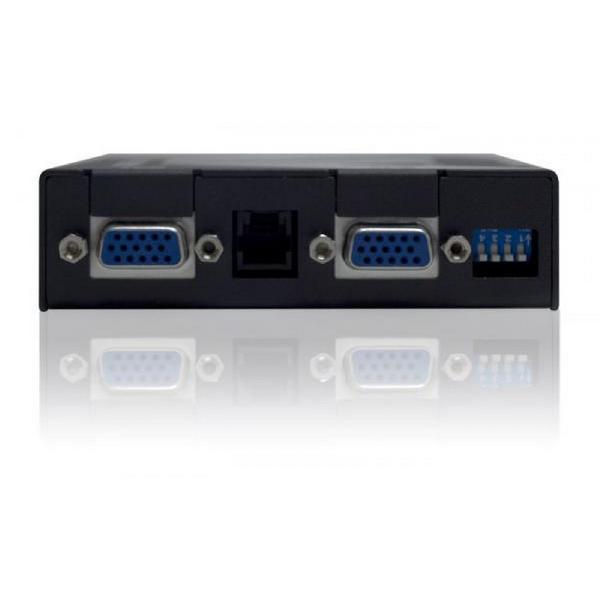

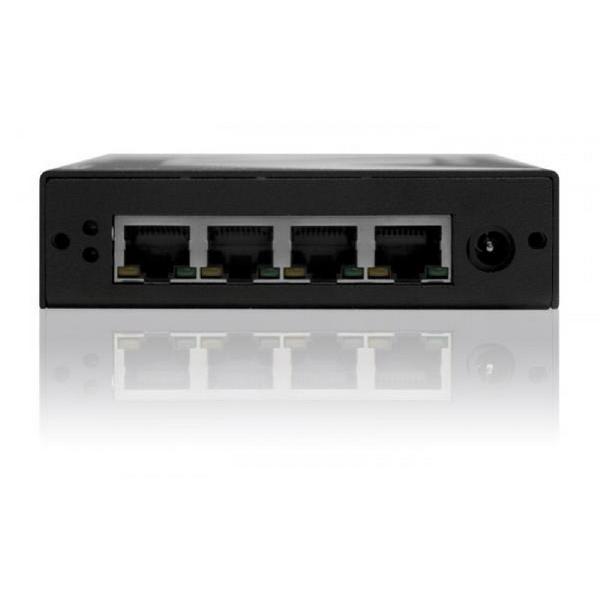

(ALPV150P) 2 x 15 pin VGA, 4 x RJ45 1x
power (ALPV154T)

Physical

Transmitter: High impact injection moulding: 45mm (w),
63 mm (l), 21mm (d) - excluding cables.
Receiver: High impact injection moulding: 45mm (w),
63 mm (l), 21mm (d) - excluding cables.

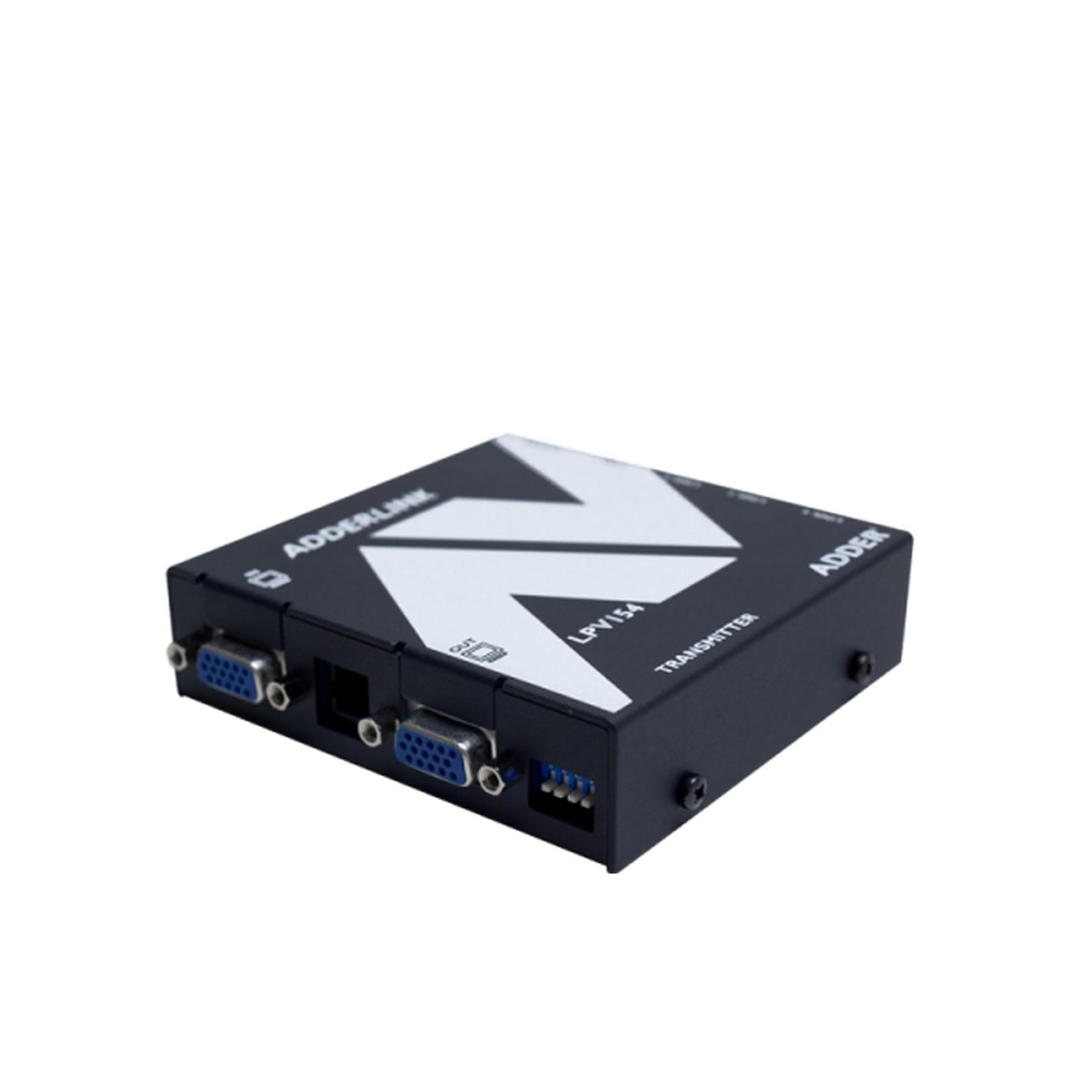

ALPV154T: Steel enclosure: 100mm (w), 100 mm (l),
25mm (d)

Power

LPV 150P: USB powered (Max 500mA @5V)
LPV154T: 5V @ 2.5A, power unit provided

Operating temperature

0ºC to 40ºC / 32ºF to 104ºF

Approvals

CE, FCC
Name Type Version Release Date
ADDERLink LPV154T Datasheet Datasheet V4.0 05 August 2020
