ADDERView 4 PRO DisplayPort

Home  >   Adder  >   Switch  >
Desktop KVM Switches

KVMA switch that shares digital video and USB between up to four computers through a DisplayPort connector

Product Feature

  • High resolution video: supports 2560 x 1600 resolution at 60Hz refresh rate and 10 bits per color, 1920 x 1200 resolution at 120Hz refresh rate, and Full HD monitors at 1920 x 1080 resolution and 60Hz refresh rate at 12 bits per color without latency, all over standard cables
  • Extended DDC EDID profile: ensures that the graphics card is always optimized to work with your screen
  • USB True Emulation: USB 2.0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers
  • Independent USB device selection: switching options enable the operator to use the keyboard and mouse on one computer whilst the USB peripherals are connected to other ones

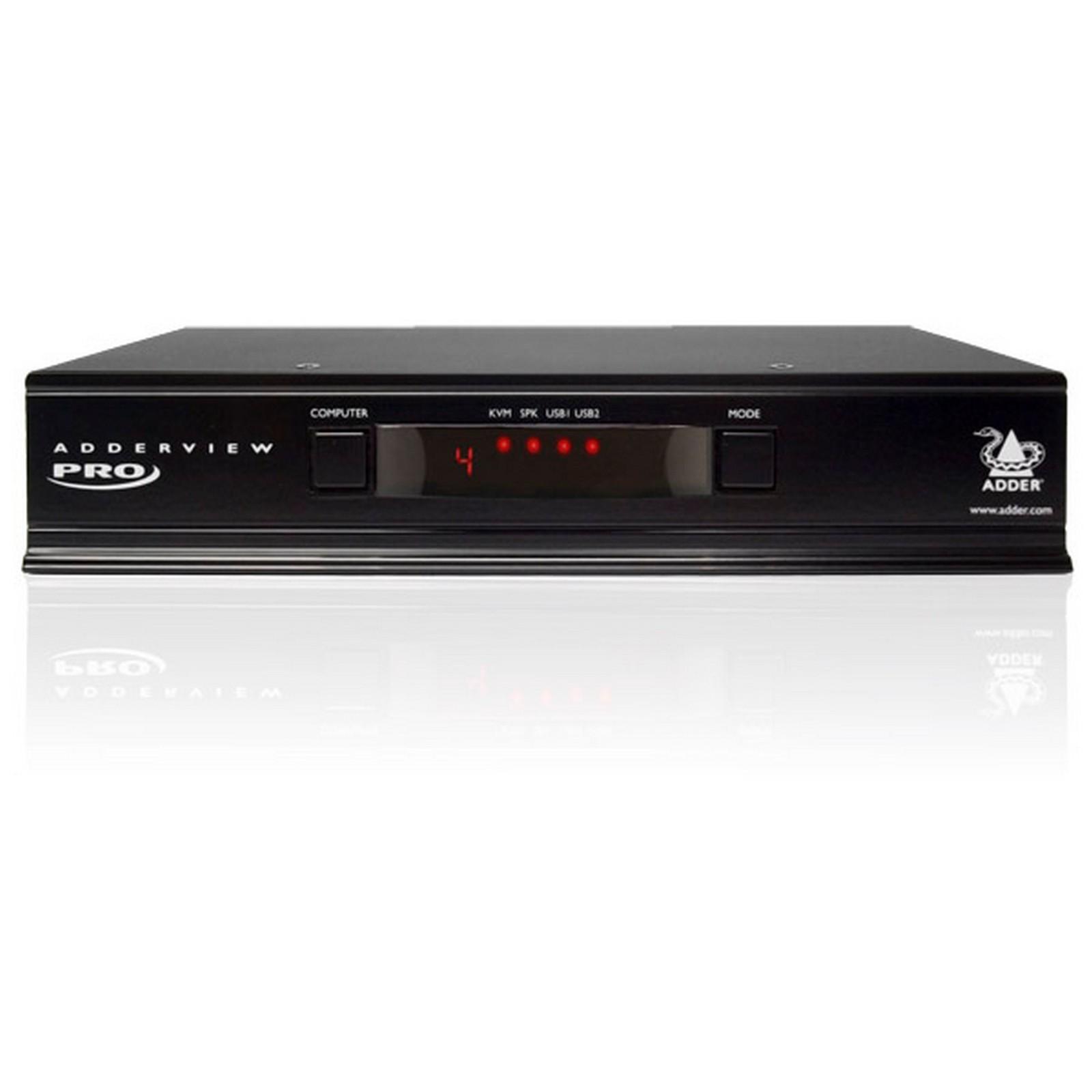

  • Channel selection options: switch using selectable keyboard hotkeys, three button mice or the front panel controls, or add a RC4 remote
  • Broad USB 2.0 HID Support: a range of USB devices can be connected, including printers, scanners, and non-standard human interface devices
  • ‘Options’ port for control, synchronisation and upgrade: port allows remote switching using simple ASCII codes; units to be switched in synchrony to create a multi video head switching system; and firmware upgrades, all through the same port

Part of the ADDERView® PRO range, the AV4PRO DisplayPort is designed to enable four computers equipped with DisplayPort technology to be controlled from a single KVM console. This four-port switch is also available in DVI or VGA variants.

  • Access multiple applications: allow one display, keyboard and mouse to switch control between up to four computers
  • Fluid and Reliable USB Switching: Adder’s USB True Emulation ensures fast and reliable switching

Software compatibility

Operates with all known software and operating systems
including Windows (all), DOS, Linux, Unix, BSD, all Sun OS,
all Mac OS, NetWare etc.

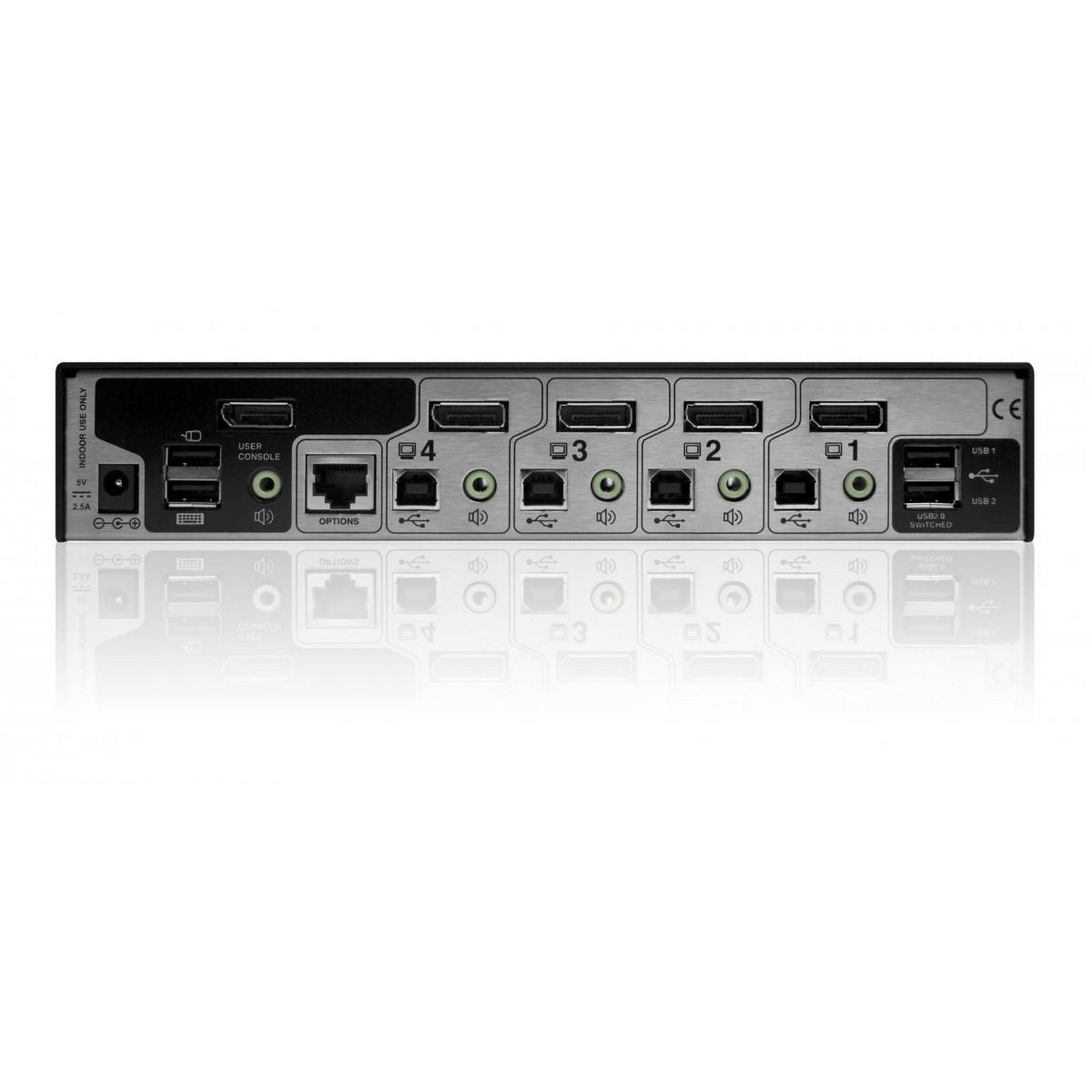

Computer connections at switch

USB 2.0 type B, Display Port, 3.5mm stereo jack

Local KVM console connection

Video: Display Port, 2 x USB type A Switched
USB: 2 x USB 2.0 type A
Audio: 3.5mm stereo jack

Other Connections

Options (flash upgrade, sync with other AV4PRO-DP
and RS232 triggered power switches): Modular 10P10C

Physical design

1U high metal case 233mm (w), 115mm (d), 44mm (h)

Power

2.5mm DC jack (power adapter included),100-240VAC
50/60Hz input to power adapter, 5VDC 2A output
from power adapter

Operating temperature

0 to 40ºC / 32 to 104ºF

Approvals

CE, FCC
