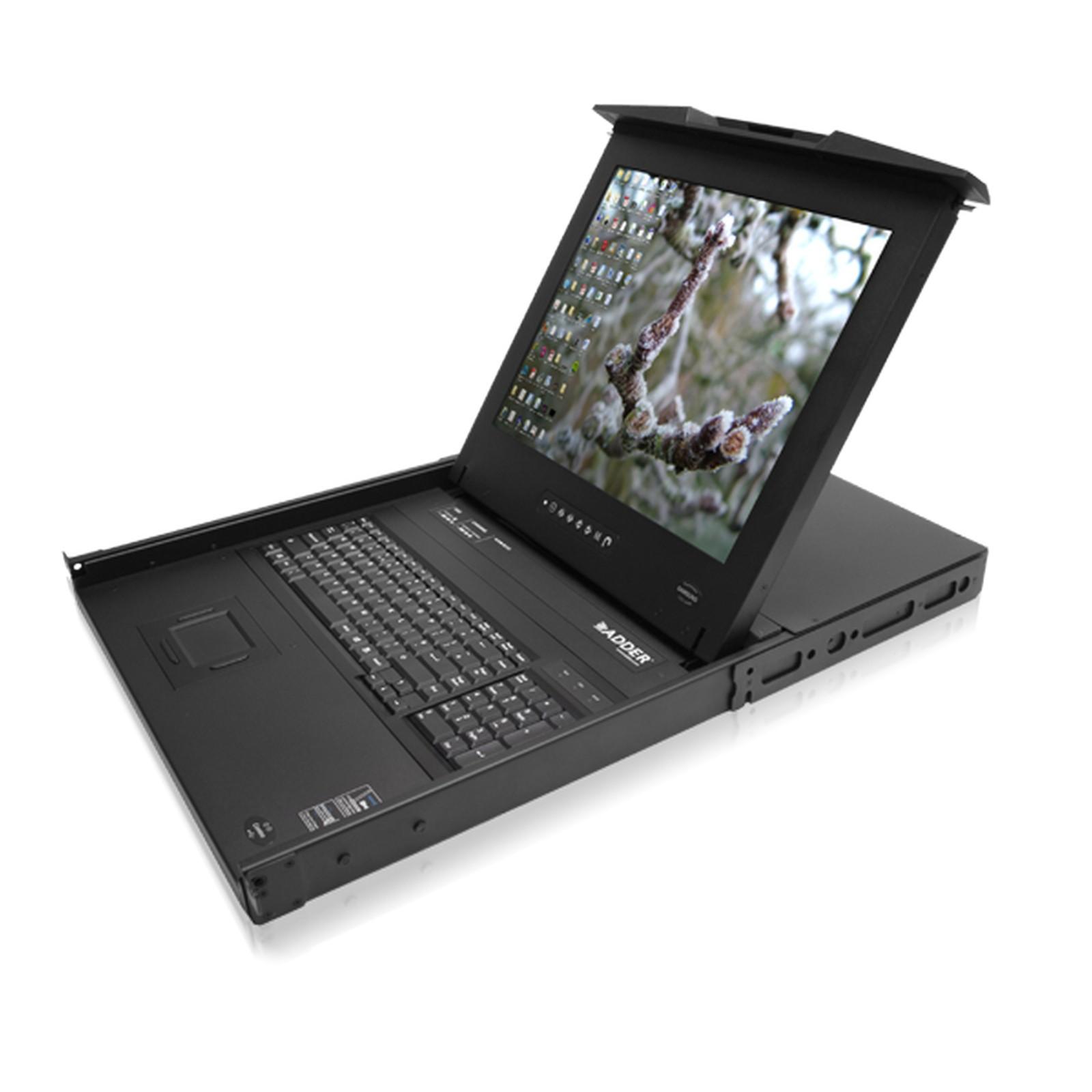

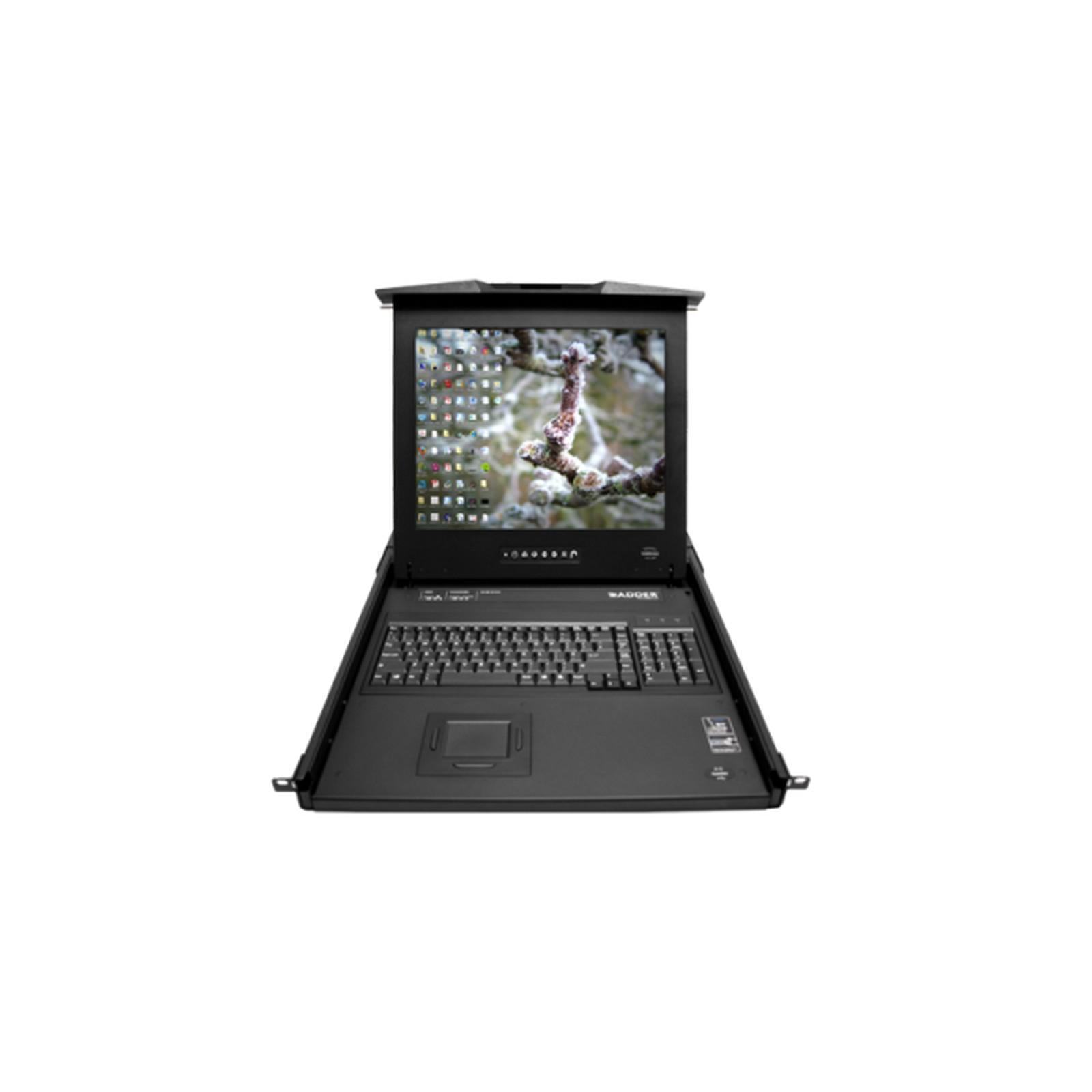

The ADDERView RDX 1000IP is the complete server room solution with local and remote management. The 1U keyboard tray features a
premium quality Samsung SXGA TFT LCD panel with touch-pad control and advanced OSD for device selection.
The 1U keyboard tray is available in most keyboard language layouts and features either a 17 inch or 19 inch premium quality Samsung
SXGA 1280 x1024 TFT LCD panel with touchpad control and advanced OSD for device selection. Control 16 computers directly from the
tray or remotely via a secure IP connection. Expand to support up to 256 computers using CATx 1000 switches.
Using ADDER's CAM modules, you can connect the switch via CATx cable to any type of server including PC, Mac and Sun. Country
code reporting, DDC and continuous keyboard and mouse emulation further ensure faultless operation across your unique installation.
Video Modes |
| Support for standard PC, Sun and Mac video modes. |
Hardware compatibility |
| Video, mouse and keyboard for PC, Sun, Mac, RS/6000, Alpha and SGI computers using PS/2, USB or Sun flash upgradable Computer Access Modules (CAMs). |
OS compatibility |
| Operates with all currently known software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare. |
Extendable platform |
| Cascade with CATx 1000 units to extend the system to 256 computers and a global IP user |
Connections |
| CATx computer connections: all RJ45 style.10/100 auto-sensing Ethernet network port: RJ45. Power connection: Locking 3 pin connector (12V DC, 5A). RS232 triggered power switching and syncing: DB9 plug. |
Physical design |
| Compact 1U high metal case construction for rack mounting Width: 589mm/17.4”, Height: 44mm/1.76”, Depth: 650mm/25.6”. Weight: RD1716IPxx 15kg/33lbs, RD1916IPxx 17Kg/37lbs. |
Power supply |
| Mains adaptor with IEC style power lead (included). Input: 100-240VAC 0.5A 50- 60Hz. Output: 12VDC 5A |
Operating temperature |
| 0 to 35°C |
Approvals |
| CE, FCC |
| Name | Type | Version | Release Date | |
| ADDERView RDX 1000IP Datasheet | Datasheet | V3.0 | 06 August 2020 |
