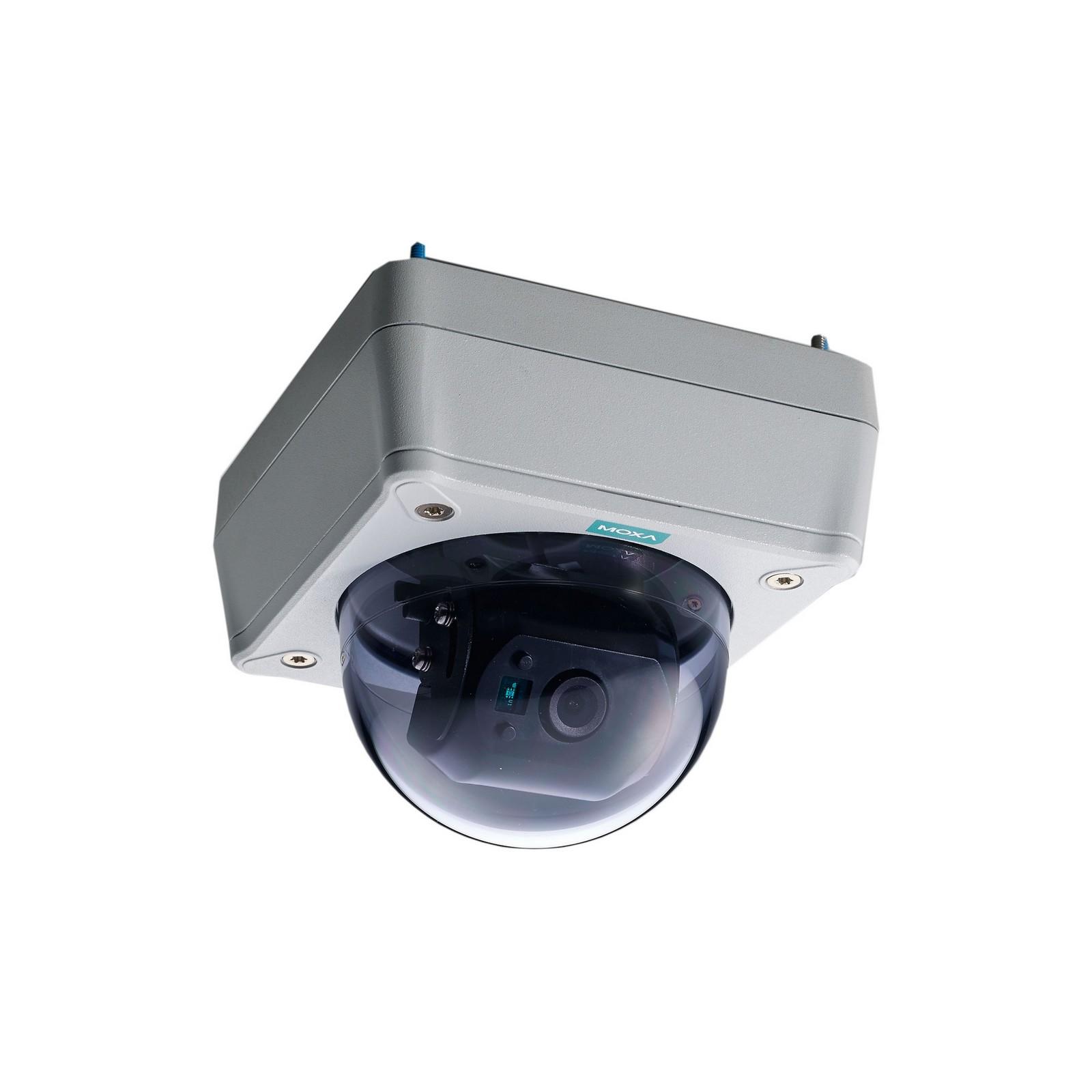

VPort P16-1MP-M12 Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
IP Cameras & Video Servers  >   IP Cameras

EN 50155, HD image, rugged IP cameras

Product Feature

  • 1/2.7” progressive scan camera with maximum 1280 x 800 resolution at up to 30 fps
  • Built-in light sensor for day & night images
  • High quality video imaging with DNR and WDR
  • Up to 3 H.264 or MJPEG independent video streams
  • DynaStream™ for optimized network efficiency
  • CBR Pro™ for high image quality in limited bandwidth transmissions
  • Supports DHCP options 66 and 67 for auto-configuration
  • ONVIF support for standardization and interoperability

Introduction

The rugged VPort P16-1MP-M12 cameras provide an HD (720P, 1280 x 720) video image, and feature 3 H.264/MJPEG video streams, giving them the versatility and ruggedness to excel in many different installations and environments for mobile IP video surveillance applications. In addition, the cameras are compliant with mandatory sections of EN 50155,covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making them suitable for a variety of industrial applications, and feature vandal-proofing (EN 62262 IK10), a -25 to 55°C or -40 to 70°C (T models) operating temperature, a rugged M12 Ethernet port, PoE power inputs, IP66 rain and dust protection, and day & night image capability.

Ethernet Interface

PoE Ports (10/100BaseT(X), M12
D-coded 4-pin female connector)
1

Ethernet Software Features

ProtocolsTCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client,
DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS

Security Functions

PasswordUser-level password protection
FilterIP address
EncryptionHTTPS

Power Parameters

No. of Power Inputs1
Source of Input PowerPoE (IEEE 802.3af)
Input Current0.35 A @ 48 VDC

Camera Characteristics

Sensor1/2.7-in HD progressive scan CMOS
LensVPort P16-1MP-M12-CAM36 Series: f=3.6mm, F1.6, Diagonal 99°,
Horizontal 94°, Vertical 47°
VPort P16-1MP-M12-CAM80 Series: f=8.0mm, F1.6, Diagonal 45°,
Horizontal 40°, Vertical 22°
Minimum IlluminationColor: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
B/W: 0.05 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
Camera AnglePan 350°, Tilt 65° (controlled manually)
Day & NightAuto/Color/BW; ICR control
ICR ControlAuto
SynchronizationInternal
White BalanceATW/AWB
Electronic ShutterAuto, Fixed (1/30 to 1/25000 sec)
S/N RatioMaximum 50 dB (AGC off; DNR on)
DNR (digital noise reduction)Built-in 2D/3D DNR
WDR (wide dynamic range)110 dB
Flickerless ControlAutomatic, 50 Hz, 60 Hz modes
Image RotationFlip, Mirror, and 180° rotation
Image SettingManual tuning with saturation, sharpness, and contrast
AGC (auto gain control)2X, 4X, 8X, 16X, 32X, 64X
BLC (back light compensation)High/Medium/Low

Video Interface

Video CompressionH.264 (ISO/IEC 14496-10) or MJPEG
Video Outputvia Ethernet
Video Streams3 independent H.264 or MJPEG video streams
Video ViewingDynaStream™ support for changing the video frame rate automatically
CBR Pro™ for good image quality in limited bandwidth transmissions
3 privacy mask areas provided
Adjustable image size and quality
Timestamp and text overlay
OSD (On Screen Display) position adjustable
Maximum of 5 simultaneous unicast connections, 50 multicast clients

Camera Software Development

VPort SDK PLUSIncludes CGI commands, ActiveX Control, and API library for customized
applications or system integration for third-party developers
Video StandardsONVIF Profile S

Camera Alarm Software Features

Intelligent VideoCamera tampering detection
Video Motion Detection3 independently configurable areas
SchedulingDaily repeat timing schedule
ImagingJPEG snapshots for pre/trigger/post alarm images
Custom AlarmsHTTP event servers for setting customized alarm actions
Email/FTP MessagingAutomatic transfer of stored images via email or FTP
as event-triggered actions
Pre-Alarm Buffer12 MB video buffer for JPEG snapshot images

Software Requirements

Memory Size1 GB
Operating SystemWindows 7 or above
BrowserInternet Explorer 9.x or above
MultimediaDirectX 9.0C or above

Physical Characteristics

HousingIP66 rain and dust protection
Metal housing, PC dome cover
IK10 vandal resistant protection
Dimensions125 x 125 x 120.7 mm (4.92 x 4.92 x 4.8 in)
Weight810 g (1.79 lb)
InstallationPanel mounting
Protection-CT models: PCB conformal coating

Environmental Limits

Operating TemperatureStandard Models: -25 to 55°C (-13 to 131°F)
Wide Temp. Models: -40 to 70°C (-40 to 158°F)
Storage Temperature (package
included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)
Ingress ProtectionIEC 60529, IP66
Salt Spray TestASTM-B117
Vandal ResistanceEN 62262, IK10
Altitude2000 m

Standards and Certifications

EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
FreefallIEC 60068-2-31
Railway Fire ProtectionEN 45545-2
SafetyUL 60950-1
ShockIEC 60068-2-27, IEC 61373, EN 50155
VibrationIEC 60068-2-64, IEC 61373, EN 50155
RailwayEN 50155 (complies with a portion of EN 50155 specifications)

MTBF

Time1,598,728 hrs
StandardsTelcordia SR332

Warranty

Warranty Period5 years
Note: Limited warranty on moving parts; see Moxa's online warranty
policy for details.
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for VPort P16-1MP-M12 Series Datasheet V1.0 12 November 2018

VPort P16-1MP-M12-CAM36

Lens 3.6 mm
Operating Temp. -25 to 55°C
Conformal Coating

VPort P16-1MP-M12-CAM36-CT

Lens 3.6 mm
Operating Temp. -25 to 55°C
Conformal Coating

VPort P16-1MP-M12-CAM36-CT-T

Lens 3.6 mm
Operating Temp. -40 to 70°C
Conformal Coating

VPort P16-1MP-M12-CAM36-T

Lens 3.6 mm
Operating Temp. -40 to 70°C
Conformal Coating

VPort P16-1MP-M12-CAM80

Lens 8.0 mm
Operating Temp. -25 to 55°C
Conformal Coating

VPort P16-1MP-M12-CAM80-CT

Lens 8.0 mm
Operating Temp. -25 to 55°C
Conformal Coating

VPort P16-1MP-M12-CAM80-CT-T

Lens 8.0 mm
Operating Temp. -40 to 70°C
Conformal Coating

VPort P16-1MP-M12-CAM80-T

Lens 8.0 mm
Operating Temp. -40 to 70°C
Conformal Coating
