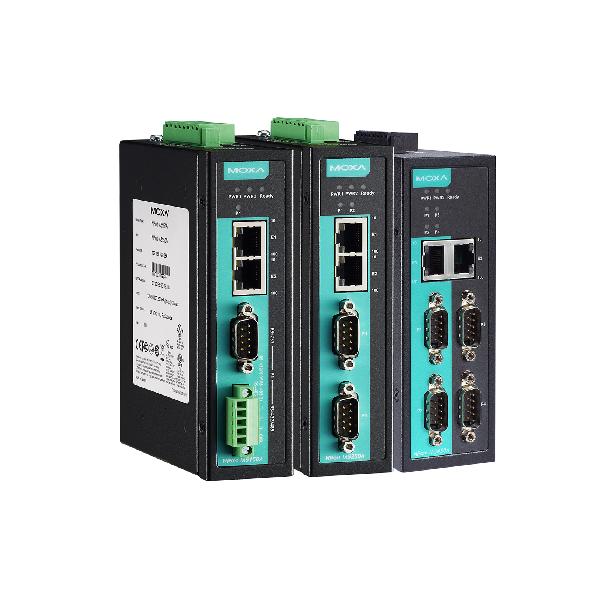

NPort IA5000A Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Serial Device Servers  >   Industrial Device Servers

1, 2, and 4-port serial device servers for industrial automation

Product Feature

  • 2 Ethernet ports with the same IP or dual IP addresses for network redundancy
  • C1D2, ATEX, and IECEx certified for harsh industrial environments
  • Cascading Ethernet ports for easy wiring
  • Enhanced surge protection for serial, LAN, and power
  • Screw-type terminal blocks for secure power/serial connections
  • Redundant DC power inputs
  • Warnings and alerts by relay output and email
  • 2 kV isolation for serial signals (isolation models)
  • -40 to 75°C operating temperature range (-T models)

Introduction

The NPort IA5000A device servers are designed for connecting industrial automation serial devices, such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. The device servers are solidly built, come in a metal housing and with screw connectors, and provide full surge protection. The NPort IA5000A device servers are extremely user-friendly, making simple and reliable serial-to-Ethernet solutions possible.



Cascading Ethernet Ports Make Wiring Easy

The NPort IA5000A device servers each have two Ethernet ports that can be used as Ethernet switch ports. One port connects directly to the network or server, and the other port can be connected to either another NPort IA device server or another Ethernet device. The dual Ethernet ports help reduce wiring costs by eliminating the need to connect each device to a separate Ethernet switch.

MOXA



Redundant Power Inputs

The NPort IA5000A Series of device servers have two power inputs that can be connected simultaneously to live DC power sources. If one power source fails, the other source takes over automatically. Redundant power inputs help ensure uninterrupted operation of your device server.



MOXA





Relay Output Warning and Email Alerts

The built-in relay output can be used to alert administrators when the network is down, when power failure occurs, or when there is a change in the DCD or DSR serial signals. An email warning can also be issued when an abnormality is detected. These functions are valuable tools that enable maintenance engineers to react promptly to emergency situations.



MOXA





Surge Protection for Serial, Ethernet, and Power

Moxa’s leading-edge surge immunity solution, which is applied to the NPort® IA5000A’s serial, power, and Ethernet lines, is tested and proven compliant with IEC 61000-4-5. This advanced surge protection provides a robust serial-to-Ethernet solution that can protect electrical devices from voltage spikes and resist electrical interference, such as in oil, gas, and power automation applications.



Industrial-grade Certification

To ensure safe and reliable operation in industrial environments, the NPort® IA5000A device servers have obtained various industrial certifications, including an IP30 rating for mechanical protection and UL 508 safety certification for industrial control equipment. In addition, these device servers are UL/cUL listed (for Class 1, Division 2, Groups A,B,C,D), ATEX Class 1 Zone 2, and IECEx compliant for use in hazardous locations.

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

2 (NPort IA-5150/5150I/5250)

100BaseFX Ports (multi-mode SC connector)

NPort IA-5000-M-SC Series: 1

100BaseFX Ports (single-mode SC connector)

NPort IA-5000-S-SC Series: 1

Magnetic Isolation Protection

1.5 kV (built-in)

Optical Fiber

Read more

Ethernet Software Features

Configuration Options

Web Console (HTTP), Windows Utility, Telnet Console, Serial Console

Management

DHCP Client, IPv4, SMTP, SNMPv1, Telnet, ARP, BOOTP, DNS, HTTP, TCP/IP, UDP, ICMP, Rtelnet

Windows Real COM Drivers

Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

Linux Real TTY Drivers

Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

Fixed TTY Drivers

SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

Android API

Android 3.1.x and later

Time Management

SNTP

MIB

RFC1213, RFC1317

Serial Interface

Connector

NPort IA-5150: DB9 male for RS-232, terminal block for RS-422/485
NPort IA-5250: DB9 male for RS-232/422/485

No. of Ports

NPort IA-5150 Series: 1
NPort IA-5250 Series: 2

Serial Standards

RS-232, RS-422, RS-485

Baudrate

Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400

Data Bits

5, 6, 7, 8

Parity

None, Even, Odd, Space, Mark

Stop Bits

1, 1.5, 2

Flow Control

RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF

Isolation

2 kV isolation protection (NPort IA-5150I, NPort IA-5150I-M-SC, NPort IA-5150I-S-SC)

Serial Signals

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

Power Parameters

Input Current

NPort IA-5150 Series: 238 mA @ 12 VDC
NPort IA-5150I Series: 257 mA @ 12 VDC
NPort IA-5150-M-SC Series: 315 mA @ 12 VDC
NPort IA-5150I-M-SC Series: 339 mA @ 12 VDC
NPort IA-5150-S-SC Series: 328 mA @ 12 VDC
NPort IA-5150I-S-SC Series: 333 mA @ 12 VDC
NPort IA-5250 Series: 238 mA @ 12 VDC

Input Voltage

12 to 48 VDC

No. of Power Inputs

2

Power Connector

Terminal block

Physical Characteristics

Housing

Plastic

IP Rating

IP30

Dimensions

29 x 89.2 x 118.5 mm (0.82 x 3.51 x 4.57 in)

Weight

NPort IA-5150: 360 g (0.79 lb)
NPort IA-5250: 380 g (0.84 lb)

Installation

DIN-rail mounting

Environmental Limits

Operating Temperature

Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

-40 to 75°C (-40 to 167°F)

Standards and Certifications

Freefall

IEC 60068-2-32

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs

Hazardous Locations

ATEX, Class I Division 2, IECEx (for -IEX models)

Safety

UL 508, UL 60950-1

Vibration

IEC 60068-2-6

Declaration

Green Product

RoHS, CRoHS, WEEE

MTBF

Time

NPort IA-5150 Series: 183,747 hrs
NPort IA-5150I Series: 195,614 hrs
NPort IA-5250 Series: 194,765 hrs

Standards

Telcordia (Bellcore) Standard TR/SR

Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty
Name Type Version Release Date
Datasheet for NPort IA5000A Series Datasheet V1.3 08 November 2019

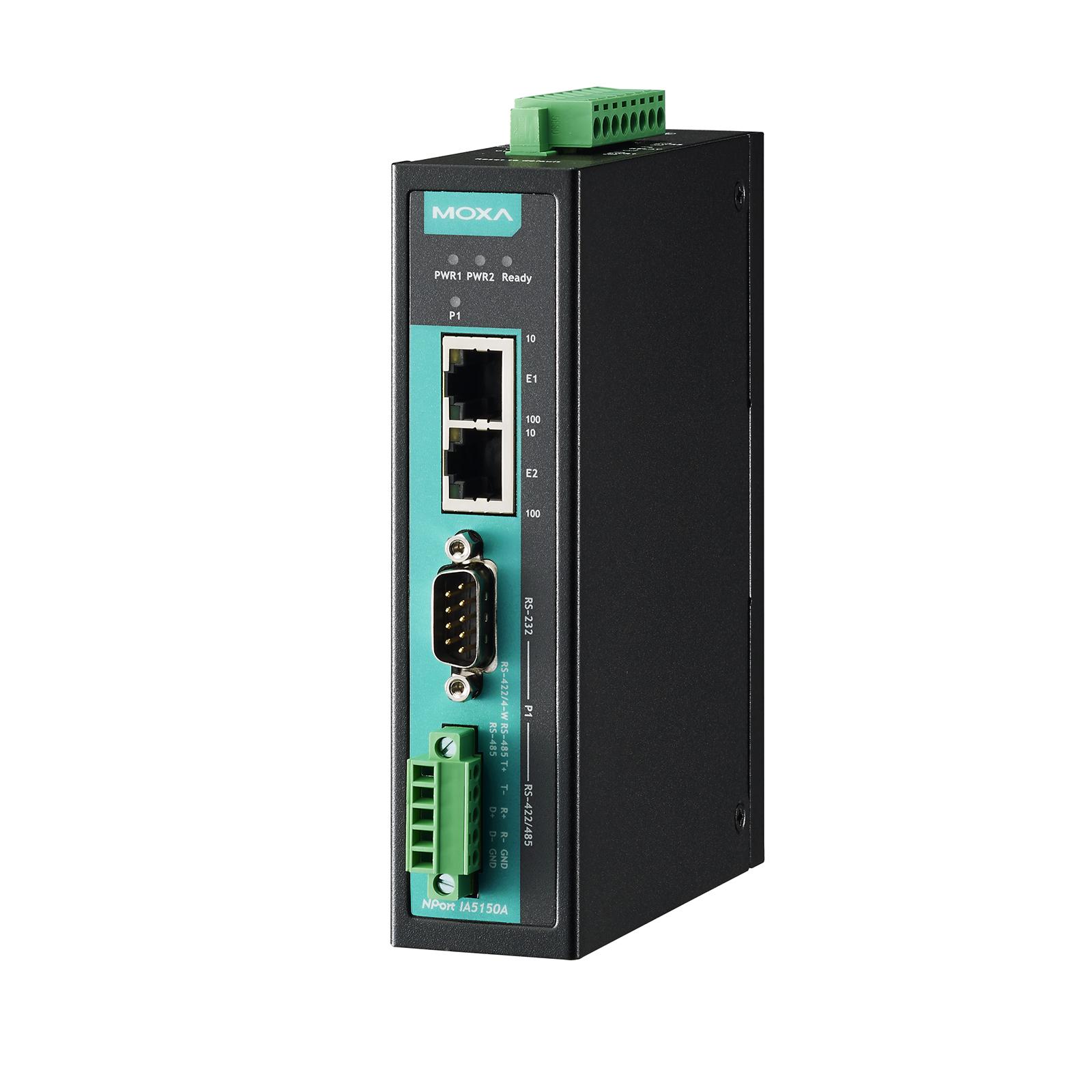

NPort IA5150A

Operating Temp. 0 to 60°C
Serial Standards RS-232/422/485
Serial Isolation -
No. of Serial Ports 1
Certification: Hazardous Locations ATEX, C1D2

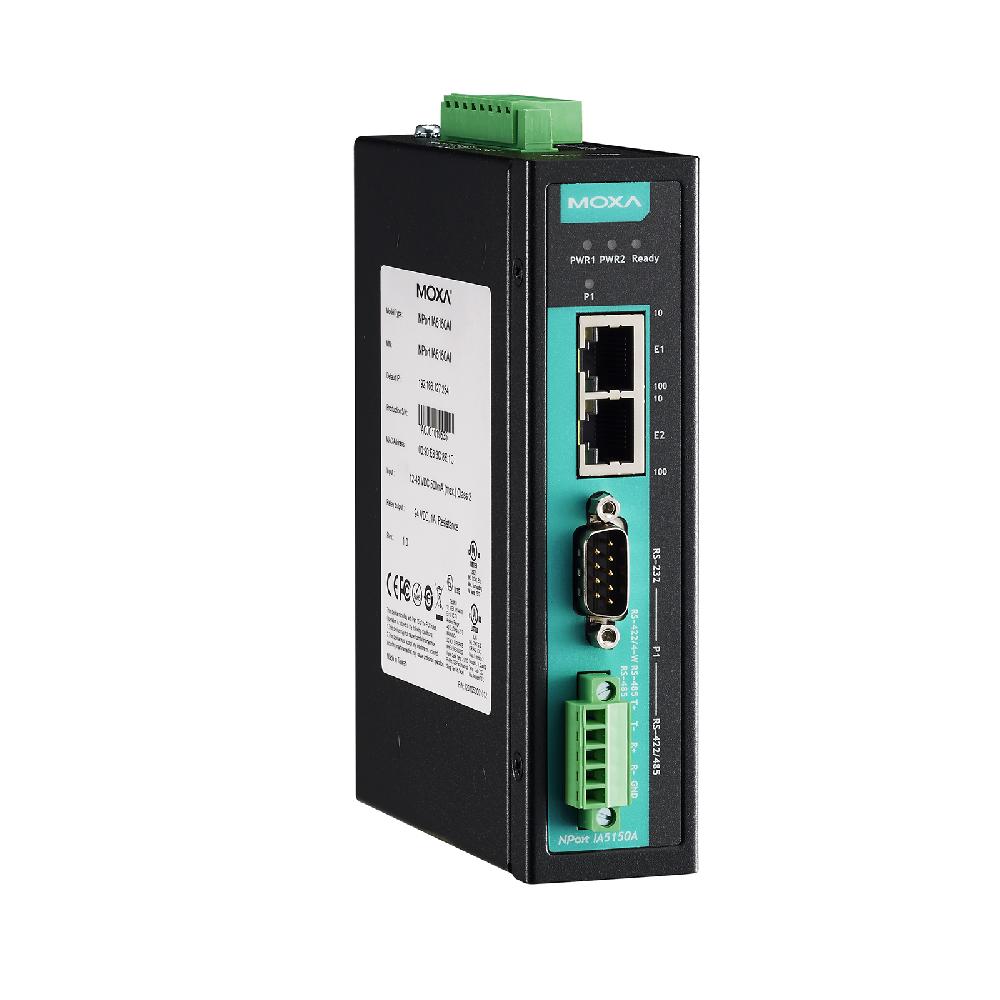

NPort IA5150A-T

Operating Temp. -40 to 75°C
Serial Standards RS-232/422/485
Serial Isolation -
No. of Serial Ports 1
Certification: Hazardous Locations ATEX, C1D2

NPort IA5150AI

Operating Temp. 0 to 60°C
Serial Standards RS-232/422/485
Serial Isolation 2 kV
No. of Serial Ports 1
Certification: Hazardous Locations ATEX, C1D2

NPort IA5150AI-T

Operating Temp. -40 to 75°C
Serial Standards RS-232/422/485
Serial Isolation 2 kV
No. of Serial Ports 1
Certification: Hazardous Locations ATEX, C1D2

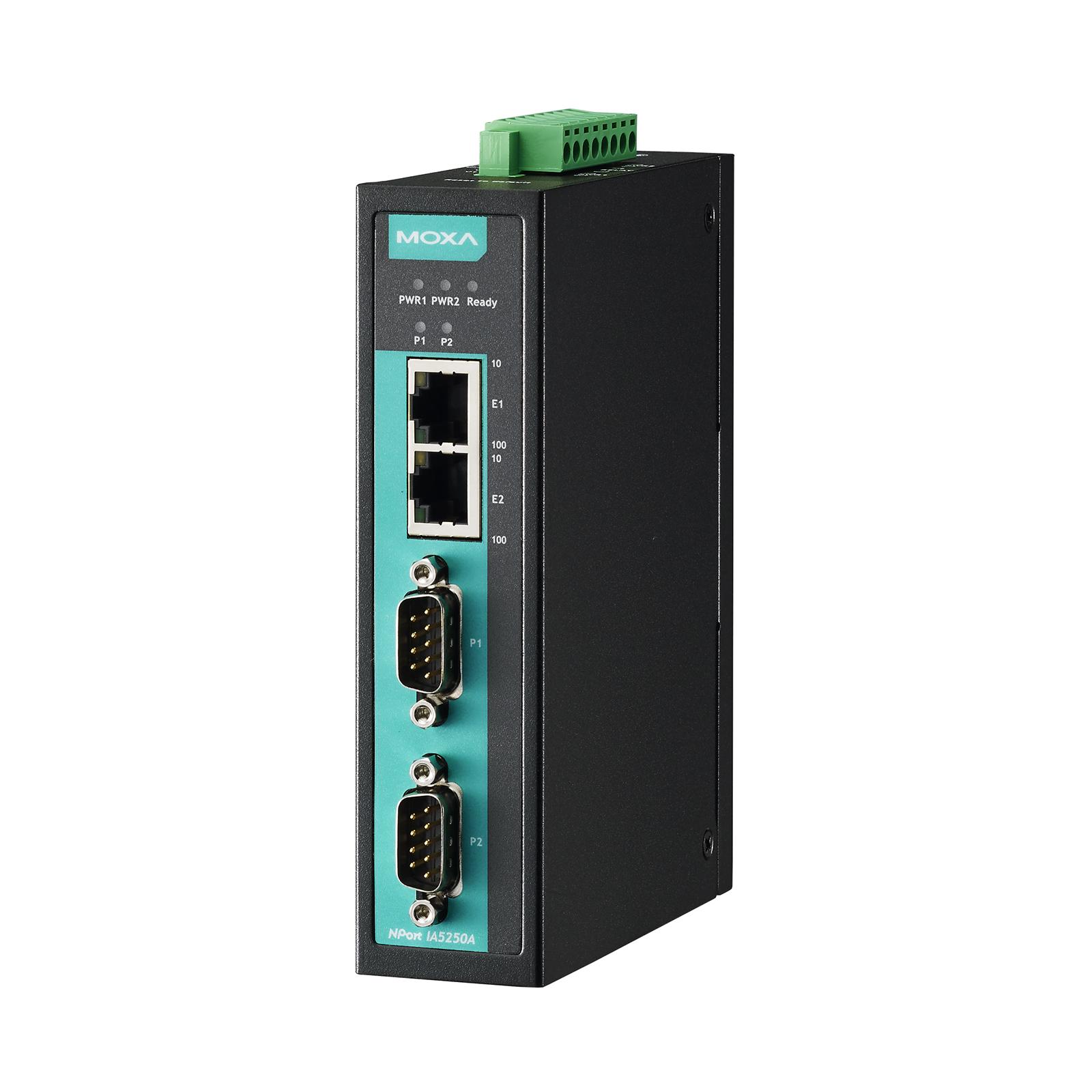

NPort IA5250A

Operating Temp. 0 to 60°C
Serial Standards RS-232/422/485
Serial Isolation -
No. of Serial Ports 2
Certification: Hazardous Locations ATEX, C1D2

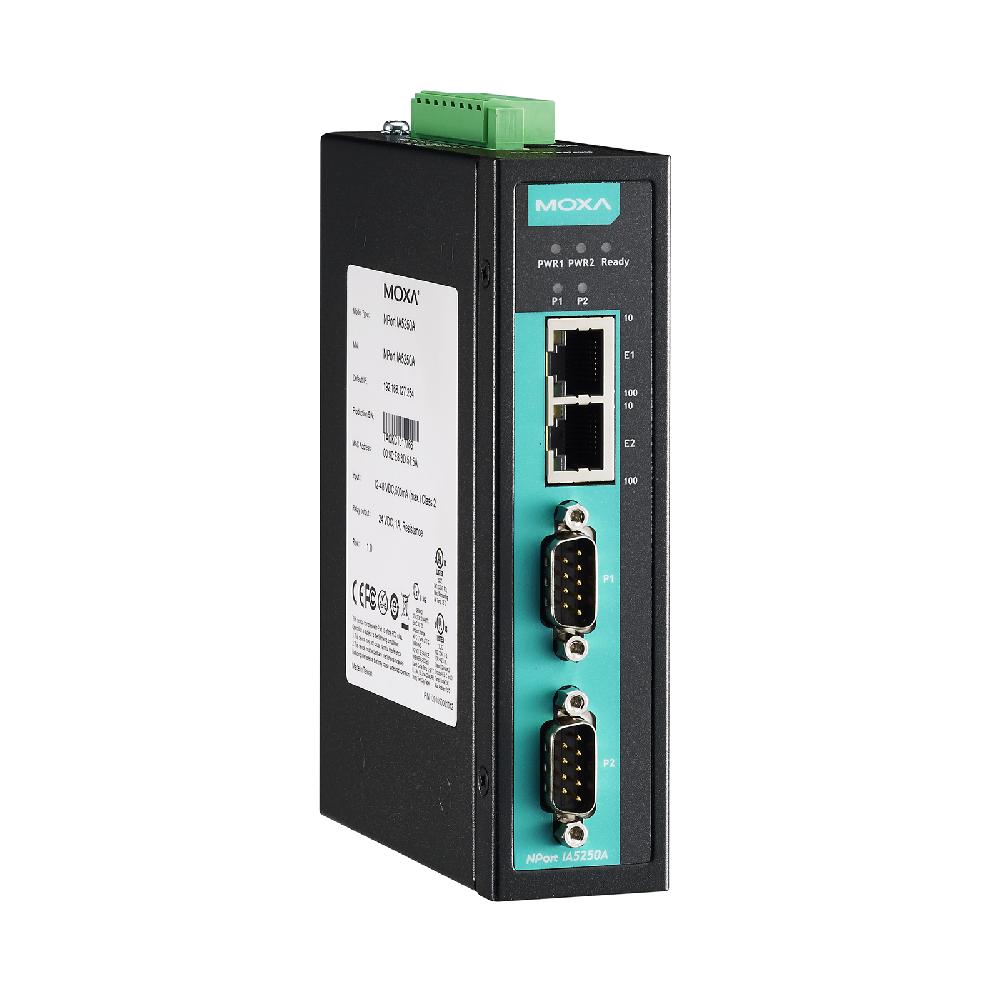

NPort IA5250A-T

Operating Temp. -40 to 75°C
Serial Standards RS-232/422/485
Serial Isolation -
No. of Serial Ports 2
Certification: Hazardous Locations ATEX, C1D2

NPort IA5250AI

Operating Temp. 0 to 60°C
Serial Standards RS-232/422/485
Serial Isolation 2 kV
No. of Serial Ports 2
Certification: Hazardous Locations ATEX, C1D2

NPort IA5250AI-T

Operating Temp. -40 to 75°C
Serial Standards RS-232/422/485
Serial Isolation 2 kV
No. of Serial Ports 2
Certification: Hazardous Locations ATEX, C1D2

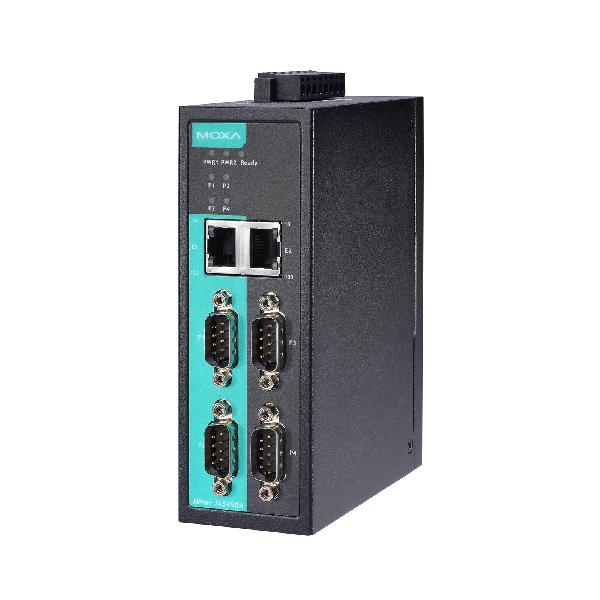

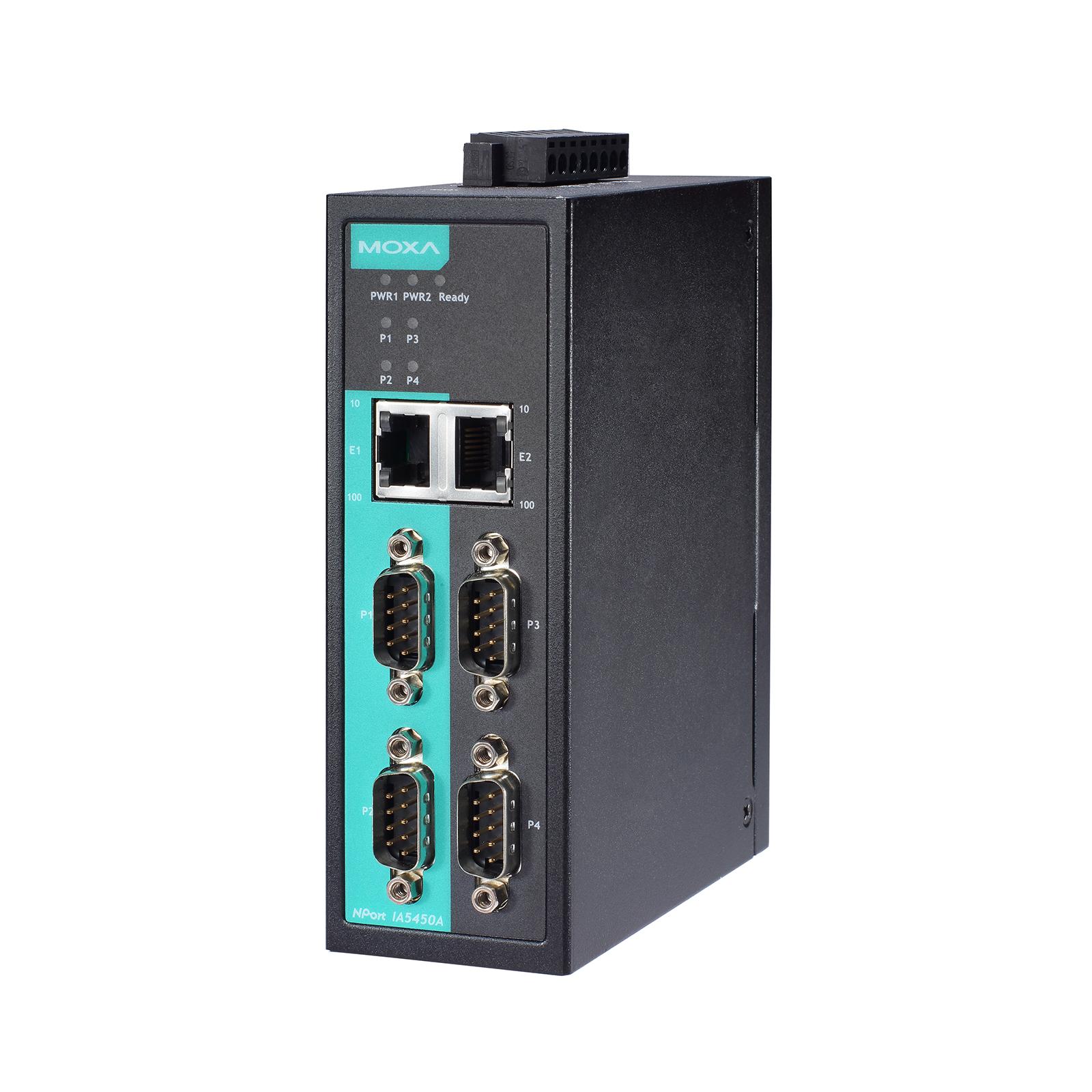

NPort IA5450A

Operating Temp. 0 to 60°C
Serial Standards RS-232/422/485
Serial Isolation -
No. of Serial Ports 4
Certification: Hazardous Locations ATEX, C1D2, IECEx

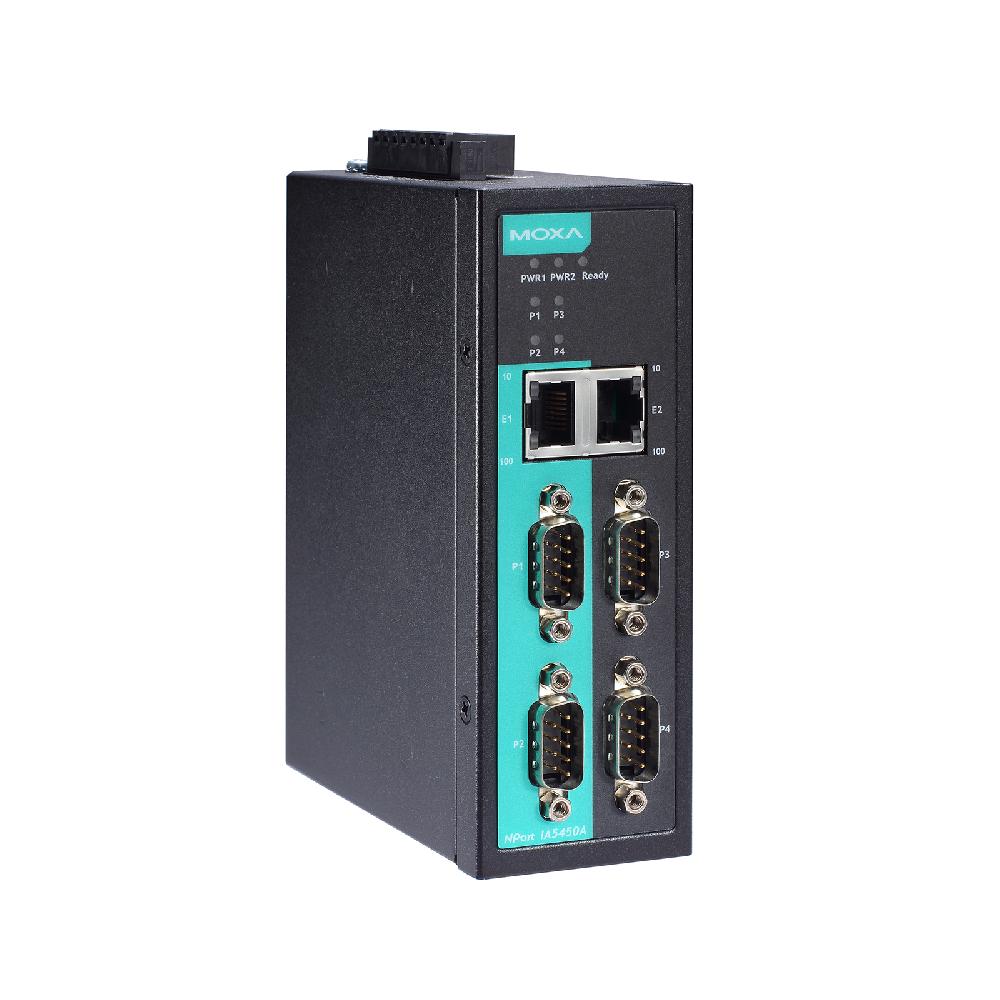

NPort IA5450A-T

Operating Temp. -40 to 75°C
Serial Standards RS-232/422/48
Serial Isolation -
No. of Serial Ports 4
Certification: Hazardous Locations ATEX, C1D2, IECEx

NPort IA5450AI

Operating Temp. 0 to 60°C
Serial Standards RS-232/422/485
Serial Isolation 2 kV
No. of Serial Ports 4
Certification: Hazardous Locations ATEX, C1D2, IECEx

NPort IA5450AI-T

Operating Temp. -40 to 75°C
Serial Standards RS-232/422/485
Serial Isolation 2 kV
No. of Serial Ports 4
Certification: Hazardous Locations ATEX, C1D2, IECEx
