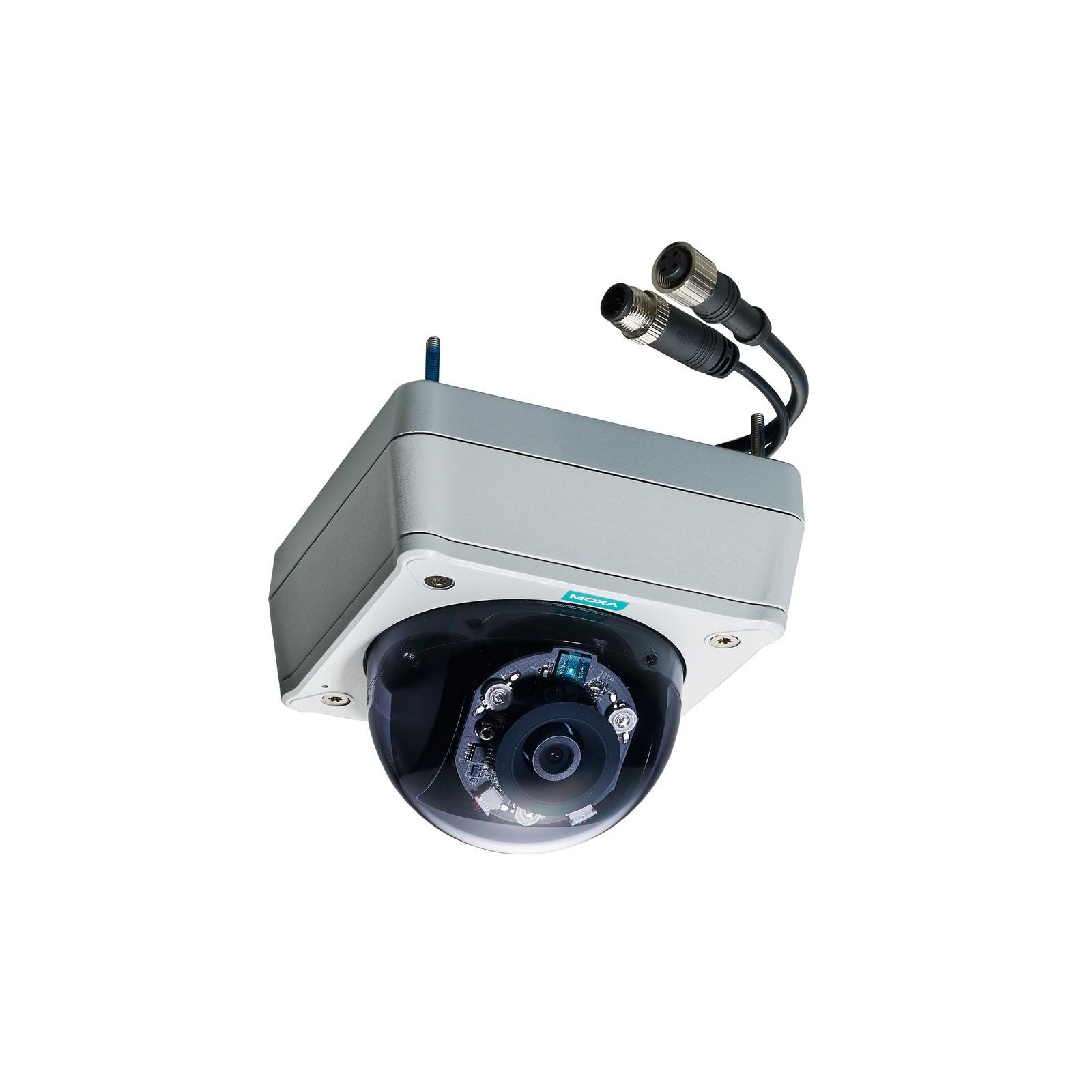

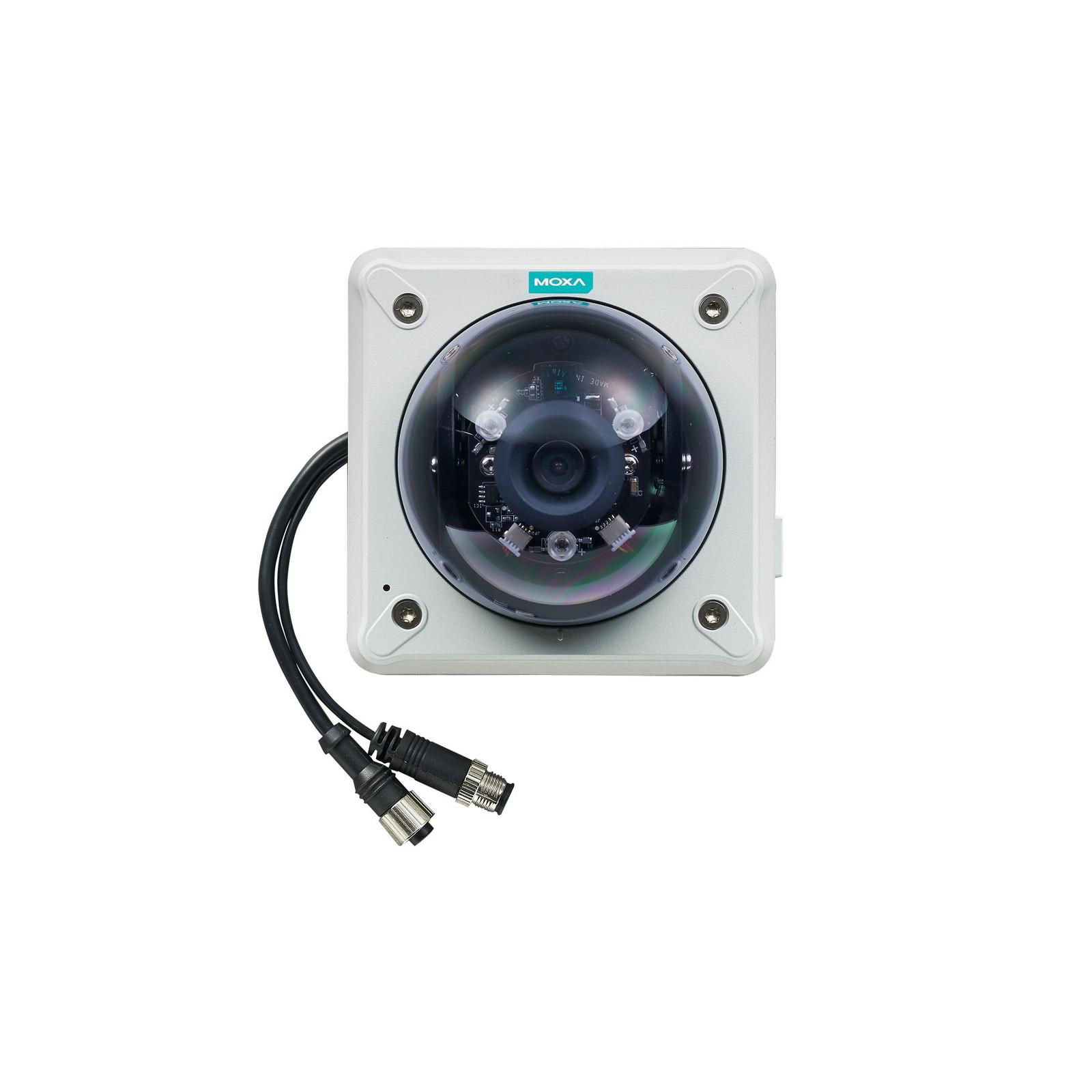

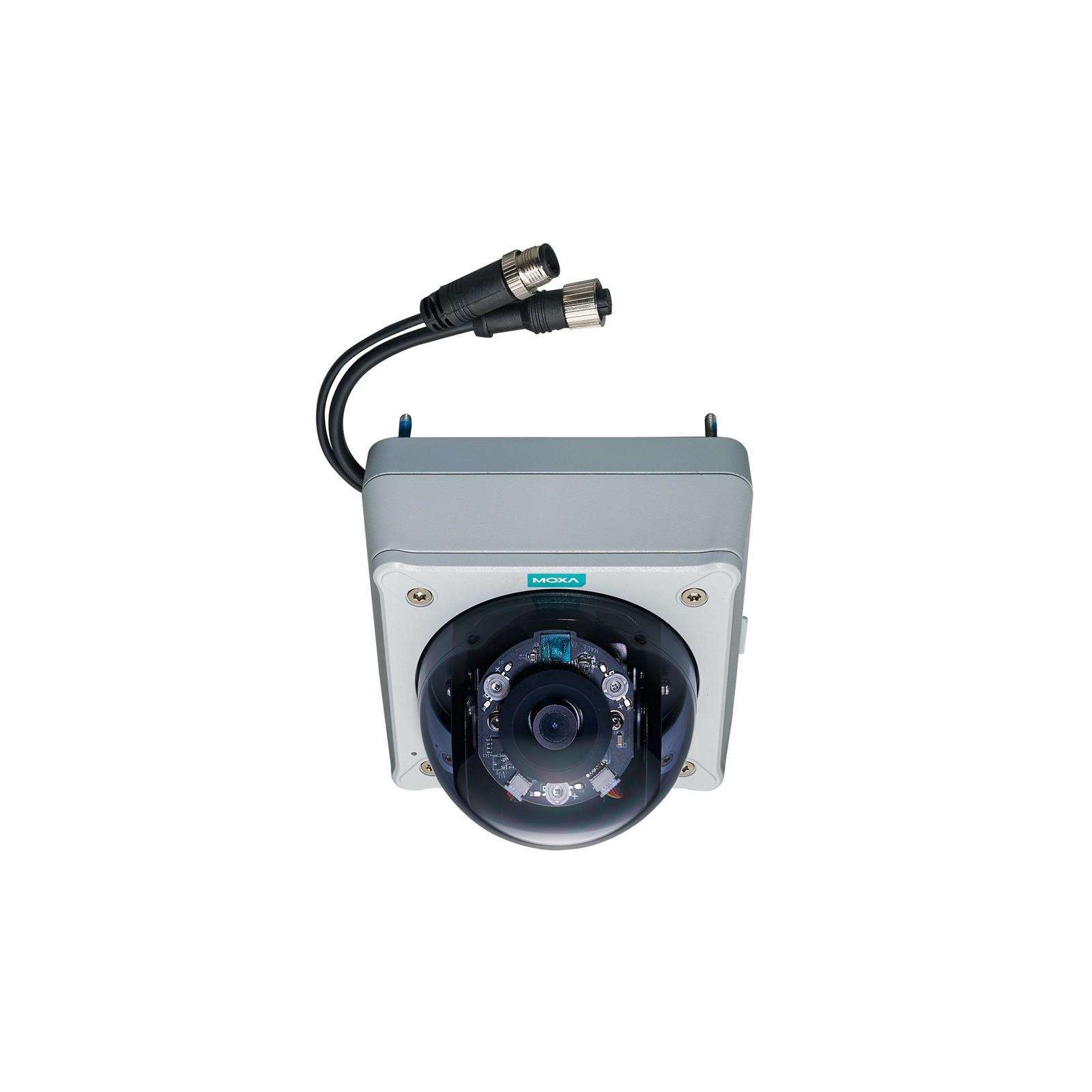

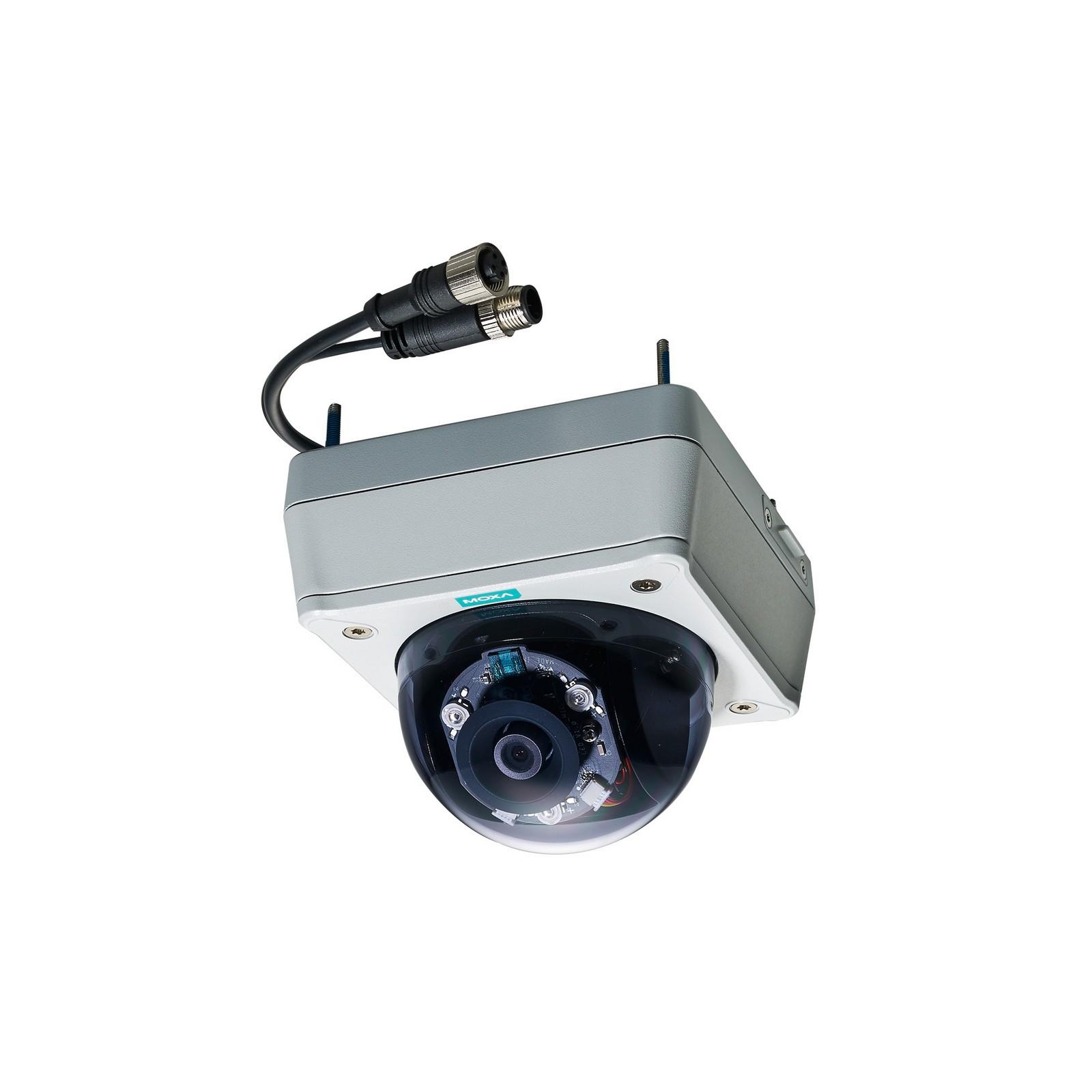

The rugged VPort P16-1MP-M12-IR cameras produce HD (720P, 1280 x 720) video images and feature 3 H.264/MJPEG video streams, giving them the versatility and ruggedness needed for mobile IP video surveillance applications in a variety of different installations and environments. In addition, the cameras feature vandal-proofing (EN 62262 IK10), a -25 to 55°C or -40 to 70°C (T models) operating temperature, a rugged M12 Ethernet port, PoE power input, a built-in microphone, a digital input, IP66 rain and dust protection, an IR illuminator for day & night image capabilities, and are compliant with the mandatory sections of EN 50155.
Input/Output Interface | |
| Digital Input Channels | 1 |
| Digital Inputs | +13 to +30 V for state 1 -30 to +1 V for state 0 Max. input current: 8 mA |
| Connector | 5-pin A-coded male M12 connector with 20 cm cable |
Ethernet Interface | |
| PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector) | 1 |
| Standards | IEEE 802.3af for PoE |
Ethernet Software Features | |
| Protocols | TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS |
Security Functions | |
| Password | User-level password protection |
| Filter | IP address |
| Encryption | HTTPS |
Power Parameters | |
| No. of Power Inputs | 1 |
| Source of Input Power | PoE (IEEE 802.3af) |
| Input Current | 0.19 A @ 48 VDC |
Camera Characteristics | |
| Sensor | 1/2.7-in HD progressive scan CMOS |
| Lens | VPort P16-1MP-M12-IR-CAM36 Series: f=3.6mm, F1.6, Diagonal 99°, Horizontal 94°, Vertical 47° VPort P16-1MP-M12-IR-CAM80 Series: f=8.0mm, F1.6, Diagonal 45°, Horizontal 40°, Vertical 22° |
| Minimum Illumination | Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec) B/W: 0.05 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec) Note: 0 lux if IR illuminator is on |
| Camera Angle | Pan 350°, Tilt 65° (controlled manually) |
| Day & Night | Auto/Color/BW; ICR control |
| Synchronization | Internal |
| White Balance | ATW/AWB |
| Electronic Shutter | Auto, Fixed (1/30 to 1/25000 sec) |
| S/N Ratio | Maximum 50 dB (AGC off; DNR on) |
| ICR Control | Auto (light sensor control) or DI control |
| IR Illumination | IR LED illuminators, 5-meter (max.) effective distance; On/Off controlled manually (night mode) or by the light sensor |
| DNR (digital noise reduction) | Built-in 2D/3D DNR |
| WDR (wide dynamic range) | 110 dB |
| Flickerless Control | Automatic, 50 Hz, 60 Hz modes |
| Image Rotation | Flip, Mirror, and 180° rotation |
| Image Setting | Manual tuning with saturation, sharpness, and contrast |
| AGC (auto gain control) | 2X, 4X, 8X, 16X, 32X, 64X |
| BLC (back light compensation) | High/Medium/Low |
Video Interface | |
| Video Compression | H.264 (ISO/IEC 14496-10) or MJPEG |
| Video Output | via Ethernet |
| Video Streams | 3 independent H.264 or MJPEG video streams |
| Video Resolution and FPS (frames per second) | |
| Video Viewing | DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions 3 privacy mask areas provided Adjustable image size and quality Timestamp and text overlay OSD (On Screen Display) position adjustable Maximum of 5 simultaneous unicast connections, 50 multicast clients |
Audio Interface | |
| Audio Format | Mono, PCM (G.711) |
| Audio Inputs | 1 x built-in microphone |
Camera Software Development | |
| VPort SDK PLUS | Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers |
| Video Standards | ONVIF Profile S |
Camera Alarm Software Features | |
| Intelligent Video | Camera tampering detection |
| Video Motion Detection | 3 independently configurable areas |
| Scheduling | Daily repeat timing schedule |
| Imaging | JPEG snapshots for pre/trigger/post alarm images |
| Custom Alarms | HTTP event servers for setting customized alarm actions |
| Email/FTP Messaging | Automatic transfer of stored images via email or FTP as event-triggered actions |
| Pre-Alarm Buffer | 12 MB video buffer for JPEG snapshot images |
Software Requirements | |
| Memory Size | 1 GB |
| Operating System | Windows 7 or above |
| Browser | Internet Explorer 9.x or above |
| Multimedia | DirectX 9.0C or above |
Physical Characteristics | |
| Housing | IP66 rain and dust protection Metal housing, PC dome cover IK10 vandal resistant protection |
| Dimensions | 125 x 125 x 120.7 mm (4.92 x 4.92 x 4.8 in) |
| Weight | 870 g (1.92 lb) |
| Installation | Panel mounting |
| Protection | -CT models: PCB conformal coating |
Environmental Limits | |
| Operating Temperature | Standard Models: -25 to 55°C (-13 to 131°F) Wide Temp. Models: -40 to 70°C (-40 to 158°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Ingress Protection | IEC 60529, IP66 |
| Salt Spray Test | ASTM-B117 |
| Vandal Resistance | EN 62262, IK10 |
| Altitude | 2000 m |
Standards and Certifications | |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Freefall | IEC 60068-2-31 |
| Railway Fire Protection | EN 45545-2 |
| Safety | UL 60950-1 |
| Shock | IEC 60068-2-27, IEC 61373, EN 50155 |
| Vibration | IEC 60068-2-64, IEC 61373, EN 50155 |
| Railway | EN 50155 (complies with a portion of EN 50155 specifications) |
MTBF | |
| Time | 1,052,184 hrs |
| Standards | Telcordia SR332 |
Warranty | |
| Warranty Period | 5 years Note: Limited warranty on moving parts; see Moxa's online warranty policy for details. |
| Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for VPort P16-1MP-M12-IR Series | Datasheet | V1.0 | 12 November 2018 |
| Lens | 3.6 mm |
| Operating Temp. | -25 to 55°C |
| Conformal Coating | – |
| Lens | 3.6 mm |
| Operating Temp. | -25 to 55°C |
| Conformal Coating | ✓ |
| Lens | 3.6 mm |
| Operating Temp. | -40 to 70°C |
| Conformal Coating | ✓ |
| Lens | 3.6 mm |
| Operating Temp. | -40 to 70°C |
| Conformal Coating | – |
| Lens | 8.0 mm |
| Operating Temp. | -25 to 55°C |
| Conformal Coating | – |
| Lens | 8.0 mm |
| Operating Temp. | -40 to 70°C |
| Conformal Coating | – |
| Lens | 8.0 mm |
| Operating Temp. | -25 to 55°C |
| Conformal Coating | ✓ |
| Lens | 8.0 mm |
| Operating Temp. | -40 to 70°C |
| Conformal Coating | ✓ |
