ioThinx 4530 Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Controllers & I/Os  >   Advanced Controllers & I/Os

Advanced modular controller with built-in serial ports

Product Feature

  • -40 to 75°C wide operating temperature model available
  • Supports TPM v2.0 (optional)
  • Easy tool-free installation and removal
  • Moxa Industrial Linux with secure boot function

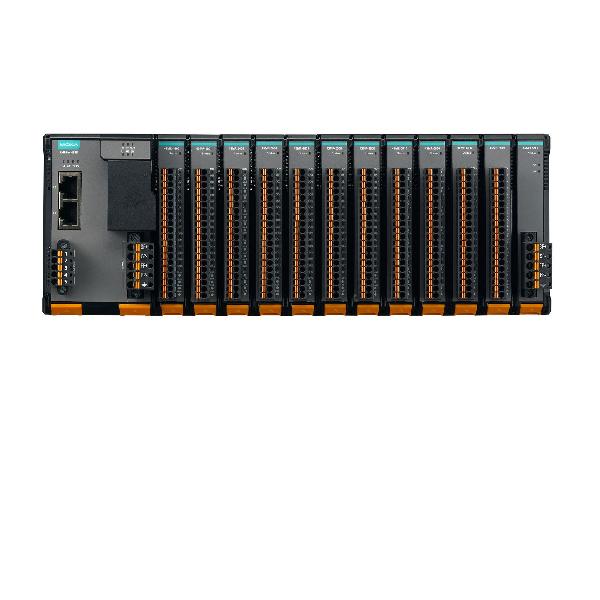

  • Supports up to 64 I/O modules
  • Built-in Azure/AWS/Alibaba Cloud library
  • Built-in OPC UA server library

Introduction

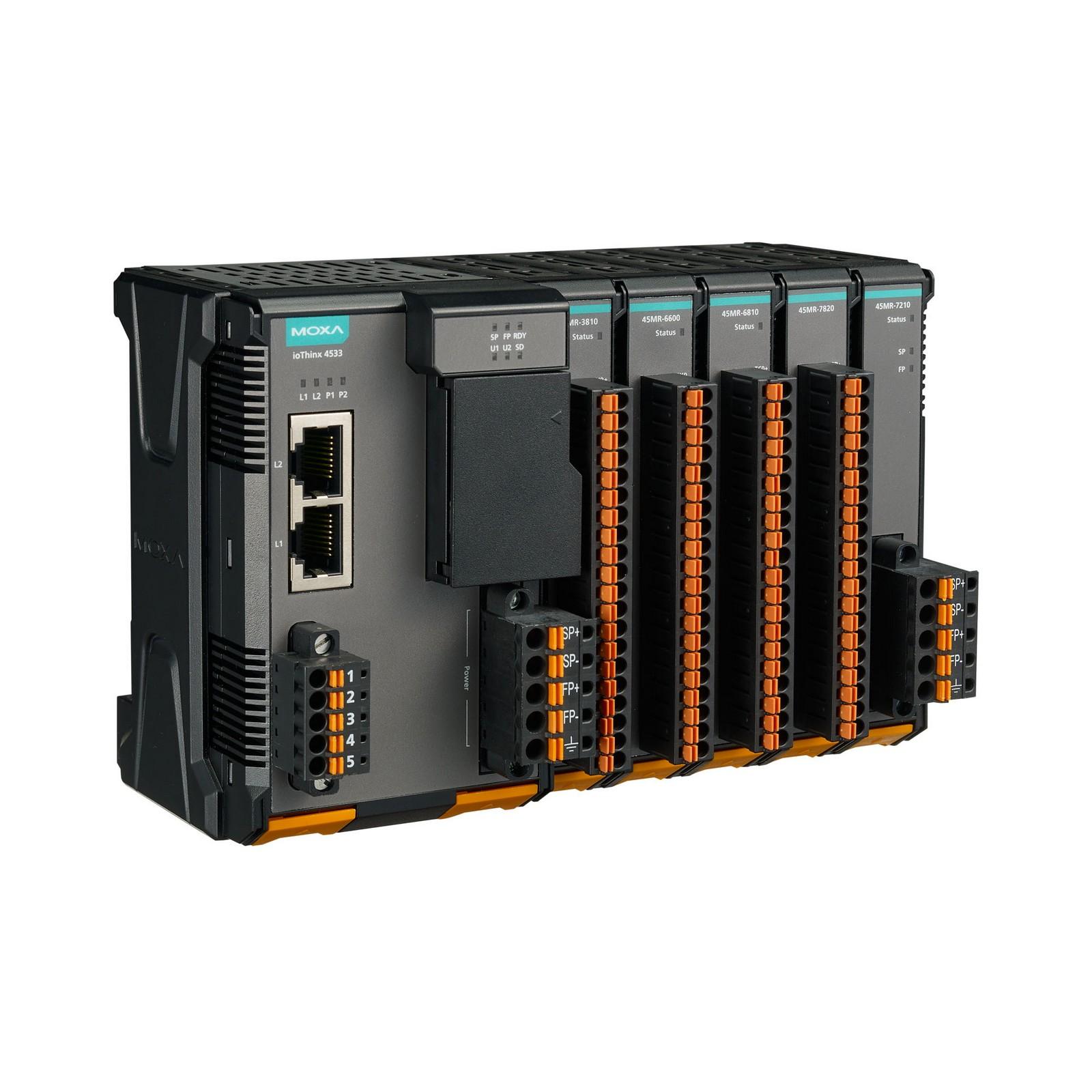

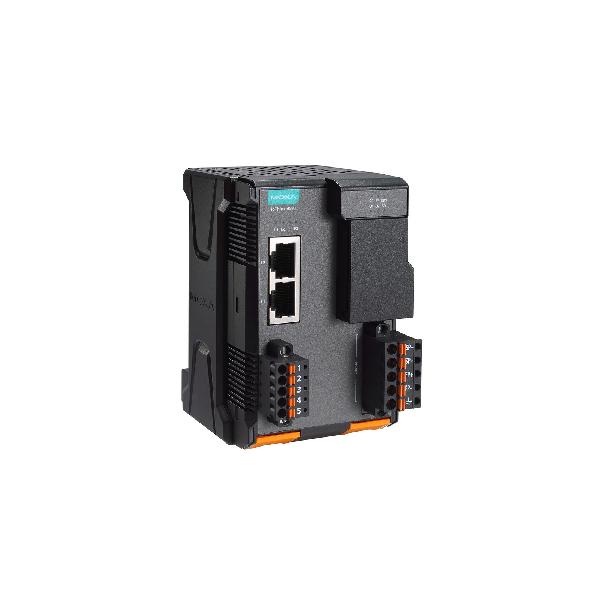

The ioThinx 4530 Series is an advanced modular controller product with a unique hardware design, making it an ideal solution for a variety of industrial data acquisition applications. The ioThinx 4530 Series has a unique mechanical design that reduces the amount of time required for installation and removal, simplifying deployment and maintenance. In addition, the ioThinx 4530 Series supports Moxa Industrial Linux and a built-in Azure/AWS/Alibaba cloud SDK so that users can easily save field data to different cloud accounts.



Easy Tool-free Installation and Removal

The ioThinx 4500 Series has a unique mechanical design that reduces the amount of time required for installation and removal. In fact, screwdrivers and other tools are not required for any part of the hardware installation, including mounting the device on a DIN-rail, as well as connecting the wiring for both communication and I/O signal acquisition. Furthermore, no tools are required to remove the ioThinx from a DIN-rail. Removing all of the modules from a DIN-rail is also easy using the latch and release tab.

Built-in Azure/AWS/Alibaba Cloud Library

Saving field site data to the cloud to improve Overall Equipment Effectiveness (OEE) or implement predictive maintenance is an important aspect of IIoT or Industry 4.0 applications. To help users to connect to the cloud more easily, the ioThinx 4530 series has Azure/AWS/Alibaba cloud SDKs built in, saving engineers a lot of time on developing cloud connectivity applications.

Computer

CPUNXP i.MX7D 1 GHz
OSLinux kernel 4.4 (CIP, PREEMPT_RT), Debian 9
ClockReal-time clock with capacitor backup
DRAM512 MB DDR3
MRAM128 kB
Storage Pre-installed8 GB eMMC (6 GB reserved for the user)
Storage SlotmicroSD Slots x 1 (up to 32 GB)
Expansion SlotsUp to 64

Control Logic

LanguageC/C++, Python

Computer Interface

ButtonsReset button

Input/Output Interface

Rotary Switch0 to 9

Ethernet Interface

10/100BaseT(X) Ports (RJ45
connector)
Auto negotiation speed
Magnetic Isolation Protection1.5 kV (built-in)

Serial Interface

Console PortRS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
No. of Ports1 x RS-232/422 or 2 x RS-485-2w
ConnectorSpring-type Euroblock terminal
Serial StandardsRS-232/422/485 (software selectable)
Baudrate1200 bps to 115.2 kbps
Flow ControlRTS/CTS
ParityNone, Even, Odd
Stop Bits1, 2
Data Bits7, 8

Serial Signals

RS-232TxD, RxD, RTS, CTS, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND

System Power Parameters

Power ConnectorSpring-type Euroblock terminal
No. of Power Inputs1
Input Voltage12 to 48 VDC
Power Consumption1940 mA @ 12 VDC
Over-Current Protection3 A @ 25°C
Over-Voltage Protection55 VDC
Output Current1 A (max.)

Field Power Parameters

Power ConnectorSpring-type Euroblock terminal
No. of Power Inputs1
Input Voltage12/24 VDC
Over-Current Protection5 A @ 25°C
Over-Voltage Protection33 VDC
Output Current2 A (max.)

Physical Characteristics

WiringSerial cable, 16 to 28 AWG
Power cable, 12 to 26 AWG
Strip LengthSerial cable, 9 to 10 mm
Power cable, 12 to 13 mm
HousingPlastic
Dimensions60.3 x 99 x 75 mm (2.37 x 3.9 x 2.96 in)
Weight207.7 g (0.457 lb)
InstallationDIN-rail mounting

Standards and Certifications

EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
ShockIEC 60068-2-27
VibrationIEC 60068-2-6

MTBF

StandardsTelcordia SR332
Time856,064 hrs

Environmental Limits

Operating TemperatureioThinx 4533-LX: -20 to 60°C (-4 to 140°F)
ioThinx 4533-LX-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package
included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)
AltitudeUp to 4000 m

Declaration

Green ProductRoHS, CRoHS, WEEE

Warranty

DetailsSee www.moxa.com/warranty
Warranty Period5 years
Name Type Version Release Date
Datasheet for ioThinx 4530 Series Datasheet V1.3 30 December 2019

ioThinx 4533-LX

Language C/C++, Python
Ethernet Interface 2 x RJ45
Serial Interface RS-232/RS-422/RS-485
No. of Support I/O Modules 64
Operating Temp. -20 to 60°C

ioThinx 4533-LX-T

Language C/C++, Python
Ethernet Interface 2 x RJ45
Serial Interface RS-232/RS-422/RS-485
No. of Support I/O Modules 64
Operating Temp. -40 to 75°C
