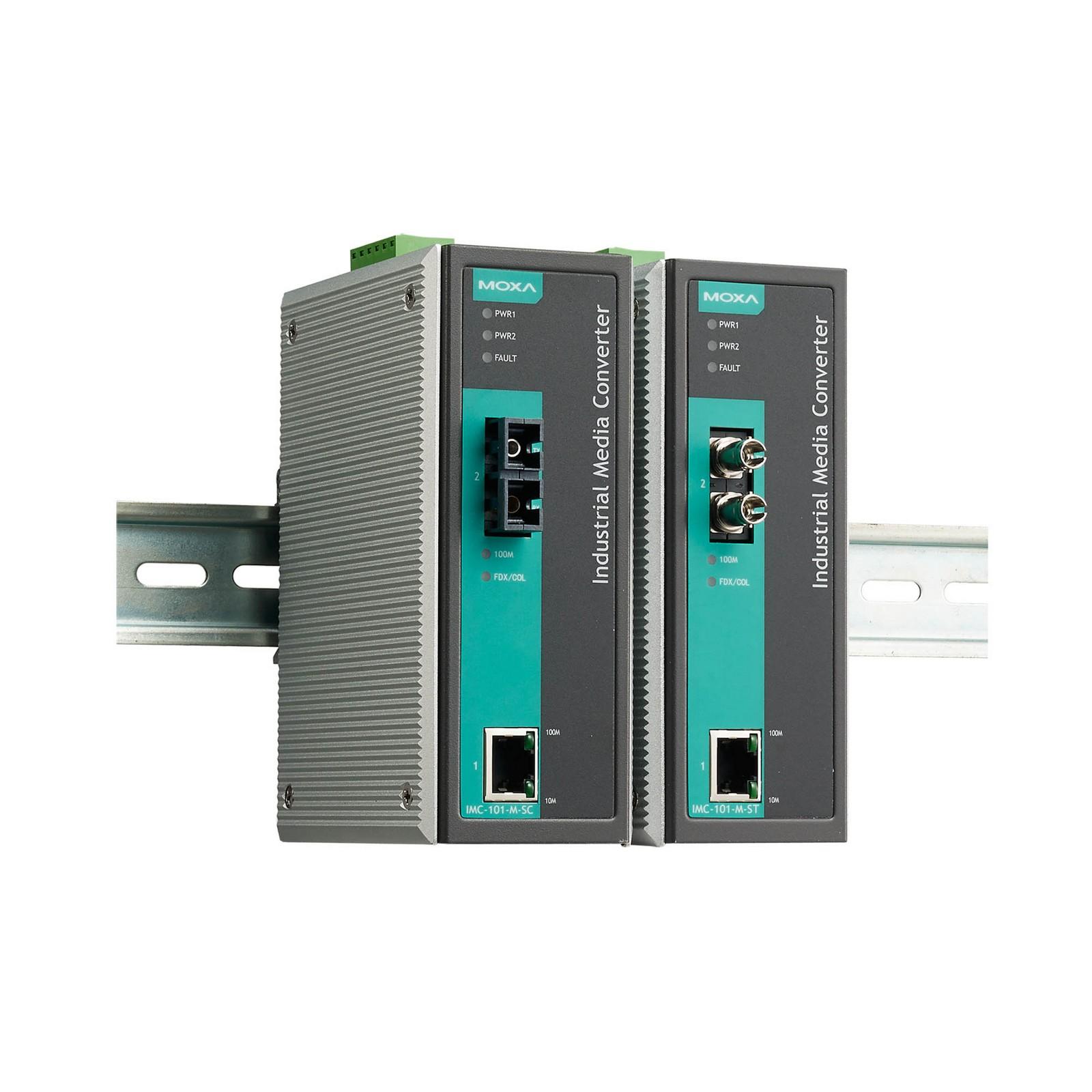

IMC-101 Series

Introduction

The IMC-101 industrial media converters provide industrial-grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The IMC-101 converters’ reliable industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss. The IMC-101 media converters are designed for harsh industrial environments, such as in hazardous locations (Class 1, Division 2/Zone 2, IECEx, DNV, and GL Certification), and comply with FCC, UL, and CE standards. Models in the IMC-101 Series support an operating temperature from 0 to 60°C, and an extended operating temperature from -40 to 75°C. All IMC-101 converters are subjected to a 100% burn-in test.

Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)	1
100BaseFX Ports (multi-mode SC connector)	IMC-101-M-SC/M-SC-IEX Series: 1
100BaseFX Ports (multi-mode ST connector)	IMC-101-M-ST/M-ST-IEX Series: 1
100BaseFX Ports (single-mode SC connector)	IMC-101-S-SC/S-SC-80/S-SC-IEX/S-SC-80-IEX Series: 1
Magnetic Isolation Protection	1.5 kV (built-in)
Optical Fiber	Read more
Power Parameters
Input Current	200 mA @ 12 to 45 VDC
Input Voltage	12 to 45 VDC
Overload Current Protection	Supported
Power Connector	Terminal block
Power Consumption	200 mA @ 12 to 45 VDC
Physical Characteristics
IP Rating	IP30
Housing	Metal
Dimensions	53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight	630 g (1.39 lb)
Installation	DIN-rail mounting
Environmental Limits
Operating Temperature	Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) 0 to 60°C (32 to 140°F) -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
Environmental Testing	IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3
Safety	EN 60950-1, UL 60950-1
Vibration	IEC 60068-2-6
Hazardous Locations	Standard models: UL/cUL Class I Division 2 Groups A/B/C/D -IEX models: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2, IECEx
MTBF
Time	401,000 hrs
Standards	MIL-HDBK-217F
Warranty
Warranty Period	5 years
Details	See www.moxa.com/warranty

Name		Type	Version	Release Date
Datasheet for IMC-101 Series		Datasheet	V1.4	21 May 2020

IMC-101-M-SC

Operating Temp.	0 to 60°C
Fiber Module Type	Multi-mode SC
IECEx	–
Fiber Transmission Distance	5 km

IMC-101-M-SC-T

Operating Temp.	-40 to 75°C
Fiber Module Type	Multi-mode SC
IECEx	–
Fiber Transmission Distance	5 km

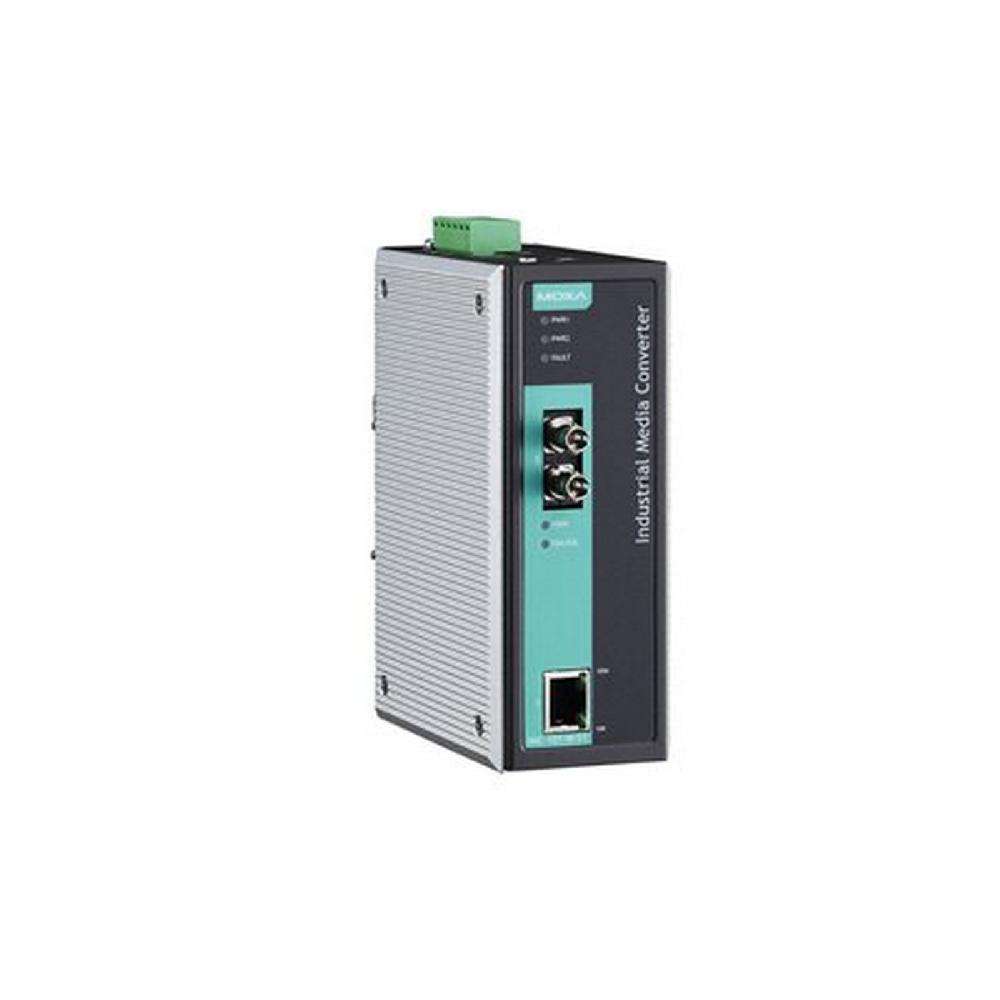

IMC-101-M-ST

Operating Temp.	0 to 60°C
Fiber Module Type	Multi-mode SC
IECEx	–
Fiber Transmission Distance	5 km

IMC-101-S-SC

Operating Temp.	0 to 60°C
Fiber Module Type	Single-mode SC
IECEx	–
Fiber Transmission Distance	40 km

IMC-101-S-SC-80

Operating Temp.	0 to 60°C
Fiber Module Type	Single-mode SC
IECEx	–
Fiber Transmission Distance	80 km

IMC-101-S-SC-T

Operating Temp.	-40 to 75°C
Fiber Module Type	Single-mode SC
IECEx	–
Fiber Transmission Distance	40 km

IMC-101-S-SC-80-T

Operating Temp.	-40 to 75°C
Fiber Module Type	Single-mode SC
IECEx	–
Fiber Transmission Distance	80 km

IMC-101-M-SC-IEX

Operating Temp.	0 to 60°C
Fiber Module Type	Multi-mode SC
IECEx	✓
Fiber Transmission Distance	5 km

IMC-101-M-SC-T-IEX

Operating Temp.	-40 to 75°C
Fiber Module Type	Multi-mode SC
IECEx	✓
Fiber Transmission Distance	5 km

IMC-101-M-ST-IEX

Operating Temp.	0 to 60°C
Fiber Module Type	Multi-mode SC
IECEx	✓
Fiber Transmission Distance	5 km

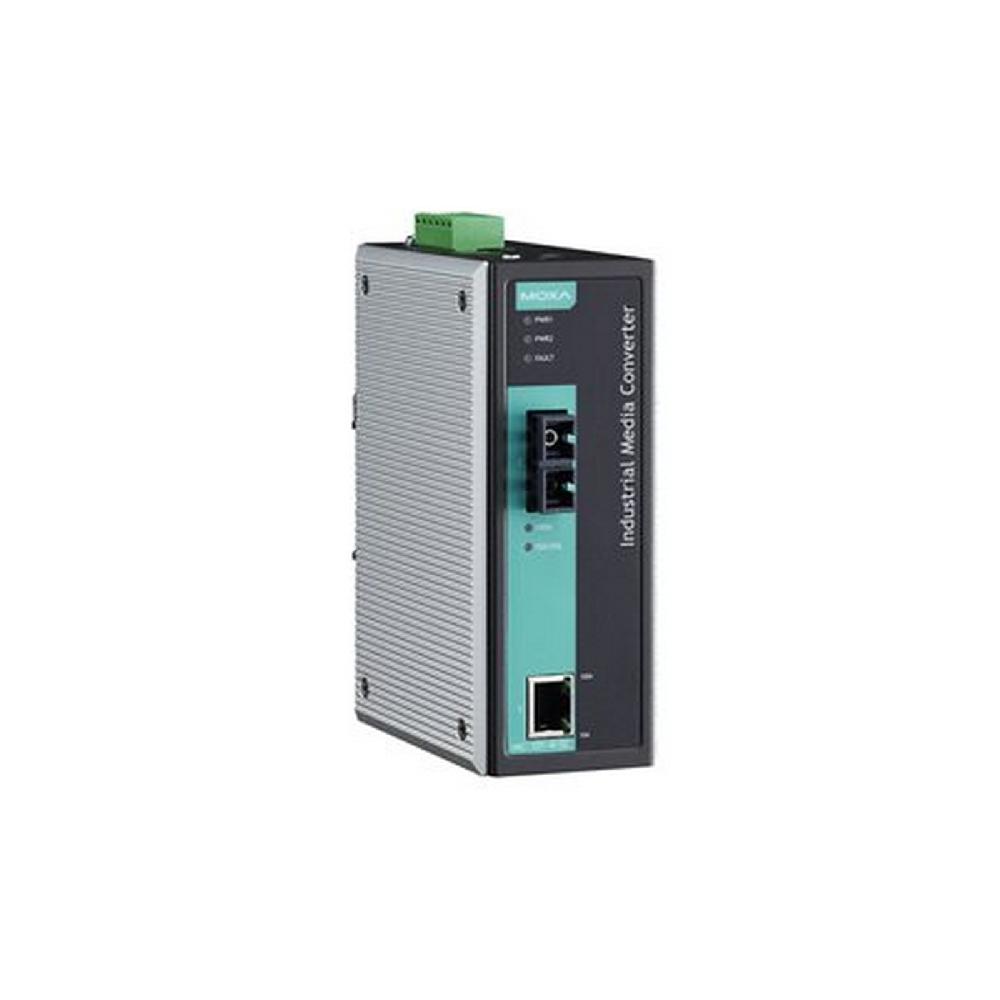

IMC-101-S-SC-IEX

Operating Temp.	0 to 60°C
Fiber Module Type	Single-mode SC
IECEx	✓
Fiber Transmission Distance	40 km

IMC-101-S-SC-T-IEX

Operating Temp.	-40 to 75°C
Fiber Module Type	Single-mode SC
IECEx	✓
Fiber Transmission Distance	40 km

IMC-101-M-ST-T

Operating Temp.	-40 to 75°C
Fiber Module Type	Multi-mode SC
IECEx	–
Fiber Transmission Distance	5 km

IMC-101-M-ST-T-IEX

Operating Temp.	-40 to 75°C
Fiber Module Type	Multi-mode SC
IECEx	✓
Fiber Transmission Distance	5 km
