IMC-P101 Series

Introduction

IMC-P101 Ethernet-to-fiber media converters provide Ethernet media conversion from 10/100BaseT(X) to 100BaseFX (with SC or ST connectors). These converters are classified as power source equipment (PSE), and when used in this way, they provide up to 15.4 watts to IEEE 802.3af-compliant powered devices (PDs), eliminating the need for additional wiring. The IMC-P101 converters support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing, providing a complete solution for your industrial Ethernet network.

Ethernet Interface
100BaseFX Ports (multi-mode SC connector)	IMC-P101-M-SC Series: 1
100BaseFX Ports (multi-mode ST connector)	IMC-P101-M-ST Series: 1
100BaseFX Ports (single-mode SC connector)	IMC-P101-M-ST Series: 1
100BaseFX Ports (single-mode ST connector)	IMC-P101-M-ST Series: 1
Optical Fiber	Read more
Magnetic Isolation Protection	1.5 kV (built-in)
PoE Ports (10/100BaseT(X), RJ45 connector)	1
Power Parameters
Input Current	430 mA @ 46 to 57 VDC
Input Voltage	46 to 57 VDC
Overload Current Protection	Supported
Power Consumption	430 mA @ 46 to 57 VDC
Physical Characteristics
Housing	Metal
Dimensions	144.5 x 122.3 x 51.65 mm (5.69 x 4.81 x 2.03 in)
Weight	710 g (1.56 lb)
Installation	DIN-rail mounting
Environmental Limits
Operating Temperature	Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
Environmental Testing	IEC 60068-2-2 IEC 60068-2-3
Safety	EN 60950-1, UL 60950-1
Vibration	IEC 60068-2-6
MTBF
Time	435,210 hrs
Standards	Telcordia (Bellcore), GB
Warranty
Warranty Period	5 years
Details	See www.moxa.com/warranty

Name		Type	Version	Release Date
Datasheet for IMC-P101 Series		Datasheet	V1.1	21 May 2020

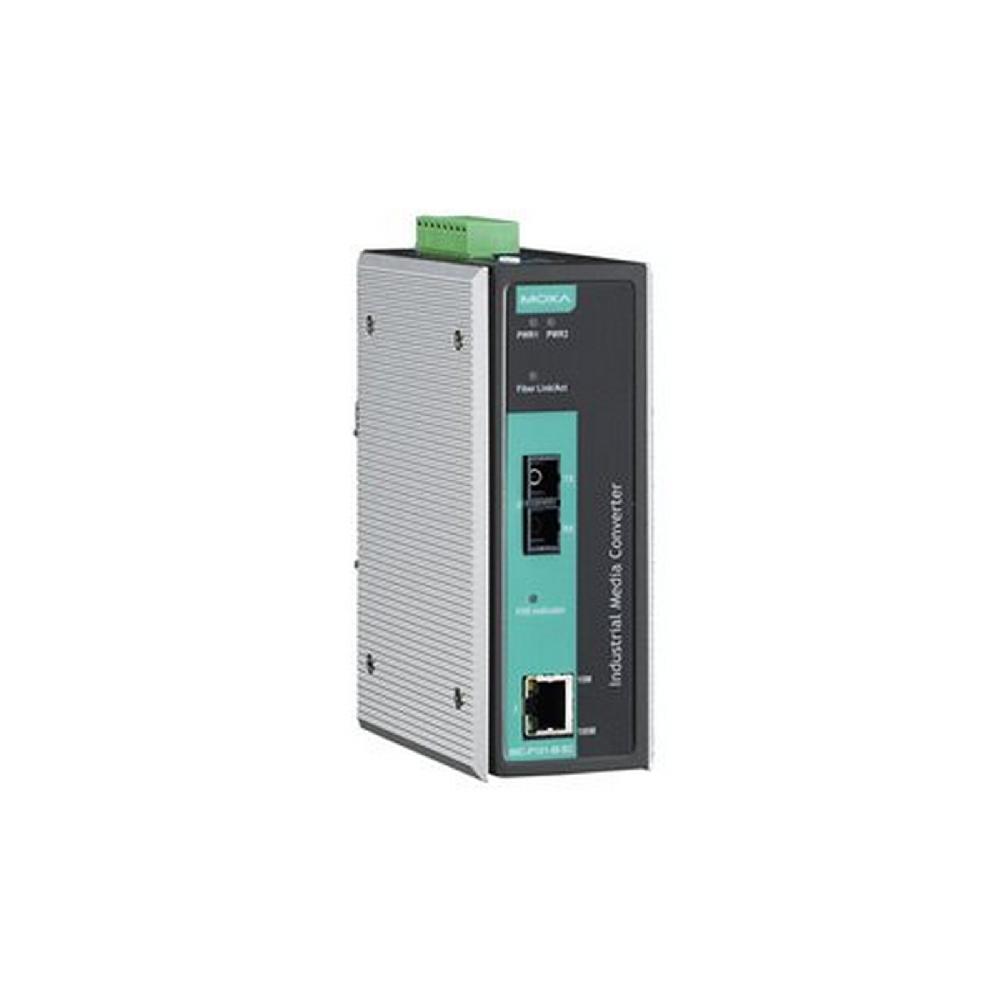

IMC-P101-M-SC

Operating Temp.	0 to 60°C
Fiber Module Type	Multi-mode SC

IMC-P101-M-SC-T

Operating Temp.	-40 to 75°C
Fiber Module Type	Multi-mode SC

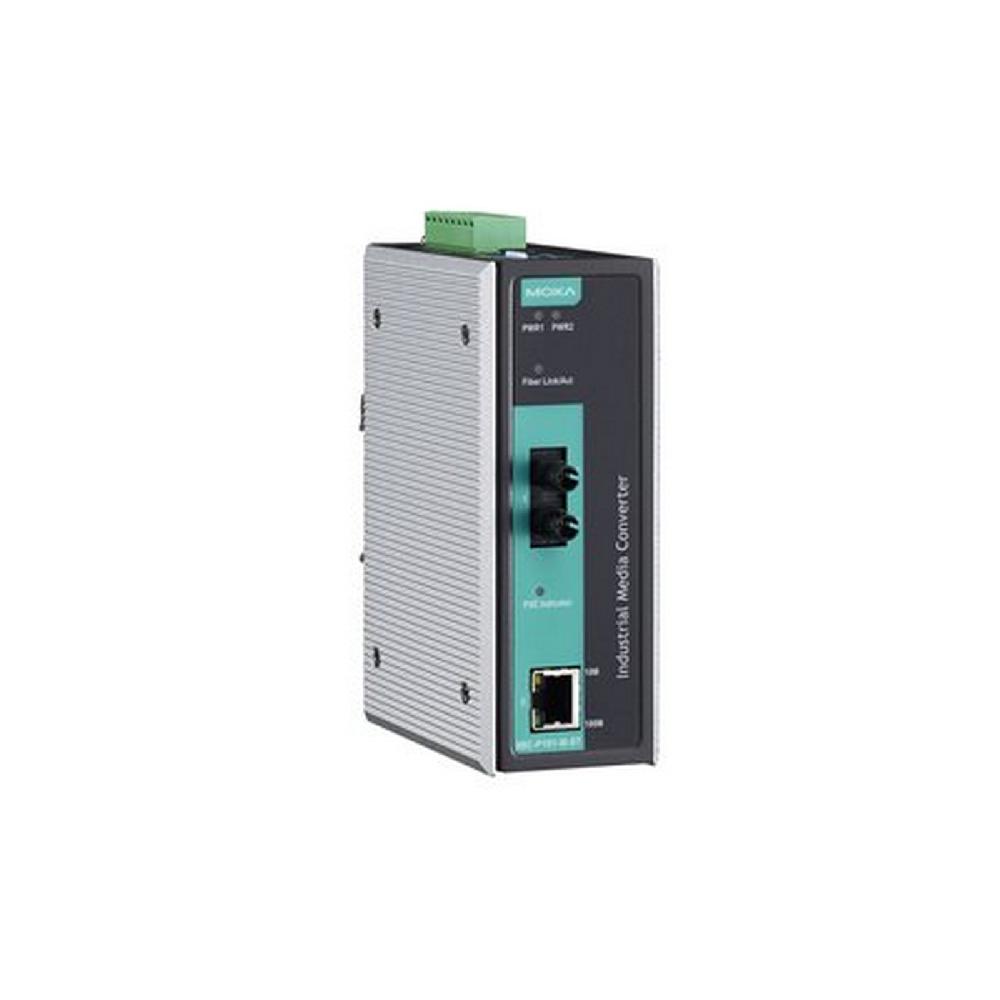

IMC-P101-M-ST

Operating Temp.	0 to 60°C
Fiber Module Type	Multi-mode ST

IMC-P101-M-ST-T

Operating Temp.	-40 to 75°C
Fiber Module Type	Multi-mode ST

IMC-P101-S-SC

Operating Temp.	0 to 60°C
Fiber Module Type	Single-mode SC

IMC-P101-S-SC-T

Operating Temp.	-40 to 75°C
Fiber Module Type	Single-mode SC

IMC-P101-S-ST

Operating Temp.	0 to 60°C
Fiber Module Type	Single-mode ST

IMC-P101-S-ST-T

Operating Temp.	-40 to 75°C
Fiber Module Type	Single-mode ST
