TRC-190 Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Ethernet Media Converters

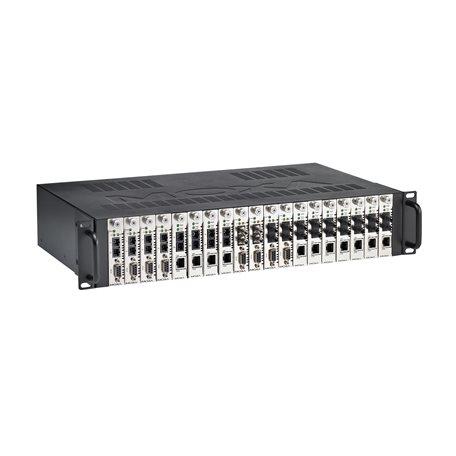

19-inch rackmount chassis media converter

Product Feature

  • 19-inch chassis for rackmount use
  • 19 slots for high-density applications
  • Supports dual power inputs with redundancy
  • Fanless chassis design reduces servicing costs

Introduction

The TRC-190 rackmount chassis provides 19 slots for media converter modules from the CSM-200 Series of Ethernet-to-fiber modules and TCF-142-RM Series of serial-to-fiber modules. A TRC-190 chassis comes with one AC or DC power input, with an optional redundant power expansion AC or DC module available to enhance reliability. The PWR-190-AC and PWR-190-DC-48 power modules can be installed at the same time.

Power Parameters

Input VoltageTRC-190-AC: 110 to 240 VAC
TRC-190-DC-48: 36 to 53 VDC
Redundant dual inputs
No. of Power Inputs2
Overload Current ProtectionSupported
Power ConsumptionTRC-190-AC: 0.9 A @ 110 VAC
TRC-190-DC-48: 2.1 A @ 48 VDC

Physical Characteristics

Dimensions440 x 260 x 88 mm (17.32 x 10.24 x 3.46 in)
Installation19-inch rack mounting
IP RatingIP30
Weight5200 g (11.4 lb)

Environmental Limits

Ambient Relative Humidity5 to 95% (non-condensing)
Operating Temperature0 to 60°C (32 to 140°F)
Storage Temperature (package
included)
-20 to 75°C (-4 to 167°F)

Standards and Certifications

EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
Environmental TestingIEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-3
SafetyEN 60950-1, IEC 60950-1
VibrationIEC 60068-2-6

MTBF

Time1,055,112 hrs
StandardsTelcordia (Bellcore), GB

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for TRC-190 Series Datasheet V1.0 11 November 2018

TRC-190-AC

Input Voltage 100-240 VAC (47-63 Hz)

TRC-190-DC-48

Input Voltage 36-53 VDC
