CSM-200 Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Ethernet Media Converters

Unmanageable 10/100BaseT(X) to 100BaseFX slide-in modules for the NRack System™

Product Feature

  • LFP (Link Fault Pass-Through) and FEF (Far End Fault)
  • Two different operation modes: store-and-forward and pass-through
  • Auto-negotiation
  • Plug and play
  • Hot-swappable

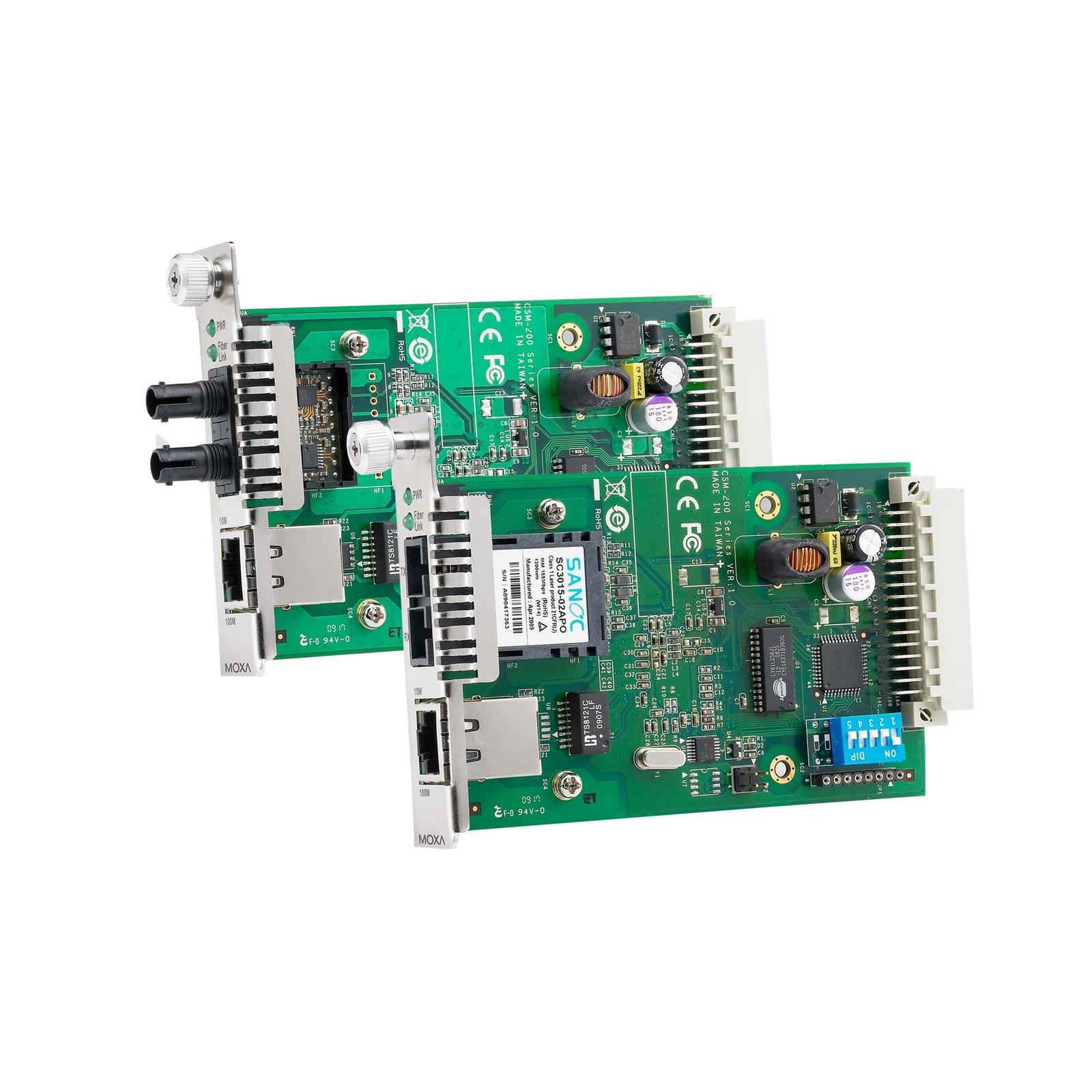

The CSM-200 slide-in Ethernet-to-fiber media converters are designed for the NRack System™. The modules provide media conversion from 10/100BaseT(X) to 100BaseFX (SC/ST connectors), and can be installed in any NRack System™ chassis.

Ethernet Interface

10/100BaseT(X) Ports (RJ45
100BaseFX Ports (multi-mode
ST connector)

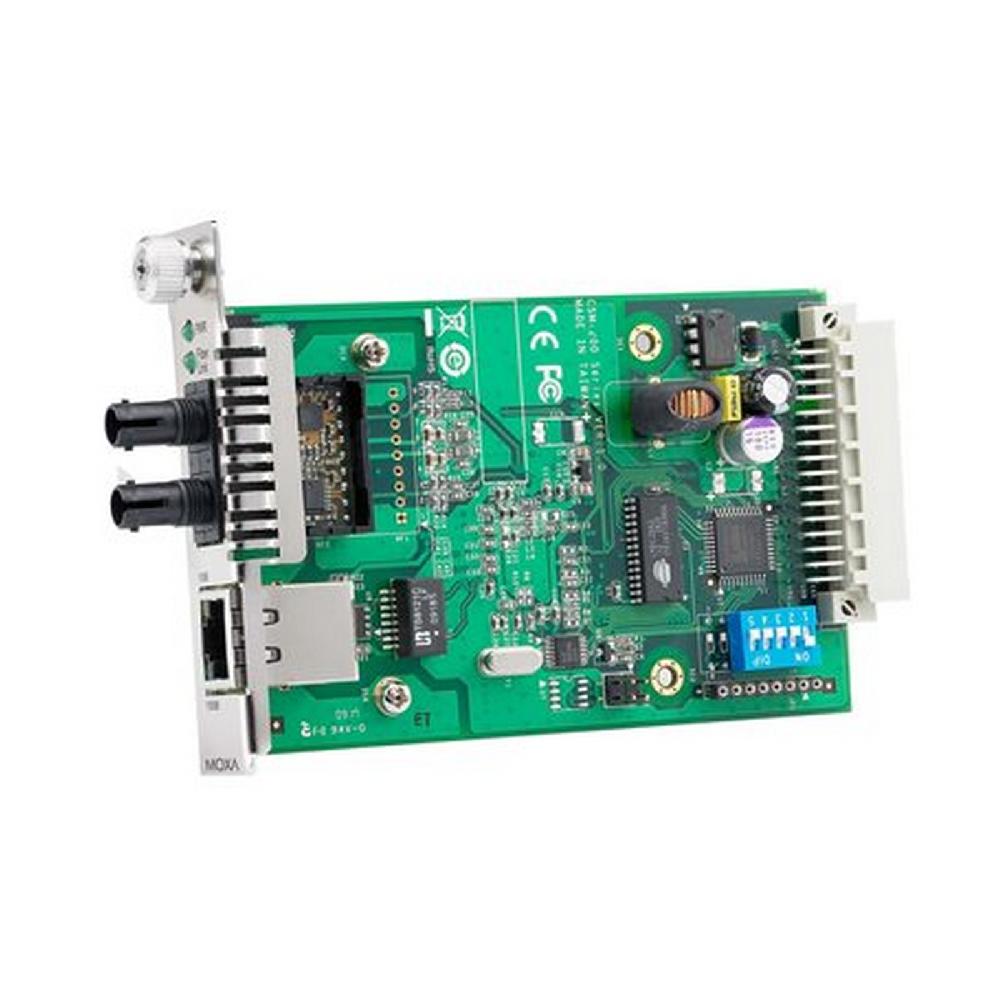

CSM-200-1213: Multi-mode ST connector
100BaseFX Ports (multi-mode
SC connector)

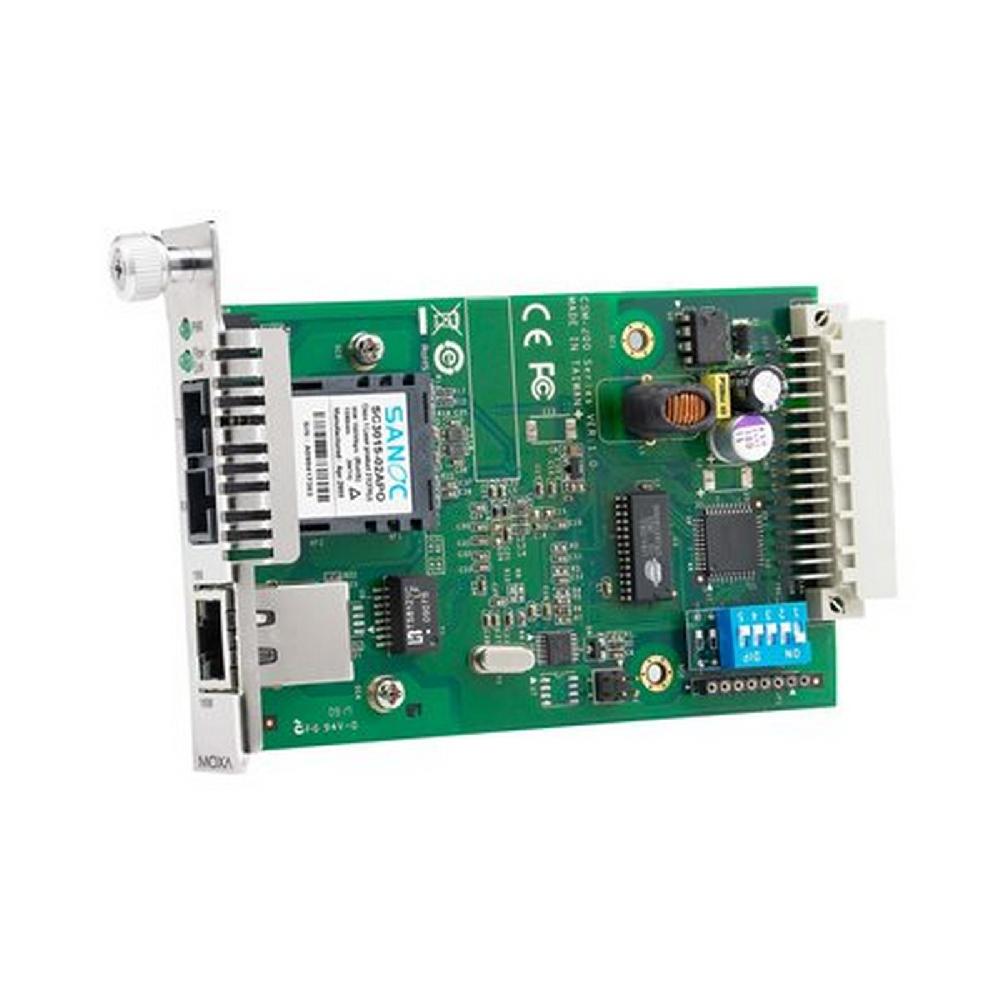

CSM-200-1213: Multi-mode SC connector
100BaseFX Ports (single-mode
SC connector)
CSM-200-1218: Single-mode SC connector
Magnetic Isolation Protection1.5 kV (built-in)
StandardsIEEE 802.3u for 100BaseT(X) and 100BaseFX
Optical FiberRead more

Power Parameters

Input Current180 mA @ 12 VDC
Input Voltage12 VDC
Overload Current ProtectionSupported
Power Consumption180 mA @ 12 VDC

Physical Characteristics

Dimensions86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in)
CSM-200-1213: 170 g (0.37 lb)
CSM-200-1214/1218: 180 g (0.40 lb)

Product only:
CSM-200-1213: 115 g (0.25 lb)
CSM-200-1214/1218: 125 g (0.28 lb)

Environmental Limits

Operating Temperature0 to 55°C (32 to 131°F)
Storage Temperature (package
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs
Environmental TestingIEC 60068-2-1
IEC 60068-2-14
IEC 60068-2-2
IEC 60068-2-3
SafetyEN 60950-1, UL 60950-1
VibrationIEC 60068-2-6


Time1,454,560 hrs
StandardsTelcordia (Bellcore), GB


Warranty Period5 years
Name Type Version Release Date
Datasheet for CSM-200 Series Datasheet V1.1 20 Febuary 2020


Fiber Module Type Multi-mode ST


Fiber Module Type Multi-mode SC


Fiber Module Type Single-mode SC
