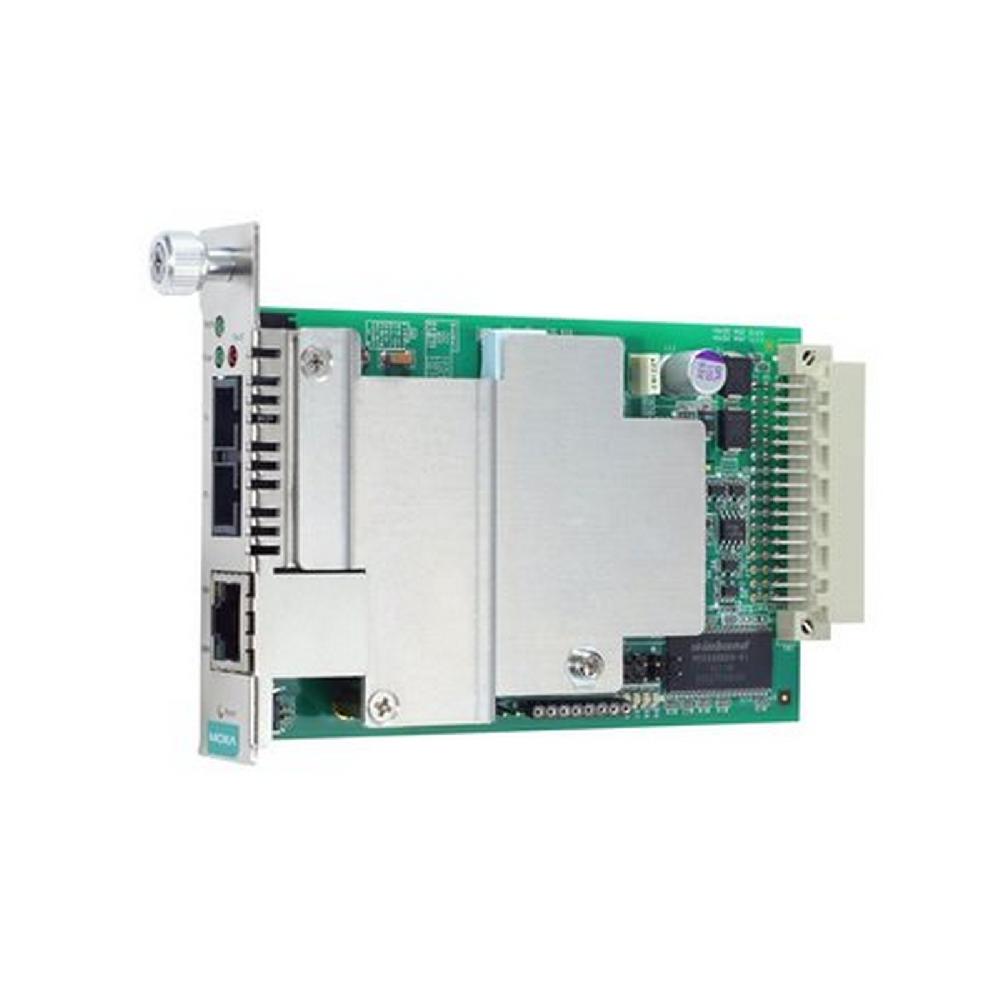

The CSM-400 Series consists of slide-in Ethernet-to-fiber managed media converters for the NRack System™. The modules provide media conversion from 10/100BaseT(X) to 100BaseFX (with SC/ST connectors), and can be installed in any NRack System™ chassis. The CSM-400 modules support LFP and FEF for easily tracing network link failures, and support store-and-forward and pass-through modes, 802.3AM OAM for remote management and monitoring, as well as WDM-type fiber modules to reduce fiber cable cost.
Ethernet Interface | |
| 10/100BaseT(X) Ports (RJ45 connector) | 1 |
| 100BaseFX Ports (multi-mode ST connector) | CSM-400-1213: 1 |
| 100BaseFX Ports (multi-mode SC connector) | CSM-400-1214: 1 CSM-400-1214-T: 1 |
| 100BaseFX Ports (single-mode SC connector) | CSM-400-1218: 1 CSM-400-1218-T: 1 |
| 100BaseFX Ports, WDM-A Single -Mode SC Connector | CSM-400-1224: 1 CSM-400-1224-T: 1 |
| 100BaseFX Ports, WDM-B Single -Mode SC Connector | CSM-400-1225: 1 CSM-400-1225-T: 1 |
| Optical Fiber | Read more |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Standards | IEEE 802.3u for 100BaseT(X) and 100BaseFX |
Power Parameters | |
| Input Current | 220 mA @ 12 VDC |
| Input Voltage | 12 VDC |
| Overload Current Protection | Supported |
| Power Consumption | 220 mA @ 12 VDC |
Physical Characteristics | |
| Dimensions | 86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in) |
| Weight | Packaged: CSM-400-1213/1214/1218 Series: 170 g (0.37 lb) CSM-400-1224/1225 Series: 180 g (0.40 lb) Product only: CSM-400-1213/1214/1218 Series: 115 g (0.25 lb) CSM-400-1224/1225 Series: 125 g (0.28 lb) |
Environmental Limits | |
| Operating Temperature | Standard Models: -20 to 55°C (-4 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC); Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 |
| Environmental Testing | IEC 60068-2-1 IEC 60068-2-14 IEC 60068-2-2 IEC 60068-2-3 |
| Safety | EN 60950-1, UL 60950-1 |
| Vibration | IEC 60068-2-6 |
MTBF | |
| Time | 1,454,560 hrs |
| Standards | Telcordia (Bellcore), GB |
Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for CSM-400 Series | Datasheet | V1.1 | 11 May 2020 |
| Operating Temp. | -20 to 55°C |
| Fiber Module Type | Multi-mode ST |
| Operating Temp. | -40 to 75°C |
| Fiber Module Type | Multi-mode ST |
| Operating Temp. | -20 to 55°C |
| Fiber Module Type | Multi-mode SC |
| Operating Temp. | -40 to 75°C |
| Fiber Module Type | Multi-mode SC |
| Operating Temp. | -20 to 55°C |
| Fiber Module Type | Single-mode SC |
| Operating Temp. | -40 to 75°C |
| Fiber Module Type | Single-mode SC |
| Operating Temp. | -20 to 55°C |
| Fiber Module Type | WDM-A single-mode SC |
| Operating Temp. | -40 to 75°C |
| Fiber Module Type | WDM-A single-mode SC |
| Operating Temp. | -20 to 55°C |
| Fiber Module Type | WDM-B single-mode SC |
| Operating Temp. | -40 to 75°C |
| Fiber Module Type | WDM-B single-mode SC |
