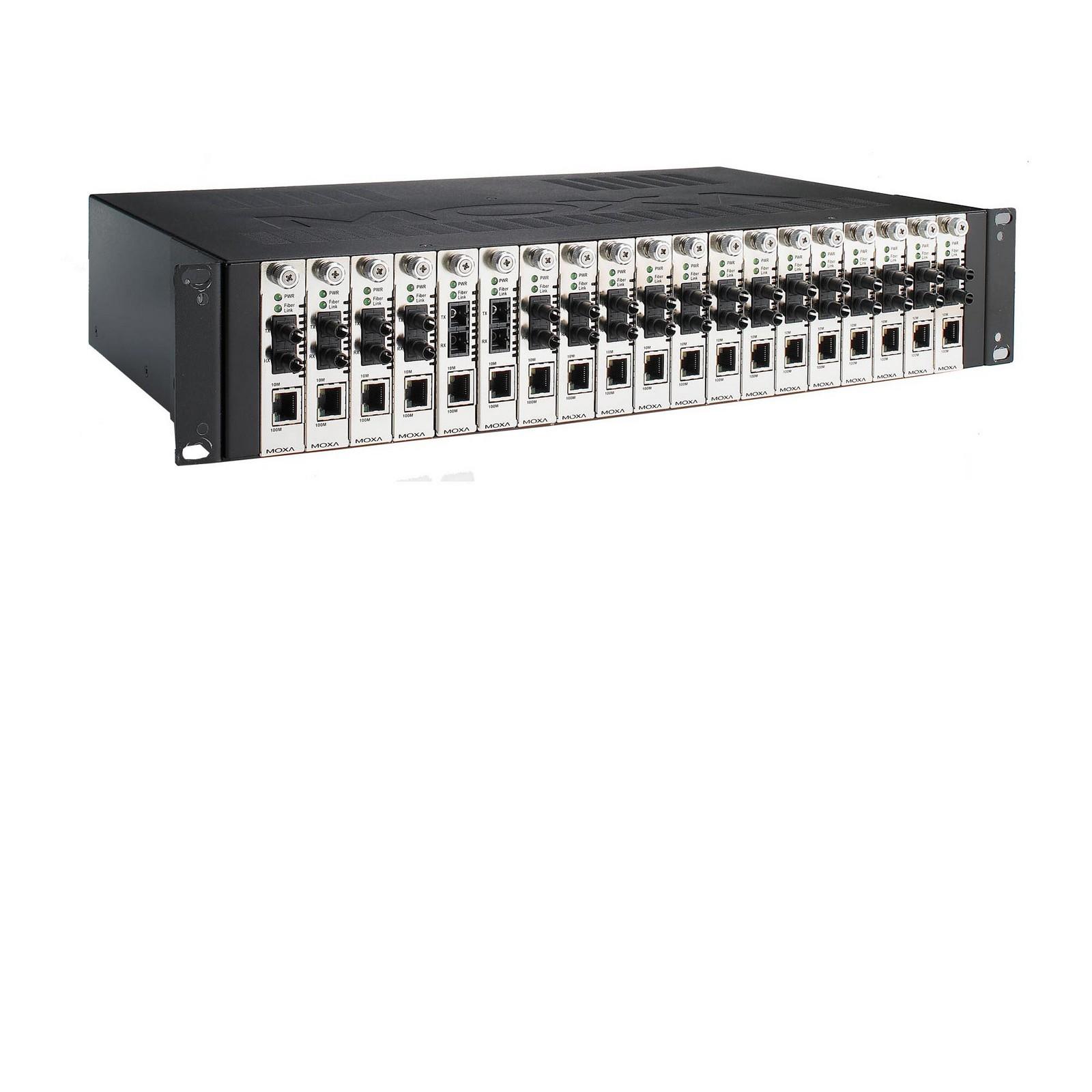

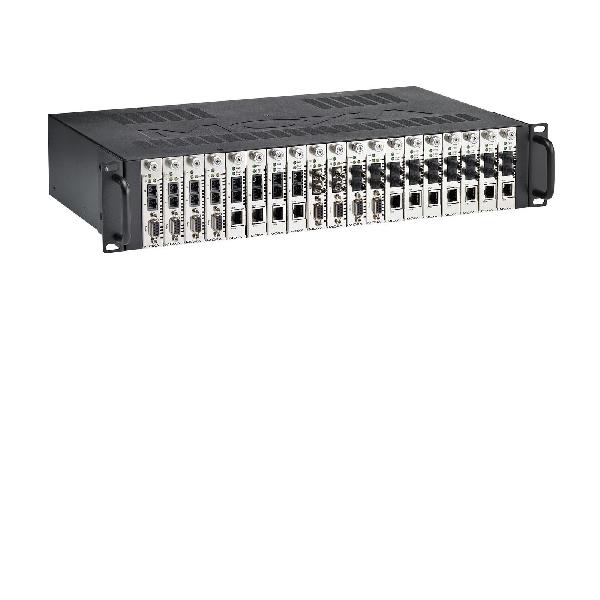

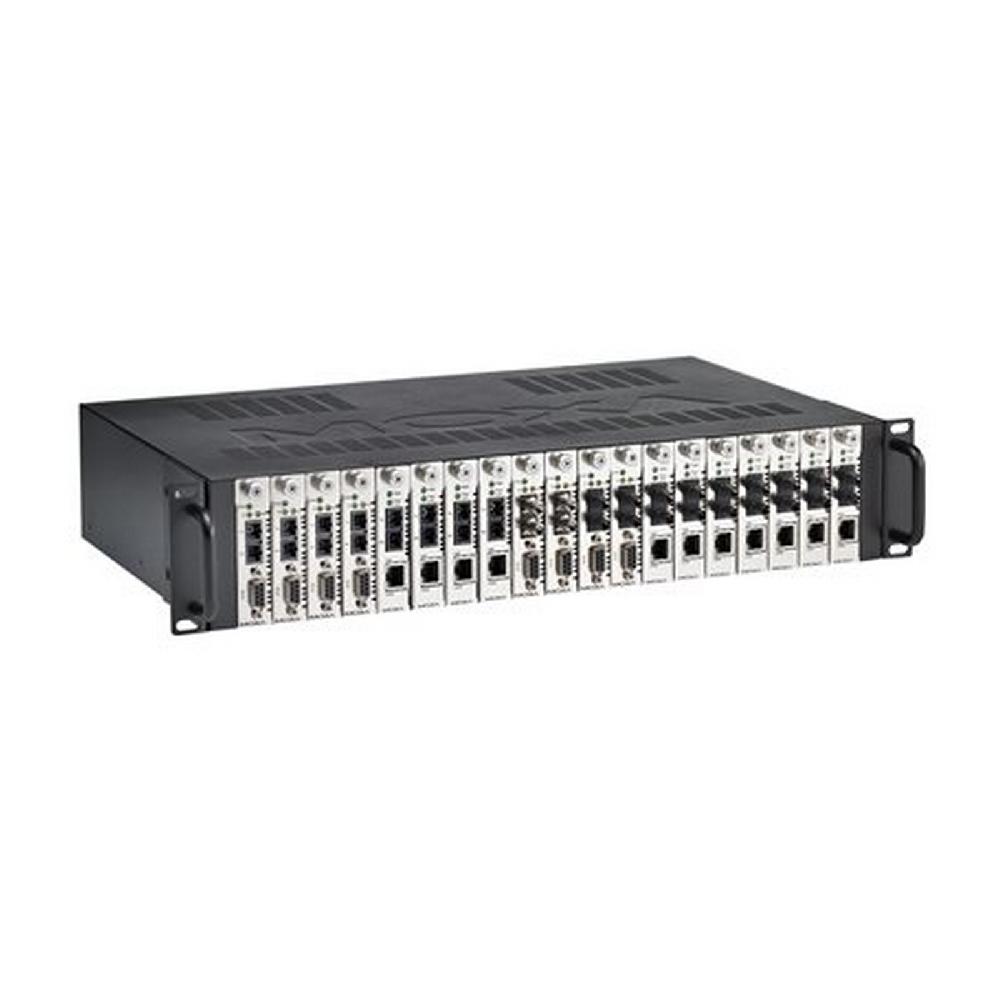

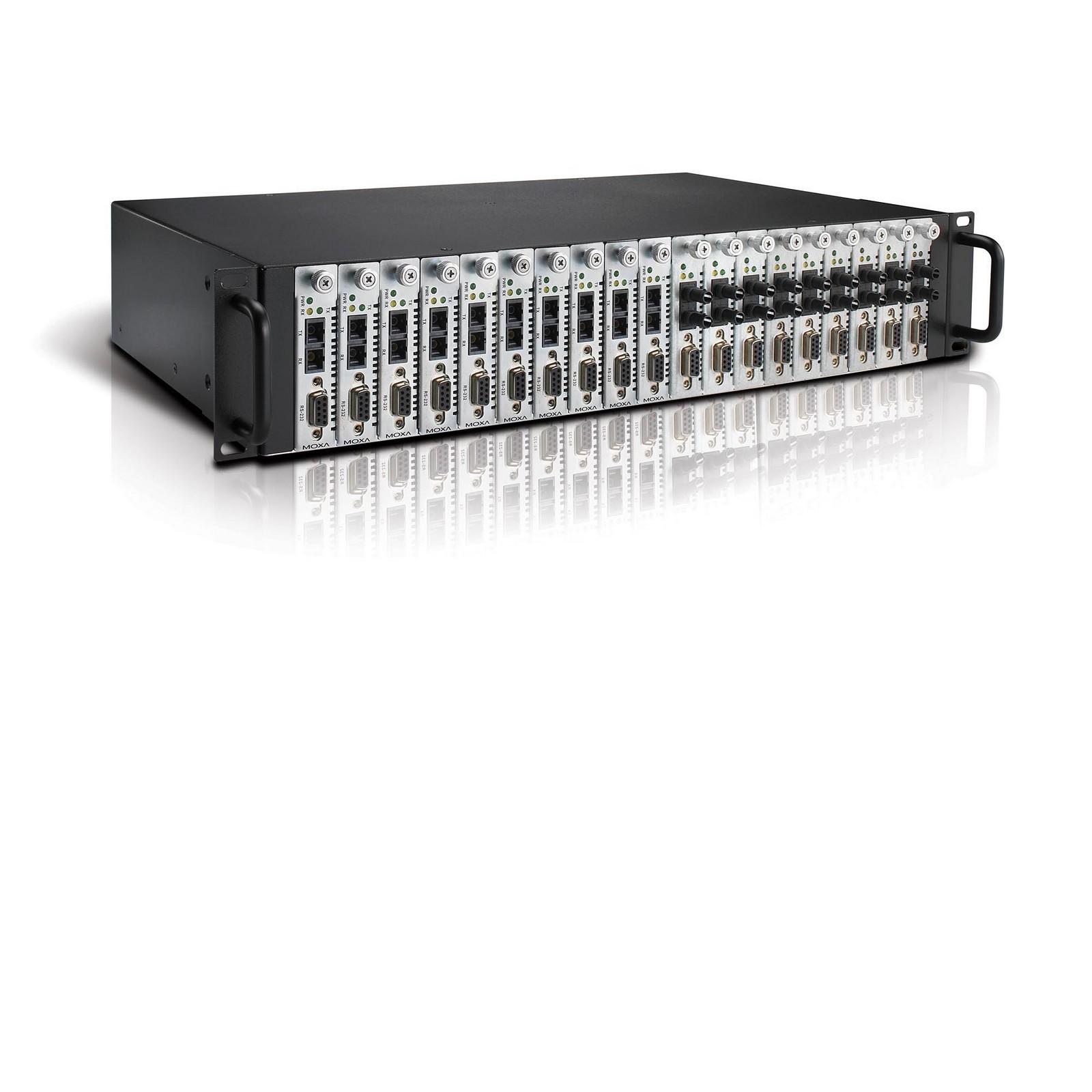

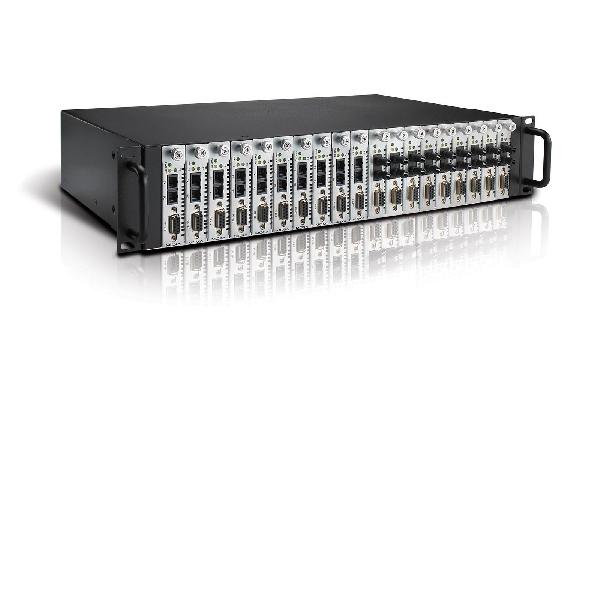

The TRC-190 rackmount chassis provides 19 slots for media converter modules from the CSM-200 Series of Ethernet-to-fiber modules and TCF-142-RM Series of serial-to-fiber modules. A TRC-190 chassis comes with one AC or DC power input, with an optional redundant power expansion AC or DC module available to enhance reliability. The PWR-190-AC and PWR-190-DC-48 power modules can be installed at the same time.
Power Parameters | |
| Input Voltage | TRC-190-AC: 110 to 240 VAC TRC-190-DC-48: 36 to 53 VDC Redundant dual inputs |
| No. of Power Inputs | 2 |
| Overload Current Protection | Supported |
| Power Consumption | TRC-190-AC: 0.9 A @ 110 VAC TRC-190-DC-48: 2.1 A @ 48 VDC |
Physical Characteristics | |
| Dimensions | 440 x 260 x 88 mm (17.32 x 10.24 x 3.46 in) |
| Installation | 19-inch rack mounting |
| IP Rating | IP30 |
| Weight | 5200 g (11.4 lb) |
Environmental Limits | |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature (package included) | -20 to 75°C (-4 to 167°F) |
Standards and Certifications | |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF |
| Environmental Testing | IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3 |
| Safety | EN 60950-1, IEC 60950-1 |
| Vibration | IEC 60068-2-6 |
MTBF | |
| Time | 1,055,112 hrs |
| Standards | Telcordia (Bellcore), GB |
Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for TRC-190 Series | Datasheet | V1.0 | 11 November 2018 |
| Input Voltage | 100-240 VAC (47-63 Hz) |
| Input Voltage | 36-53 VDC |
