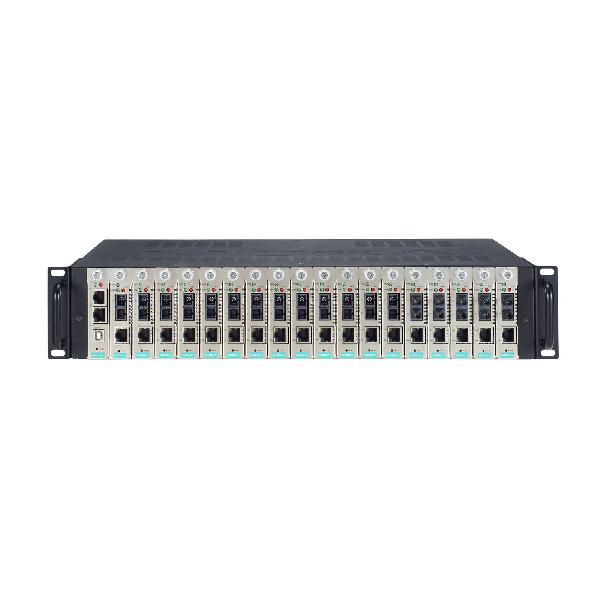

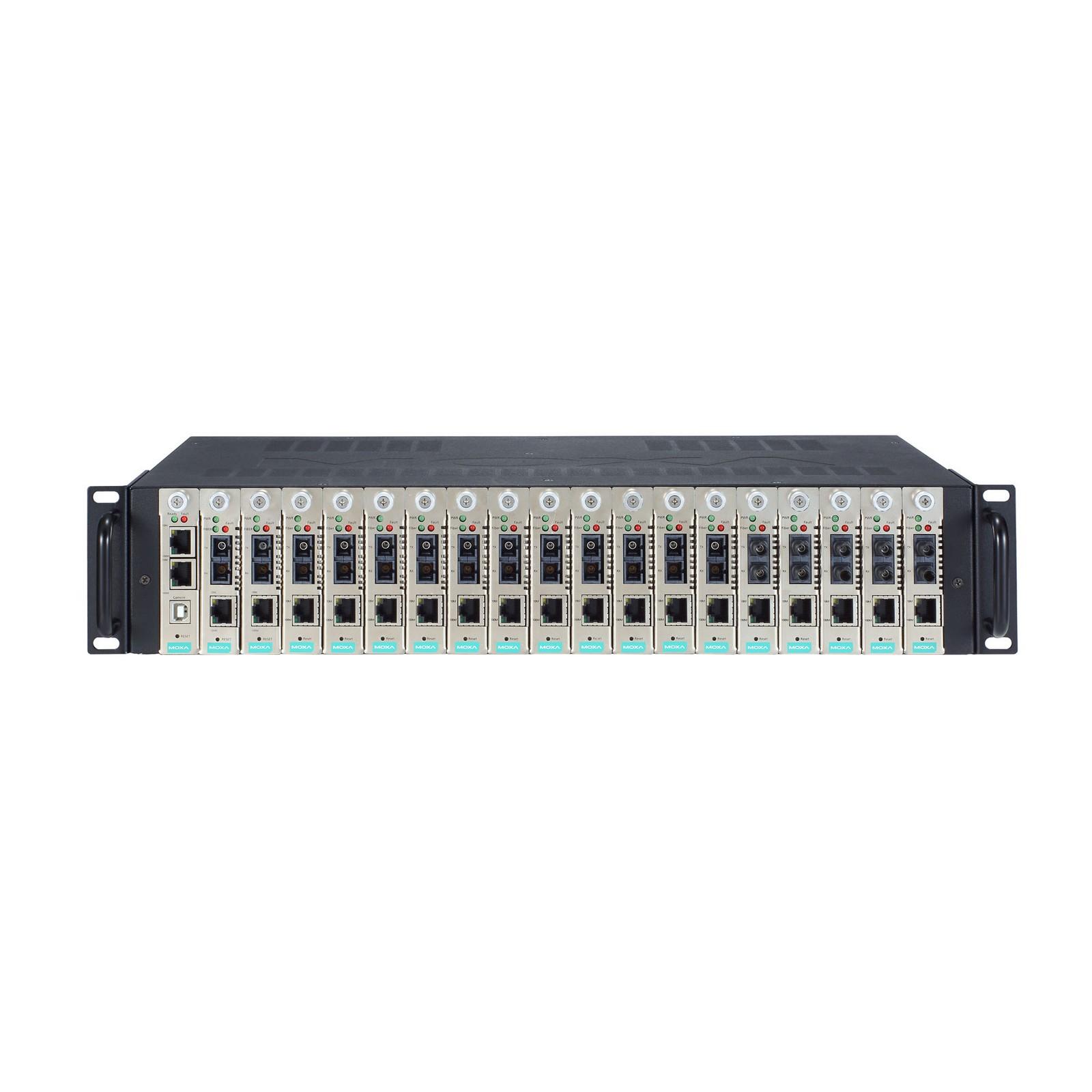

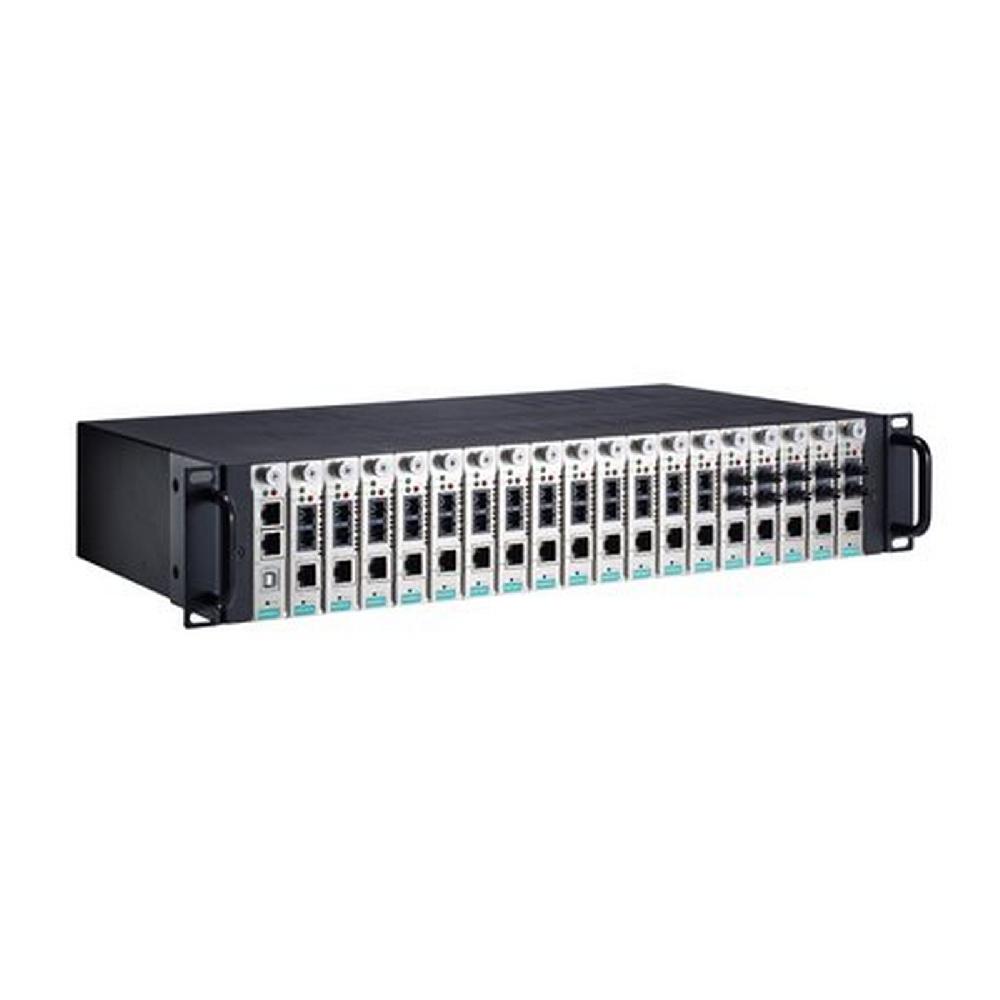

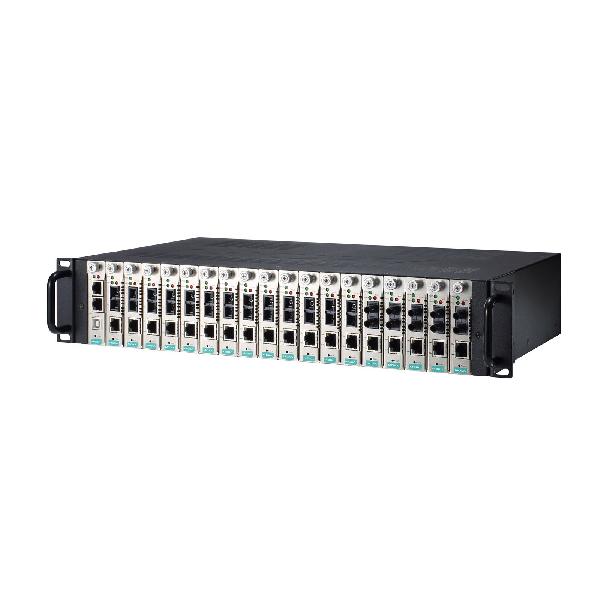

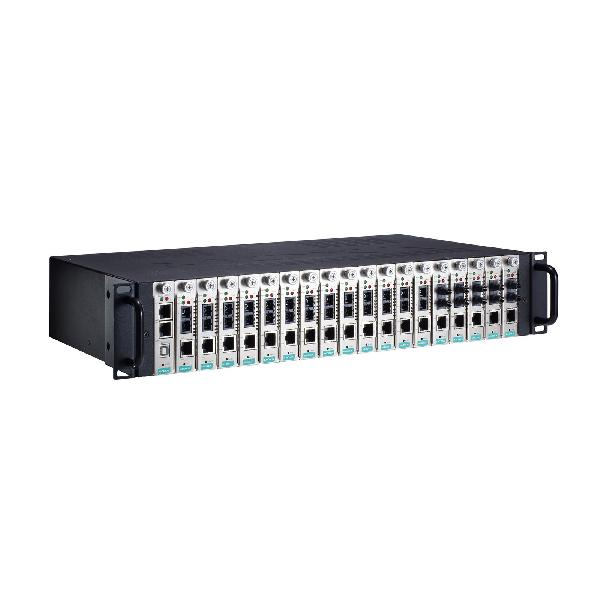

The TRC-2190 Series provides 18 slots for media converter modules from the CSM-400 Series of Ethernet-to-fiber management modules. It also supports SNMP/web console for remote management and monitoring. A TRC-2190 chassis comes with one AC or DC power input, with an optional redundant power expansion module available for greater reliability. The TRC-2190 Series’ power input module supports a fanless chassis design, as well as a -20 to 55°C operating temperature range.
Ethernet Interface | |
| 10/100BaseT(X) Ports (RJ45 connector) | 2 |
Ethernet Software Features | |
| Industrial Protocols | SNMPv1/v2c, SNMPv1/v2c Trap |
| Management | DHCP Client, IPv4/IPv6, SNMPv1/v2c, Syslog, TCP/IP, Telnet, TFTP, UDP, Web Console |
| MIB | MIB-II |
| Security | HTTPS/SSL, Local Account Accessibility, TACACS+, RADIUS, SSH |
| Time Management | NTP Client |
Power Parameters | |
| Input Voltage | TRC-2190-AC: 110 to 240 VAC, TRC-2190-DC-48V: 36 to 53 VDC |
| No. of Power Inputs | 2 |
| Overload Current Protection | Supported |
| Power Consumption | TRC-2190-AC: 0.9 mA @ 110 VAC TRC-2190-DC-48V: 2.1 mA @ 48 VDC |
Physical Characteristics | |
| IP Rating | IP30 |
| Dimensions | 440 x 260 x 77 mm (18.6 x 11 x 3.3 in) |
| Weight | 5.2 g (11.4 lb) |
| Installation | 19-inch rack mounting |
Environmental Limits | |
| Operating Temperature | -20 to 55°C (-4 to 131°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF |
| Environmental Testing | IEC 60068-2-1 IEC 60068-2-14 IEC 60068-2-2 IEC 60068-2-3 |
| Safety | EN 60950-1, IEC 60950-1 |
| Vibration | IEC 60068-2-6 |
MTBF | |
| Time | 1,055,112 hrs |
| Standards | Telcordia (Bellcore), GB |
Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for TRC-2190 Series | Datasheet | V1.0 | 11 November 2018 |
| Input Voltage | 100-240 VAC (47-63 Hz) |
| Input Voltage | 36-53 VDC |
