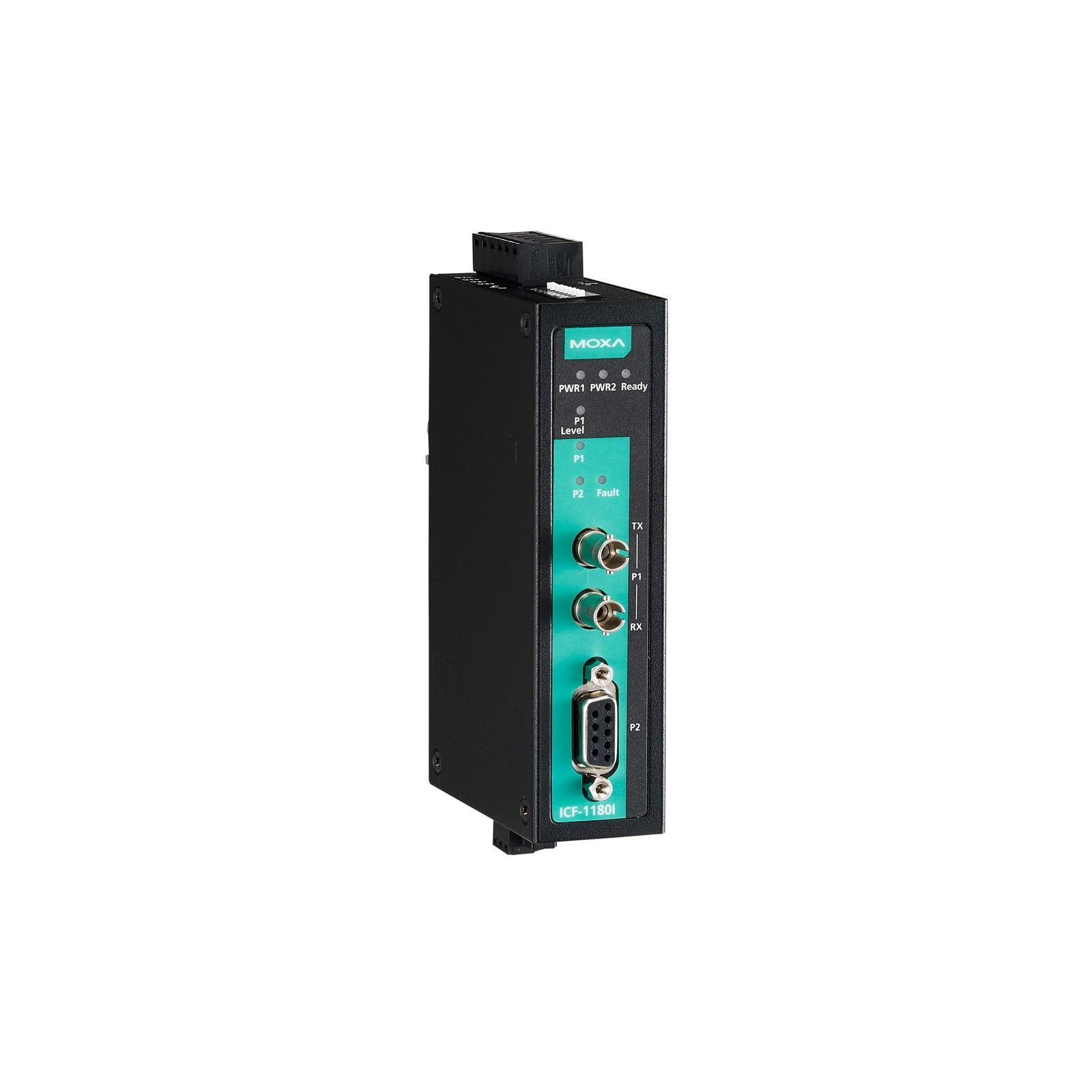

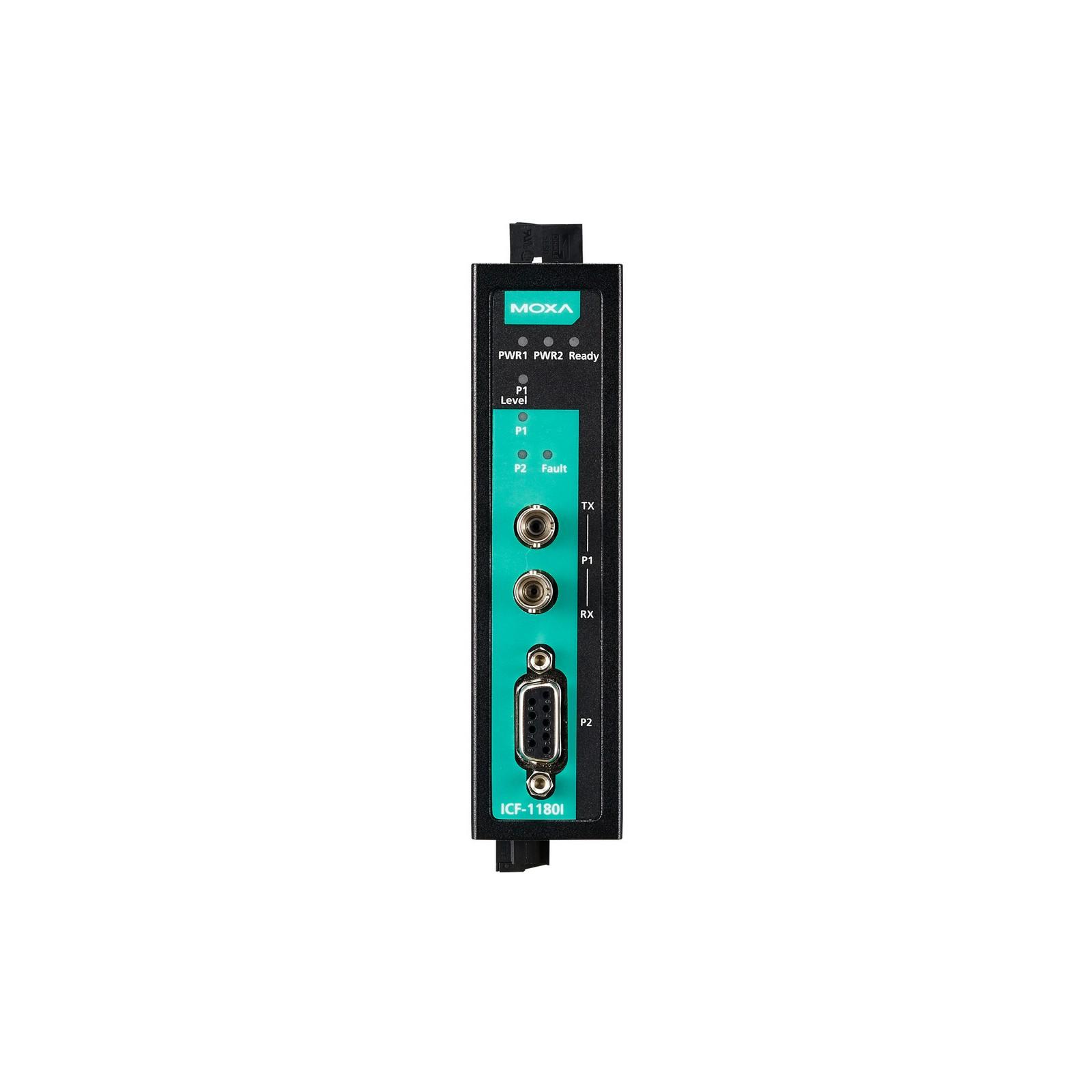

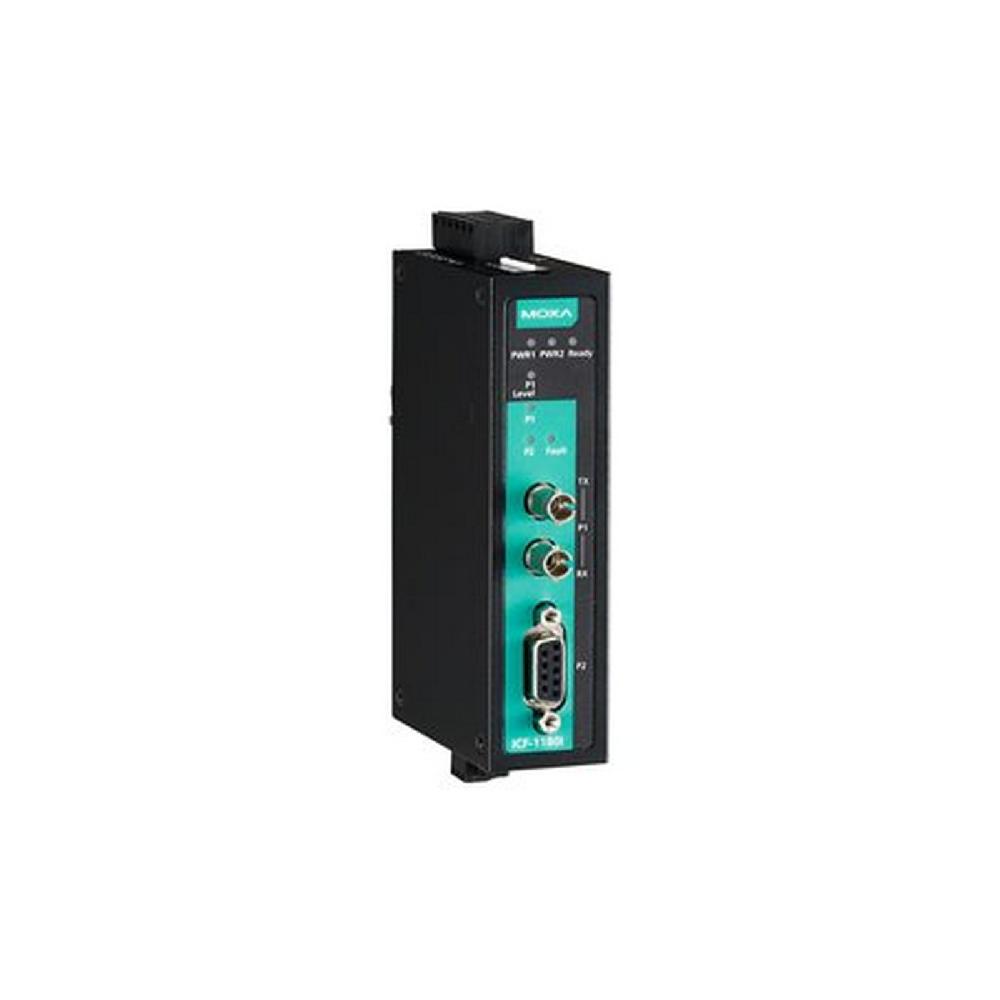

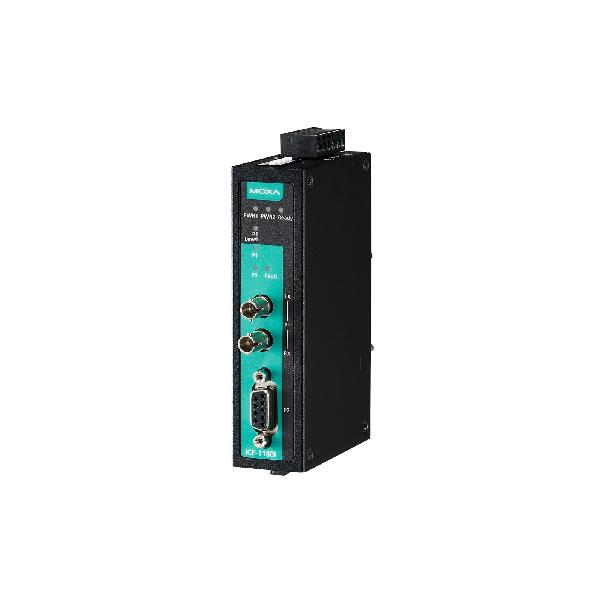

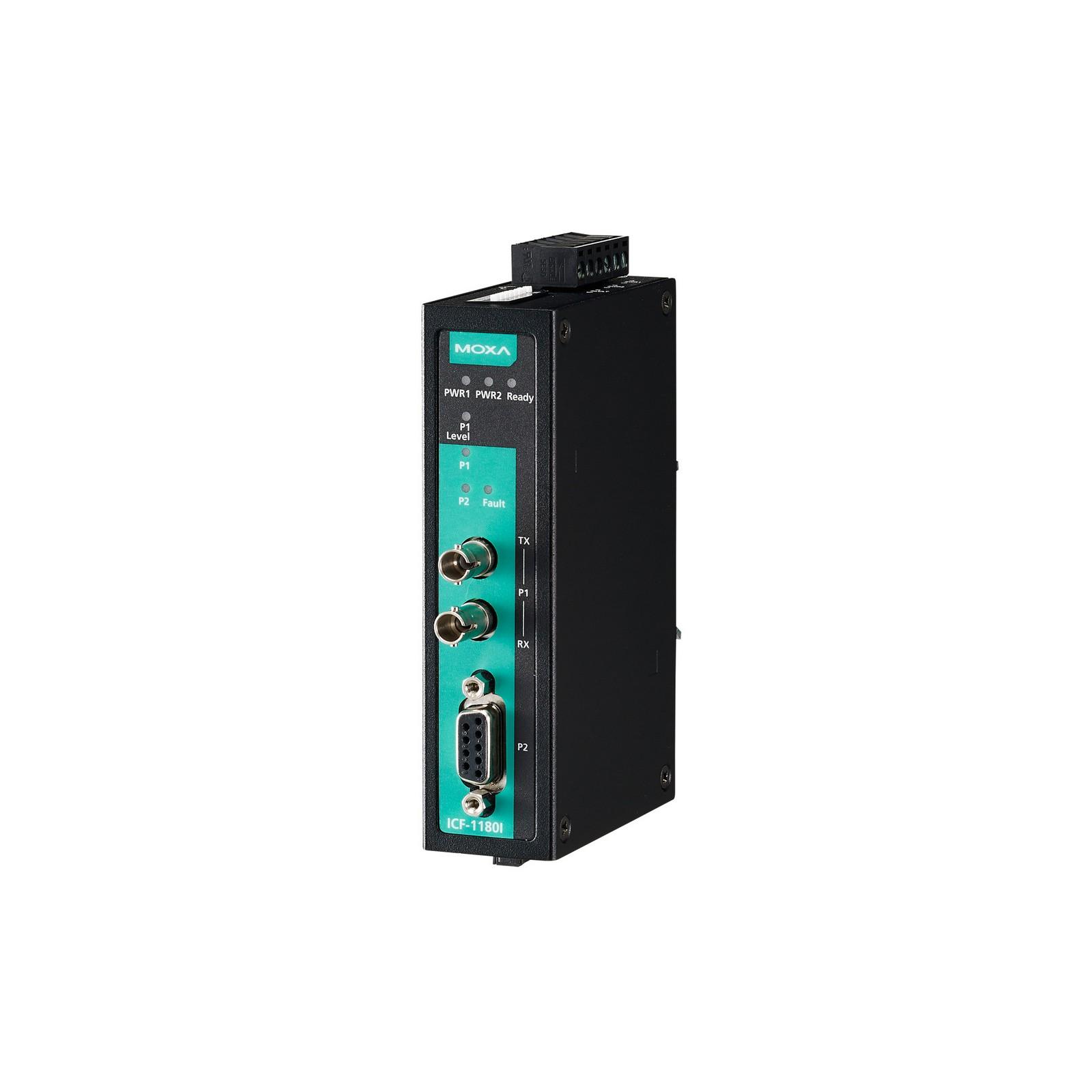

The ICF-1180I industrial PROFIBUS-to-fiber converters are used to convert PROFIBUS signals from copper to optical fiber. The converters are used to extend serial transmission up to 4 km (multi-mode fiber) or up to 45 km (single-mode fiber). The ICF-1180I provides 2 kV isolation protection for the PROFIBUS system and dual power inputs to ensure that your PROFIBUS device will perform uninterrupted.
Fiber-optic cables are usually deployed for long-distance communication. To ensure proper communication across the fiber-optic cables, engineers use fiber sensors. A fiber cable test function through DIP switch adjustments helps ICF-11801 converters eliminate the need to rely on fiber-optic sensors.
This function not only detects fiber communication abnormalities but also validates the format of the received packet. It can also determine which side (Tx or Rx) is causing the problem.
When the PROFIBUS device malfunctions or the serial interface fails, it will generate electrical noise, resulting in bus failure. Traditional media converters will let the noise signal pass through the fiber and on to the other converter. This will disrupt data transmissions between the two buses and eventually communication ceases across the entire system. When this occurs, the engineer will not be able to easily locate the failed device because the entire PROFIBUS network is down. To avoid this situation, the ICF-1180I was designed to detect and recognize noise signals. If the bus fails on one side, the noise signal will not propagate through the ICF-1180I and affect additional bus segments. In addition, the ICF-1180I will also trigger an alarm notification to the field engineer on the location of the failure.
The ICF-1180I Series simply converts the signal back and forth between PROFIBUS and fiber. The ICF-1180I Series works under baudrates between 9.6 kbps to 12 Mbps. Engineers do not need to know the baudrate of the connected PROFIBUS device.
The ICF-1180I Series can automatically detect the baudrate of the PROFIBUS device and apply this baudrate directly. This is an extremely convenient feature. If necessary, baudrates can be set to a fixed value via DIP switches.
The ICF-1180I provides a fiber inverse function to choose fiber-optic light ON or light OFF when sending logic signal ‘1’. For default settings, fiber-optic is light OFF when sending logic signal ‘1’; in Fiber Inverse mode, fiber-optic is light ON when sending logic signal ‘1’.
This feature provides greater compatibility when the ICF-1180I converter is integrated with PROFIBUS converters of other manufacturers. Please refer to third-party user manuals when using this feature.
The ICF-1180I converters provide a fiber link monitor function to detect the communication errors on either the fiber side or PROFIBUS side. Once there is an error in communication, the corresponding LED will turn red, and the relay alarm will be activated.
In some circumstances, you may need to measure the reception level of the fiber-optic port with a voltmeter, which can be connected while the device is operating (doing so will not affect data transmission). The measurement can be taken with a voltmeter and read on a PLC that uses floating high impedance analog inputs, which allow you to do the following:
Serial Interface | |
Connector | ICF-1180I-M-ST: Multi-mode ST connector ICF-1180I-M-ST-T: Multi-mode ST connector ICF-1180I-S-ST: Single-mode ST connector ICF-1180I-S-ST-T: Single-mode ST connector |
Optical Fiber | Read more |
PROFIBUS Interface | |
Industrial Protocols | PROFIBUS DP |
No. of Ports | 1 |
Connector | DB9 female |
Baudrate | 9600 bps to 12 Mbps |
Isolation | 2 kV (built-in) |
Signals | PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V |
Power Parameters | |
Input Current | 269 mA @ 12 to 48 VDC |
Input Voltage | 12 to 48 VDC |
No. of Power Inputs | 2 |
Overload Current Protection | Supported |
Power Connector | Terminal block (for DC models) |
Power Consumption | 269 mA @ 12 to 48 VDC |
Physical Characteristics | |
Housing | Metal |
IP Rating | IP30 |
Dimensions | 30.3 x 115 x 70 mm (1.19 x 4.53 x 2.76 in) |
Weight | 180 g (0.39 lb) |
Installation | DIN-rail mounting (with optional kit), Wall mounting |
Environmental Limits | |
Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) 0 to 60°C (32 to 140°F) -40 to 75°C (-40 to 167°F) |
Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
EMC | EN 55032/24 |
EMI | CISPR 32, FCC Part 15B Class A |
EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF |
Environmental Testing | IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3 |
Hazardous Locations | ATEX, Class I Division 2, IECEx |
Safety | EN 60950-1, IEC 60950-1 |
Vibration | IEC 60068-2-6 |
MTBF | |
Time | 1,722,769 hrs |
Standards | Telcordia (Bellcore), GB |
Warranty | |
Warranty Period | 5 years |
Details | See www.moxa.com/warranty |
Name | Type | Version | Release Date | |
Datasheet for ICF-1180I Series | Datasheet | V1.1 | 21 May 2020 |
Operating Temp. | 0 to 60°C |
Fiber Module Type | Multi-mode ST |
Operating Temp. | 0 to 60°C |
Fiber Module Type | Single-mode ST |
Operating Temp. | -40 to 75°C |
Fiber Module Type | Multi-mode ST |
Operating Temp. | -40 to 75°C |
Fiber Module Type | Single-mode ST |
