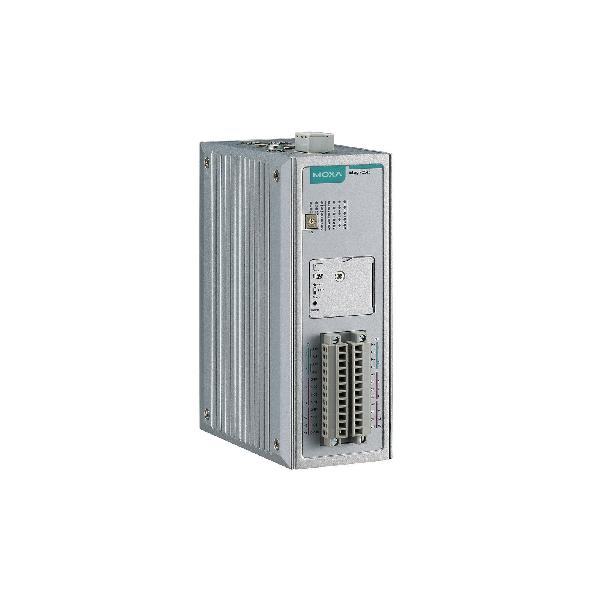

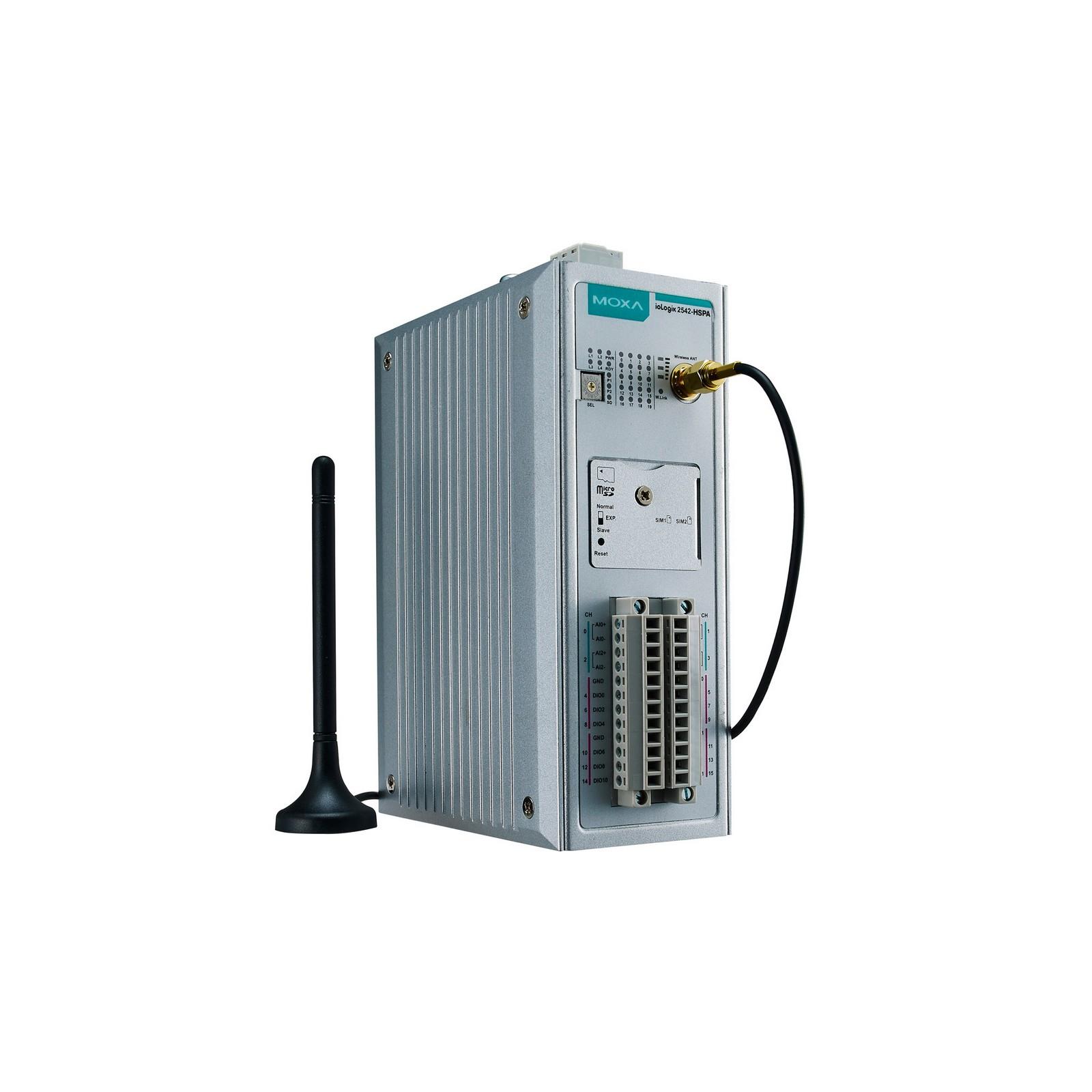

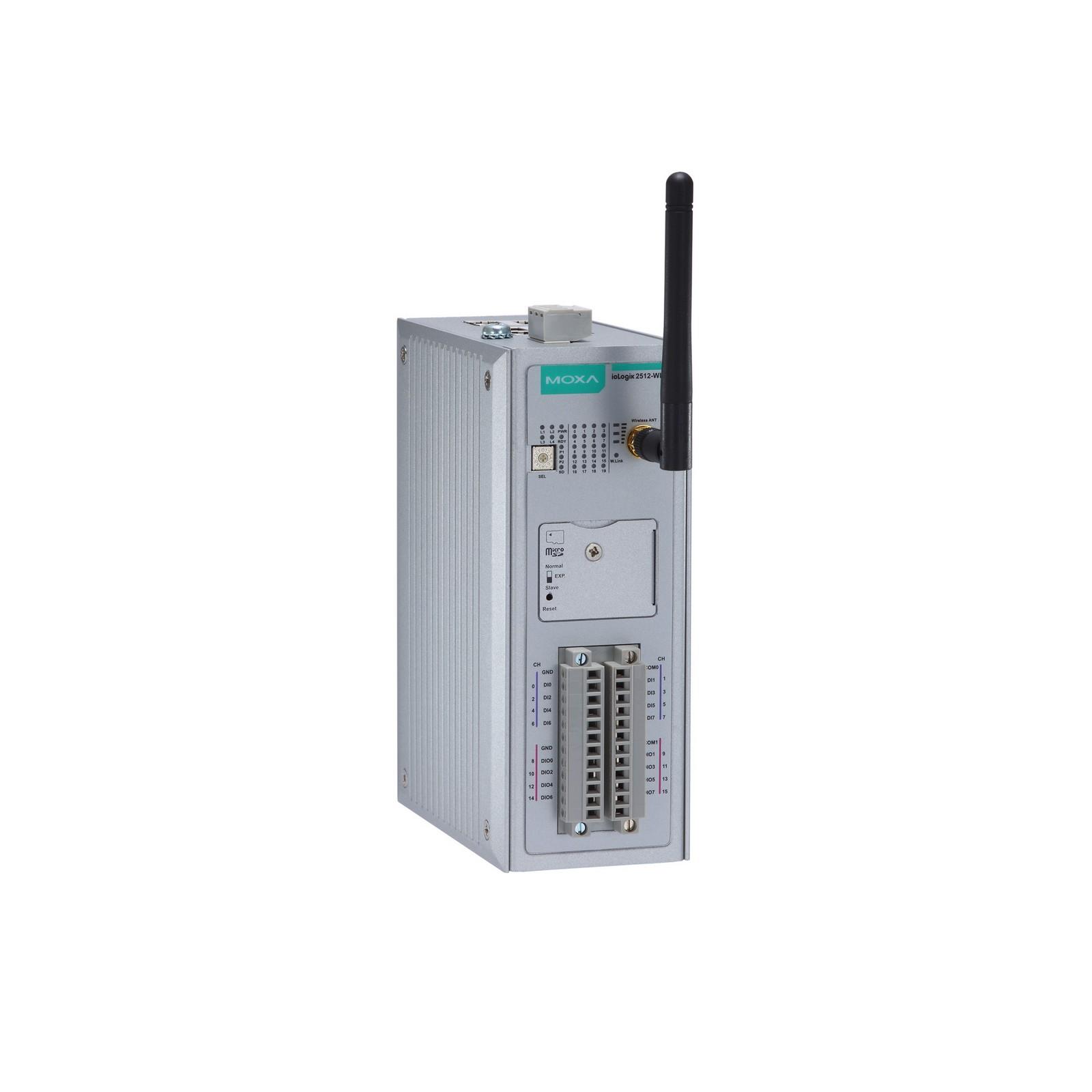

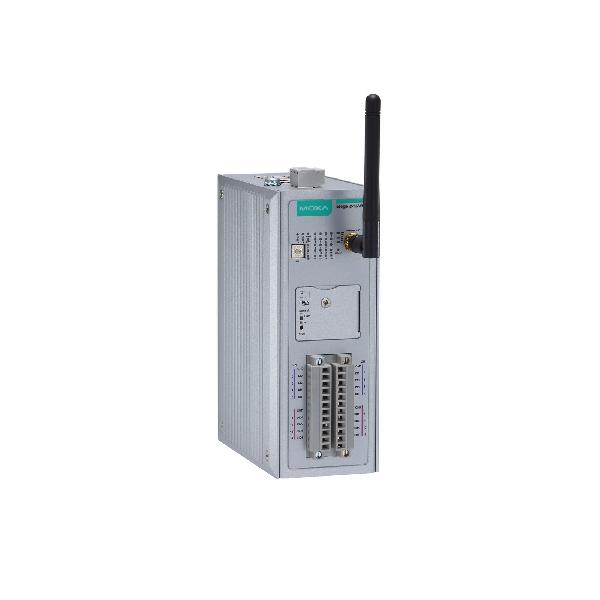

ioLogik 2500 Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Controllers & I/Os  >   Universal Controllers & I/Os

Smart Ethernet remote I/O with Click&Go Plus Logic

Product Feature

  • Front-end intelligence with Click&Go Plus control logic, up to 48 rules
  • Active communication with MX-AOPC UA Server
  • Automatically complement disconnection period data with MX-AOPC UA Logger software
  • 4-port unmanaged switch built in for linking to Ethernet devices
  • I/O expansion port for daisy chaining up to 8 ioLogik E1200 units
  • 3-in-1 serial port: RS-232, RS-422, or RS-485
  • Supports SNMP v1/v2c/v3
  • Simplifies I/O management with MXIO library for Windows or Linux
  • Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments

Introduction

ioLogik 2500 smart Ethernet remote I/O devices feature unique hardware and software designs, making them ideal solutions for a variety of industrial data acquisition applications. The ioLogik 2500’s hardware design includes a 4-port unmanaged Ethernet switch and 2 serial ports, enabling it to seamlessly connect to a variety of field devices.

One of the Ethernet ports can be used to link to 8 daisy-chained ioLogik E1200 expansion modules to provide more than 100 channels. The ioLogik 2500 acts as the “head” unit, with Click&Go Plus logic used to control the entire I/O array. Most importantly, a single IP is all that is required to connect the entire I/O array to your network, providing the perfect solution for industrial field sites that have an insufficient number of IP addresses.



Programming-Free Click&Go Plus™ Logic

Click&Go Plus™ control logic supports up to 48 rules and 8 conditions/actions. In addition, its graphical user interface provides 3 logic gates and 3 multi-layers, helping you build more powerful and efficient IO solutions. Once you finish setting up your Click&Go Plus™ logic rules, IOxpress’s easy-to-use simulation function can be used to find potential errors in your Click&Go Plus™ rules before uploading them to your online devices.



Multi-Protocol Data Concentrator

By supporting multiple protocols, the ioLogik 2500 improves the efficiency of collecting field-site data and then sending it to upper-level systems. For field-site data collection, an ioLogik 2500 can collect data from other third-party devices via both Modbus TCP and Modbus RTU, and also lets you link up to 8 ioLogik E1200 modules to create a versatile I/O array with over 100 different I/O channels, allowing all field-site data to be accessed by upper-level systems. For the upper-level systems, the ioLogik 2500 supports Modbus TCP, SNMP, SNMP Trap, RESTful API, Active OPC tag, and C++ library for easy integration with various IT/OT systems, making the ioLogik 2500 the perfect data concentrator for connecting field sites to your network.


Data Completeness with Local Storage Data Logging

The ioLogik 2500 supports microSD cards, turning it into a powerful data logger for storing valuable data. Important data from field sites can be accessed remotely by different systems via an FTP, and the ioLogik's data completeness function enables real-time monitoring of data through MX-AOPC UA Suite when the network goes down unexpectedly.



Remote Access Cellular I/O via Cellular Network

Most carriers provide dynamic and private IP address SIM cards, and although private IP cards are cheaper, they cannot be used to provide direct access to the cloud. Moxa’s Cellular Data Access software enables this type of connection by establishing a special data route between the cellular models and the cloud.

Only one public IP address is needed to use Moxa’s Cellular Data Access software, allowing you to easily update internal register values, change output channel status, and modify the configurations of devices connected to the device, all through the cloud.

Memory

microSD SlotUp to 32 GB (SD 2.0 compatible)
Note: For units operating in extreme temperatures, industrial-grade, wide-
temperature microSD cards are required.

Control Logic

LanguageClick&Go Plus

Input/Output Interface

Analog Input ChannelsioLogik 2542 Series: 4
Digital Input ChannelsioLogik 2512 Series: 8
Configurable DIO Channels (by
software)
ioLogik 2512 Series: 8
ioLogik 2542 Series: 12
ButtonsReset button
Isolation3k VDC or 2k Vrms

Digital Inputs

ConnectorScrew-fastened Euroblock terminal
I/O ModeDI or event counter
Sensor TypeDry contact
Wet contact (NPN or PNP)
Dry ContactOn: short to GND
Off: open
Wet Contact (DI to COM)On: 10 to 30 VDC
Off: 0 to 3 VDC
Points per COMioLogik 2512 Series: 8 channels
ioLogik 2542 Series: 6 channels
Counter Frequency2.5 kHz
Digital Filtering Time IntervalSoftware configurable

Digital Outputs

ConnectorScrew-fastened Euroblock terminal
I/O ModeDO or pulse output
I/O TypeSink
Current Rating500 mA per channel
Pulse Output Frequency5 kHz (max.)
DIO Output Leakage Current< 1 mA @ 30 VDC
Over-Current Protection1.5 A per channel @ 25°C
Over-Temperature Shutdown175°C (typical), 150°C (min.)
Over-Voltage Protection45 VDC (typical)

Analog Inputs

ConnectorScrew-fastened Euroblock terminal
I/O ModeVoltage/Current
I/O TypeDifferential
Input Range±10 VDC
0 to 10 VDC
0 to 20 mA
4 to 20 mA
4 to 20 mA (with burn-out detection)
Resolution16 bits
Sampling RateAll channels: 400 samples/sec
Per channel: 100 samples/sec
AccuracyioLogik 2542 Series (except -T models):
±0.1% FSR @ 25°C
±0.3% FSR @ -10 to 60°C

ioLogik 2542-T
±0.1% FSR @ 25°C
±0.3% FSR @ -10 to 60°C
±0.5% FSR @ -40 to 75°C

ioLogik 2542 HSPA-T/WL1-EU-T/WL1-JP-T/WL1-US-T:
±0.1% FSR @ 25°C
±0.3% FSR @ -10 to 60°C
±0.5% FSR @ -30 to 70°C
±0.5% FSR @ -30 to 70°C
Built-in Resistor for Current Input120 ohms
Input Impedance1 mega-ohms (min.)
Over-Voltage Protection-25 to +30 VDC (power on)
-35 to +35 VDC (power off)

Ethernet Interface

10/100BaseT(X) Ports (RJ45
connector)
4, 1 MAC address (Ethernet bypass)
Magnetic Isolation Protection1.5 kV (built-in)

Ethernet Software Features

Configuration OptionsWeb Console (HTTP/HTTPS), Windows Utility (IOxpress)
Industrial ProtocolsCGI commands, Modbus TCP Client (Master), Modbus TCP Server (Slave),
Moxa AOPC (Active Tag), MXIO Library, RESTful API, SNMPv1/v2c/v3,
SNMPv1/v2c Trap
ManagementioLogik 2500 Series -HSPA/Ethernet models: BOOTP, IPv4, SMTP, TCP/IP,
DHCP Client
ioLogik 2500 Series -WL1 models: BOOTP, IPv4, SMTP, TCP/IP
MIBDevice Settings MIB
SecurityHTTPS/SSL
Time ManagementSNTP

LED Interface

LED IndicatorsioLogik 2512/2542 Series: PWR, RDY, Serial port (P1, P2), Ethernet port
(L1 to L4), I/O Channel Status (0 to 15)
ioLogik 2500 Series -HSPA/-WL1 models: PWR, RDY, Serial port (P1, P2),
Ethernet port (L1 to L4), I/O Channel Status (0 to 15), Wireless connection,
Signal Status

Serial Interface

Baudrate300 bps to 115.2 kbps
Connector8-pin RJ45
Data Bits5, 6, 7, 8
Flow ControlNone, RTS/CTS, XON/XOFF
No. of Ports2
ParityNone, Even, Odd
Serial StandardsRS-232, RS-422, RS-485
Stop Bits1, 2

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND

Serial Software Features

Industrial ProtocolsModbus RTU Client (Master)

Cellular Interface

Cellular StandardsGSM, EDGE, GPRS, UMTS, HSPA
Band OptionsioLogik 2500 Series -HSPA models: UMTS/HSPA+ 800/850/900/1900/2100
MHz
ioLogik 2500 Series -HSPA models: Universal quad-band GSM/GPRS/EDGE
850/900/1800/1900 MHz
SIM Control Voltage1.8 V, 3 V
SIM FormatMini SIM
Cellular Antenna ConnectorsioLogik 2500 Series -HSPA models: 1 SMA female

Security Functions

IPsec VPNioLogik 2500 Series -HSPA models: DES, 3DES, AES-128, AES-192,
AES-256

WLAN Interface

WLAN Standards802.11b/g
802.11i Wireless Security
Modulation TypeDSSS
OFDM
Frequency Band for US (20 MHz
operating channels)
2.412 to 2.462 GHz (11 channels)
Frequency Band for EU (20 MHz
operating channels)
2.412 to 2.472 GHz (13 channels)
Frequency Band for JP (20 MHz
operating channels)
2.412 to 2.484 GHz (14 channels)
Wireless SecurityWEP encryption (64-bit and 128-bit)
WPA/WPA2-Personal
Transmission Rate802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Transmitter Power for 802.11b18±1.5 dBm @ 1 to 11 Mbps
Transmitter Power for 802.11g18±1.5 dBm @ 6 to 24 Mbps
17±1.5 dBm @ 36 Mbps
16±1.5 dBm @ 48 Mbps
16±1.5 dBm @ 54 Mbps
Receiver Sensitivity for 802.11b
(measured at 2.437 GHz)
Typ. -97 dBm @ 1 Mbps
Typ. -94 dBm @ 2 Mbps
Typ. -92 dBm @ 5.5 Mbps
Typ. -90 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g
(measured at 2.437 GHz)
Typ. -88 dBm @ 6 to 24 Mbps
Typ. -85 dBm @ 36 Mbps
Typ. -75 dBm @ 48 Mbps
Typ. -70 dBm @ 54 Mbps
WLAN Antenna ConnectorioLogik 2512-WL1/2542-WL1 Series: 1 RP-SMA male

Power Parameters

Power ConnectorScrew-fastened Euroblock terminal
No. of Power Inputs1
Input Voltage12 to 48 VDC
Power ConsumptionioLogik 2512 Series: 254 mA @ 24 VDC, 529 mA @ 12 VDC, 133 mA @
48VDC
ioLogik 2512-HSPA Series: 352 mA @ 24 VDC, 728 mA @ 12 VDC, 187 mA
@ 48 VDC
ioLogik 2512-WL1 Series: 354 mA @ 24 VDC, 735 mA @ 12 VDC, 189 mA
@ 48 VDC
ioLogik 2542 Series: 281 mA @ 24 VDC, 589 mA @ 12 VDC, 144 mA @
48 VDC
ioLogik 2542-HSPA Series: 311 mA @ 24 VDC, 649 mA @ 12 VDC, 166 mA
@ 48 VDC
ioLogik 2542-WL1 Series: 380 mA @ 24 VDC, 797 mA @ 12 VDC, 203 mA
@ 48 VDC

Physical Characteristics

HousingMetal
IP RatingIP30
Dimensions61 x 157 x 115 mm (2.4 x 6.18 x 4.53 in)
Weight1,265 g (2.79 lb)
InstallationDIN-rail mounting, Wall mounting (with optional kit)
WiringI/O cable, 16 to 26 AWG
Power cable, 12 to 24 AWG

Environmental Limits

Operating TemperatureStandard Models: -10 to 60°C (14 to 140°F)
HSPA/WL1 -T models: -30 to 70°C (-22 to 158°F)
ioLogik 2512-T/2542-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package
included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)
Altitude2000 m

Standards and Certifications

EMCEN 61000-6-2/-6-4
EMICISPR 32, FCC Part 15B Class A
EMSAll models:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8

ioLogik 2500 Series:
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-5 Surge: Power: 1 kV

ioLogik 2500 Series -HSPA/-WL1 models:
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-5 Surge: Power: 2 kV
VibrationIEC 60068-2-6
ShockIEC 60068-2-27
FreefallIEC 60068-2-32
Hazardous LocationsATEX, Class I Division 2
SafetyUL 508
RadioEN 301 489-1/17, NCC (-WL models)
Radio FrequencyEN 301 908, EN 301 489-24, EN 301 511
WLAN StandardsEN 300328
EN 301893

Declaration

Green ProductRoHS, CRoHS, WEEE

MTBF

TimeioLogik 2512 Series: 467,032 hrs
ioLogik 2542 Series: 375,439 hrs
ioLogik 2512-HSPA Series: 378,154 hrs
ioLogik 2542-HSPA Series: 378,154 hrs
ioLogik 2512-WL1 Series: 400,469 hrs
ioLogik 2542-WL1 Series: 331,222 hrs
StandardsTelcordia SR332

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for ioLogik 2500 Series Datasheet V1.2 04 October 2019

ioLogik 2512

Input/Output Interface 8 x DI, 8 x DIO
Wireless Standard -
Operating Temp. -10 to 60°C

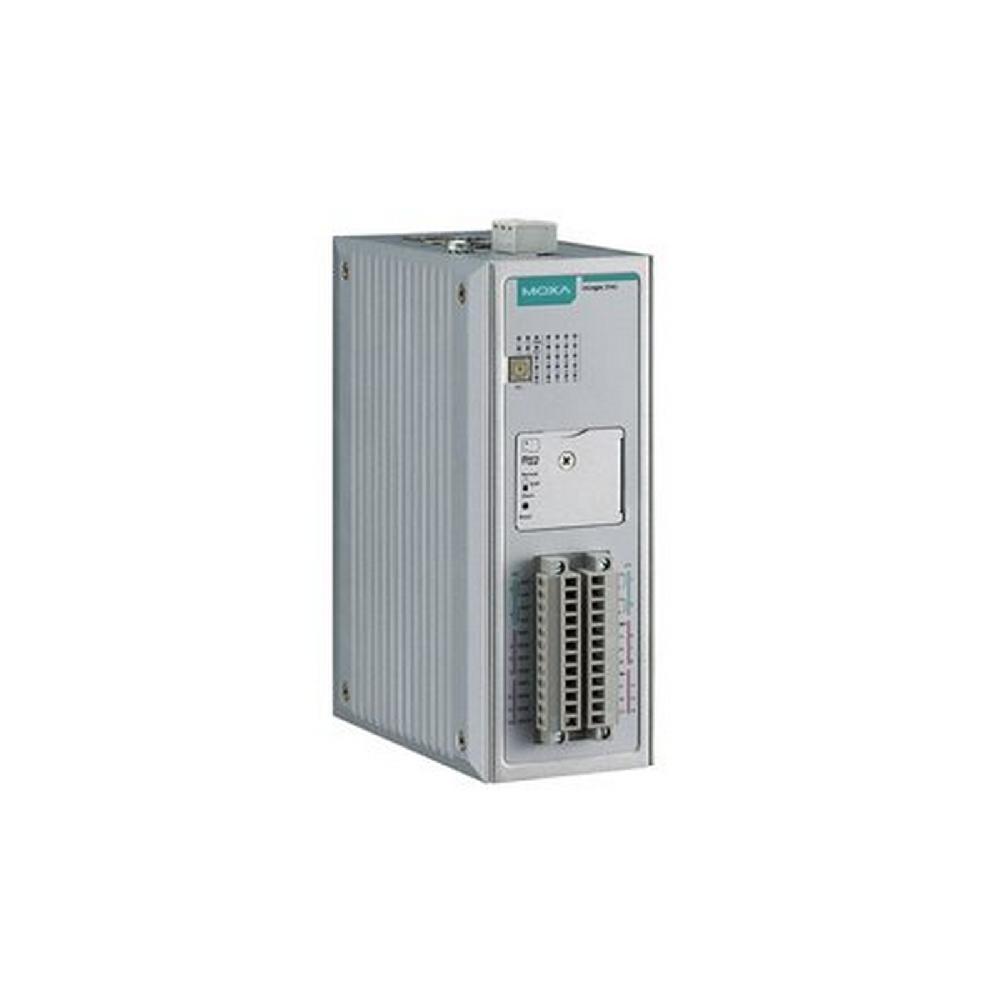

ioLogik 2512-T

Input/Output Interface 8 x DI, 8 x DIO
Wireless Standard -
Operating Temp. -40 to 75°C

ioLogik 2542

Input/Output Interface 4 x AI, 12 x DIO
Wireless Standard -
Operating Temp. -10 to 60°C

ioLogik 2542-T

Input/Output Interface 4 x AI, 12 x DIO
Wireless Standard -
Operating Temp. -40 to 75°C

ioLogik 2512-HSPA

Input/Output Interface 8 x DI, 8 x DIO
Wireless Standard UMTS/HSPA+: five-band 800/850/900/1900/2100 MHz GSM/GPRS/EDGE: quad-band 850/900/1800/1900 MHz
Operating Temp. -10 to 60°C

ioLogik 2512-HSPA-T

Input/Output Interface 8 x DI, 8 x DIO
Wireless Standard UMTS/HSPA+: five-band 800/850/900/1900/2100 MHz GSM/GPRS/EDGE: quad-band 850/900/1800/1900 MHz
Operating Temp. -30 to 70°C

ioLogik 2542-HSPA

Input/Output Interface 4 x AI, 12 x DIO
Wireless Standard UMTS/HSPA+: five-band 800/850/900/1900/2100 MHz GSM/GPRS/EDGE: quad-band 850/900/1800/1900 MHz
Operating Temp. -10 to 60°C

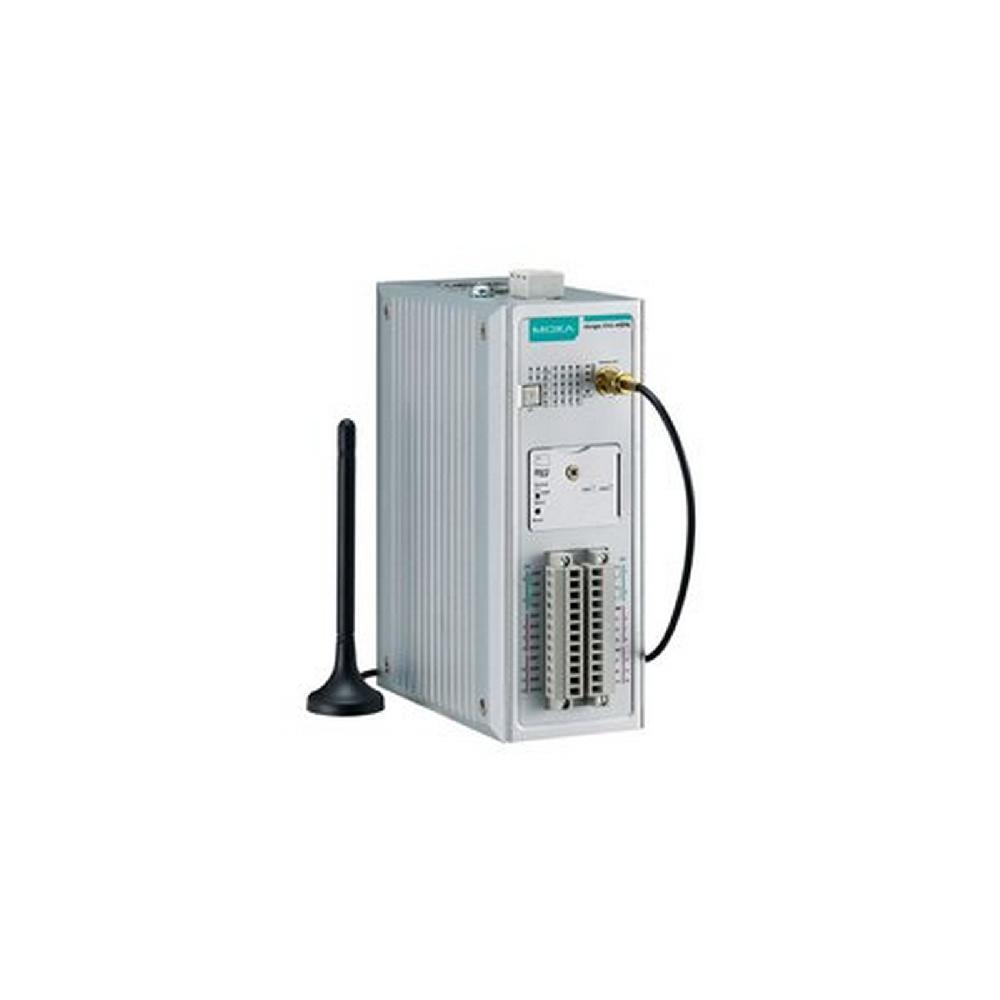

ioLogik 2542-HSPA-T

Input/Output Interface 4 x AI, 12 x DIO
Wireless Standard UMTS/HSPA+: five-band 800/850/900/1900/2100 MHz GSM/GPRS/EDGE: quad-band 850/900/1800/1900 MHz
Operating Temp. -30 to 70°C

ioLogik 2512-WL1-EU

Input/Output Interface 8 x DI, 8 x DIO
Wireless Standard IEEE 802.11b/g for wireless LAN
Operating Temp. -10 to 60°C

ioLogik 2512-WL1-EU-T

Input/Output Interface 8 x DI, 8 x DIO
Wireless Standard IEEE 802.11b/g for wireless LAN
Operating Temp. -30 to 70°C

ioLogik 2542-WL1-EU

Input/Output Interface 4 x AI, 12 x DIO
Wireless Standard IEEE 802.11b/g for wireless LAN
Operating Temp. -10 to 60°C

ioLogik 2542-WL1-EU-T

Input/Output Interface 4 x AI, 12 x DIO
Wireless Standard IEEE 802.11b/g for wireless LAN
Operating Temp. -30 to 70°C

ioLogik 2512-WL1-US

Input/Output Interface 8 x DI, 8 x DIO
Wireless Standard IEEE 802.11b/g for wireless LAN
Operating Temp. -10 to 60°C

ioLogik 2512-WL1-US-T

Input/Output Interface 8 x DI, 8 x DIO
Wireless Standard IEEE 802.11b/g for wireless LAN
Operating Temp. -30 to 70°C

ioLogik 2542-WL1-US

Input/Output Interface 4 x AI, 12 x DIO
Wireless Standard IEEE 802.11b/g for wireless LAN
Operating Temp. -10 to 60°C

ioLogik 2542-WL1-US-T

Input/Output Interface 4 x AI, 12 x DIO
Wireless Standard IEEE 802.11b/g for wireless LAN
Operating Temp. -30 to 70°C

ioLogik 2512-WL1-JP

Input/Output Interface 8 x DI, 8 x DIO
Wireless Standard IEEE 802.11b/g for wireless LAN
Operating Temp. -10 to 60°C

ioLogik 2512-WL1-JP-T

Input/Output Interface 8 x DI, 8 x DIO
Wireless Standard IEEE 802.11b/g for wireless LAN
Operating Temp. -30 to 70°C

ioLogik 2542-WL1-JP

Input/Output Interface 4 x AI, 12 x DIO
Wireless Standard IEEE 802.11b/g for wireless LAN
Operating Temp. -10 to 60°C

ioLogik 2542-WL1-JP-T

Input/Output Interface 4 x AI, 12 x DIO
Wireless Standard IEEE 802.11b/g for wireless LAN
Operating Temp. -30 to 70°C

บริษัท พีที ออโตเมชั่น (ไทยแลนด์) จำกัด

จันทร์ ถึง ศุกร์ เวลา 9.00 น. – 18.00 น.

EN
TH
