EXPC-1519 Series

Home  >   MOXA  >   Industrial Computing  >
Panel Computers & Displays

Zone 2 19-inch panel computers with multiple connectivity options

Product Feature

  • Anti-scratch, 19-inch, sunlight viewable, 1000-nit LCD panel
  • High-performance Intel® processor, Intel® Core™ i7-3555LE or Intel® Celeron® 1047UE CPU
  • Fanless design with highly efficient heat dissipation for 70°C environments
  • Boots up within 3 minutes at -40°C, without a heater
  • Multi-touch, glove-friendly touchscreen interface
  • Cable gland and standard USB Type-A/RJ45 connector design
  • 4 LAN ports with independent MACs; 2 RJ45 and 2 fiber ST
  • Totally sealed IP66/NEMA 4X enclosure
  • Class 1 Division 2, ATEX Zone 2, and IECEx certified
  • Dual AC/DC power supply
  • Optional WLAN and TPM module, available by request

Introduction

The EXPC-1519 panel computers are designed for indoor and outdoor Zone 2 applications in hazardous environments. The EXPC-1519 Series features a third-generation Intel® Core™ i7-3555LE 2.5 GHz or Celeron 1047UE 1.4 GHz processor, with up to 16 GB of memory to deliver high-performance processing.

The EXPC-1519 Series offers flexible interface connectivity options to meet your application needs: standard connectors with cable glands, terminal block with cable glands, and standard connectors on the bottom panel.

The EXPC-1519 computers support wide-temperature (-40 to 70°C) operation, and come with a patented, fanless, streamlined enclosure designed for highly efficient heat dissipation, making this one of the most reliable industrial platforms available for harsh, hot outdoor environments like oil and gas fields and drilling platforms.

In addition, the EXPC-1519 computers feature touchscreen controls with anti-reflection treatment and 1000-nit LED backlight, making them easy to read even during peak daylight hours.


Appearance

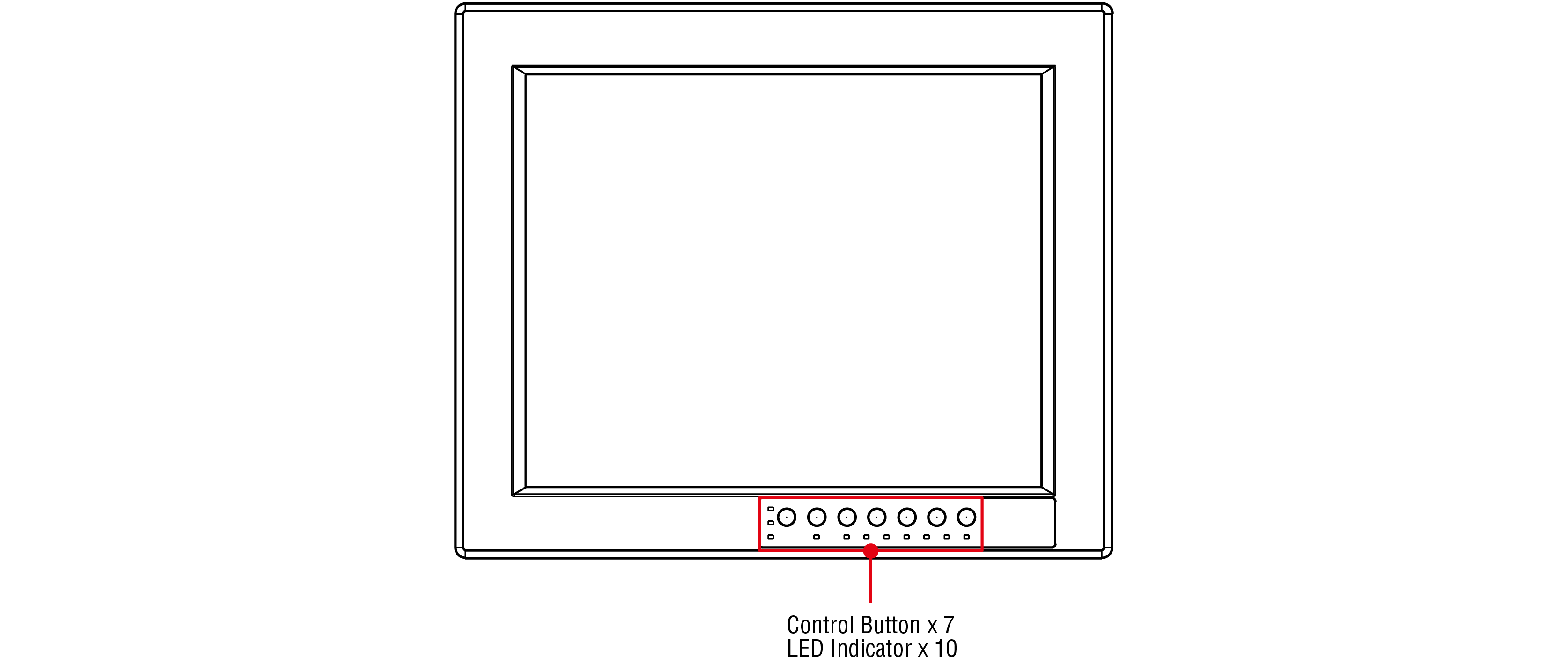

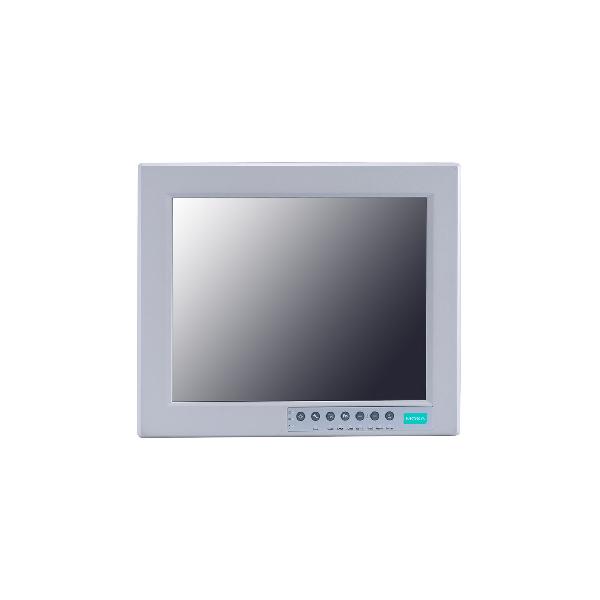

Front View

MOXA

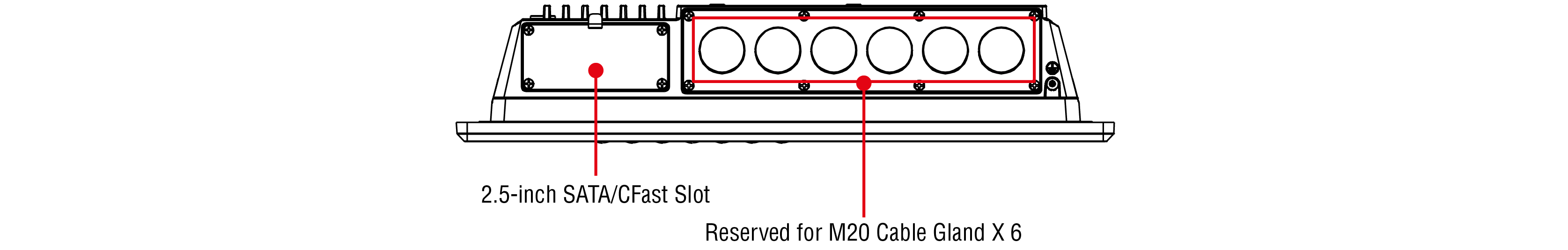

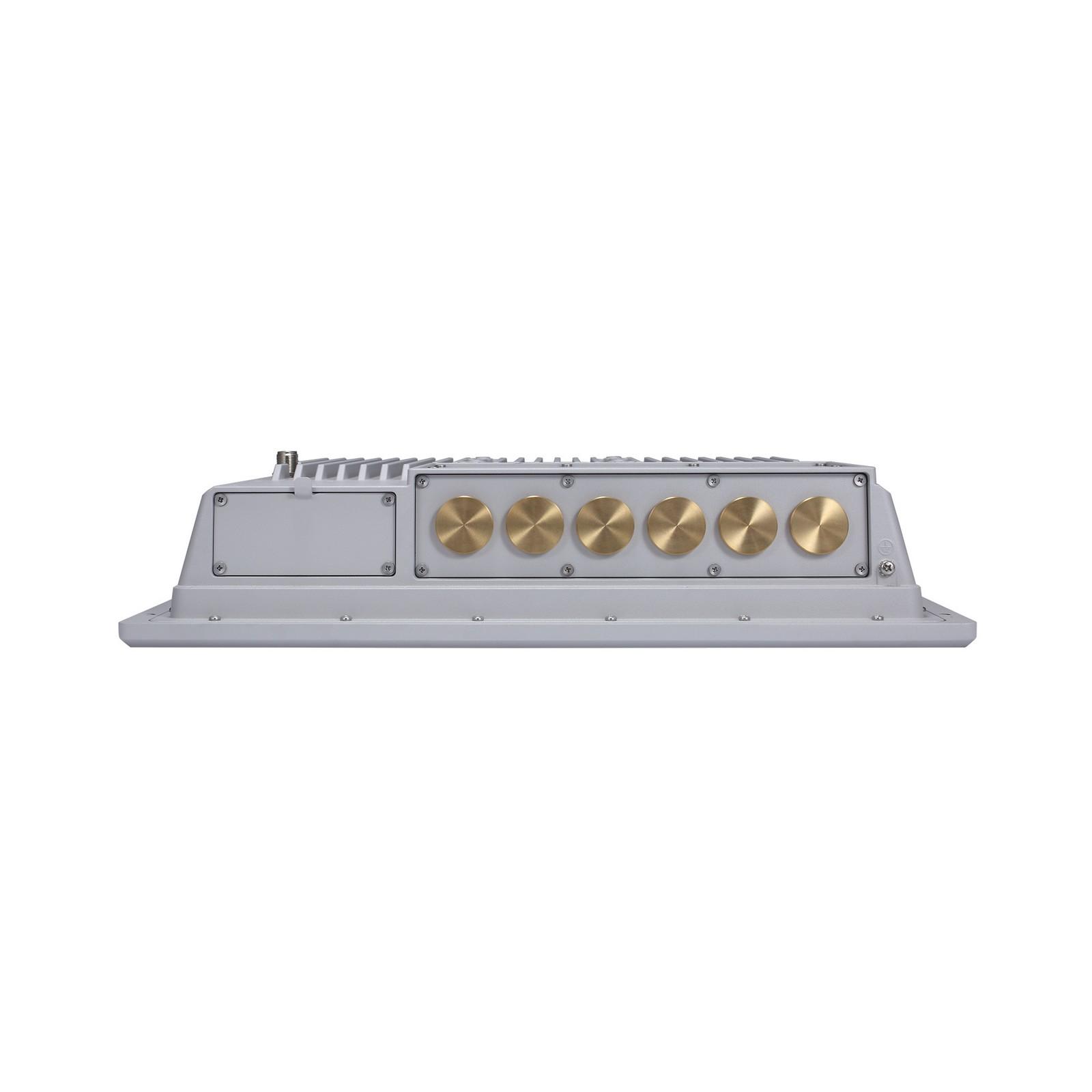

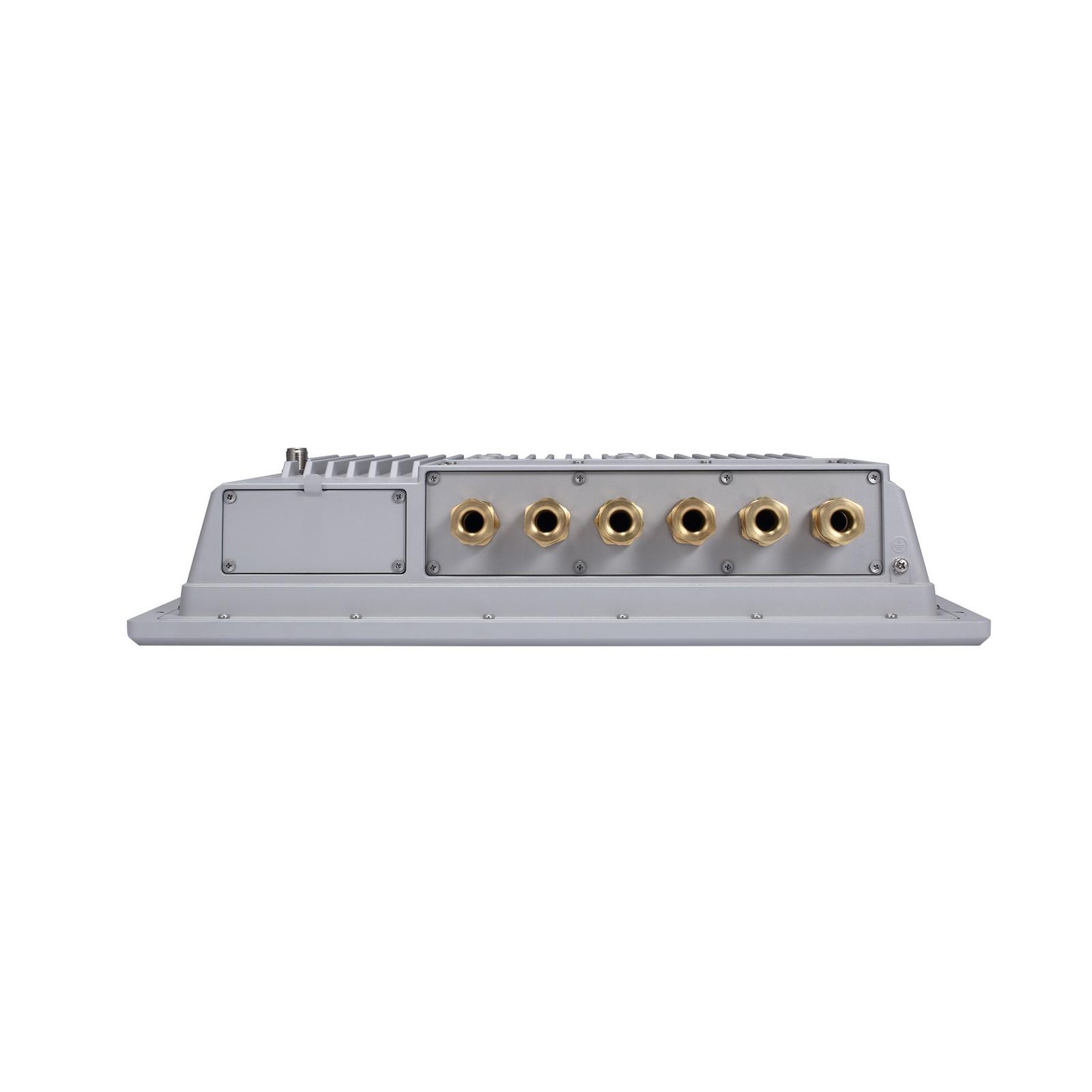

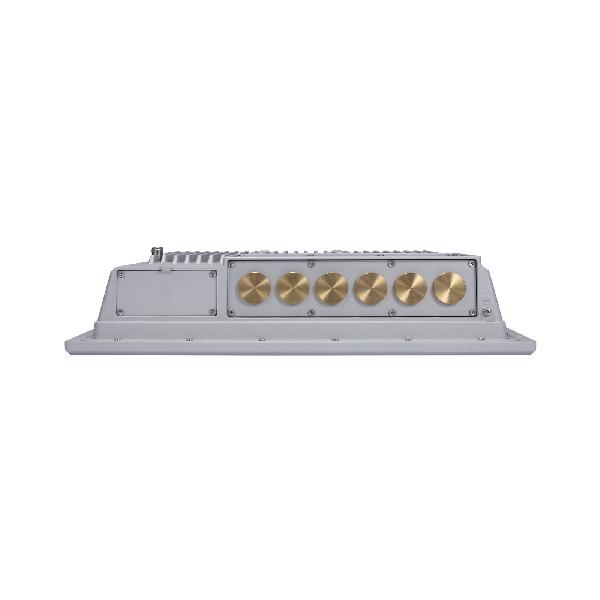

Bottom View

(EXPC-1519-C1-S1-T, EXPC-1519-C7-S1-T, EXPC-1519-C1-S2-T, EXPC-1519-C7-S2-T)

MOXA

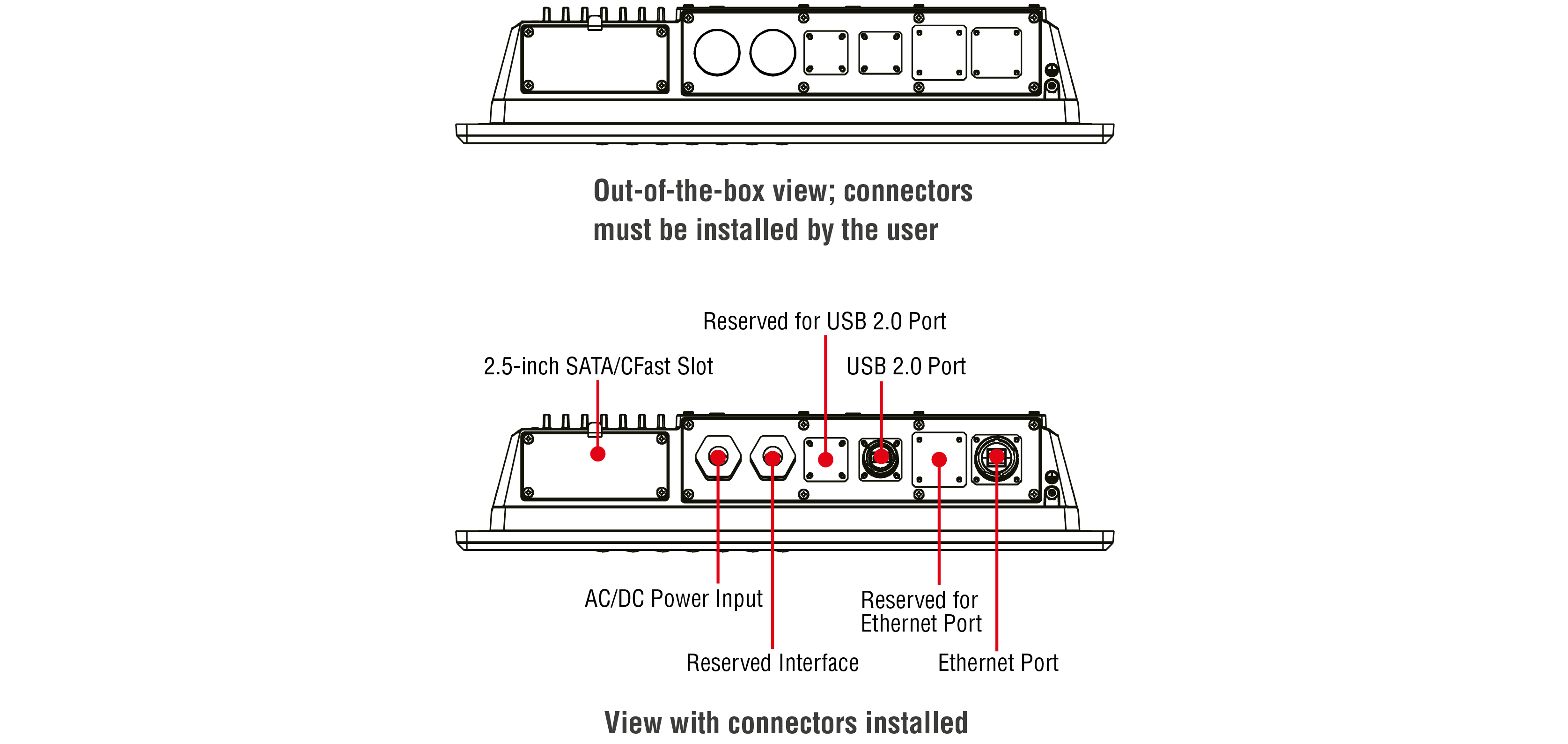

Bottom View

(EXPC-1519-C1-S3-T, EXPC-1519-C7-S3-T)

MOXA

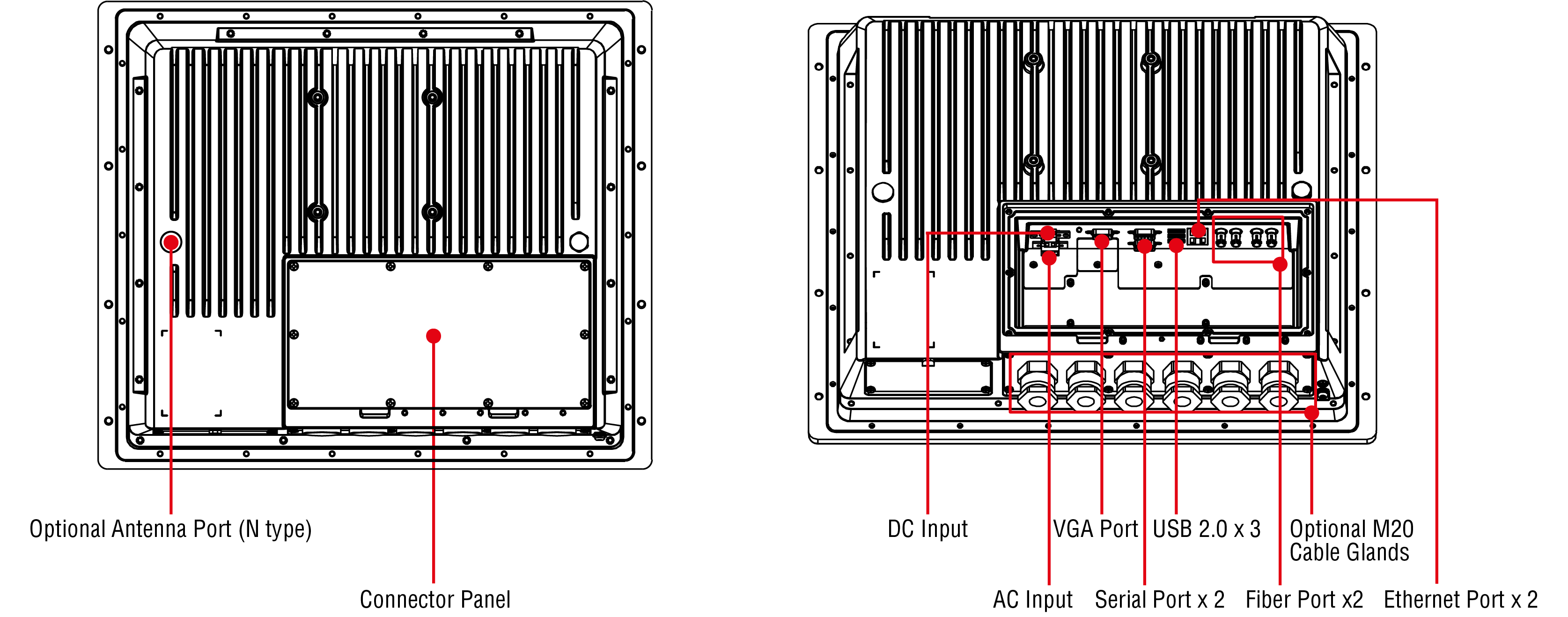

Rear View

(EXPC-1519-C1-S1-T, EXPC-1519-C7-S1-T)

MOXA

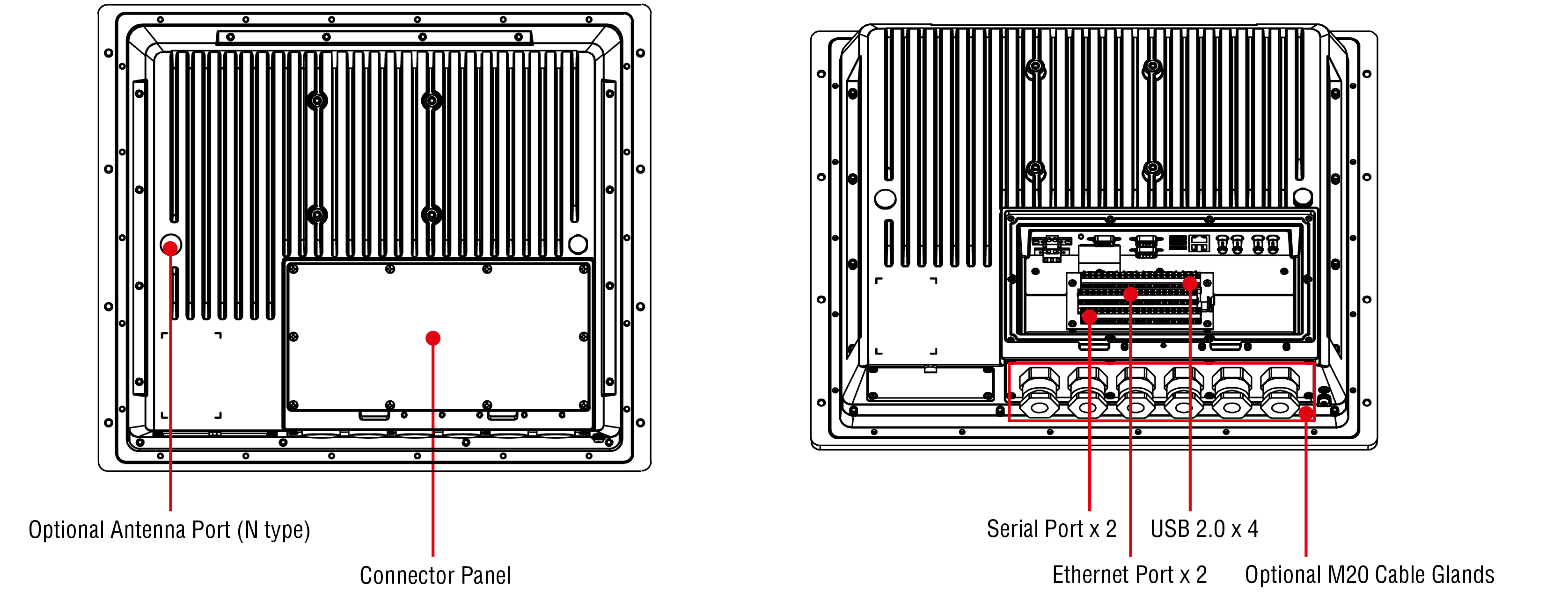

Rear View

(EXPC-1519-C1-S2-T, EXPC-1519-C7-S2-T)

MOXA

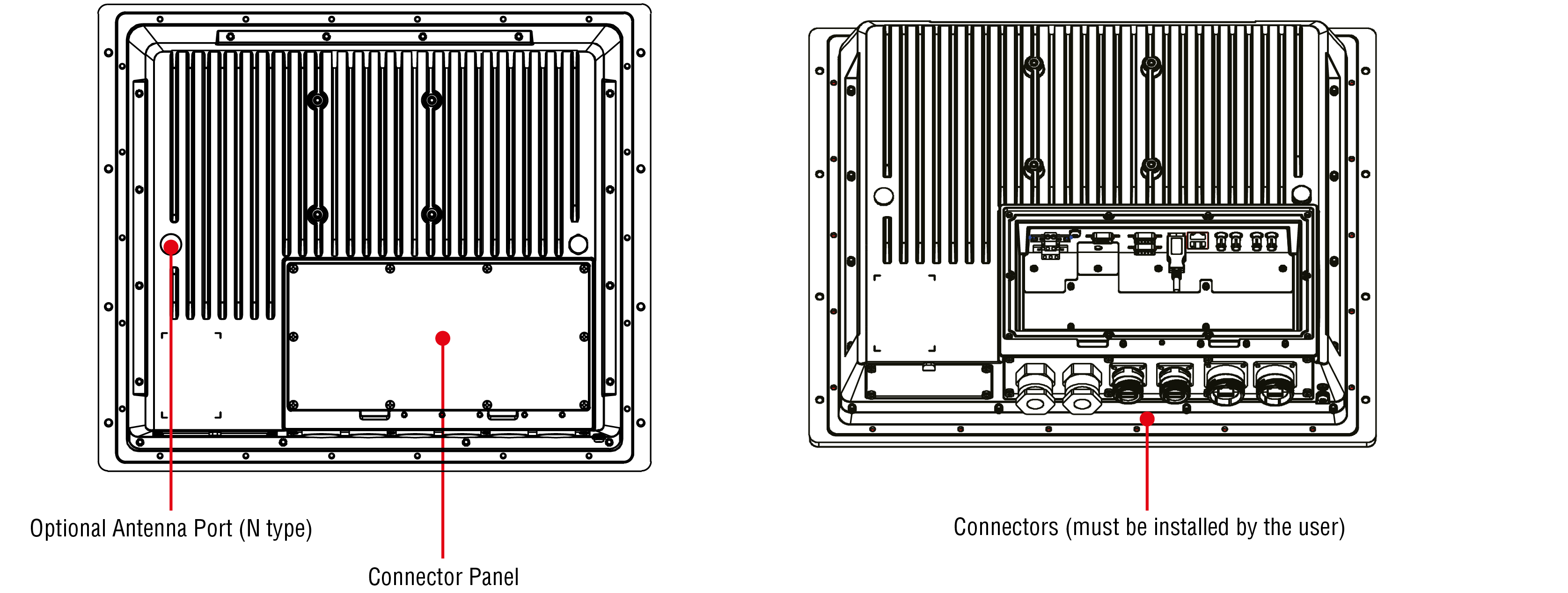

Rear View

(EXPC-1519-C1-S3-T, EXPC-1519-C7-S3-T)

MOXA

Computer

CPUEXPC-1519-C1-x-T: Intel® Celeron® Processor 1047UE (2M Cache, 1.40
GHz)
EXPC-1519-C7-x-T: Intel® Core™ i7-3555LE Processor (4M Cache, up to
3.20 GHz)
System Memory Pre-installed4 GB DDR3/DDR3L
System Memory SlotSODIMM DDR3/DDR3L slot x 2
Pre-installed OSOS is not pre-installed
Supported OSWindows 7 Pro for Embedded Systems
Windows Embedded Standard 7 (WS7P) 64-bit
Windows 10 Pro 64-bit
Windows 10 Embedded IoT Ent 2016 LTSB High End EPKEA
Windows 10 Embedded IoT Ent 2016 LTSB Value EPKEA
Storage Slot2.5-inch SSD slot x 1
CFast slot x 1

Computer Interface

Ethernet PortsEXPC-1519-C1-S1-T/C1-S2-T/C7-S1-T/C7-S2-T: Auto-sensing 10/100/1000
Mbps ports (RJ45 connector) x 2
EXPC-1519-C1-S3-T/C7-S3-T: Auto-sensing 10/100/1000 Mbps ports (RJ45
connector) x 1
Serial PortsEXPC-1519-C1-S1-T/C1-S2-T/C7-S1-T/C7-S2-T: RS-232/422/485 ports x 2,
software-selectable (terminal block)
USB 2.0EXPC-1519-C1-S1-T/C7-S1-T: USB 2.0 hosts x 3, type-A connectors
EXPC-1519-C1-S2-T/C7-S2-T: USB 2.0 hosts x 4, type-A connectors
EXPC-1519-C1-S3-T/C7-S3-T: USB 2.0 hosts x 1, type-A connectors
Video OutputEXPC-1519-C1-S1-T/C7-S1-T: VGA x 1, 15-pin D-sub connector (female)

LED Indicators

SystemPower x 1

Display

Active Display Area376.32 (H) x 301.06 (V) mm
Aspect Ratio5:4
Contrast Ratio1000:1
Light Intensity (Brightness)1000 cd/m2
Max. No. of Colors16.7M (8-bit/color)
Panel Size19-inch viewable image
Panel TypeTN
Pixel Pitch (RGB)0.294 (H) x 0.294 (V) mm
Pixels1280 x 1024
Response Time5 ms (gray to gray)
Viewing Angles170°/160°

Touch Function

Touch TypeCapacitive Touch (PCAP)
Touch Support Points4 points
Glove SupportYes

Serial Interface

Baudrate50 bps to 115.2 kbps
Data Bits5, 6, 7, 8
Flow ControlRTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-
485, RTS Toggle (RS-232 only)
ParityNone, Even, Odd, Space, Mark
Stop Bits1, 1.5, 2

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND

Power Parameters

Input Voltage100 to 240 VAC, 18 to 32 VDC

Physical Characteristics

HousingMetal
Dimensions483 x 408 x 99.5 mm (19.02 x 16.06 x 3.92 in)
Weight12,700 g (28.00 lb)

Environmental Limits

Operating Temperature-40 to 70°C (-40 to 158°F)
Storage Temperature (package
included)		-40 to 70°C (-40 to 158°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Environmental TestingIEC 60068-2-1, DNVGL-CG-0339
IEC 60068-2-2, DNVGL-CG-0339
IEC 60068-2-2, IEC 60945
IEC 60068-2-30, IEC 60945
Hazardous LocationsATEX, Class I Division 2, IECEx
SafetyEN 60950-1, IEC 60950-1, UL 60950-1
ShockIEC 60068-2-27
VibrationIEC 60068-2-6, IEC 60068-2-6, IEC 60945, IEC 60068-2-64, DNVGL-CG-
0339

Declaration

Green ProductRoHS, CRoHS, WEEE

Warranty

Warranty PeriodLCD: 1 year
System: 3 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for EXPC-1519 Series Datasheet V1.1 23 April 2020

EXPC-1519-C1-S1-T

Panel 19" (5:4) 1,000 nits
CPU Celeron 1047UE
RAM 4 GB
LAN 2
Serial 2
USB 2.0 Ports 2
Video Outputs 1 x VGA
Interface Cable gland, standard I/O
Power Input 18/32 VDC 100-240 VAC
IP Rating IP66 (completely sealed)
Operating Temp. -40 to 70°C

EXPC-1519-C1-S2-T

Panel 19" (5:4) 1,000 nits
CPU Celeron 1047UE
RAM 4 GB
LAN 2
Serial 2
USB 2.0 Ports 4
Video Outputs 1 x VGA
Interface Cable gland, terminal block
Power Input 18/32 VDC 100-240 VAC
IP Rating IP66 (completely sealed)
Operating Temp. -40 to 70°C

EXPC-1519-C1-S3-T

Panel 19" (5:4) 1,000 nits
CPU Celeron 1047UE
RAM 4 GB
LAN 1
Serial -
USB 2.0 Ports 1
Video Outputs 1 x VGA
Interface Rugged connector
Power Input 18/32 VDC 100-240 VAC
IP Rating IP66 (completely sealed)
Operating Temp. -40 to 70°C

EXPC-1519-C7-S1-T

Panel 19" (5:4) 1,000 nits
CPU i7-3555LE
RAM 4 GB
LAN 2
Serial 2
USB 2.0 Ports 2
Video Outputs 1 x VGA
Interface Cable gland, standard I/O
Power Input 18/32 VDC 100-240 VAC
IP Rating IP66 (completely sealed)
Operating Temp. -40 to 70°C

EXPC-1519-C7-S2-T

Panel 19" (5:4) 1,000 nits
CPU i7-3555LE
RAM 4 GB
LAN 2
Serial 2
USB 2.0 Ports 4
Video Outputs 1 x VGA
Interface Cable gland, terminal block
Power Input 18/32 VDC 100-240 VAC
IP Rating IP66 (completely sealed)
Operating Temp. -40 to 70°C

EXPC-1519-C7-S3-T

Panel 19" (5:4) 1,000 nits
CPU i7-3555LE
RAM 4 GB
LAN 1
Serial -
USB 2.0 Ports 1
Video Outputs 1 x VGA
Interface Rugged connector
Power Input 18/32 VDC 100-240 VAC
IP Rating IP66 (completely sealed)
Operating Temp. -40 to 70°C
