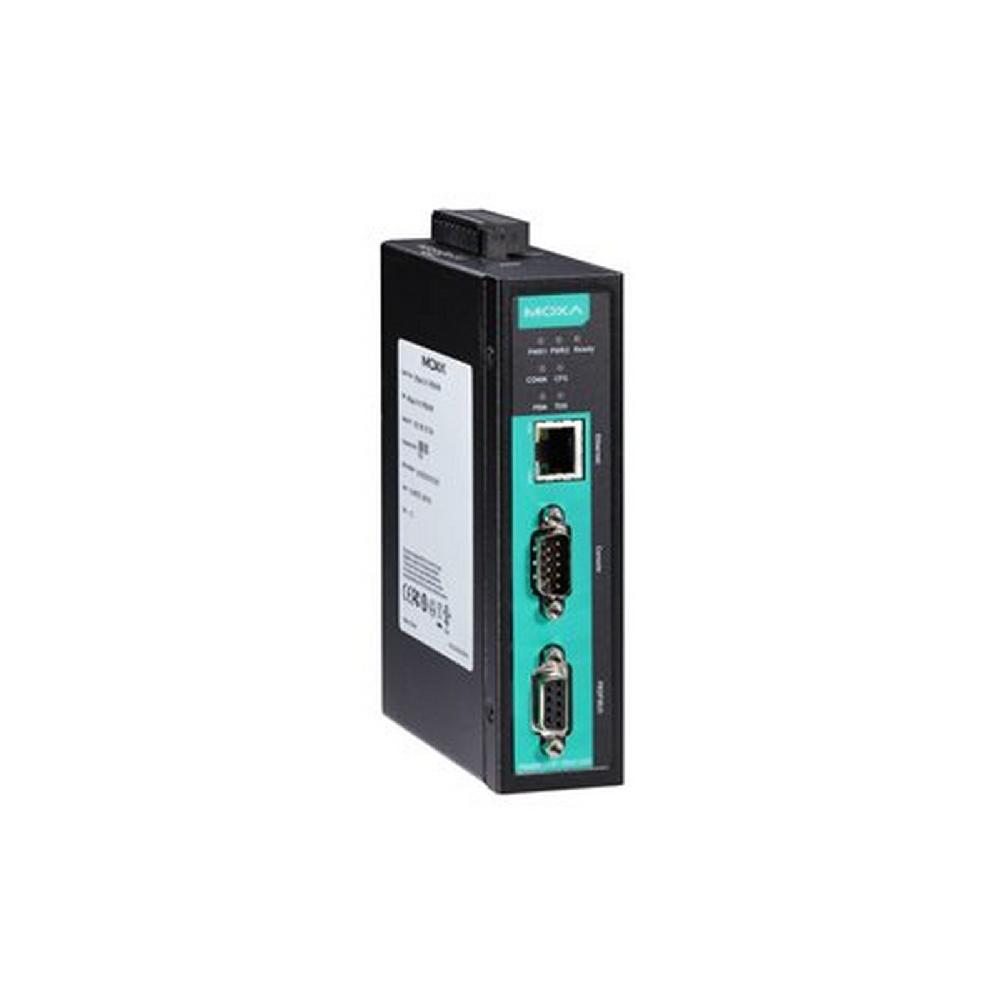

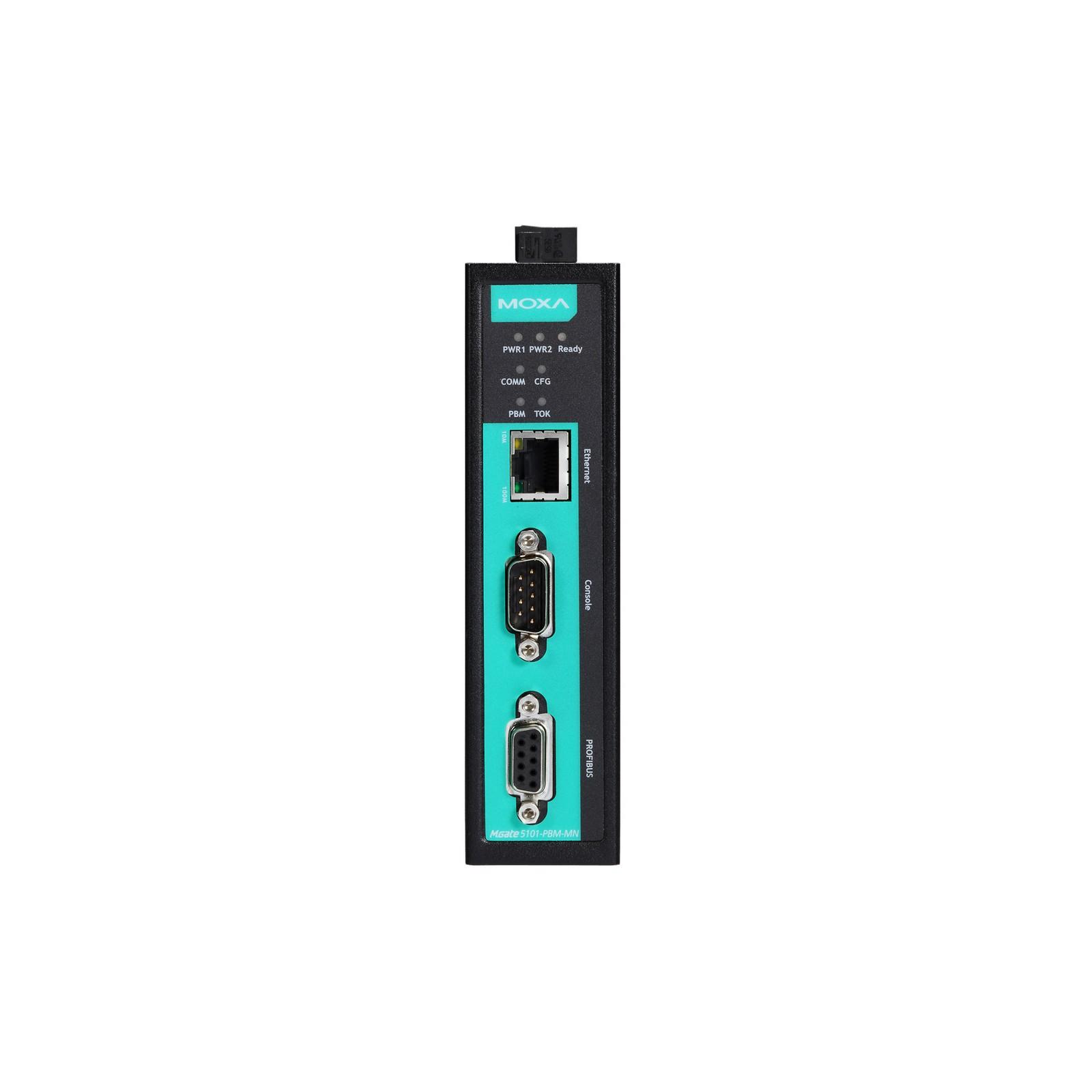

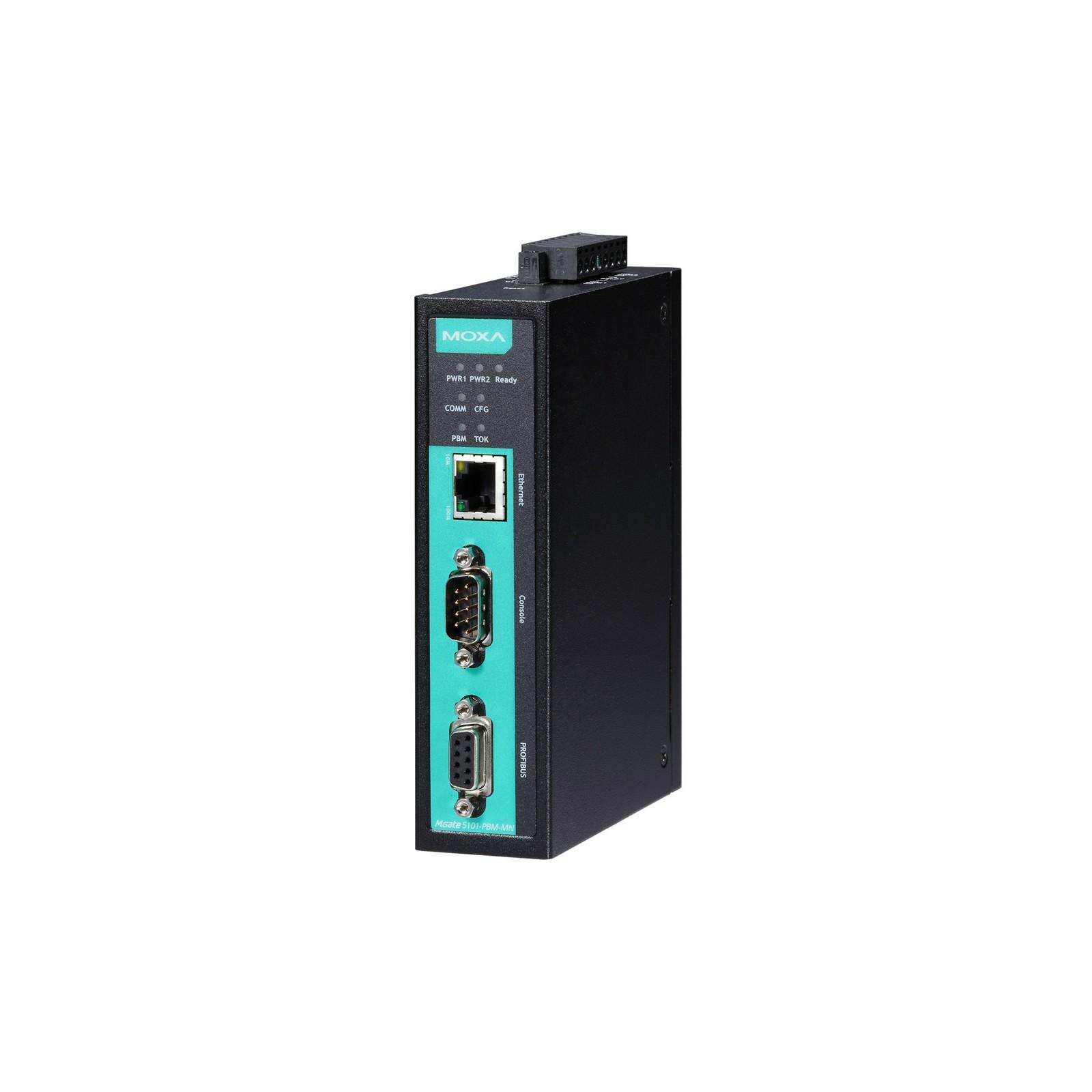

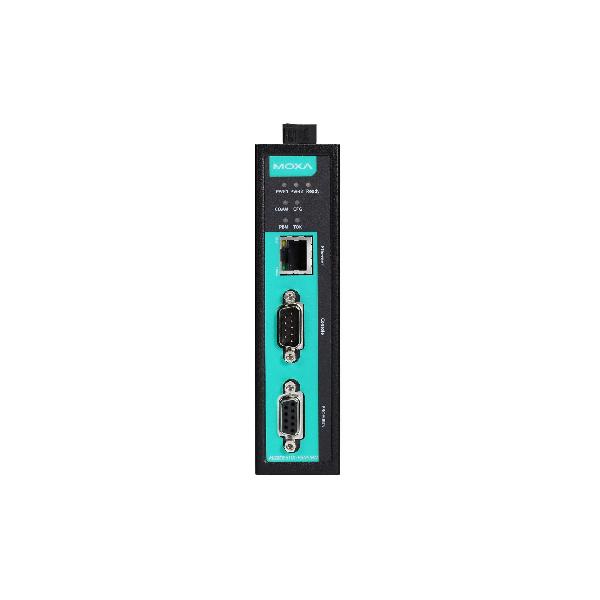

MGate 5101-PBM-MN Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Protocol Gateways  >   Modbus TCP Gateways

1-port PROFIBUS-to-Modbus TCP gateways

Product Feature

  • Protocol conversion between PROFIBUS and Modbus TCP
  • Supports PROFIBUS DP V1 master
  • Supports Modbus TCP client/server
  • Automatic scan of PROFIBUS devices and easy configuration
  • Web-based GUI for I/O data visualization
  • Embedded traffic monitoring/diagnostic information for easy troubleshooting
  • Status monitoring and fault protection for easy maintenance
  • Supports redundant dual DC power inputs and 1 relay output
  • -40 to 75°C wide operating temperature models available
  • Serial port with 2 kV isolation protection
  • Security features based on IEC 62443

Introduction

The MGate 5101-PBM-MN gateway provides a communication portal between PROFIBUS devices (e.g. PROFIBUS drives or instruments) and Modbus TCP hosts. All models are protected with a rugged metallic casing, DIN-rail mountable, and offer optional built-in optical isolation. The PROFIBUS and Ethernet status LED indicators are provided for easy maintenance. The rugged design is suitable for industrial applications such as oil/gas, power, process automation, and factory automation.



Windows Utility for Easy Configuration and Traffic Monitoring

The MGate Manager utility provides a user-friendly interface to make configuration and operation as easy as possible. Moxa’s innovative AutoScan function can automatically detect all connected PROFIBUS slave devices and their available I/O modules to quickly complete gateway configuration, after which an easy-to-read data mapping table is created to assist in the configuration of Modbus TCP master (e.g., SCADA, PLC) settings. In addition, users can configure import/export maintenance functions, and use embedded monitoring tools to maintain logs of Modbus communication packets, which can be used for troubleshooting.



A Variety of Maintenance Functions

The MGate 5101-PBM-MN provides a Web console and Telnet console for remote maintenance, with both consoles supporting encryption commutation functions such as HTTPS and SSH for preventing unauthorized access. The log functions are provided in firmware such as connection event of Modbus or PROFIBUS for maintenance. Users can monitor each I/O data and review the log through the web console remotely. A relay output alarm is provided for the power input status. It gives maintenance engineers an additional tool for troubleshooting and maintenance.



Redundant Power Inputs

The MGate 5101-PBM-MN has dual power inputs for greater reliability. The power inputs allow simultaneous connection to 2 live DC power sources to provide uninterrupted operation even if one power source fails. The higher level of reliability makes these advanced PROFIBUS-master-to-Modbus-TCP gateways ideal for demanding industrial applications.

Ethernet Interface

10/100BaseT(X) Ports (RJ45
connector)
1 (auto MDI/MDI-X connection)
Magnetic Isolation Protection1.5 kV (built-in)

Ethernet Software Features

Industrial ProtocolsModbus TCP Client (Master), Modbus TCP Server (Slave)
Configuration OptionsWeb Console (HTTP/HTTPS), Device Search Utility (DSU), MGate
Manager, Telnet Console
ManagementARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap,
SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client
MIBRFC1213, RFC1317
Time ManagementNTP Client

Serial Interface

Console PortRS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND), DB9 male (115200,
n, 8, 1)

Serial Software Features

Configuration OptionsSerial Console
Industrial ProtocolsPROFIBUS DP-V1 Master

Modbus TCP

ModeClient (Master), Server (Slave)
Functions Supported1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Client Connections16
Max. No. of Server Connections32
Max. No. of Commands100
Input Data Size1536 bytes
Output Data Size1536 bytes

PROFIBUS Interface

Industrial ProtocolsPROFIBUS DP
No. of Ports1
ConnectorDB9 female
SignalsPROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V
Baudrate9600 bps to 12 Mbps
Isolation2 kV (built-in)

PROFIBUS

ModeDP-V1 Master
Input Data Size1536 bytes
Output Data Size1536 bytes

Power Parameters

Input Voltage12 to 48 VDC
Input Current365 mA @ 12 VDC
Power ConnectorScrew-fastened Euroblock terminal

Relays

Contact Current RatingResistive load: 2 A @ 30 VDC

Physical Characteristics

HousingMetal
IP RatingIP30
Dimensions36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
Weight500 g (1.10 lb)

Environmental Limits

Operating TemperatureMGate 5101-PBM-MN: 0 to 60°C (32 to 140°F)
MGate 5101-PBM-MN-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package
included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

SafetyEN 60950-1, UL 60950-1
EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
IEC 61000-4-8 PFMF
Hazardous LocationsATEX, Class I Division 2, IECEx
FreefallIEC 60068-2-32
ShockIEC 60068-2-27
VibrationIEC 60068-2-6, IEC 60068-2-64

MTBF

Time1,082,881 hrs
StandardsTelcordia SR332

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for MGate 5101-PBM-MN Series Datasheet V1.0 11 November 2018

MGate 5101-PBM-MN

Operating Temp. 0 to 60°C

MGate 5101-PBM-MN-T

Operating Temp. -40 to 75°C
