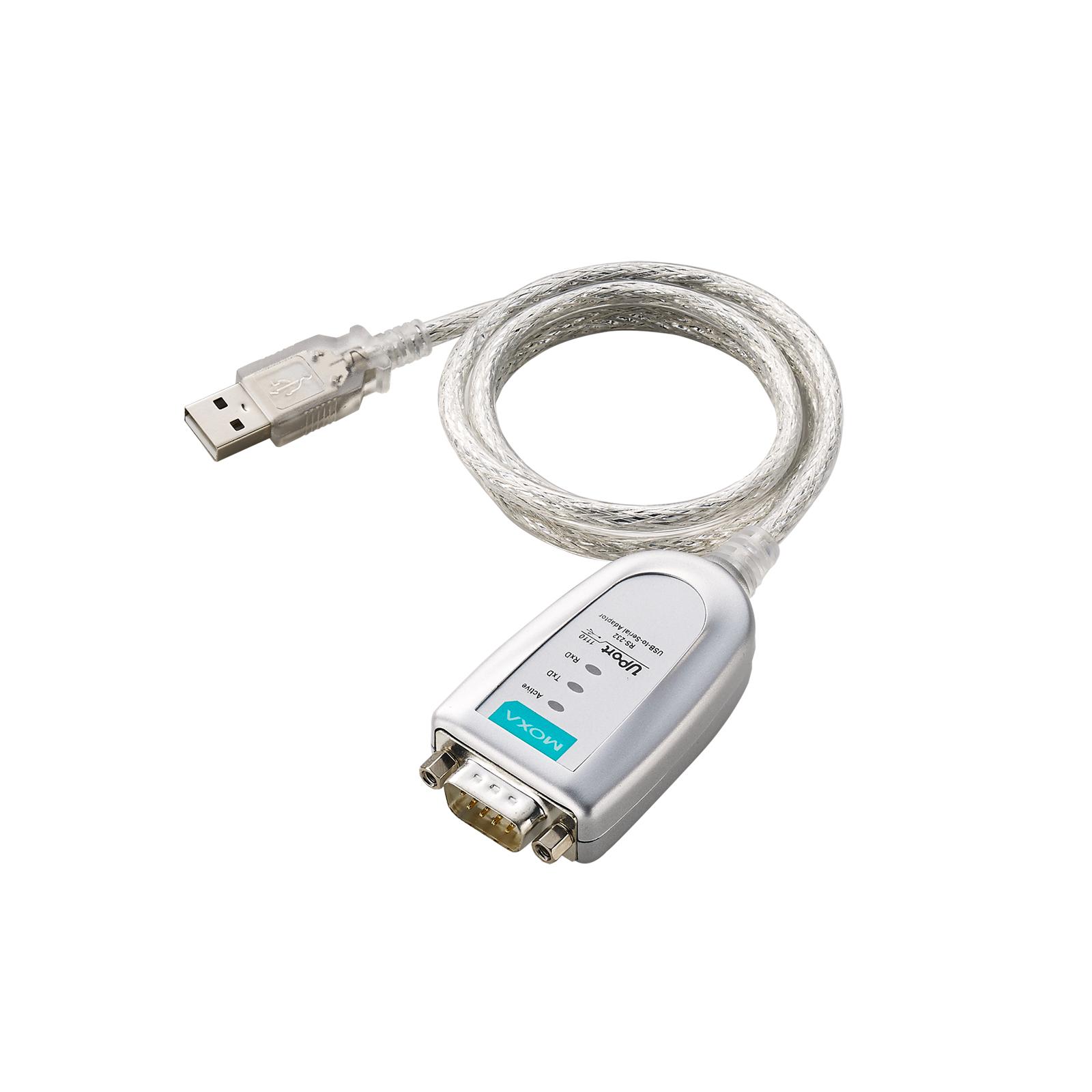

Uport 1000 Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
USB-to-Serial Converters/USB Hubs  >   USB-to-Serial Converters

1 to 16-port RS-232, RS-422/485, and RS-232/422/485 USB-to-serial converters

Product Feature

  • Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
  • 921.6 kbps maximum baudrate for fast data transmission
  • Drivers provided for Windows, WinCE, and Linux
  • Mini-DB9-female-to-terminal-block adapter for easy wiring
  • LEDs for indicating USB and TxD/RxD activity
  • 2 kV isolation protection (for “-I” models)

Introduction

The UPort® 1000 Series of USB-to-serial converters is the perfect accessory for laptop or workstation computers that do not have a serial port. They are essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector.

The UPort® 1000 Series converts from USB to RS-232/422/485. All products are compatible with legacy serial devices, and can be used with instrumentation and point-of-sale applications.

USB Interface

Speed

UPort 1100 Series: 12 Mbps
UPort 1200/1400/1600 Series: 12 Mbps, 480 Mbps

USB Connector

UPort 1110/1130/1130I/1150: USB Type A
UPort 1150I/1200/1400/1600 Series: USB Type B

USB Standards

UPort 1100 Series: USB 1.0/1.1 compliant, USB 2.0 compatible
UPort 1200/1400/1600 Series: USB 1.1/2.0 compliant

Serial Interface

No. of Ports

UPort 1100 Series: 1
UPort 1200 Series: 2
UPort 1400 Series: 4
UPort 1600-8 Series: 8
UPort 1600-16 Series: 16

Connector

DB9 male

Baudrate

50 bps to 921.6 kbps

Data Bits

5, 6, 7, 8

Stop Bits

1, 1.5, 2

Parity

None, Even, Odd, Space, Mark

Flow Control

None, RTS/CTS, XON/XOFF

Isolation

UPort 1130I/1150I/1250I/1450I: 2kV

Serial Standards

UPort 1110/1410/1610-8/1610-16: RS-232
UPort 1130/1130I: RS-422, RS-485
UPort 1150/1150I/1250/1250I/1450/1650-8/1650-16: RS-232, RS-422, RS-485

Serial Signals

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

Power Parameters

Input Voltage



UPort 1100/1250/1410/1450: 5 VDC UPort 1410/1450 Series: 5 V for USB port power, 12 V for external power adapter
UPort 1250I/1400/1600-8 Series: 12 to 48 VDC
UPort 1600-16 Series: 100 to 240 VAC

Input Current

UPort 1110: 30 mA @ 5 VDC
UPort 1130: 60 mA @ 5 VDC
UPort 1130I: 65 mA @ 5 VDC
UPort 1150: 77 mA @ 5 VDC
UPort 1150I: 260 mA @ 5 VDC
UPort 1250: 360 mA @ 5 VDC
UPort 1250I: 200 mA @ 12 VDC
UPort 1410/1450: 260 mA @ 12 VDC
UPort 1450I: 360 mA @ 12 VDC
UPort 1610-8/1650-8: 580 mA @ 12 VDC
UPort 1600-16 Series: 220 mA @ 100 VAC

Physical Characteristics

Housing

UPort 1110/1130/1130I/1150: ABS + Polycarbonate
UPort 1150I/1200/1400/1600 Series: Metal

Dimensions

UPort 1110/1130/1130I/1150: 37.5 x 20.5 x 60 mm (1.48 x 0.81 x 2.36 in)
UPort 1150I: 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in)
UPort 1200 Series: 77 x 26 x 111 mm (3.03 x 1.02 x 4.37 in)
UPort 1400 Series: 204 x 30 x 125 mm (8.03 x 1.18 x 4.92 in)
UPort 1600-8 Series: 204 x 44 x 125 mm (8.03 x 1.73 x 4.92 in)
UPort 1600-16 Series: 440 x 45.5 x 198.1 mm (17.32 x 1.79 x 7.80 in)

Weight

Packaged:
UPort 1110/1130/1130I/1150: 200 g (0.44 lb)
UPort 1150I: 320 g (0.72 lb)
UPort 1250: 370 g (0.82 lb)
UPort 1250I: 680 g (1.5 lb)
UPort 1400: 1,345 g (2.96 lb)
UPort 1600-8: 1,435 g (3.16 lb)
UPort 1600-16: 3,485 g (7.68 lb)

Product only:
UPort 1110/1130/1130I/1150: 65 g (0.14 lb)
UPort 1150I: 75 g (0.16 lb)
UPort 1250/1250I: 180 g (0.40 lb)
UPort 1400: 720 g (1.59 lb)
UPort 1600-8: 835 g (1.84 lb)
UPort 1600-16: 2,475 g (5.45 lb)

Environmental Limits

Operating Temperature

0 to 55°C (32 to 131°F)

Storage Temperature (package included)

UPort 1100 Series: -20 to 70°C (-4 to 158°F)
UPort 1200/1400/1600 Series: -20 to 75°C (-4 to 167°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class 1

EMS

UPort 1100 Series:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m
IEC 61000-4-8 PFMF

UPort 1200/1400/1600 Series:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m
IEC 61000-4-8 PFMF

Safety

UPort 1250/1250I/1410/1450/1450I/1610-8/1610-16/1650-8/1650-16: UL 60950-1

Declaration

Green Product

RoHS, CRoHS, WEEE

MTBF

Time

UPort 1100 Series: 1,949,025 hrs
UPort 1200 Series: 563,179 hrs
UPort 1410: 394,441 hrs
UPort 1450/1450I: 546,770 hrs
UPort 1610-8: 208,413 hrs
UPort 1650-8: 186,567 hrs
UPort 1610-16: 138,704 hrs
UPort 1650-16: 120,001 hrs

Standards

MIL-HDBK-217F
Telcordia (Bellcore), GB

Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty
Name Type Version Release Date
Datasheet for UPort 1000 Series Datasheet V1.6 22 August 2019

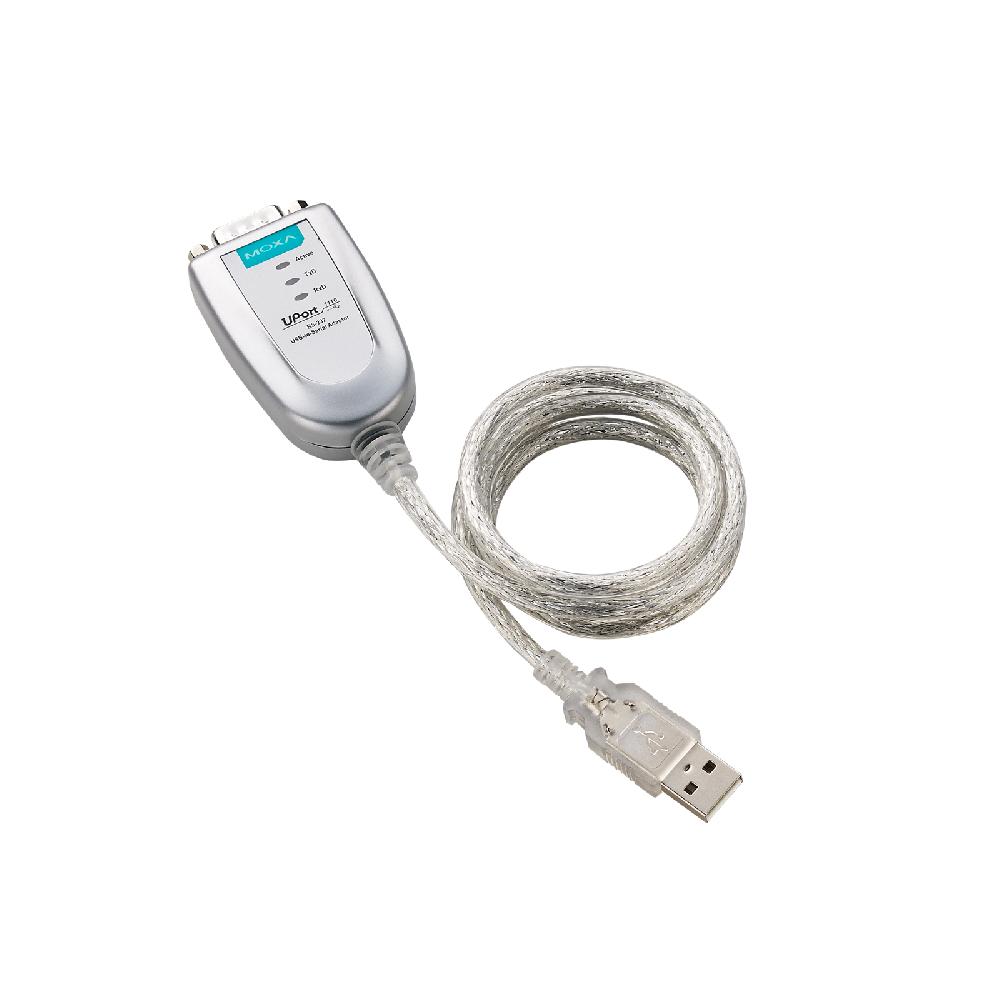

UPort 1110

USB Interface USB 1.1
Serial Standards RS-232
No. of Serial Ports 1
Isolation -
Housing Material ABS+PC
Operating Temp. 0 to 55°C

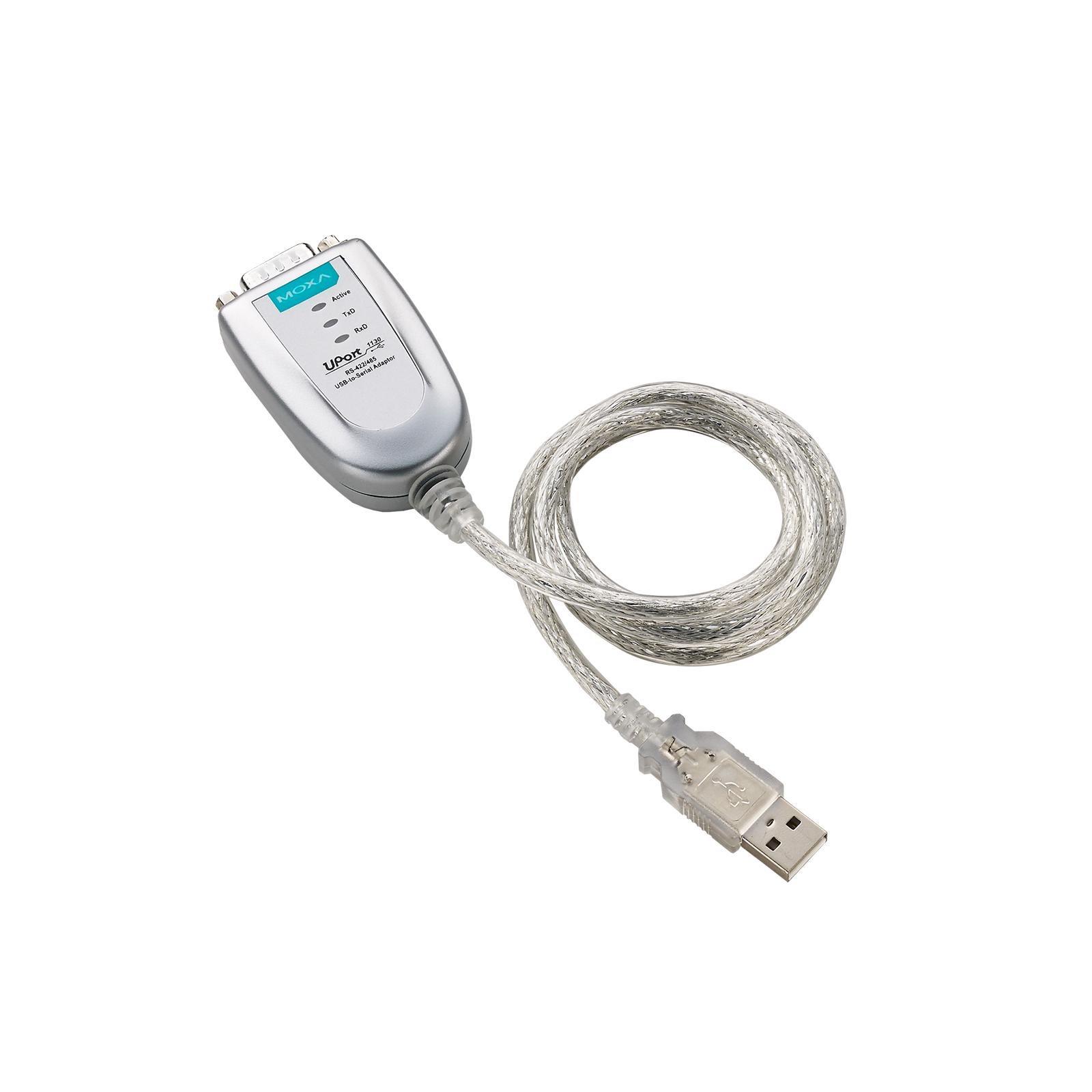

UPort 1130

USB Interface USB 1.1
Serial Standards RS-422/485
No. of Serial Ports 1
Isolation -
Housing Material ABS+PC
Operating Temp. 0 to 55°C

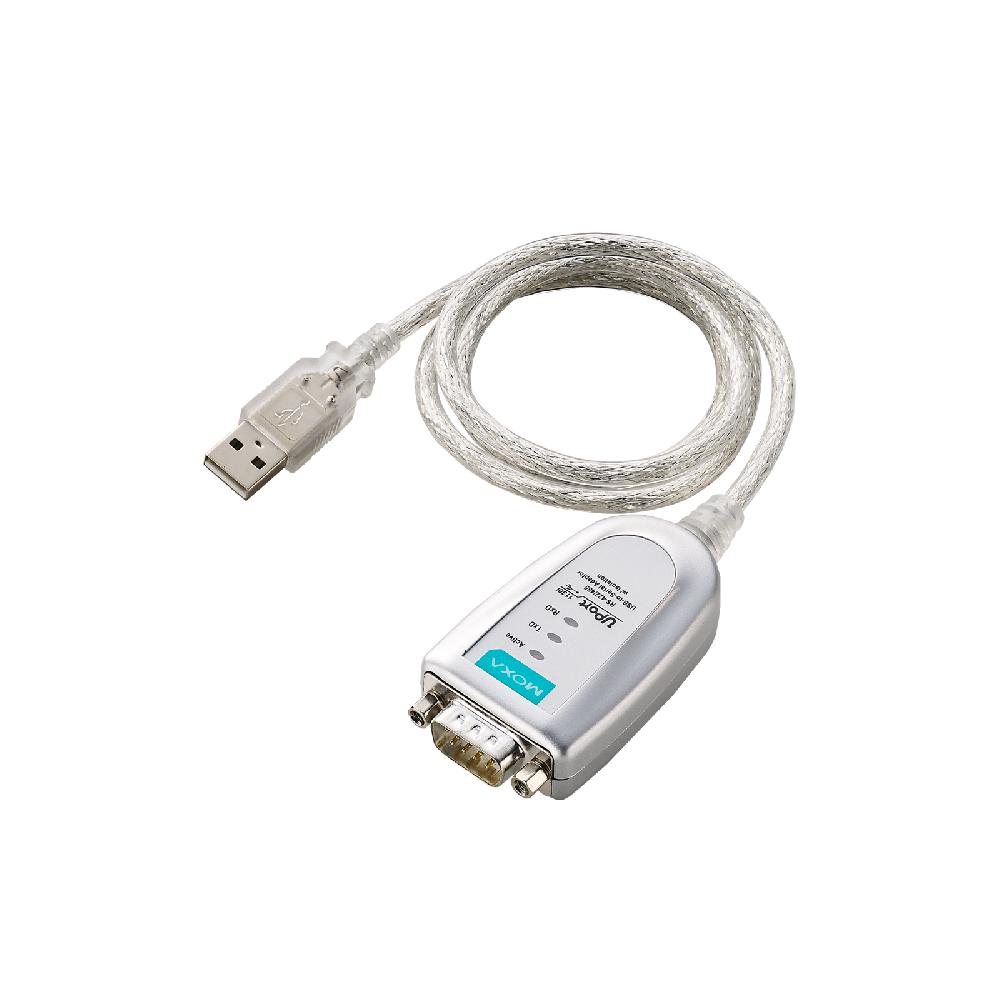

UPort 1130I

USB Interface USB 1.1
Serial Standards RS-422/485
No. of Serial Ports 1
Isolation 2 kV
Housing Material ABS+PC
Operating Temp. 0 to 55°C

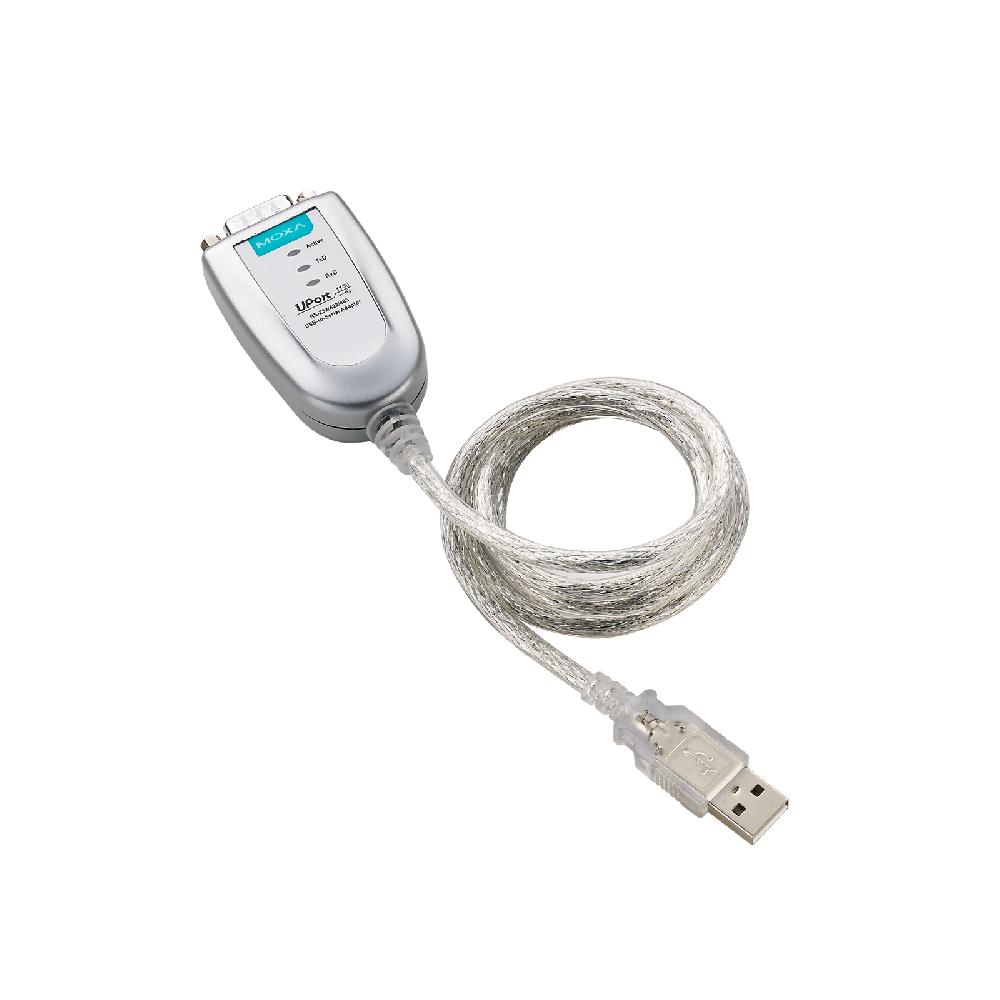

UPort 1150

USB Interface USB 1.1
Serial Standards RS-232/422/485
No. of Serial Ports 1
Isolation -
Housing Material ABS+PC
Operating Temp. 0 to 55°C

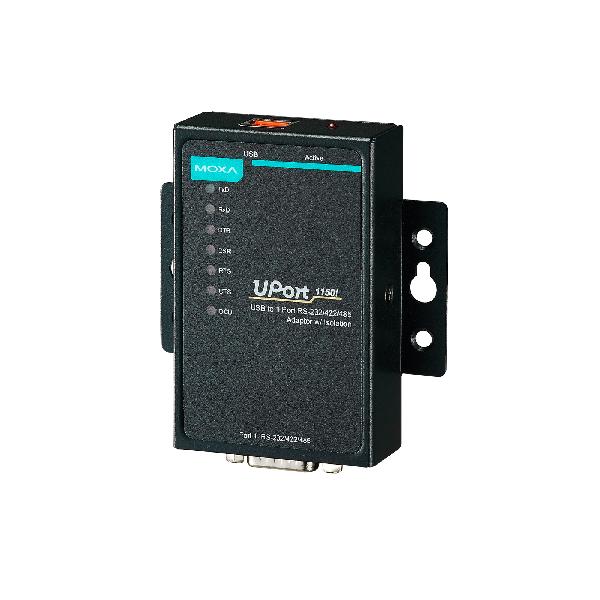

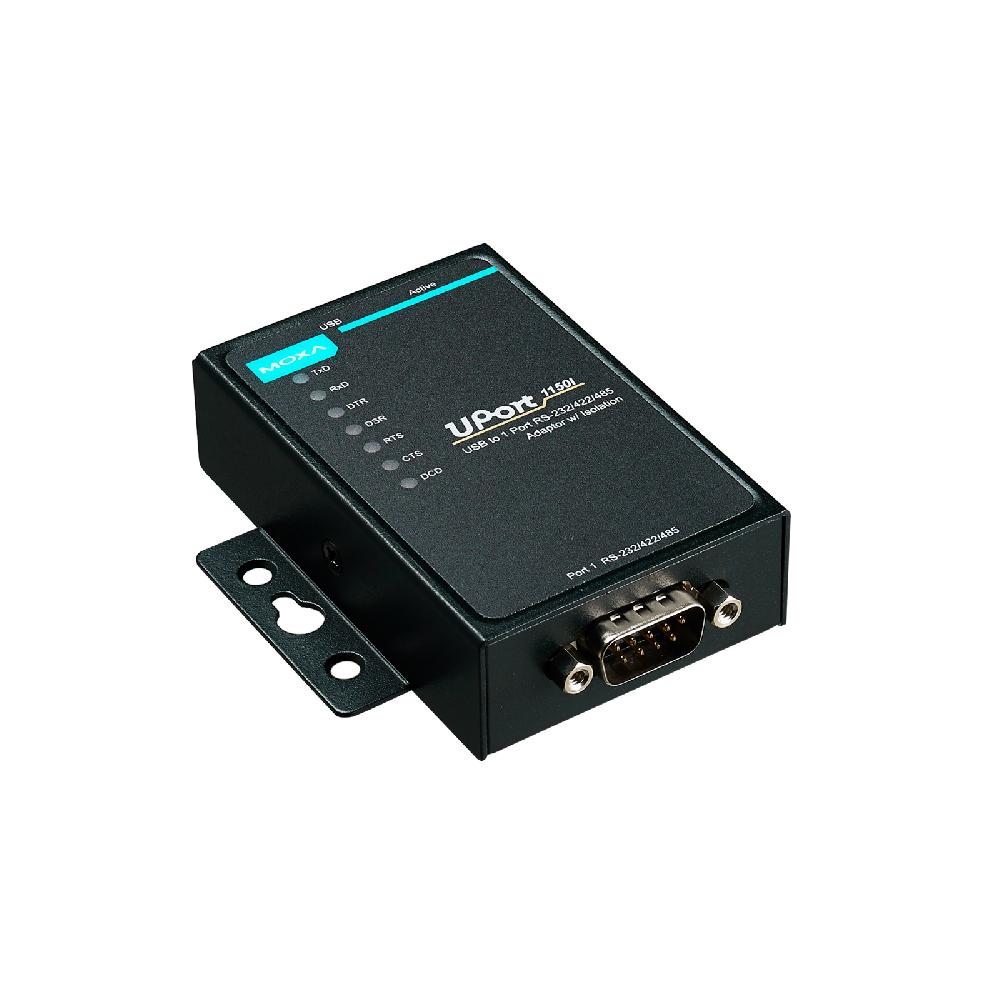

UPort 1150I

USB Interface USB 1.1
Serial Standards RS-232/422/485
No. of Serial Ports 1
Isolation 2 kV
Housing Material Metal
Operating Temp. 0 to 55°C

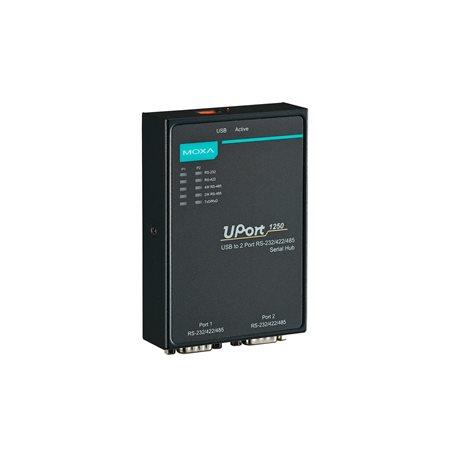

UPort 1250

USB Interface USB 2.0
Serial Standards RS-232/422/485
No. of Serial Ports 2
Isolation -
Housing Material Metal
Operating Temp. 0 to 55°C

UPort 1250I

USB Interface USB 2.0
Serial Standards RS-232/422/485
No. of Serial Ports 2
Isolation 2 kV
Housing Material Metal
Operating Temp. 0 to 55°C

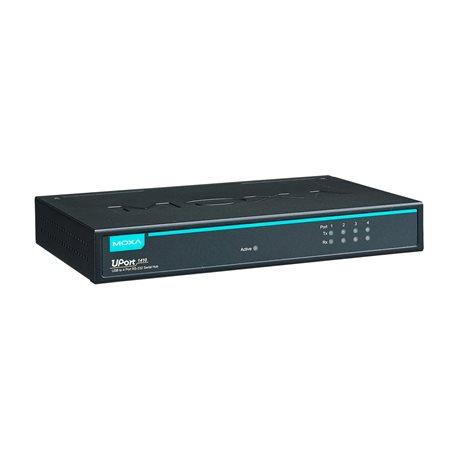

UPort 1410

USB Interface USB 2.0
Serial Standards RS-232
No. of Serial Ports 4
Isolation -
Housing Material Metal
Operating Temp. 0 to 55°C

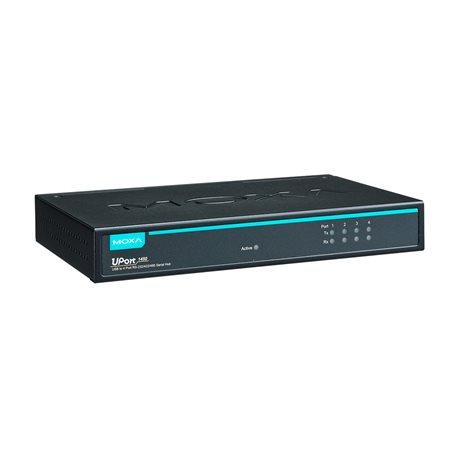

UPort 1450

USB Interface USB 2.0
Serial Standards RS-232/422/485
No. of Serial Ports 4
Isolation -
Housing Material Metal
Operating Temp. 0 to 55°C

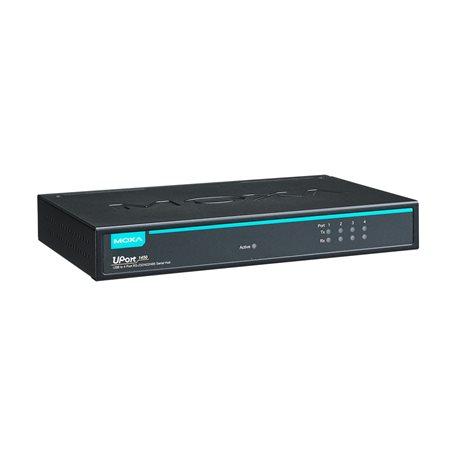

UPort 1450I

USB Interface USB 2.0
Serial Standards RS-232/422/485
No. of Serial Ports 4
Isolation 2 kV
Housing Material Metal
Operating Temp. 0 to 55°C

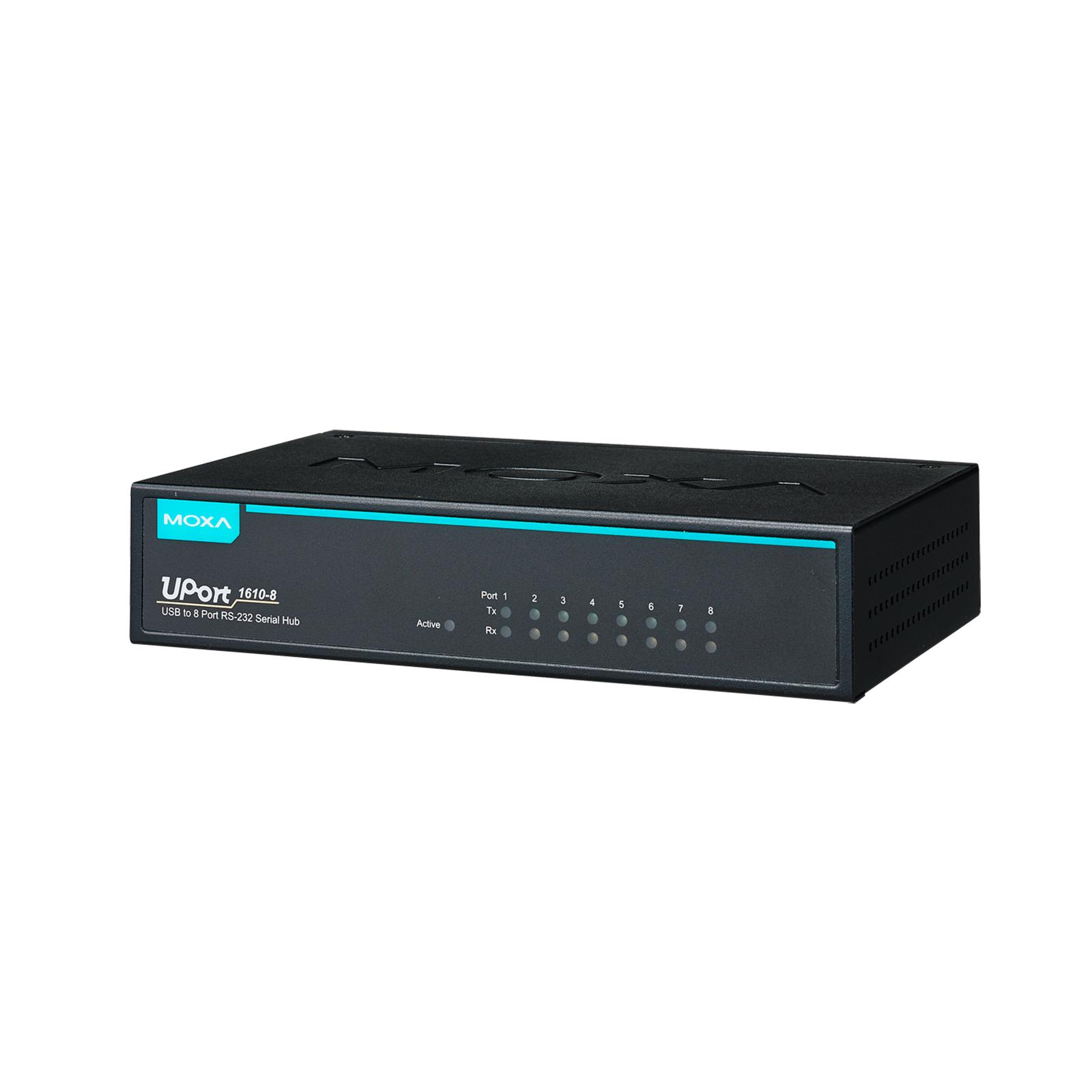

UPort 1610-8

USB Interface USB 2.0
Serial Standards RS-232
No. of Serial Ports 8
Isolation -
Housing Material Metal
Operating Temp. 0 to 55°C

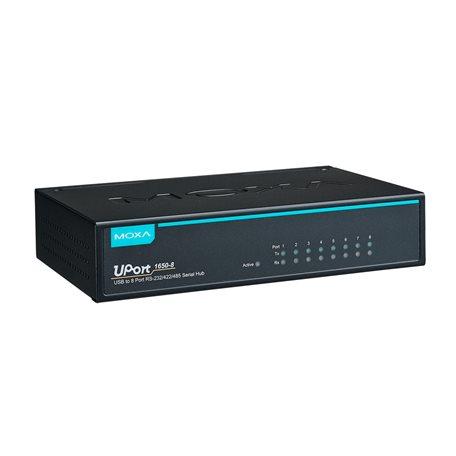

UPort 1650-8

USB Interface USB 2.0
Serial Standards RS-232/422/485
No. of Serial Ports 8
Isolation -
Housing Material Metal
Operating Temp. 0 to 55°C

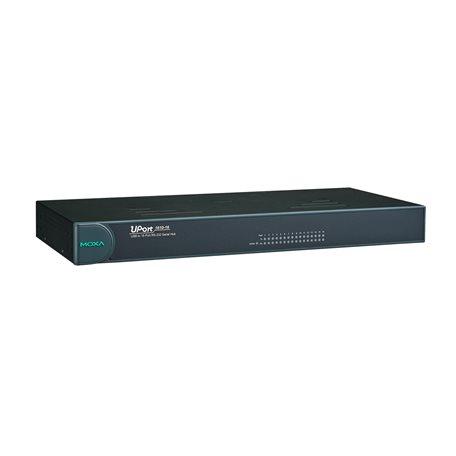

UPort 1610-16

USB Interface USB 2.0
Serial Standards RS-232
No. of Serial Ports 16
Isolation -
Housing Material Metal
Operating Temp. 0 to 55°C

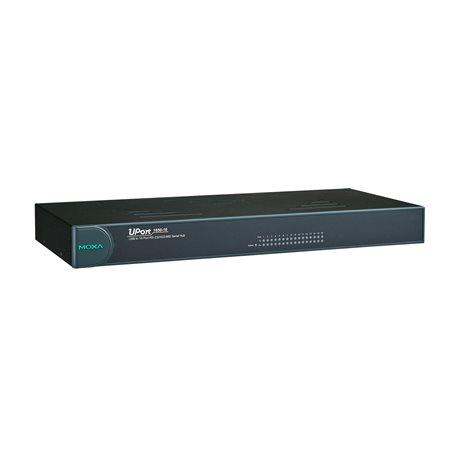

UPort 1650-16

USB Interface USB 2.0
Serial Standards RS-232/422/485
No. of Serial Ports 16
Isolation -
Housing Material Metal
Operating Temp. 0 to 55°C
