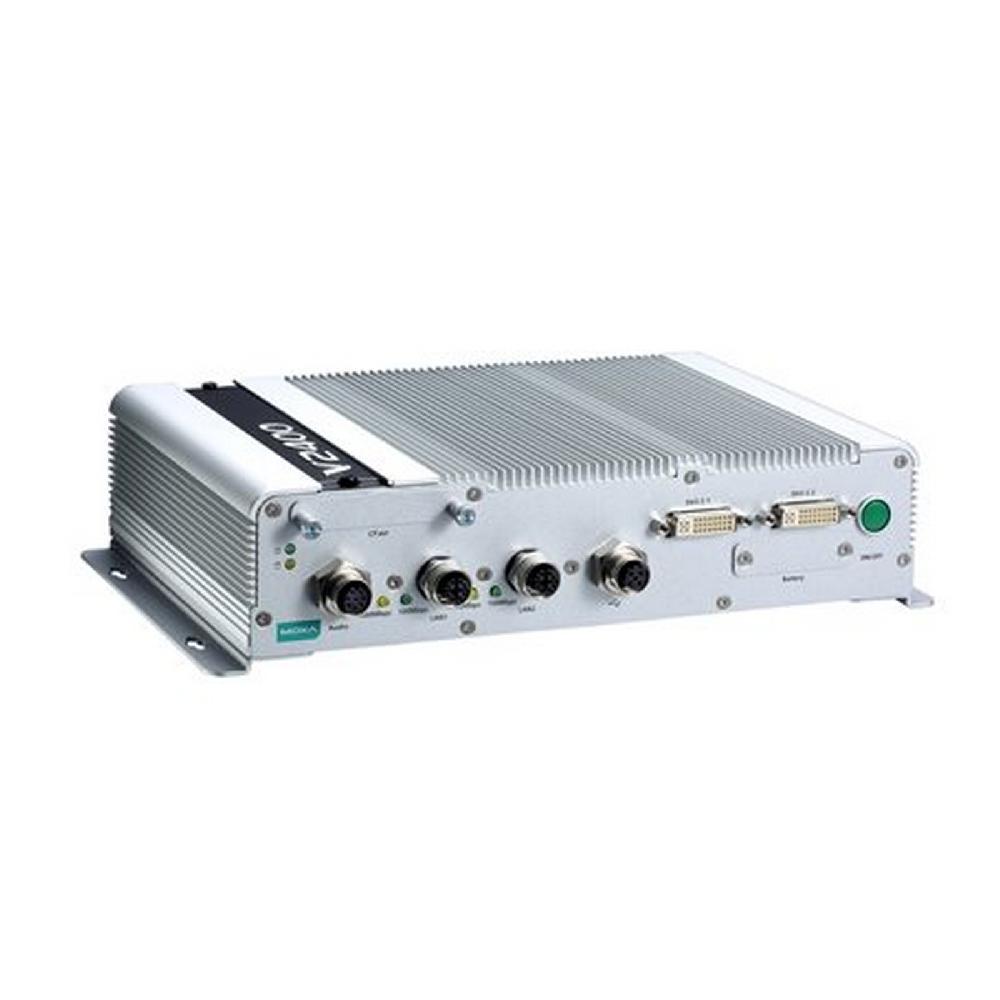

Intel® 3rd Gen Core™ CPU, EN 50155 railway computer

Product Feature

  • ntel Celeron/Core i7 processor
  • Dual independent DVI-I displays
  • 2 Gigabit Ethernet ports with M12 X-coded connectors
  • 1 SATA connector and 2 CFast sockets for storage expansion
  • M12 A-coded power connector
  • Compliant with EN 50121-4
  • Complies with all EN 50155 mandatory test items
  • Ready-to-run Debian 7, Windows Embedded Standard 7, and Windows 10 Embedded IoT Enterprise 2016 LTSB platforms
  • -40 to 70°C wide-temperature models available
  • Supports SNMP-based system configuration, control, and monitoring (Windows only)

Introduction

The V2406A Series embedded computers are based on the Intel 3rd Gen processor, and feature 4 RS-232/422/485 serial ports, dual LAN ports, audio in/out, 3 USB 2.0 hosts, 2 CFast sockets, and 1 SATA storage socket. The V2406A computers provide dual DVI-I outputs, and in addition are compliant with the mandatory test items of the EN 50155 standard, making the computers suitable for a variety of industrial applications.

The dual megabit/Gigabit Ethernet ports with M12 X-coded connectors offer a reliable solution for network redundancy, promising continuous operation for data communication and management. As an added convenience, the V2406A computers have 6 DIs and 2 DOs for connecting digital input/output devices, and the CFast feature provides the reliability needed for industrial applications that require data buffering and storage expansion.

Preinstalled with Linux Debian 7 or Windows Embedded Standard 7, the V2406A Series provides programmers with a friendly environment for developing sophisticated, bug-free application software at a low cost. Wide-temperature models of the V2406A Series that operate reliably in a -40 to 70°C operating temperature range are also available, offering an optimal solution for applications subjected to harsh environments.

Computer

CPUV2406A-C2 Series: Intel® Celeron® Processor 1047UE (2 M cache, 1.40
GHz)
V2406A-C7 Series: Intel® Core™ i7-3517UE Processor (4 M cache, up to
2.80 GHz)
System ChipsetMobile Intel® HM65 Express Chipset
Graphics ControllerIntel® HD Graphics 4000 (integrated)
System Memory Pre-installed4 GB DDR3
System Memory SlotSODIMM DDR3/DDR3L slot x 1
Supported OSLinux Debian 7
Windows Embedded Standard 7 (WS7E) 32-bit
Windows Embedded Standard 7 (WS7E) 64-bit
Storage Slot2.5-inch HDD/SSD slots x 1
CFast slot x 2

Computer Interface

Ethernet PortsAuto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2
Serial PortsRS-232/422/485 ports x 4, software selectable (DB9 male)
USB 2.0USB 2.0 hosts x 1, M12 D-coded connector
USB 2.0 hosts x 2, type-A connectors
Audio Input/OutputLine in x 1, Line out x 1, M12 D-coded
Digital InputDIs x 6
Digital OutputDOs x 2
Video OutputDVI-I x 2, 29-pin DVI-I connectors (female)

Digital Inputs

Isolation3k VDC
ConnectorScrew-fastened Euroblock terminal
Dry ContactOn: short to GND
Off: open
I/O ModeDI
Sensor TypeDry contact
Wet contact (NPN or PNP)
Wet Contact (DI to COM)On: 10 to 30 VDC
Off: 0 to 3 VDC

Digital Outputs

ConnectorScrew-fastened Euroblock terminal
Current Rating200 mA per channel
I/O TypeSink
Voltage24 to 30 VDC

LED Indicators

SystemPower x 1
Storage x 1
LAN2 per port (10/100/1000 Mbps)
Serial2 per port (Tx, Rx)

Serial Interface

Baudrate50 bps to 921.6 kbps
Flow Control

RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-

485, RTS Toggle (RS-232 only)

ParityNone, Even, Odd, Space, Mark
Data Bits5, 6, 7, 8
Stop Bits1, 1.5, 2

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND

Power Parameters

Input Voltage12 to 48 VDC
Power ConnectorM12 A-coded male connector
Power Consumption (Max.)3.3 A @ 12 VDC
0.82 A @ 48 VDC
Power Consumption40 W (max.)

Physical Characteristics

HousingAluminum
IP RatingIP30
Dimensions (with ears)275 x 63 x 154 mm (10.83 x 2.47 x 6.06 in)
Dimensions (without ears)250 x 57 x 154 mm (9.84 x 2.23 x 6.06 in)
Weight2,000 g (4.44 lb)
InstallationDIN-rail mounting (optional), Wall mounting (standard)
ProtectionV2406A-C2-CT-T/C7-CT-T: PCB conformal coating

Environmental Limits

Operating TemperatureStandard Models: -25 to 55°C (-13 to 131°F)
Wide Temp. Models: -40 to 70°C (-40 to 158°F)
Storage Temperature (package
included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
RailwayEN 50121-4, IEC 60571
Railway Fire ProtectionEN 45545-2
SafetyEN 60950-1, UL 60950-1
ShockIEC 60068-2-27, IEC 61373, EN 50155
VibrationIEC 60068-2-64, IEC 61373, EN 50155

Declaration

Green ProductRoHS, CRoHS, WEEE

MTBF

Time332,173 hrs
StandardsTelcordia (Bellcore), GB

Warranty

Warranty Period3 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for V2406A Series Datasheet V2.4 22 January 2020

V2406A-C2

CPU Celeron 1047UE
Memory (Default) 4 GB
OS CFast (CTO) 1 (Optional)
Backup CFast (CTO) 1 (Optional)
SSD/HDD Tray (CTO) 1 (Optional)
Operating Temp. -25 to 55°C
Conformal Coating -

V2406A-C2-T

CPU Celeron 1047UE
Memory (Default) 4 GB
OS CFast (CTO) 1 (Optional)
Backup CFast (CTO) 1 (Optional)
SSD/HDD Tray (CTO) 1 (Optional)
Operating Temp. -40 to 70°C
Conformal Coating -

V2406A-C2-CT-T

CPU Celeron 1047UE
Memory (Default) 4 GB
OS CFast (CTO) 1 (Optional)
Backup CFast (CTO) 1 (Optional)
SSD/HDD Tray (CTO) 1 (Optional)
Operating Temp. -40 to 70°C
Conformal Coating

V2406A-C7

CPU i7-3517UE
Memory (Default) 4 GB
OS CFast (CTO) 1 (Optional)
Backup CFast (CTO) 1 (Optional)
SSD/HDD Tray (CTO) 1 (Optional)
Operating Temp. -25 to 55°C
Conformal Coating -

V2406A-C7-T

CPU i7-3517UE
Memory (Default) 4 GB
OS CFast (CTO) 1 (Optional)
Backup CFast (CTO) 1 (Optional)
SSD/HDD Tray (CTO) 1 (Optional)
Operating Temp. -40 to 70°C
Conformal Coating -

V2406A-C7-CT-T

CPU i7-3517UE
Memory (Default) 4 GB
OS CFast (CTO) 1 (Optional)
Backup CFast (CTO) 1 (Optional)
SSD/HDD Tray (CTO) 1 (Optional)
Operating Temp. -40 to 70°C
Conformal Coating

V2406A-C2-W7E

CPU Celeron 1047UE
Memory (Default) 4 GB
OS CFast (CTO) 8 GB
Backup CFast (CTO) 1 (Optional)
SSD/HDD Tray (CTO) 1 (Optional)
Operating Temp. -25 to 55°C
Conformal Coating -

V2406A-C2-T-W7E

CPU Celeron 1047UE
Memory (Default) 4 GB
OS CFast (CTO) 8 GB
Backup CFast (CTO) 1 (Optional)
SSD/HDD Tray (CTO) 1 (Optional)
Operating Temp. -40 to 70°C
Conformal Coating -

V2406A-C7-T-W7E

CPU i7-3517UE
Memory (Default) 4 GB
OS CFast (CTO) 8 GB
Backup CFast (CTO) 1 (Optional)
SSD/HDD Tray (CTO) 1 (Optional)
Operating Temp. -40 to 70°C
Conformal Coating -
