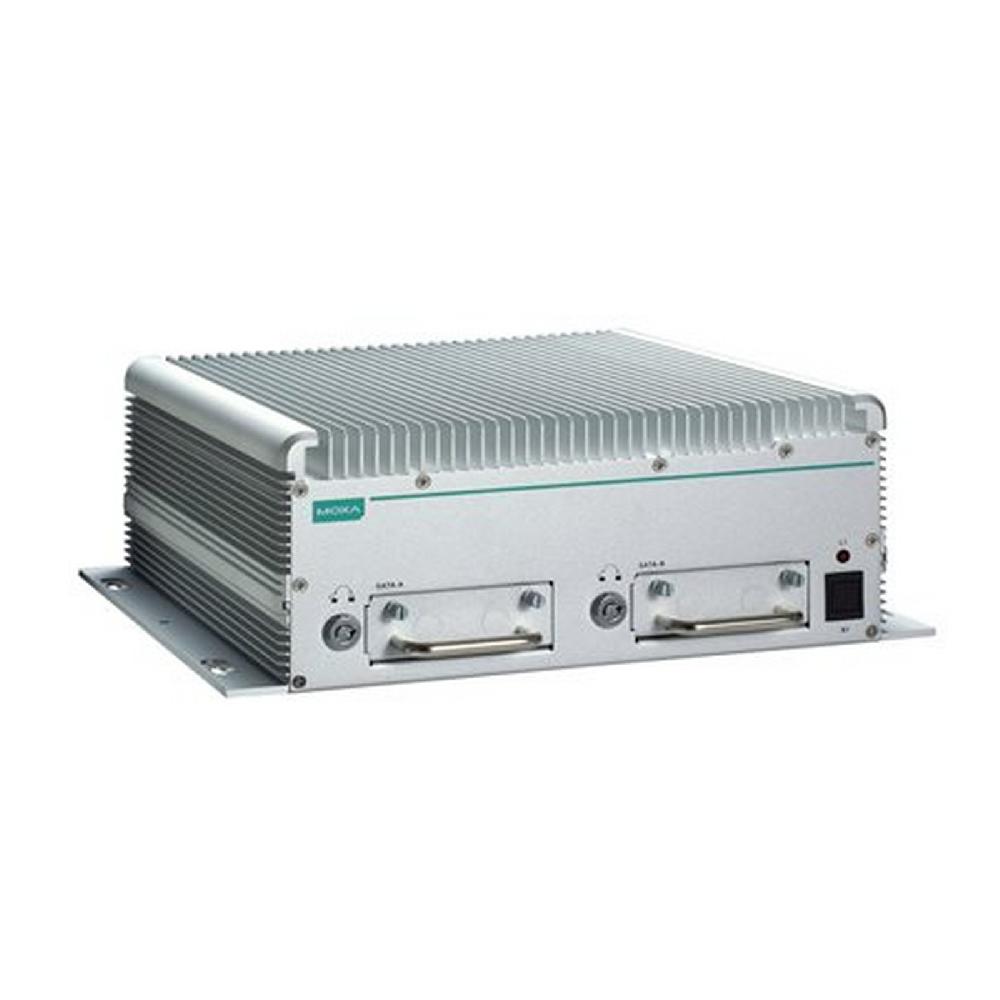

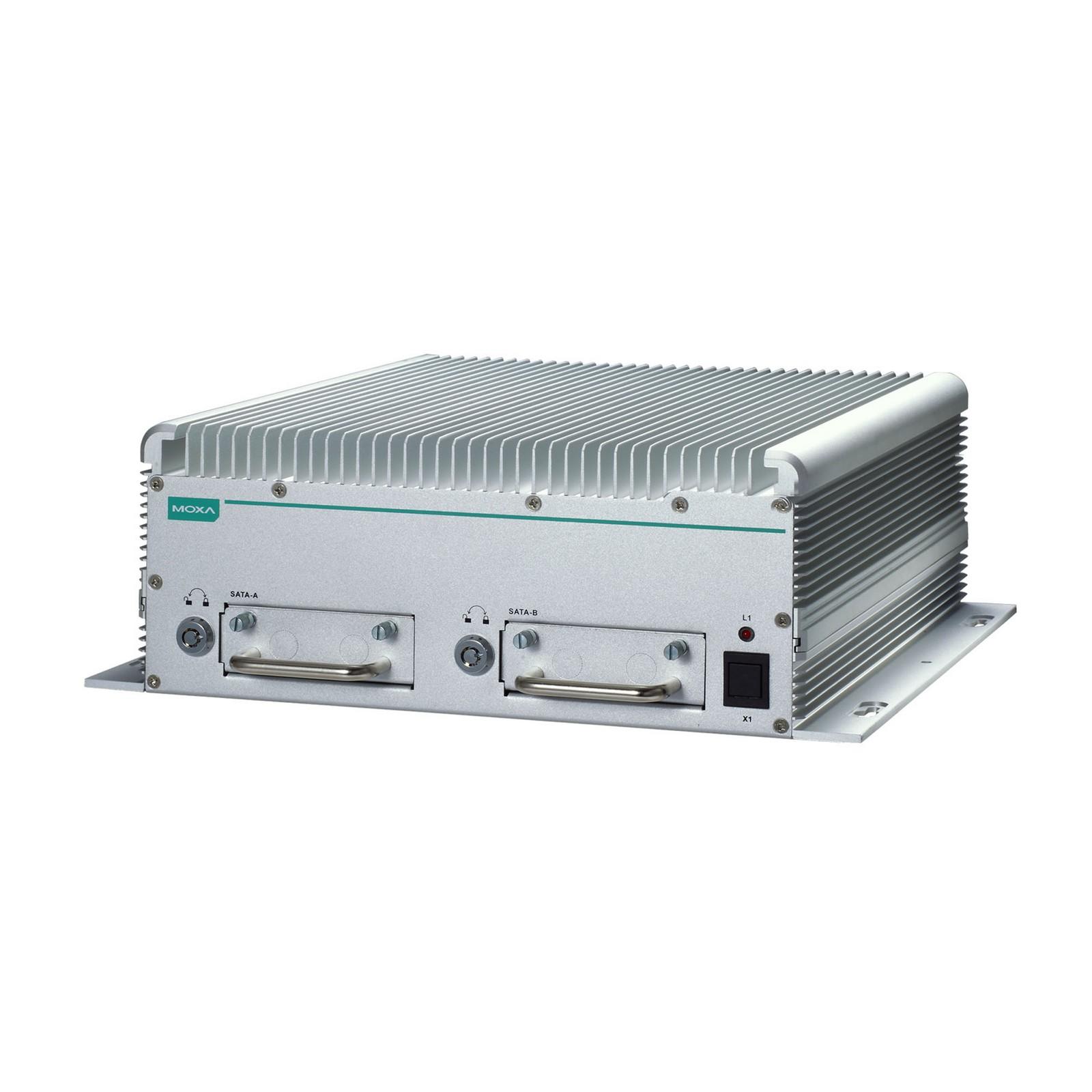

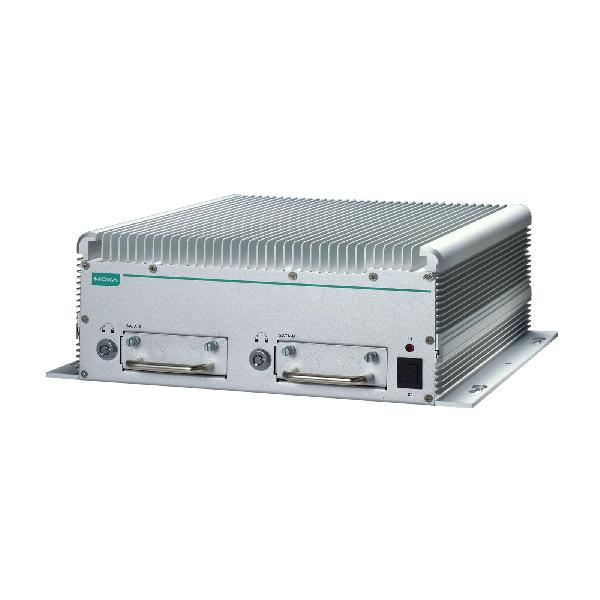

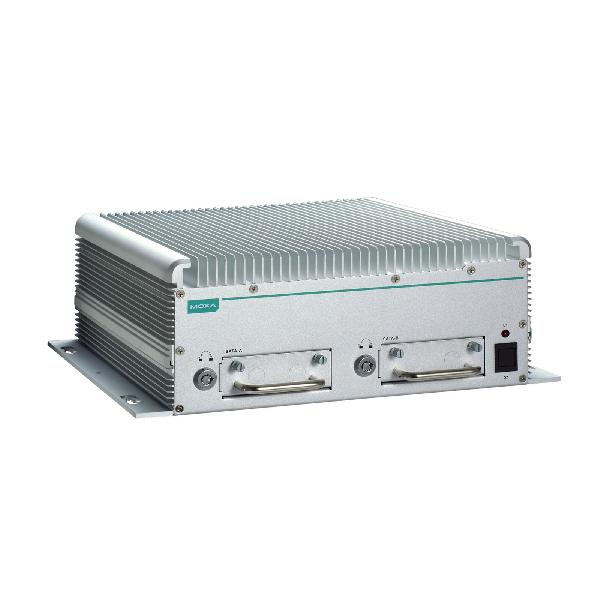

Intel® 3rd Gen Core™ CPU, EN 50155 railway computer with power isolation and 2 hot-swappable HDD/SSD slots
The V2616A Series of embedded computers are based on the Intel Core i5/i7 processor, and feature 2 RS-232/422/485 serial ports, dual Gigabit LAN ports, 3 USB 2.0 ports, and dual VGA/DVI-D video outputs. The V2616A computers are compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making them suitable for a variety of industrial applications.
The V2616A computers come with a CFast socket that provides ample and secure data buffering or additional storage expansion, as well as 2 hot-swappable storage trays that accept 2.5-inch solid state or hard disk storage drives, and may be arranged in RAID 1 arrays to give full data redundancy.
The V2616A Series comes with preinstalled Windows Embedded Standard 7 or Debian 7 environments, allowing programmers and system integrators to choose their preferred computing and development platform.
Computer | |
| CPU | V2616A-C5 Series: Intel® Core™ i5-3610ME Processor (3 M cache, up to 3.30 GHz) V2616A-C7 Series: Intel® Core™ i7-3517UE Processor (4 M cache, up to 2.80 GHz) V2616A-C8 Series: Intel® Core™ i7-3612QE Processor (6 M cache, up to 3.10 GHz) |
| System Chipset | Mobile Intel® HM65 Express Chipset |
| Graphics Controller | Intel® HD Graphics 4000 (integrated) |
| System Memory Pre-installed | 4 GB DDR3 |
| Pre-installed OS | Linux Debian 7 Windows Embedded Standard 7 (WS7E) 32-bit |
| Storage Slot | 2.5-inch HDD/SSD slots x 2 CFast slot x 1 |
Computer Interface | |
| Ethernet Ports | Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2 |
| Serial Ports | RS-232/422/485 ports x 2, software selectable (DB9 male) |
| USB 2.0 | USB 2.0 hosts x 1, M12 D-coded connector USB 2.0 hosts x 2, type-A connectors |
| Audio Input/Output | Line in x 1, Line out x 1, M12 D-coded |
| Digital Input | DIs x 6 |
| Digital Output | DOs x 2 |
| Expansion Slots | mPCIe slot x 1 |
| Video Output | DVI-D x 1, 29-pin DVI-D connectors (female) VGA x 1, 15-pin D-sub connector (female) |
| Number of SIMs | 1 |
| SIM Format | Mini |
Digital Inputs | |
| Isolation | 3k VDC |
| Connector | Screw-fastened Euroblock terminal |
| Dry Contact | On: short to GND Off: open |
| I/O Mode | DI |
| Sensor Type | Wet Contact (NPN or PNP) |
| Wet Contact (DI to COM) | On: 10 to 30 VDC Off: 0 to 3 VDC |
Digital Outputs | |
| Connector | Screw-fastened Euroblock terminal |
| Current Rating | 200 mA per channel |
| I/O Type | Sink |
| Voltage | 24 to 30 VDC |
LED Indicators | |
| System | Power x 1 Storage x 1 |
| LAN | 2 per port (10/100/1000 Mbps) |
| Serial | 2 per port (Tx, Rx) |
Serial Interface | |
| ESD | 4 kV |
| Isolation | 1.5 kV (built-in) |
| Baudrate | 50 bps to 921.6 kbps |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS- 485, RTS Toggle (RS-232 only) |
| Parity | None, Even, Odd, Space, Mark |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
Power Parameters | |
| Input Current | 2.5 A @ 24 VDC, 0.55 A @ 110 VDC |
| Power Connector | M12 A-coded 4-pin male connector |
| Power Consumption | 2.5 A @ 24 VDC 0.55 A @ 110 VDC |
| Power Consumption (Max.) | 60 W (max.) |
Physical Characteristics | |
| Housing | Aluminum |
| IP Rating | IP40 |
| Dimensions | 287 x 290 x 101 mm (11.29 x 11.41 x 3.97 in) |
| Weight | 5,000 g (11.11 lb) |
| Installation | Wall mounting (with optional kit) |
| Protection | -CT models: PCB conformal coating |
Environmental Limits | |
| Operating Temperature | Standard Models: -25 to 55°C (-13 to 131°F) Wide Temp. Models: -40 to 70°C (-40 to 158°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Railway | EN 50121-4, EN 50155 |
| Railway Fire Protection | EN 45545-2 |
| Safety | EN 60950-1, UL 60950-1 |
| Shock | IEC 60068-2-27, IEC 61373, EN 50155 |
| Vibration | IEC 60068-2-64, IEC 61373, EN 50155 |
Declaration | |
| Green Product | RoHS, CRoHS, WEEE |
MTBF | |
| Time | V2616A-C5 Series: 280,726 hrs V2616A-C7 Series: 261,297 hrs |
| Standards | Telcordia (Bellcore), GB |
Warranty | |
| Warranty Period | 3 years |
| Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for V2616A Series | Datasheet | V1.3 | 22 January 2020 |
| CPU | i5-3610ME |
| Memory (Default) | 4 GB |
| OS CFast (Default) | – |
| Hot-swappable SSD/HDD Tray (CTO) | 2 (Optional) |
| Internal SSD/HDD Conn. | 1 |
| Operating Temp. | -25 to 55°C |
| Conformal Coating | - |
| CPU | i5-3610ME |
| Memory (Default) | 4 GB |
| OS CFast (Default) | 8 GB |
| Hot-swappable SSD/HDD Tray (CTO) | 2 (Optional) |
| Internal SSD/HDD Conn. | 1 |
| Operating Temp. | -25 to 55°C |
| Conformal Coating | - |
| CPU | i5-3610ME |
| Memory (Default) | 4 GB |
| OS CFast (Default) | 8 GB |
| Hot-swappable SSD/HDD Tray (CTO) | 2 (Optional) |
| Internal SSD/HDD Conn. | 1 |
| Operating Temp. | -25 to 55°C |
| Conformal Coating | ✓ |
| CPU | i5-3610ME |
| Memory (Default) | 4 GB |
| OS CFast (Default) | 8 GB |
| Hot-swappable SSD/HDD Tray (CTO) | 2 (Optional) |
| Internal SSD/HDD Conn. | 1 |
| Operating Temp. | -25 to 55°C |
| Conformal Coating | - |
| CPU | i5-3610ME |
| Memory (Default) | 4 GB |
| OS CFast (Default) | 8 GB |
| Hot-swappable SSD/HDD Tray (CTO) | 2 (Optional) |
| Internal SSD/HDD Conn. | 1 |
| Operating Temp. | -25 to 55°C |
| Conformal Coating | - |
| CPU | i7-3517UE |
| Memory (Default) | 4 GB |
| OS CFast (Default) | – |
| Hot-swappable SSD/HDD Tray (CTO) | 2 (Optional) |
| Internal SSD/HDD Conn. | 1 |
| Operating Temp. | -40 to 70°C |
| Conformal Coating | - |
| CPU | i7-3517UE |
| Memory (Default) | 4 GB |
| OS CFast (Default) | 8 GB |
| Hot-swappable SSD/HDD Tray (CTO) | 2 (Optional) |
| Internal SSD/HDD Conn. | 1 |
| Operating Temp. | -40 to 70°C |
| Conformal Coating | - |
| CPU | i7-3517UE |
| Memory (Default) | 4 GB |
| OS CFast (Default) | 8 GB |
| Hot-swappable SSD/HDD Tray (CTO) | 2 (Optional) |
| Internal SSD/HDD Conn. | 1 |
| Operating Temp. | -40 to 70°C |
| Conformal Coating | ✓ |
| CPU | i7-3517UE |
| Memory (Default) | 4 GB |
| OS CFast (Default) | 8 GB |
| Hot-swappable SSD/HDD Tray (CTO) | 2 (Optional) |
| Internal SSD/HDD Conn. | 1 |
| Operating Temp. | -40 to 70°C |
| Conformal Coating | - |
| CPU | i7-3517UE |
| Memory (Default) | 4 GB |
| OS CFast (Default) | 8 GB |
| Hot-swappable SSD/HDD Tray (CTO) | 2 (Optional) |
| Internal SSD/HDD Conn. | 1 |
| Operating Temp. | -40 to 70°C |
| Conformal Coating | ✓ |
| CPU | i7-3612QE |
| Memory (Default) | 4 GB |
| OS CFast (Default) | – |
| Hot-swappable SSD/HDD Tray (CTO) | 2 (Optional) |
| Internal SSD/HDD Conn. | 1 |
| Operating Temp. | -25 to 55°C |
| Conformal Coating | - |
| CPU | i7-3612QE |
| Memory (Default) | 4 GB |
| OS CFast (Default) | 8 GB |
| Hot-swappable SSD/HDD Tray (CTO) | 2 (Optional) |
| Internal SSD/HDD Conn. | 1 |
| Operating Temp. | -25 to 55°C |
| Conformal Coating | - |
| CPU | i7-3612QE |
| Memory (Default) | 4 GB |
| OS CFast (Default) | 8 GB |
| Hot-swappable SSD/HDD Tray (CTO) | 2 (Optional) |
| Internal SSD/HDD Conn. | 1 |
| Operating Temp. | -25 to 55°C |
| Conformal Coating | ✓ |
| CPU | i7-3612QE |
| Memory (Default) | 4 GB |
| OS CFast (Default) | 8 GB |
| Hot-swappable SSD/HDD Tray (CTO) | 2 (Optional) |
| Internal SSD/HDD Conn. | 1 |
| Operating Temp. | -25 to 55°C |
| Conformal Coating | - |
| CPU | i7-3612QE |
| Memory (Default) | 4 GB |
| OS CFast (Default) | 8 GB |
| Hot-swappable SSD/HDD Tray (CTO) | 2 (Optional) |
| Internal SSD/HDD Conn. | 1 |
| Operating Temp. | -25 to 55°C |
| Conformal Coating | ✓ |
