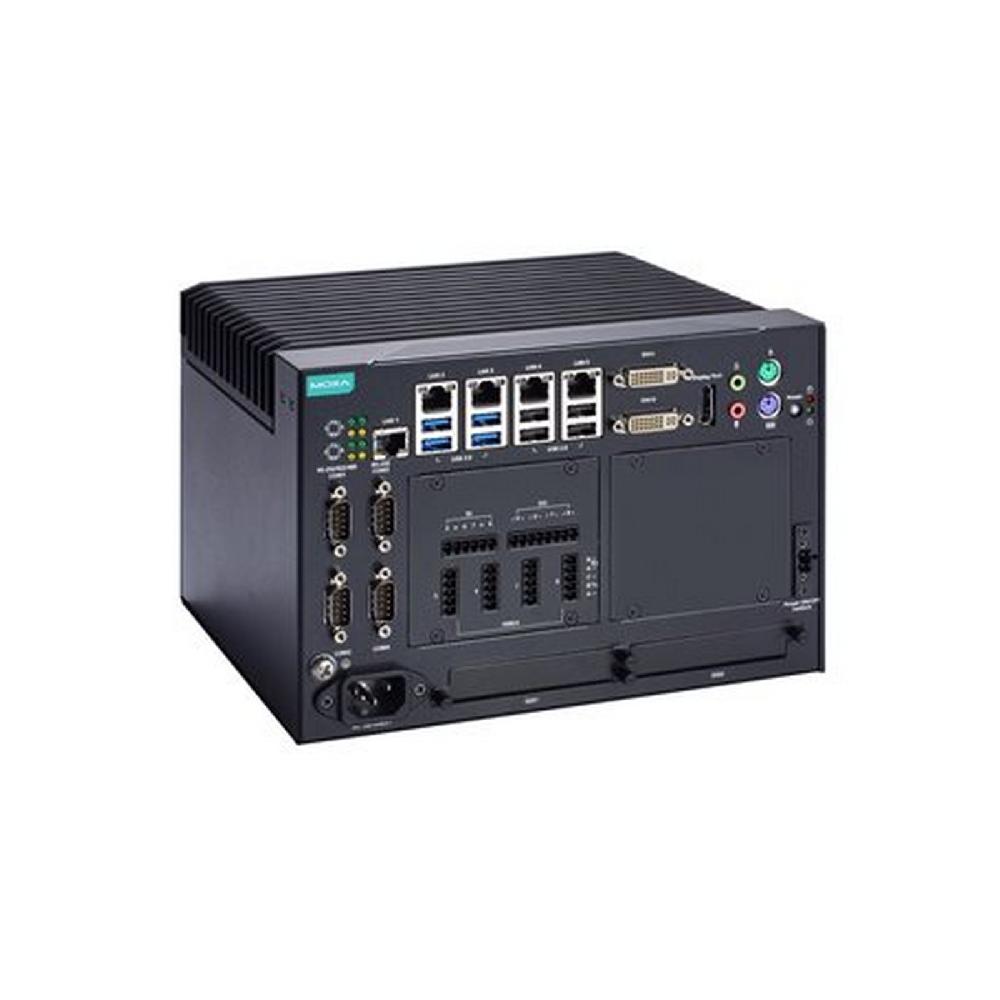

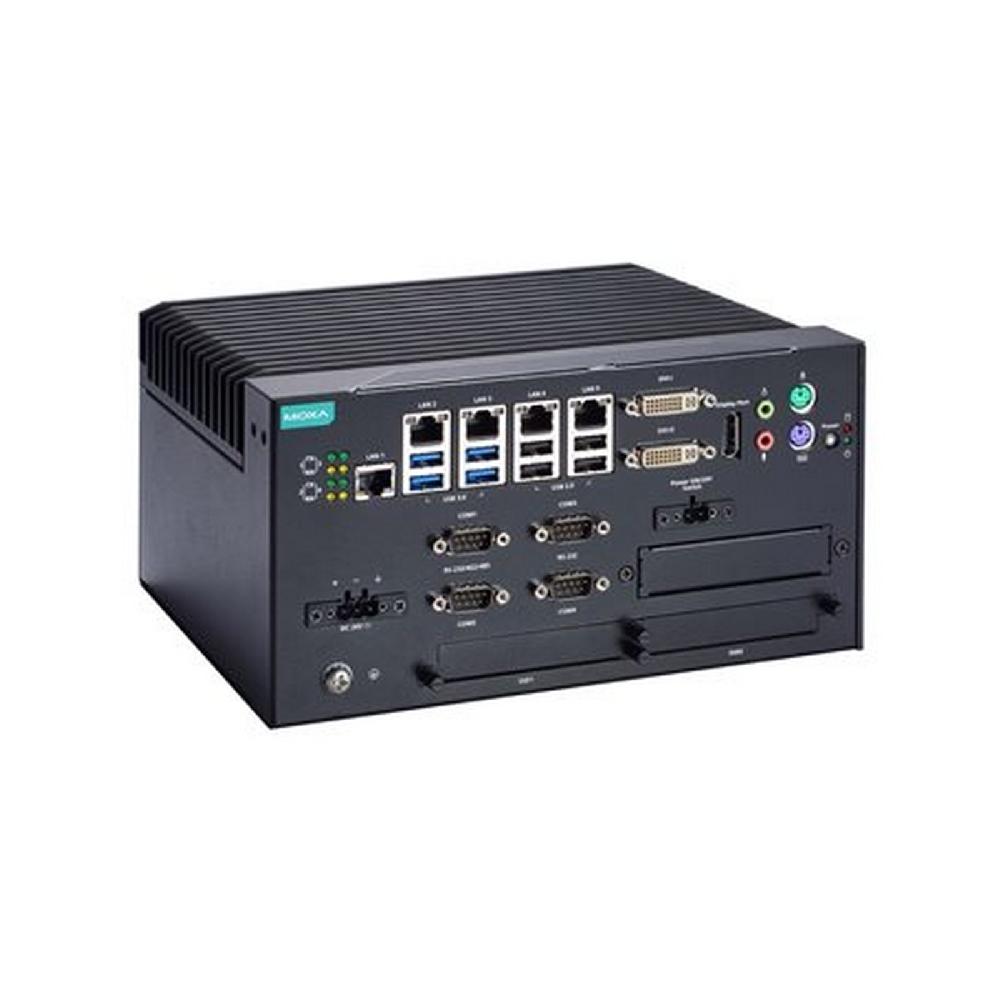

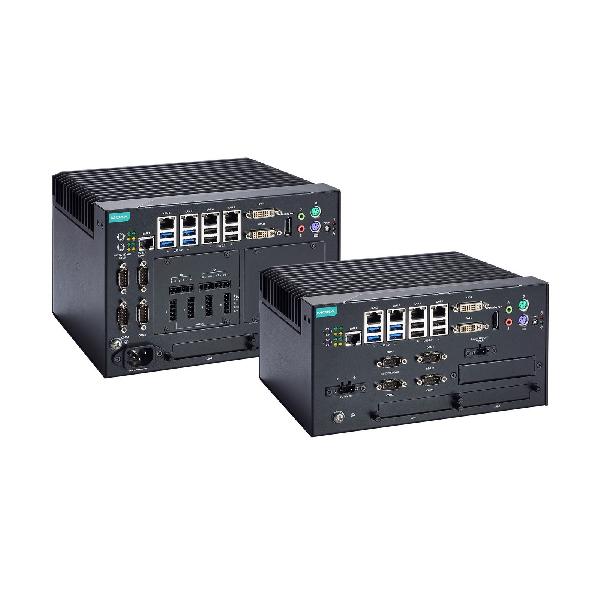

Computer |
| CPU | Intel® Celeron® Processor G3902E (2M Cache, 1.60 GHz)
Intel® Core™ i5-6442EQ Processor (6M Cache, up to 2.70 GHz)
IntelR® Core™ i7-6822EQ Processor (6M Cache, up to 2.80 GHz) |
| System Chipset | Intel QM170 |
| Graphics Controller | Core i5: Intel® HD Graphics 530
Celeron: Intel® HD Graphics 510
Core i7: Intel® HD Graphics 530 |
| System Memory Slot | SODIMM DDR4 slot x 2 |
| Supported OS | Windows 10 Embedded IoT Ent 2016 LTSB Value EPKEA
Linux Debian 9
Note: OS available by CTOS |
| Storage Slot | 2.5" HDD/SSD slots x 2 |

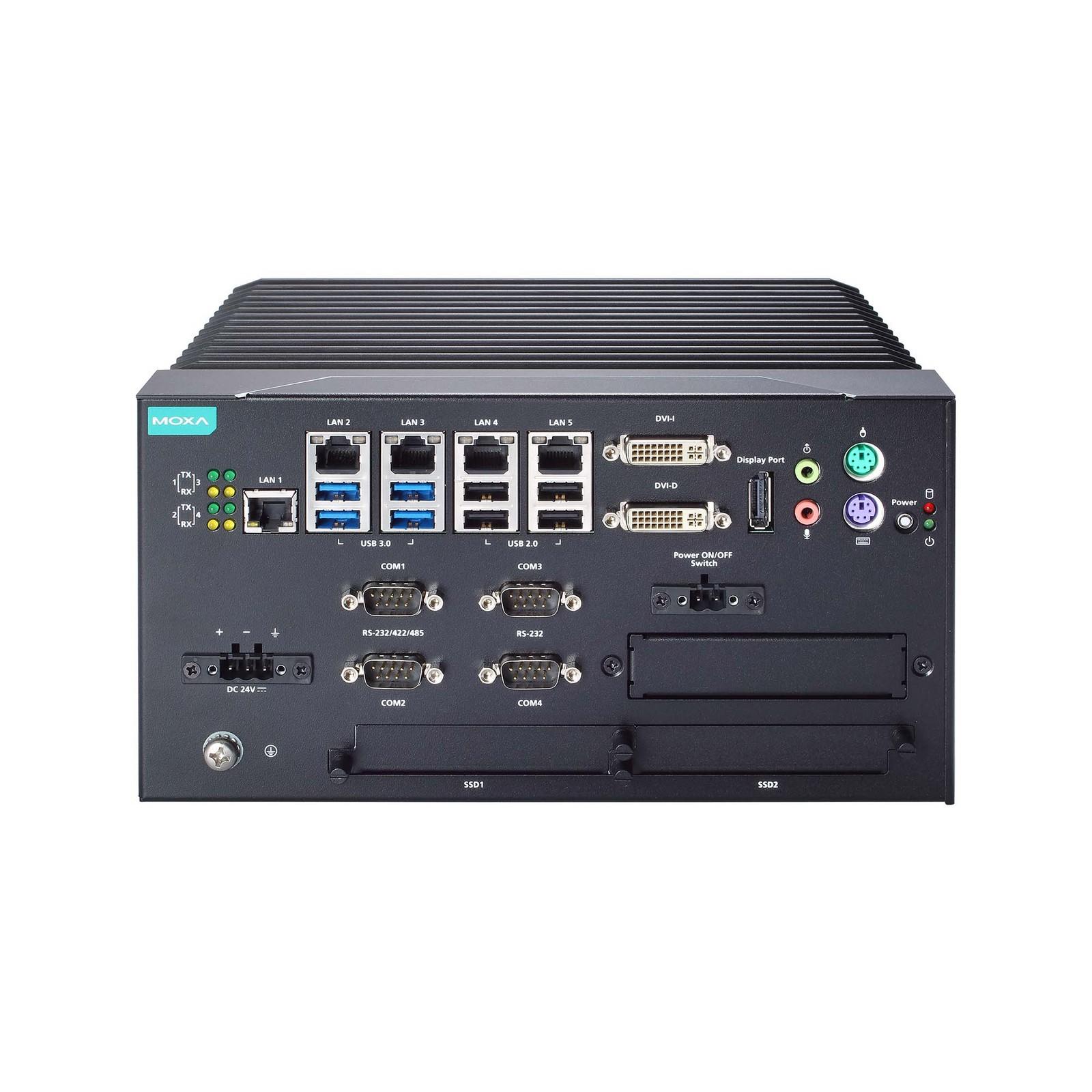

Computer Interface |
| Ethernet Ports | Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 5 |
| Serial Ports | RS-232 ports x 2 (DB9 male)
RS-232/422/485 ports x 2, software selectable (DB9 male) |
| USB 2.0 | USB 2.0 hosts x 5, type-A connectors |
| USB 3.0 | USB 3.0 hosts x 4, type-A connectors |
| Audio Input/Output | Line in x 1, Line out x 1, 3.5 mm phone jack |
| Digital Input | DIs x 4
Only for MC-7420 series |
| Digital Output | DOs x 4
Only for MC-7420 series |
| NMEA Port | NMEA 0183 ports x 4 (terminal block)
Only for MC-7420 series |
| Video Input | DVI-D x 1, 29-pin DVI-D connector (female)
DVI-I x 1, 29-pin DVI-I connector (male) |
| Video Output | DisplayPort x 1 |
| PS/2 | Keyboard PS/2 x 1 + Mouse PS/2 x 1 |
Relays |
| Connector | Screw-fastened Euroblock terminal |
| Contact Current Rating | Resistive load: 2 A @ 30 VDC |
| Contact Resistance | 50 milli-ohms (max.) |
| Initial Insulation Resistance | 1000 mega-ohms (min.) @ 500 VDC |
| Mechanical Endurance | 100,000,000 operations |
| Minimum Permitted Load | 20 A @ 30 VDC |
LED Indicators |
| System | Power x 1
Storage x 1 |
| LAN | 2 per port (10/100/1000 Mbps) |
| Serial | 2 per port (Tx, Rx) |
Serial Interface |
| Baudrate | 50 bps to 115.2 kbps |
| Connector | DB9 male |
| Data Bits | 5, 6, 7, 8 |
| Flow Control | ADDC® (automatic data direction control) for RS-485, RTS/CTS,
XON/XOFF |
| Isolation | N/A |
| Parity | None, Even, Odd, Space, Mark |
| NMEA Interface | NMEA 0183: RS-422
Baudrate: 4800 bps
Data Bits: 8
Handshake: None
Optical Isolation Protection: 3 kV
Parity: None
Stop Bits: 1, 1.5, 2 |
Power Parameters |
| Power Consumption | 100 W |
| Input Voltage | 100 to 240 VAC, 24 VDC |
| Power Connector | Terminal block (for DC models) |
Reliability |
| Automatic Reboot Trigger | Built-in WDT |
Physical Characteristics |
| Weight | MC-7410 Series: 5500 g (12.12 lb)
MC-7420 Series: 6000 g (13.23 lb) |
| Dimensions (with ears) | MC-7410 Series: 240 x 209 x 125 mm (9.45 x 8.23 x 4.92 in)
MC-7420 Series: 240 x 209 x 160 mm (9.45 x 8.23 x 6.3 in) |
| Housing | Metal |
Environmental Limits |
| Operating Temperature | -25 to 55°C (-13 to 131°F) |
Storage Temperature (package
included) | -30 to 60°C (-22 to 140°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications |
| Maritime | IEC 60945 |
| Safety | CE, IEC 62368-1, UL 60950-1 |
| Radio Frequency | FCC |
| EMC | EN 55032/24 |
| EMI | CISPR 22, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF |
| Green Product | RoHS, CRoHS, WEEE |
Warranty |
| Warranty Period | 3 years |
| Details | See www.moxa.com/warranty |
