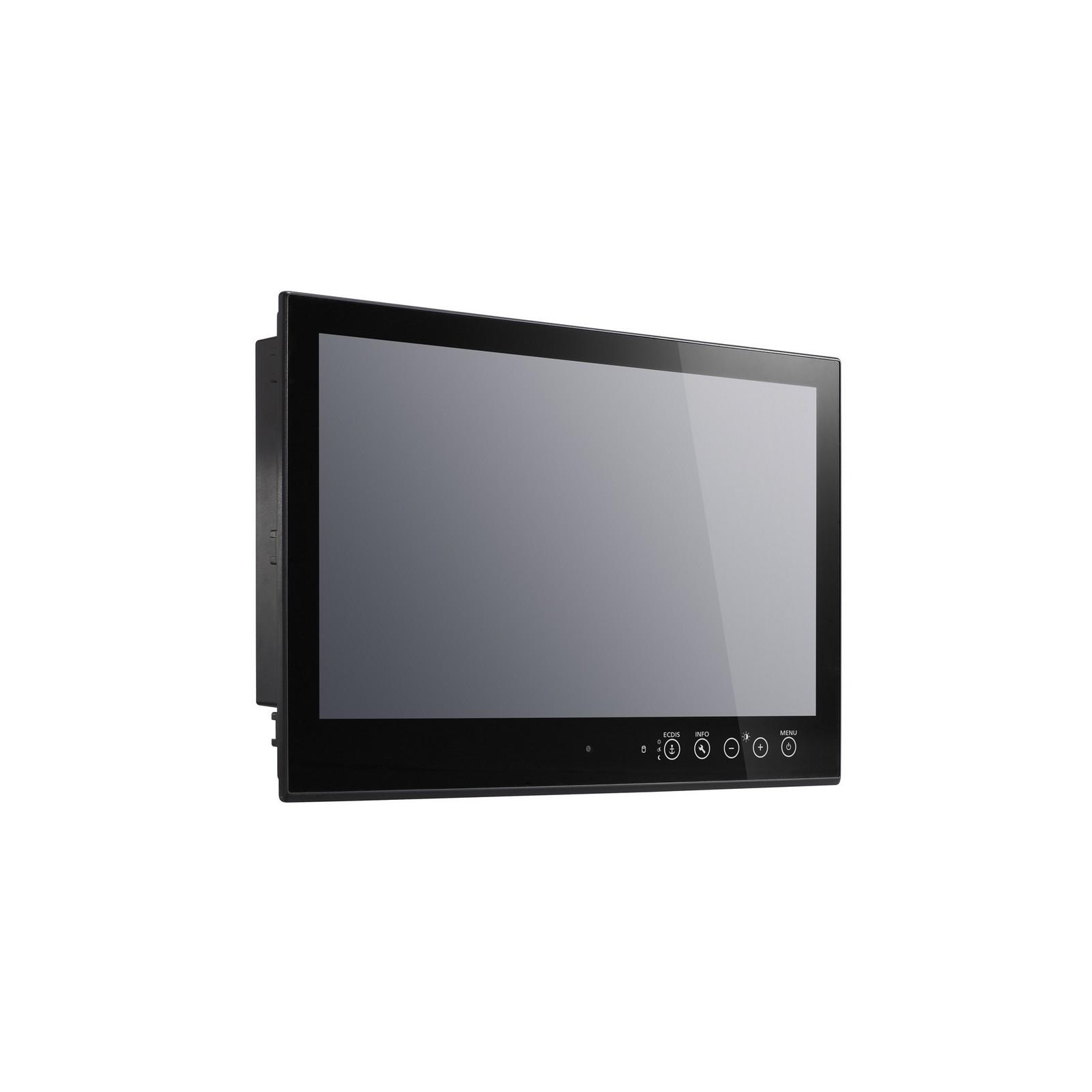

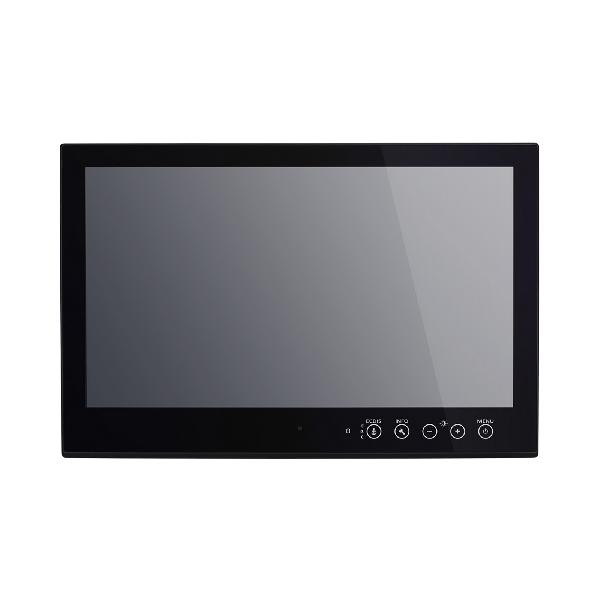

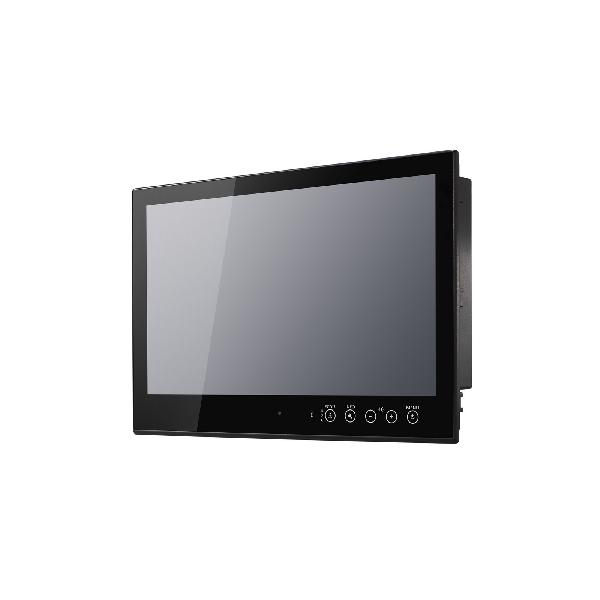

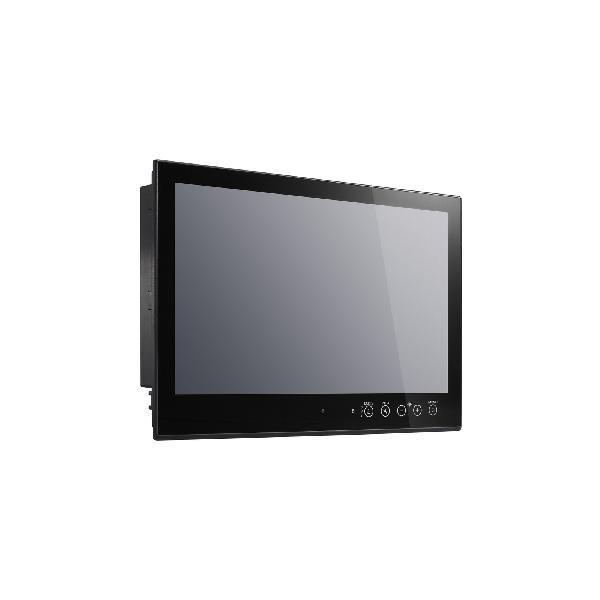

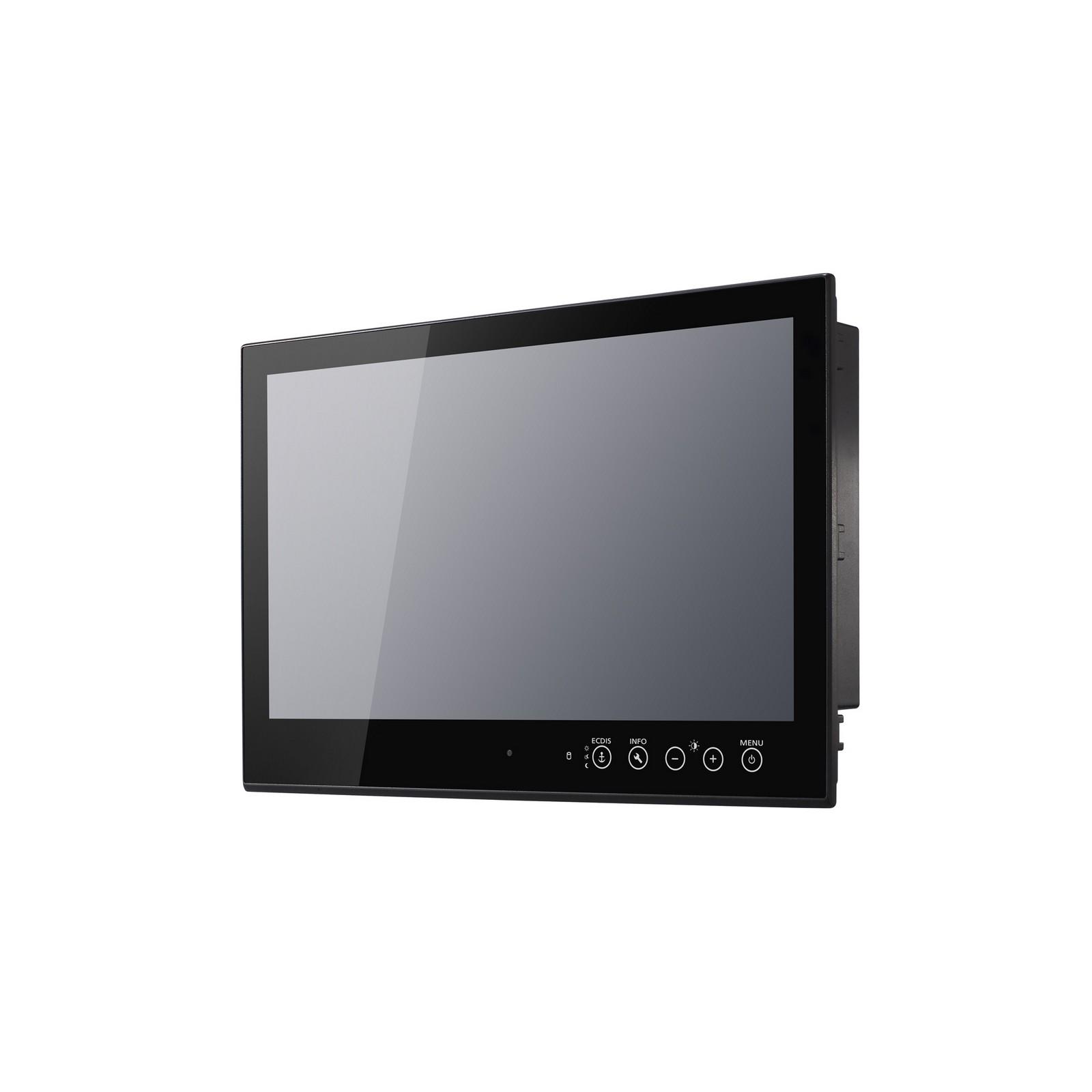

MD-224 Series

Home  >   MOXA  >   Industrial Computing  >
Panel Computers & Displays

24-inch marine display

Product Feature

  • 24-inch display, 16:9 aspect ratio
  • 300-nit or sunlight-readable 1000-nit LED backlight
  • Color calibrated for ECDIS compliance (available by CTOS)
  • Full range dimming, 0 to 100%
  • SavvyTouch display controls
  • Built-in RS-232/422/485 interfaces
  • Dual power supplies (AC & DC)
  • IP54-rated front panel (IP66 available by request)

Introduction

The MD-224 Series of marine displays come with full range dimming, wide viewing angles, and optional optical bonding. These displays are built with a small-profile modular design that allows easier integration into industrial marine systems, thereby reducing deployment costs and overall time-to-market.

The innovative and user-friendly SavvyTouch display controls offer several unique features not found in most marine display consoles: a proximity sensor for convenient adjustments in dark conditions, an info button for immediate updates of power status, and a quick-switch to adjust between day, dusk, and night-time ECDIS modes (for color-calibrated ECDIS models only).

The MD-224 Series displays are compliant with IEC 60945, DNV, ABS, and IACS E10, making them suitable for maritime applications. Their IP54-rated (IP66-rated models available on request) enclosure provides additional protection against dust and moisture above and beyond the limits established by these international standards bodies.

ECDIS-approved models are also available, offering an excellent HMI solution for ECDIS charting and navigation stations.

Display

Aspect Ratio16:9
Contrast Ratio5,000:1
Max. No. of Colors16.7M (8-bit/color)
Panel Size24-inch viewable image
Panel TypeMVA
Pixels1920 x 1080
Response Time25 ms (gray to gray)
Viewing Angles178°/178°
Light Intensity (Brightness)MD-224X/224Z: 300 cd/m2
MD-224Z-HB: 1000 cd/m2

Computer Interface

Serial PortsRS-232 ports x 1 (DB9 male)
RS-232/422/485 ports x 1, software-selectable (terminal block)
Video InputDVI-D x 1, 29-pin DVI-D connectors (female)
VGA x 1, 15-pin D-sub connector (female)

Touch Function

Touch TypeMD-224Z/224Z-HB: Capacitive Touch (PCAP)
MD-224X: None
Touch Support PointsMD-224Z/224Z-HB: 4 points

Serial Interface

Baudrate50 bps to 115.2 kbps
Data Bits5, 6, 7, 8
Flow ControlRTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-
485, RTS Toggle (RS-232 only)
ParityNone, Even, Odd, Space, Mark
Stop Bits1, 1.5, 2

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND

Power Parameters

Input Voltage100 to 240 VAC, 24 VDC (18 to 30 V)
Power Consumption40 W (max.)

Physical Characteristics

HousingMetal
IP RatingMD-224X: IP54, front
MD-224X: IP22, rear
MD-224Z: IP54, front
MD-224Z: IP22, rear
MD-224Z-HB: IP66, front
MD-224Z-HB: IP22, rear
Dimensions595 x 393 x 75 mm (23.43 x 15.47 x 2.95 in)
Weight9,570 g (21.10 lb)
InstallationDesktop, Panel mounting, VESA mounting

Environmental Limits

Operating Temperature-15 to 55°C (5 to 131°F)
Storage Temperature (package
included)
-20 to 60°C (-4 to 140°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 1k V
MaritimeABS, CCS, DNV-GL, IEC 60945
SafetyUL 60950-1

Warranty

Warranty PeriodLCD: 1 year
System: 3 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for MD-224 Series Datasheet V1.2 23 April 2020

MD-224X

Panel 24" (16:9) 300 nits
Video Inputs 1 x VGA 1 x DVI-D
Touchscreen
Power Input 24 VDC (18-30 V) 100-240 VAC
IP Rating IP54 (front), IP22 (rear)
Operating Temp. -15 to 55°C

MD-224Z

Panel 24" (16:9) 300 nits
Video Inputs 1 x VGA 1 x DVI-D
Touchscreen Multi-touch
Power Input 24 VDC (18-30 V) 100-240 VAC
IP Rating IP54 (front), IP22 (rear)
Operating Temp. -15 to 55°C

MD-224Z-HB

Panel 24" (16:9) 1000 nits
Video Inputs 1 x VGA 1 x DVI-D
Touchscreen Multi-touch
Power Input 24 VDC (18-30 V) 100-240 VAC
IP Rating IP66 (front), IP22 (rear)
Operating Temp. -15 to 55°C
