| CPU | MPC-2150X/MPC-2150Z: Intel® Celeron® Processor 1047UE (2M Cache,
1.40 GHz)
MPC-2157X/MPC-2157Z: Intel® Core™ i7-3555LE Processor (4M Cache,
up to 3.20 GHz) |
| System Chipset | Mobile Intel® HM65 Express Chipset |
| Graphics Controller | Intel® HD Graphics 520 |
| System Memory Pre-installed | 4 GB DDR3/DDR3L |
| System Memory Slot | SODIMM DDR3/DDR3L slot x 1 |
| Pre-installed OS | OS is not pre-installed (all models except the MPC-2150Z-T-W7E) |
| Supported OS | Windows 7 Pro for Embedded Systems
Windows Embedded Standard 7 (WS7P) 64-bit
Windows 10 Pro 64-bit
Windows 10 Embedded IoT Ent 2016 LTSB High End EPKEA
Windows 10 Embedded IoT Ent 2016 LTSB Value EPKEA |
| Storage Slot | 2.5-inch HDD/SSD slots x 1
CFast slot x 1 |
| Storage Pre-installed | MPC-2150Z-T-W7E: 64 GB 2.5-in SSD pre-installed |

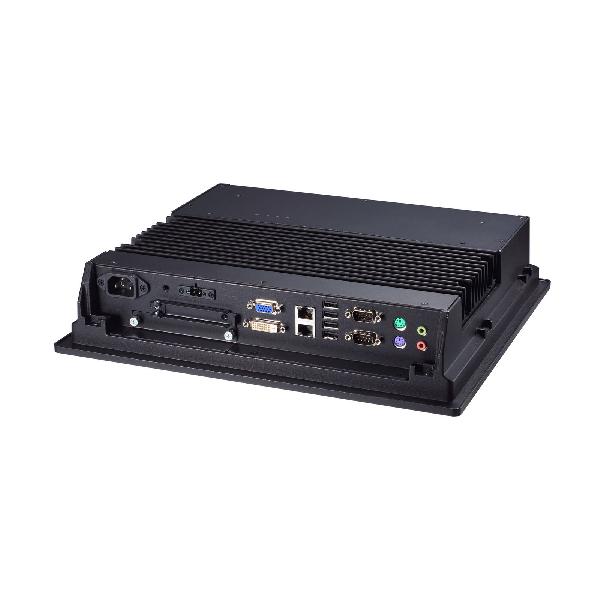

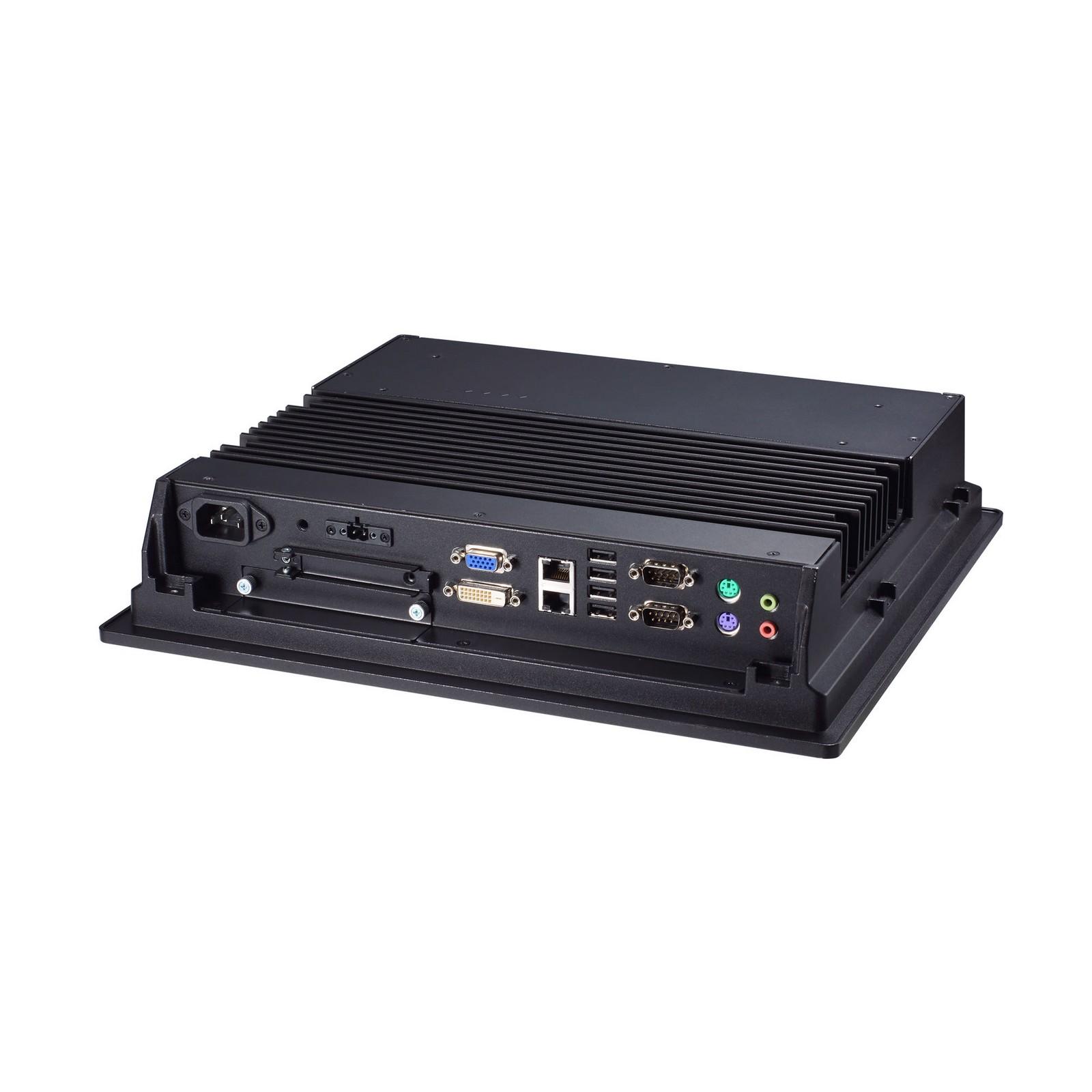

Computer Interface |
| Ethernet Ports | Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2 |
| Serial Ports | RS-232/422/485 ports x 2, software selectable (DB9 male) |
| USB 2.0 | USB 2.0 hosts x 4, type-A connectors |
| Audio Input/Output | Line in x 1, Line out x 1, 3.5 mm phone jack |
| PS/2 | Keyboard PS/2 x 1, Mouse PS/2 x 1 |
| Video Output | DVI-D x 1, 29-pin DVI-D connectors (female)
VGA x 1, 15-pin D-sub connector (female) |
LED Indicators |
| System | Power x 1 |
| LAN | 2 per port (10/100/1000 Mbps) |

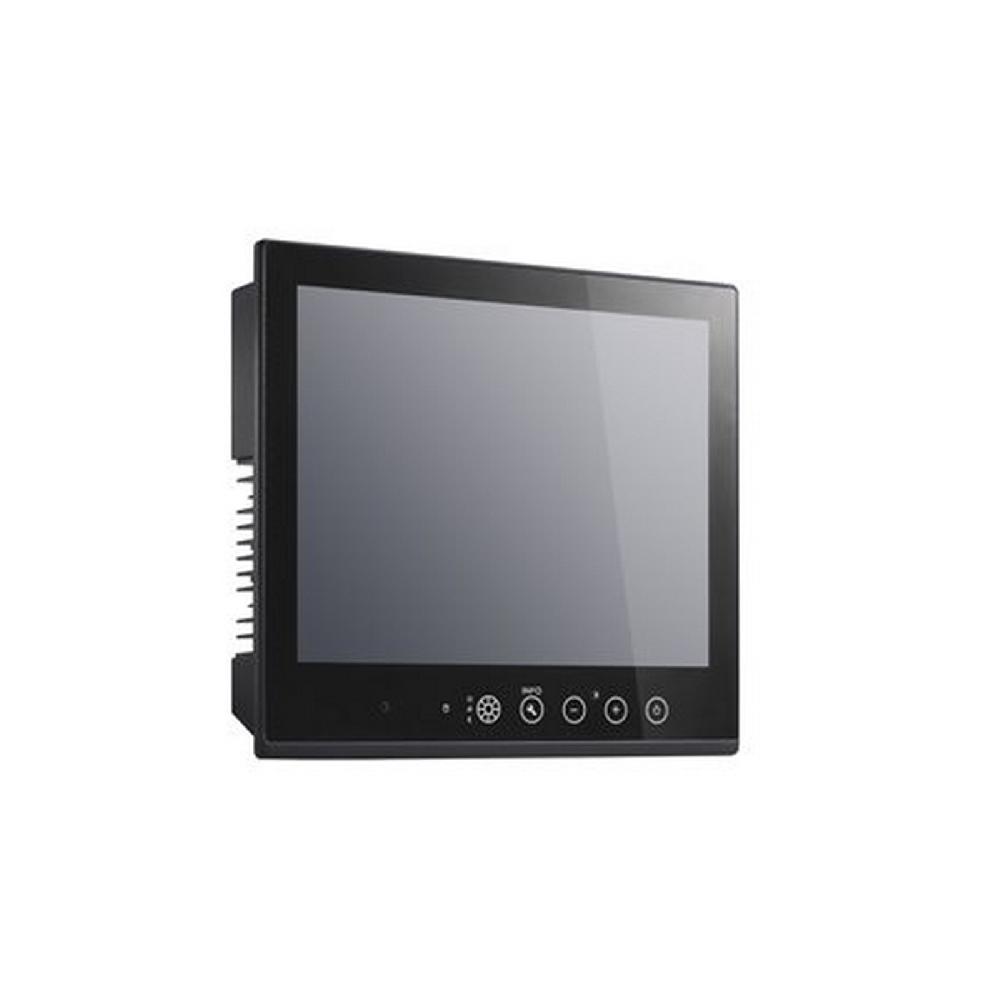

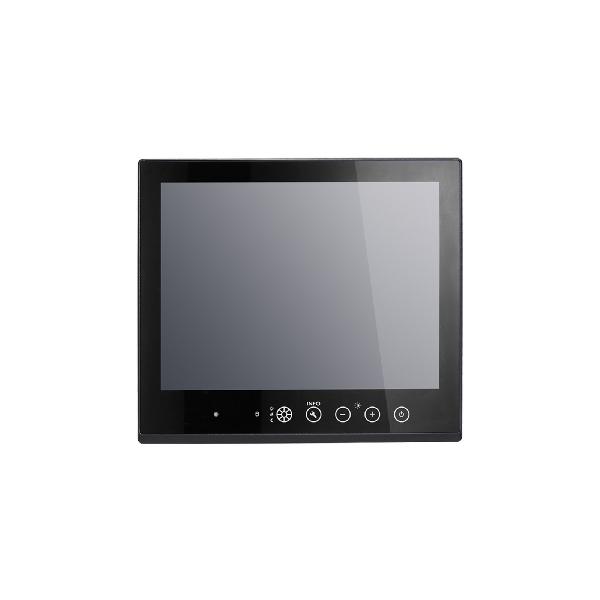

Display |
| Active Display Area | 304.128 (H) x 228.096 (V) mm |
| Aspect Ratio | 4:3 |
| Contrast Ratio | 700:1 |
| Light Intensity (Brightness) | 1000 cd/m2 |
| Max. No. of Colors | 16.7M (8-bit/color) |
| Panel Size | 15-inch viewable image |
| Panel Type | TN |
| Pixel Pitch (RGB) | 0.297 (H) x 0.297 (V) mm |
| Pixels | 1024 x 768 |
| Response Time | 20 ms (gray to gray) |
| Viewing Angles | 160°/140° |
Touch Function |
| Touch Type | MPC-2150Z-T/MPC-2157Z-T: Capacitive Touch (PCAP)
MPC-2150X-T/MPC-2157X-T: None |
| Glove Support | MPC-2150Z-T/MPC-2157Z-T: Yes |
| Touch Support Points | MPC-2150Z-T/MPC-2157Z-T: 4 points |
Serial Interface |
| Baudrate | 50 bps to 115.2 kbps |
| Data Bits | 5, 6, 7, 8 |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-
485, RTS Toggle (RS-232 only) |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 1.5, 2 |
Serial Signals |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
Power Parameters |
| Input Voltage | 100 to 240 VAC, 9 to 36 VDC |
| Power Consumption | 70 W (max.) |

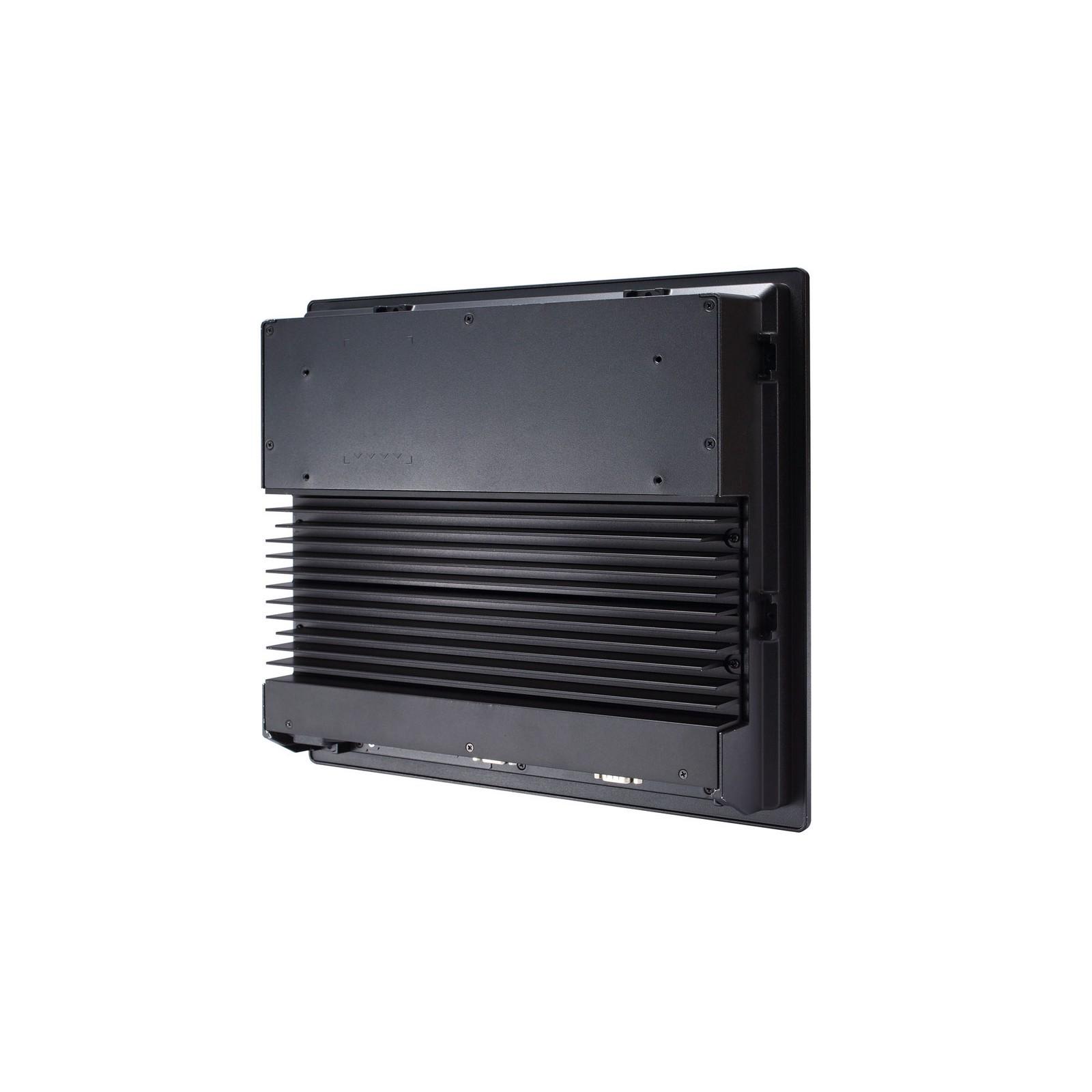

Physical Characteristics |
| Housing | Metal |
| IP Rating | IP66 (front)
IP20 (rear) |
| Dimensions | 356 x 315 x 77.2 mm (14.02 x 12.40 x 3.04 in) |
| Weight | 6,800 g (14.99 lb) |
Environmental Limits |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
Storage Temperature (package
included) | -40 to 70°C (-40 to 158°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF |
| Environmental Testing | IEC 60068-2-1, DNVGL-CG-0339
IEC 60068-2-2, DNVGL-CG-0339
IEC 60068-2-2, IEC 60945
IEC 60068-2-30, IEC 60945 |
| Hazardous Locations | ATEX, Class I Division 2, IECEx |
| Maritime | DNV-GL |
| Mechanical Protection Rating | IEC 60529, IP code |
| Safety | EN 60950-1, IEC 60950-1, UL 60950-1 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6, IEC 60068-2-6, IEC 60945, IEC 60068-2-64, DNVGL-CG-
0339 |
Declaration |
| Green Product | RoHS, CRoHS, WEEE |
Warranty |
| Warranty Period | LCD: 1 year
System: 3 years |
| Details | See www.moxa.com/warranty |
