CP-104UL/104JU Series

Introduction

The CP-104UL and CP-104JU 4-port universal PCI boards are designed for POS and ATM applications. They are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the boards’ RS-232 serial ports supports a fast 921.6 kbps baudrate. The CP-104UL and CP-104JU provide full modem control signals to ensure compatibility with a wide range of serial peripherals, and they work with both 3.3 V and 5 V PCI buses, allowing the boards to be installed in virtually any available PC server.

Built-In LEDs

Serial Interface
Comm. Controller	MU860 (16C550C compatible)
Bus	32-bit Universal PCI

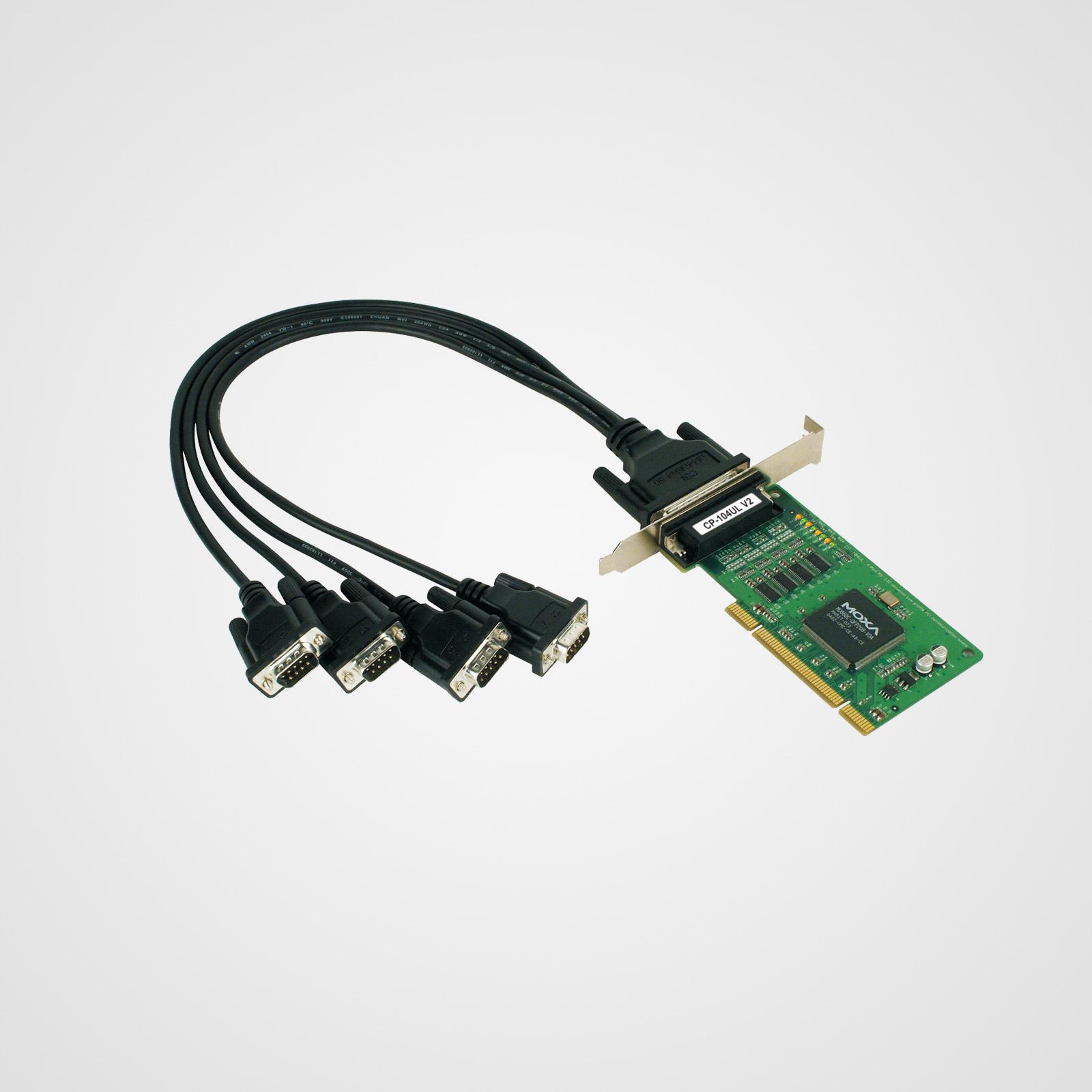

Connector	CP-104UL Series: DB44 female CP-104JU Series: 4 x RJ45
FIFO	128 bytes
Max. No. of Boards per PC	8
No. of Ports	4
Serial Standards	RS-232
Baudrate	50 bps to 921.6 kbps
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	None, RTS/CTS, XON/XOFF
Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Serial Software Features
Windows Drivers	DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers	Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers	QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
Power Parameters
Input Current	CP-104UL Series: 120 mA @ 5 VDC CP-104JU Series: 135 mA @ 5 VDC
Physical Characteristics
Dimensions	CP-104UL Series: 64.4 x 120 mm (2.53 x 4.72 in) CP-104JU Series: 83 x 120 mm (3.27 x 4.72 in)
LED Interface
LED Indicators	Built-in Tx, Rx LEDs for each port
Environmental Limits
Operating Temperature	Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class B
EMS	CP-104UL Series: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF CP-104JU Series: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
International Approval	CP-104UL-DB9M: KC
Declaration
Green Product	RoHS, CRoHS, WEEE
MTBF
Time	CP-104UL Series: 558,961 hrs CP-104JU Series: 571,627 hrs
Standards	Telcordia (Bellcore) Standard TR/SR
Warranty
Warranty Period	5 years
Details	See www.moxa.com/warranty

Name		Type	Version	Release Date
Datasheet for CP-104UL/104JU Series		Datasheet	V1.1	09 March 2020

CP-104UL-DB9M

Serial Bus	Universal PCI
No. of Serial Ports	4
Serial Connector	DB44 female
Operating Temp.	0 to 55°C
Included Cable	CBL-M44M9x4-50

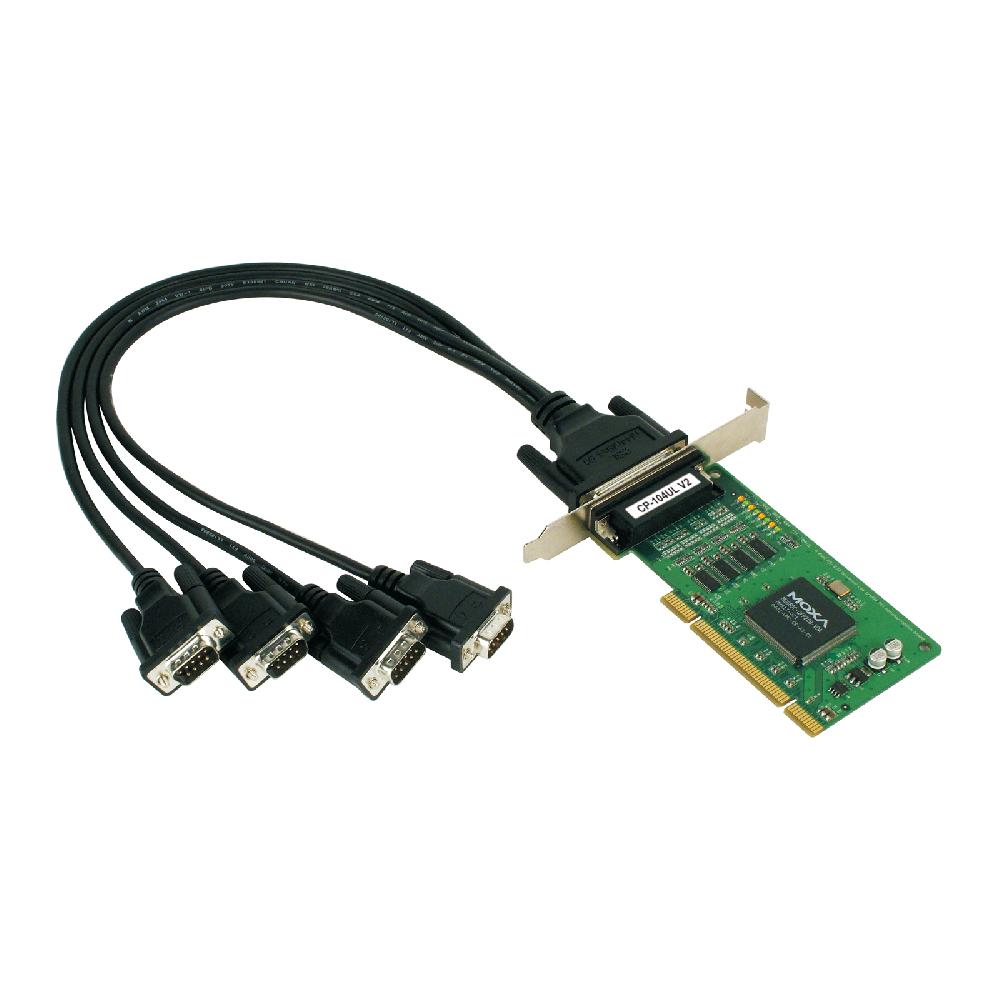

CP-104UL-DB25M

Serial Bus	Universal PCI
No. of Serial Ports	4
Serial Connector	DB44 female
Operating Temp.	0 to 55°C
Included Cable	CBL-M44M25x4-50

CP-104UL-T

Serial Bus	Universal PCI
No. of Serial Ports	4
Serial Connector	DB44 female
Operating Temp.	-40 to 85°C
Included Cable	-

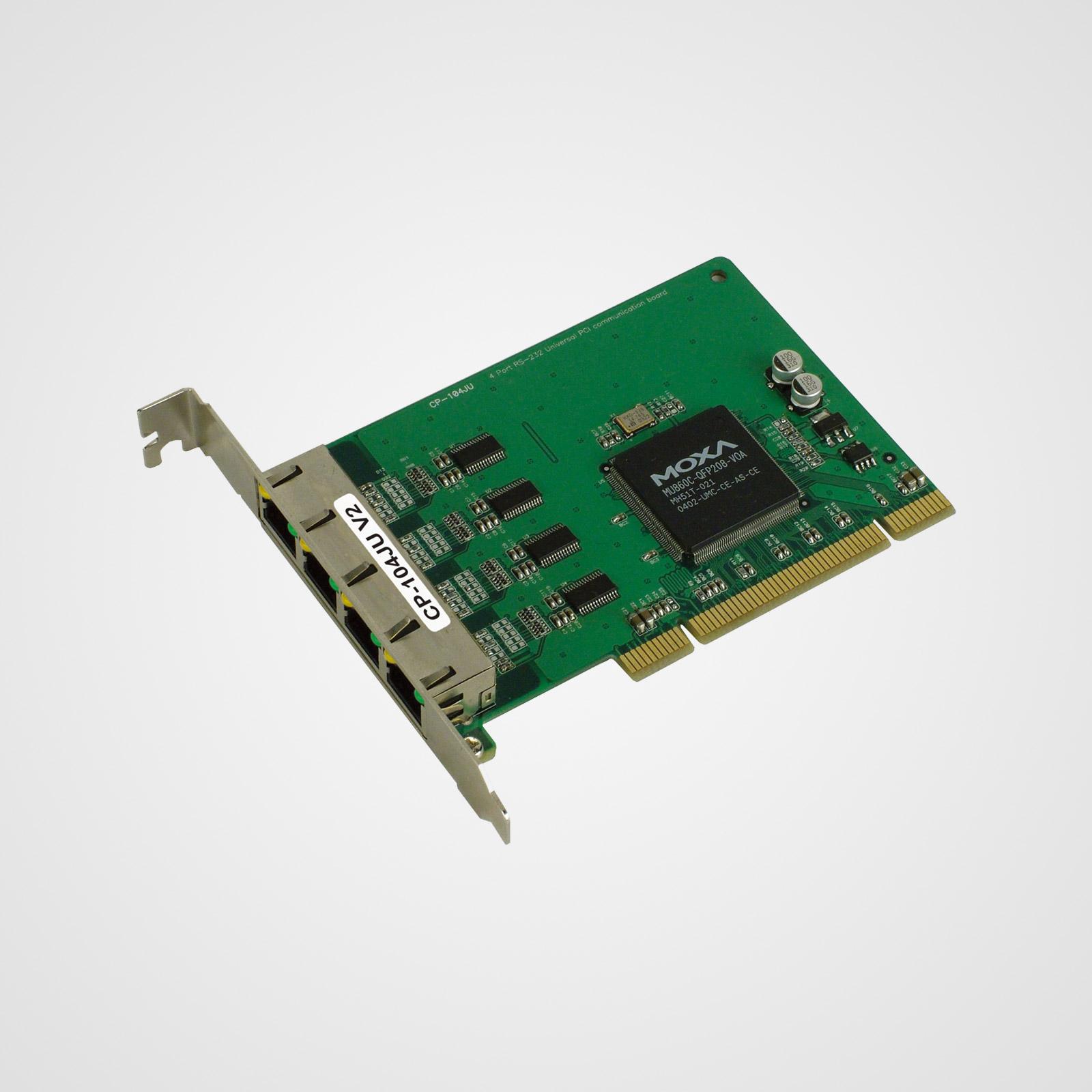

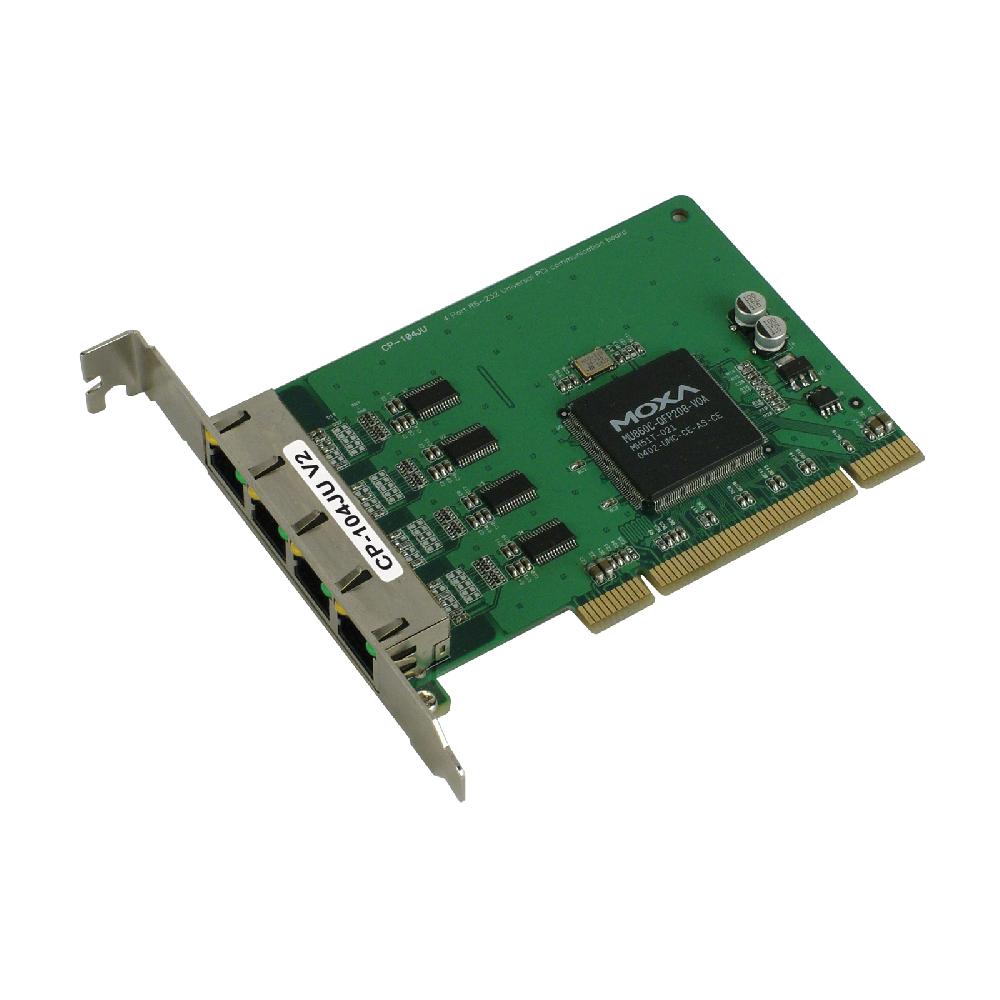

CP-104JU

Serial Bus	Universal PCI
No. of Serial Ports	4
Serial Connector	8-pin RJ45
Operating Temp.	0 to 55°C
Included Cable	-
