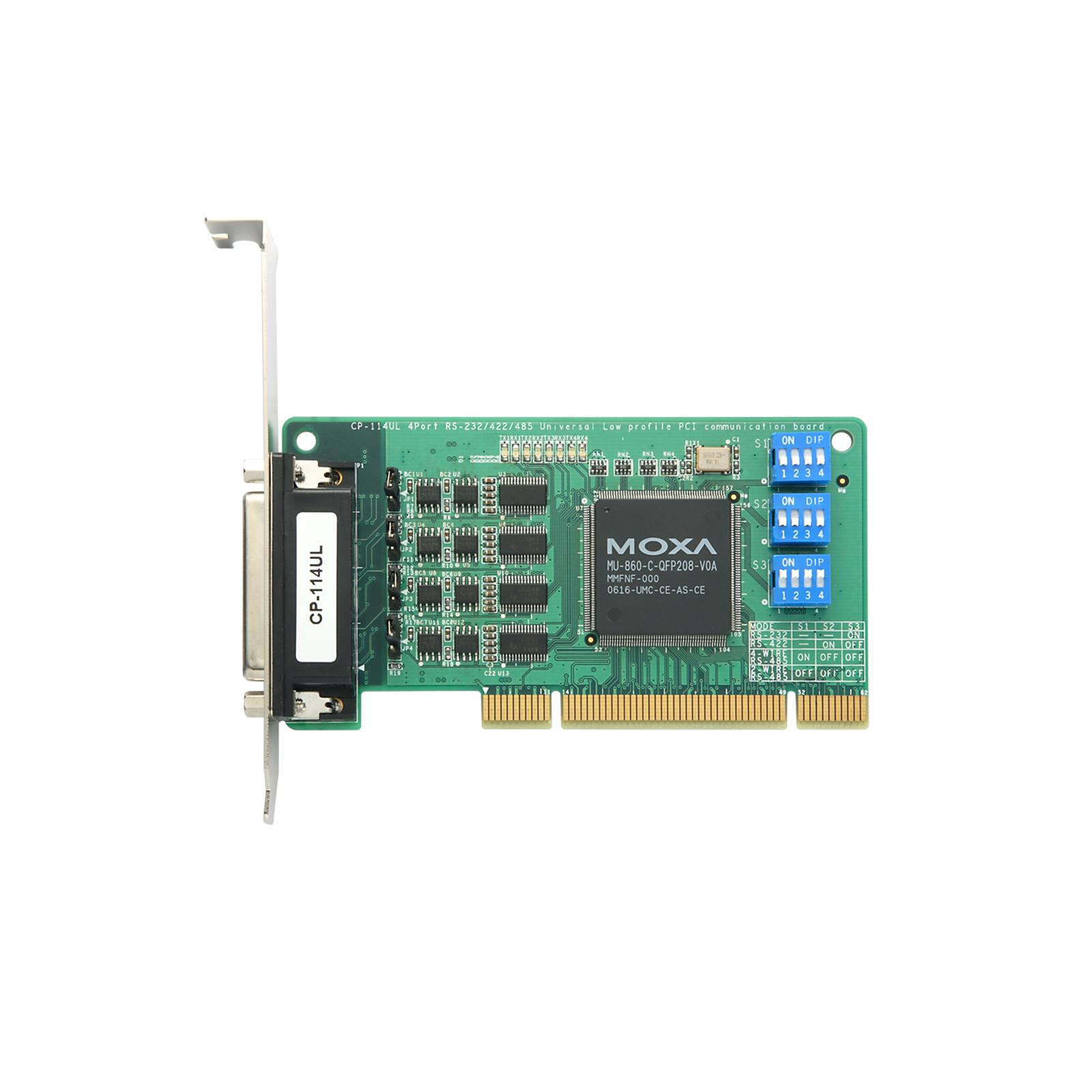

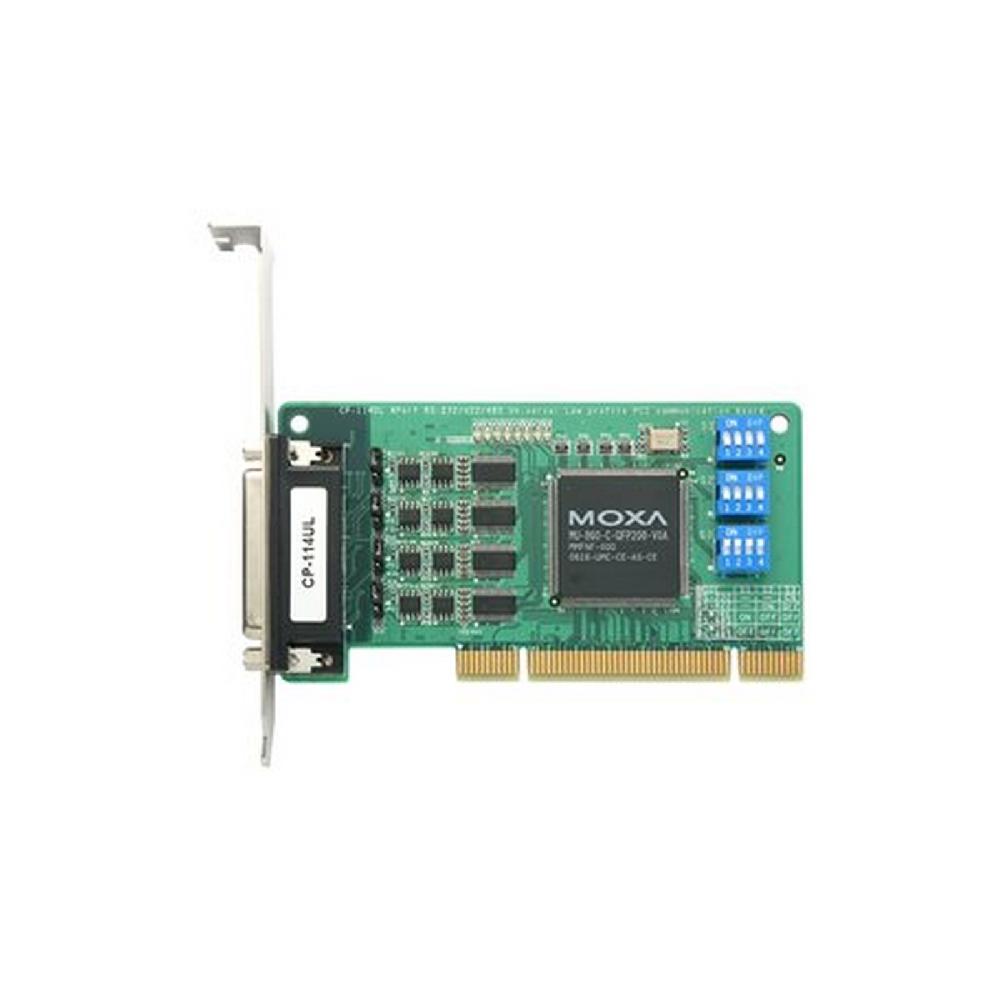

Moxa’s CP-114UL/UL-I Series of multiport serial boards is designed to be used by industrial automation system integrators for long-distance, multipoint, PC-based data acquisition applications. On-chip Automatic Data Direction Control for precision RS-485 communication requires precise timing control to enable and disable the line driver. The Moxa Turbo Serial Engine™ chip that powers the CP-114UL/UL-I boards come with on-chip ADDC®, which makes RS-485 as easy to use as RS-232. In RS-485 mode, the serial port can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. For long-distance RS-485 communication, 2 kV electrical isolation protections are available to prevent equipment damage.
Moxa continues to support a wide variety of operating systems, and the CP-114UL/UL-I boards are no exception. Reliable Windows and Linux/UNIX drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.
Serial Interface | |
Comm. Controller | MU860 (16C550C compatible) |
Bus | 32-bit Universal PCI |
Connector | DB44 female |
FIFO | 128 bytes |
Max. No. of Boards per PC | 8 |
No. of Ports | 4 |
Serial Standards | RS-232, RS-422, RS-485 |
Baudrate | 50 bps to 921.6 kbps |
Data Bits | 5, 6, 7, 8 |
Stop Bits | 1, 1.5, 2 |
Flow Control | None, RTS/CTS, XON/XOFF |
Parity | None, Even, Odd, Space, Mark |
Isolation | CP-114UL-I Series: 2 kV |
Serial Signals | |
RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
RS-422 | Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GND |
RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
RS-485-2w | Data+, Data-, GND |
Serial Software Features | |
Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x |
UNIX Drivers | QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD |
Power Parameters | |
Input Current | CP-114UL Series: 320 mA @ 5 VDC CP-114UL-I Series: 465 mA @ 5 VDC |
Physical Characteristics | |
Dimensions | CP-114UL Series: 64.4 x 120 mm (2.53 x 4.72 in) CP-114UL-I Series: 64.4 x 130 mm (2.53 x 5.12 in) |
LED Interface | |
LED Indicators | Built-in Tx, Rx LEDs for each port |
Environmental Limits | |
Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
EMC | EN 55032/24 |
EMI | CISPR 32, FCC Part 15B Class B |
EMS | All models: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m CP-114UL-I Series: IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 |
International Approval | CP-114UL-DB9M: KC |
Declaration | |
Green Product | RoHS, CRoHS, WEEE |
MTBF | |
Time | 114,223 hrs |
Standards | Telcordia SR332 |
Warranty | |
Warranty Period | 5 years |
Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for CP-114UL Series | Datasheet | V1.2 | 09 March 2020 |
| Serial Bus | Universal PCI |
| No. of Serial Ports | 4 |
| Serial Isolation Protection | - |
| Operating Temp. | 0 to 55°C |
| Included Cable | - |
| Serial Bus | Universal PCI |
| No. of Serial Ports | 4 |
| Serial Isolation Protection | - |
| Operating Temp. | 0 to 55°C |
| Included Cable | CBL-M44M9x4-50 |
| Serial Bus | Universal PCI |
| No. of Serial Ports | 4 |
| Serial Isolation Protection | - |
| Operating Temp. | 0 to 55°C |
| Included Cable | CBL-M44M25x4-50 |
| Serial Bus | Universal PCI |
| No. of Serial Ports | 4 |
| Serial Isolation Protection | 2 kV |
| Operating Temp. | 0 to 55°C |
| Included Cable | - |
| Serial Bus | Universal PCI |
| No. of Serial Ports | 4 |
| Serial Isolation Protection | 2 kV |
| Operating Temp. | 0 to 55°C |
| Included Cable | CBL-M44M9x4-50 |
| Serial Bus | Universal PCI |
| No. of Serial Ports | 4 |
| Serial Isolation Protection | 2 kV |
| Operating Temp. | 0 to 55°C |
| Included Cable | CBL-M44M25x4-50 |
| Serial Bus | Universal PCI |
| No. of Serial Ports | 4 |
| Serial Isolation Protection | - |
| Operating Temp. | -40 to 85°C |
| Included Cable | - |
