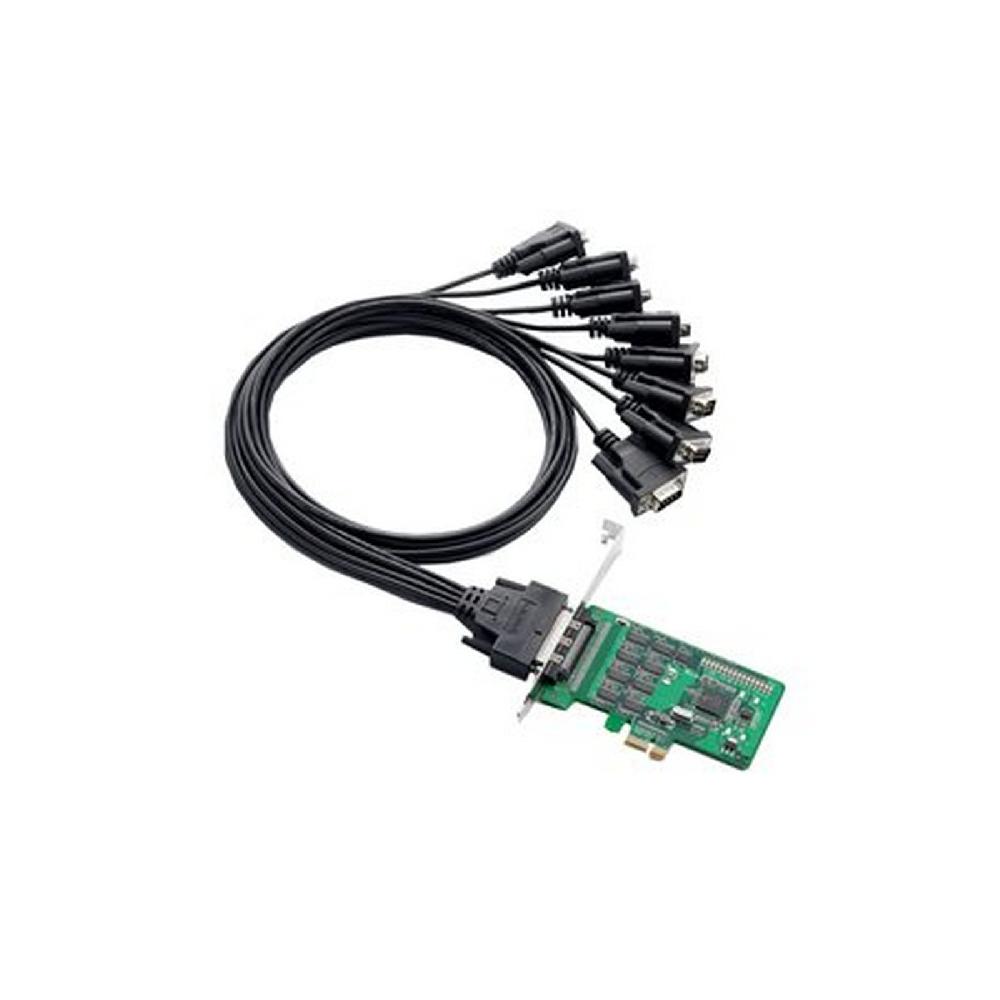

The CP-168EL-A is a smart, 8-port PCI Express board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the board’s eight RS-232 serial ports supports a fast 921.6 kbps baudrate. The CP-168EL-A provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and its PCI Express x1 classification allows it to be installed in any PCI Express slot.

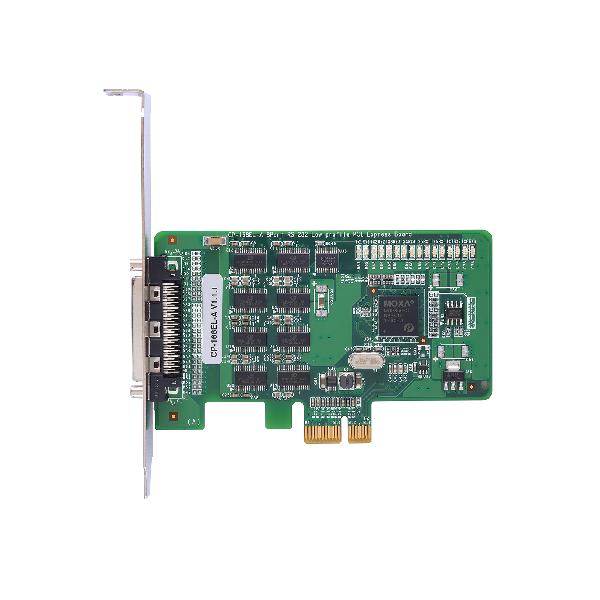

The CP-168EL-A is a low-profile board that is compatible with any PCI Express slot. The board requires only a 3.3 VDC power supply, which means that the board fits any host computer, ranging from shoebox to standard-sized PCs.
Moxa continues to support a wide variety of operating systems, and the CP-168EL-A board is no exception. Reliable Windows and Linux/UNIX drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.
Serial Interface | |
Comm. Controller | 16C550C compatible |
Bus | PCI Express 1.0 |
Connector | VHDCI 68 |
FIFO | 128 bytes |
Max. No. of Boards per PC | 8 |
No. of Ports | 8 |
Serial Standards | RS-232 |
Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
Data Bits | 5, 6, 7, 8 |
Stop Bits | 1, 1.5, 2 |
Parity | None, Even, Odd, Space, Mark |
Flow Control | None, RTS/CTS, XON/XOFF |
Serial Signals | |
RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
Serial Software Features | |
Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x |
Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
UNIX Drivers | Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6 |
Power Parameters | |
Input Current | 1,225 mA @ 3.3 VDC |
Physical Characteristics | |
Dimensions | 64.42 x 102 mm (2.54 x 4.02 in) |
LED Interface | |
LED Indicators | Built-in Tx, Rx LEDs for each port |
Environmental Limits | |
Operating Temperature | 0 to 55°C (32 to 131°F) |
Storage Temperature (package included) | -20 to 85°C (-4 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
EMC | EN 55032/24 |
EMI | CISPR 32, FCC Part 15B Class B |
EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF |
Declaration | |
Green Product | RoHS, CRoHS, WEEE |
MTBF | |
Time | 2,351,336 hrs |
Standards | Telcordia (Bellcore) Standard TR/SR |
Warranty | |
Warranty Period | 5 years |
Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for CP-168EL-A | Datasheet | V1.4 | 09 March 2020 |
| Serial Standards | RS-232 |
| No. of Serial Ports | 8 |
| Form Factor | Low profile |
