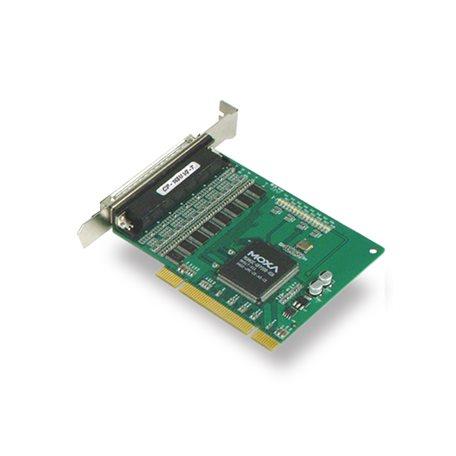

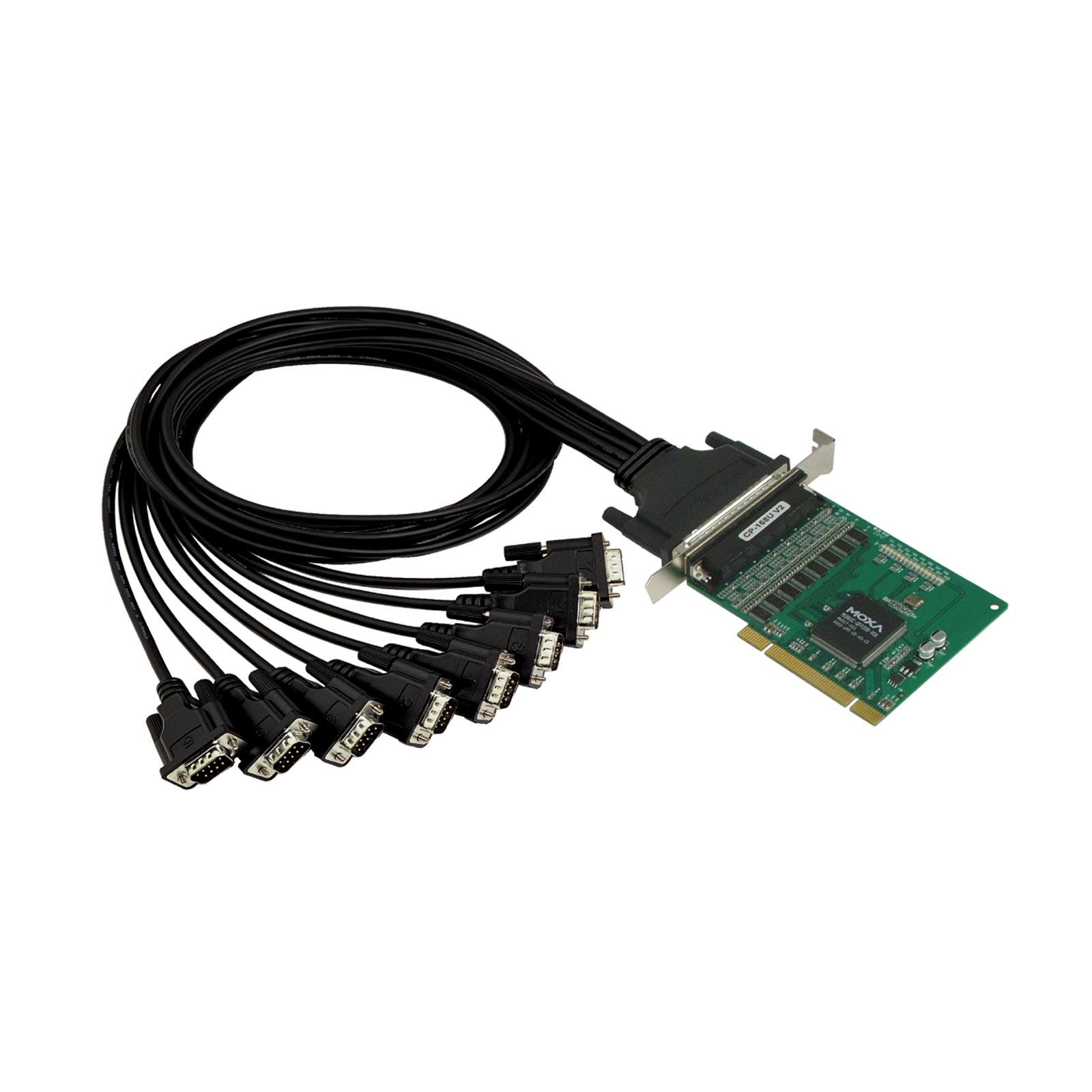

8-port RS-232 Universal PCI serial board

Product Feature

  • Over 700 kbps data throughput for top performance
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Compatible with 3.3/5 V PCI and PCI-X
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Wide-temperature model available for -40 to 85°C environments

Introduction

The CP-168U is a smart, 8-port universal PCI board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the board’s eight RS-232 serial ports supports a fast 921.6 kbps baudrate. The CP-168U provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and it works with both 3.3 V and 5 V PCI buses, allowing the board to be installed in virtually any available PC server.

Serial Interface

Comm. Controller

MU860 (16C550C compatible)

Bus

32-bit Universal PCI

Connector

DB62 female

FIFO

128 bytes

Max. No. of Boards per PC

8

No. of Ports

8

Serial Standards

RS-232

Baudrate

50 bps to 921.6 kbps

Data Bits

5, 6, 7, 8

Stop Bits

1, 1.5, 2

Parity

None, Even, Odd, Space, Mark

Flow Control

None, RTS/CTS, XON/XOFF

Serial Signals

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Serial Software Features

Windows Drivers

DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

Linux Drivers

Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x

UNIX Drivers

QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD

Power Parameters

Input Current

180 mA @ 5 VDC

Physical Characteristics

Dimensions

82 x 120 mm (3.22 x 4.72 in)

LED Interface

LED Indicators

Built-in Tx, Rx LEDs for each port

Environmental Limits

Operating Temperature

CP-168U: 0 to 55°C (32 to 131°F)
CP-168U-T: -40 to 85°C (-40 to 185°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class B

EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV

International Approval

CP-168U: KC

Declaration

Green Product

RoHS, CRoHS, WEEE

MTBF

Time

280,854 hrs

Standards

Telcordia (Bellcore) Standard TR/SR

Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty
Name Type Version Release Date

CP-168U

Serial Standards RS-232
No. of Serial Ports 8
Operating Temp. 0 to 55°C

CP-168U-T

Serial Standards RS-232
No. of Serial Ports 8
Operating Temp. -40 to 85°C
