Learn more about AAEON's Professional Maker Boards.

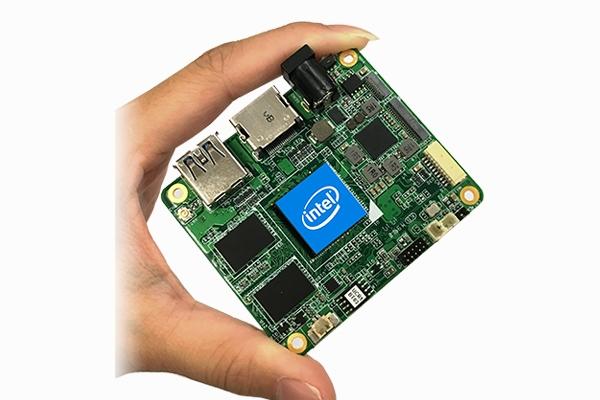

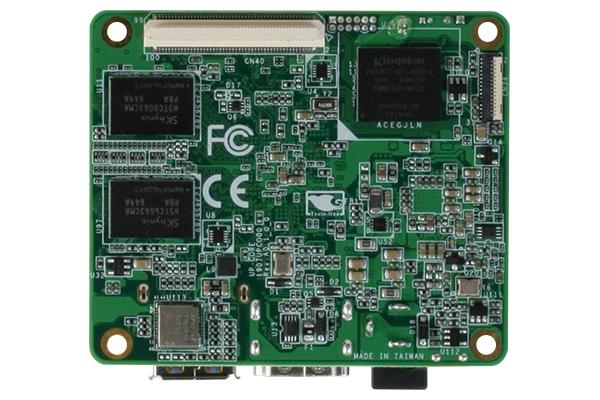

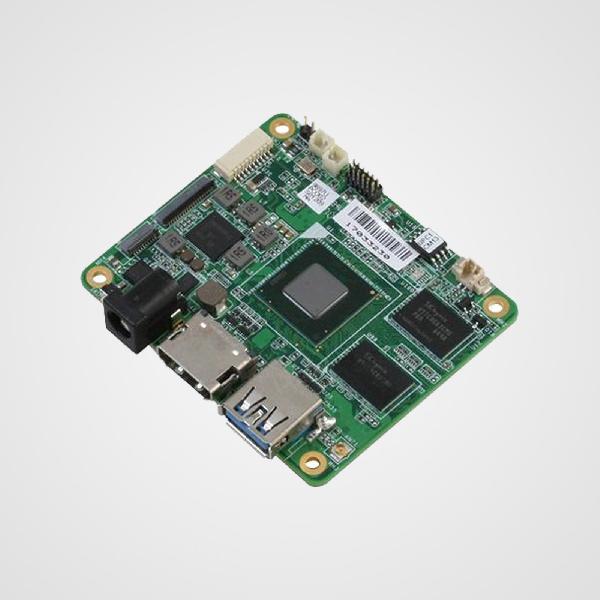

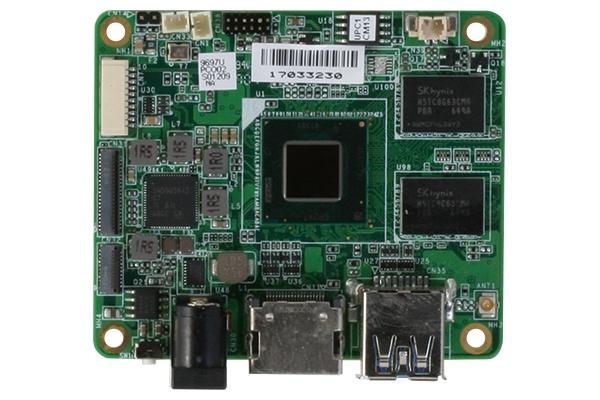

UP Core is a miniature board with the high performance and low power consumption features of the latest tablet technology: the Intel® Atom™ x5 Z8350 Processors (codename Cherry Trail) 64 bits up to 1.92GHz. The internal GPU is the new Intel Gen 8 HD 400 with 12 Execution Units up to 500MHz to deliver extremely high 3D graphic performance.
UP Core is equipped with 1GB/2GB/4GB DDR3L RAM and 16GB/32GB/64GB eMMC. With 100-pin docking connector, UP Core provides the freedom to makers to build up their carrier board. There are more interfaces available, such as 2x port USB2.0 + 1x UART on header, 1x USB 3.0 host, WiFi, Bluetooth 1x DSI/eDP port, 2x Camera (MIPI-CSI), 1x HMDI, RTC.
When it comes to security, UP Core has Intel security features needed for professional IoT applications such Intel AES New Instructions and Intel Identity Protection Technology.
It’s UP to you to choose which operation system is best for your application. The CPU is supported by Android 6.Marshmallow, Microsoft Windows 10 and we support and enable Linux, through our UP Community.
UP Core has a standard industrial PC operating temperature range of 32-140° F / 0-60°C, which makes it flexible for many applications.
For more information, please check www.up-board.org, or UP Community, or please check UP Shop to shop UP directly!
| Processor | Intel® Atom™ x5-Z8350 Processor SoC |
| Graphics | Intel® HD 400 Graphics |
| I/O | Full eDP x 1 HDMI x 1 Audio via HDMI and I2C (from docking) |
| Camera | MIPI-CSI (2 Lane) MIPI-CSI (4 Lane) |
| USB | USB 3.0 Host x 1 USB 2.0 pin header x 2 |
| Expansion | 100 pin docking connector |
| RTC | Yes |
| Power | 5V DC-in @ 4A 5.5/2.1mm jack |
| Dimension | 56.50 mm × 66 mm |
| Memory | 2GB / 4GB onboard DDR3L-1600 |
| Storage | eMMC 16GB / 32GB/ 64GB |
| Display Interface | DSI/eDP x 1 |
| Ethernet | — |
| OS support | Win 10 Linux (ubilinux, Ubuntu, Yocto) Android Marshmallow |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C) |
| Operating Humidity | 10% ~ 80% relative humidity, non-condensing |
| certificate | CE/FCC Class A, RoHS compliant, REACH |
