Net Plus (UP Expansion Modules)

Home  >   AAEON  >   UP Boards and UP Systems  >
UP Boards  >   UP Expansion Modules

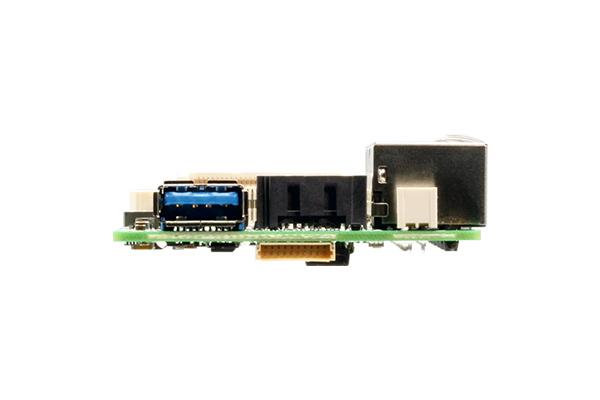

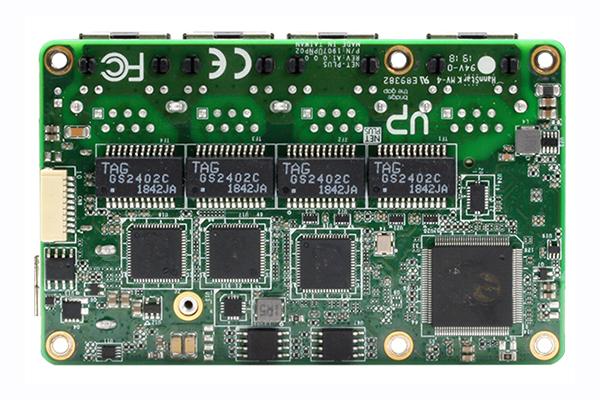

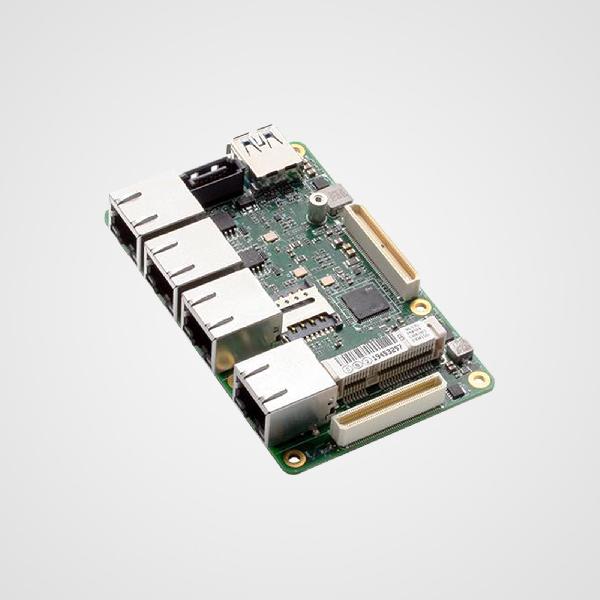

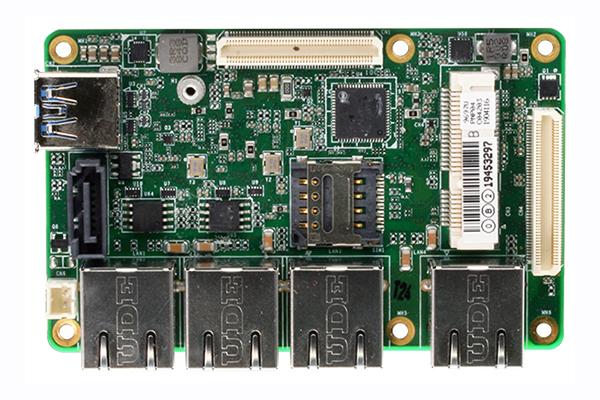

Expansion board with 4 x Gigabit LAN powered by Intel® i211-AT/i210-IT for UP Core Plus

Product Feature

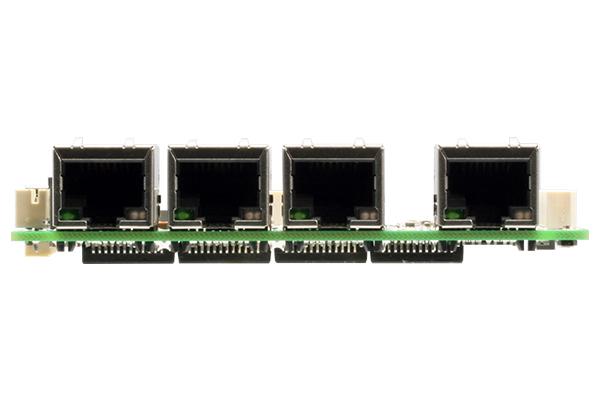

  • Gigabit LAN x 4
  • Intel® l211-AT (optional with l210-IT for wide temperature) x 4
  • USB3.0 Type A x 1
  • Mini-Card (Full-sized) x 1
  • Windows® 10, Linux (ubilinux, Ubuntu, Yocto), Android-IA 9.0
  • SATA x 1

The Net Plus board features four Intel i211 Gigabit Ethernet ports (option for i210 with TSN support) to power network applications. It also includes SATA and mPCIe Mini-Card slots for even more expansion.

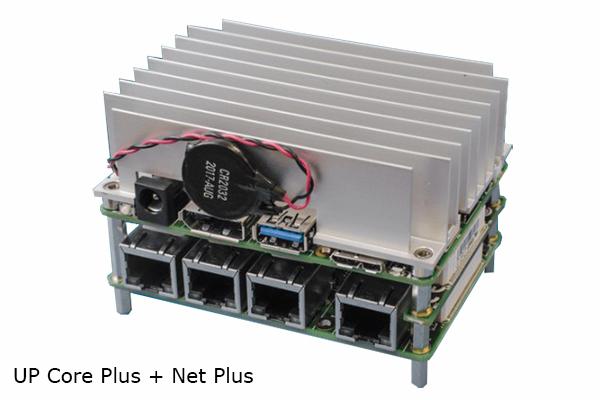

UP Core Plus + Net Plus Applications:

Together, the UP Core Plus and Net Plus can power a range of network functions, providing vertical network integration for your project.

system

VPU-
EthernetIntel l211-AT x 4 (A10-001)
Intel l210-IT for wide temperature x 4 (A10-002)
Power Requirement12V5A
Power Supply Type12VDC from M/B
Power Consumption (Typical)Max 10W
Dimension (L x W)3.54" x 2.2" (90 mm x 56 mm)
Operating Temperature32°F ~ 140°F (0°C ~ 60°C)
Operating Humidity10 ~ 80% relative humidity, non-condensing
CertificationCE/FCC Class B
OS supportMicrosoft Windows 10
Linux: ubilinux, Ubuntu, Yocto
Android-IA 9.0

i/o

Ethernet001: Intel® l211-AT x 4
002: Intel® l210-IT x 4 for wide temperature
USBUSB 3.0 Type A x 1
SATASATA x 1 (vertical)
Expansion SlotmPCIe Slot (Full Size) x 1 (SATA/USB/PCIE)
SIM Card Slot x 1
DOCKING I
DOCKING II
