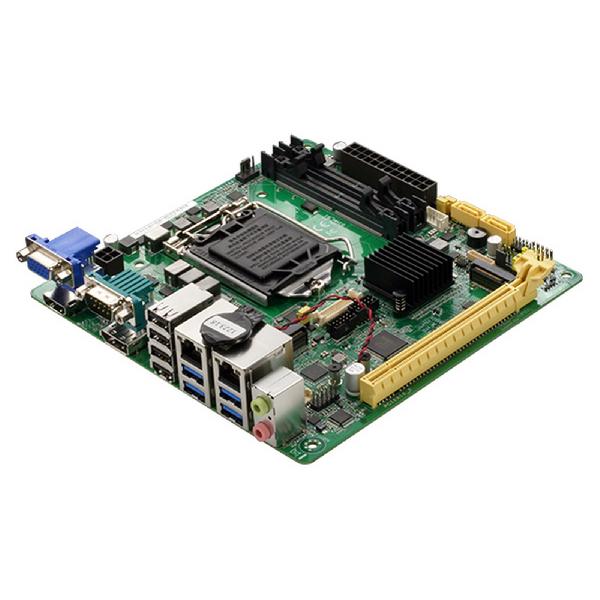

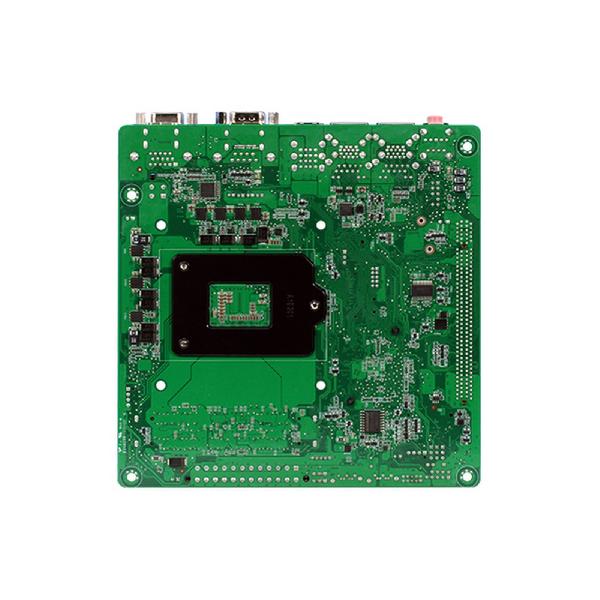

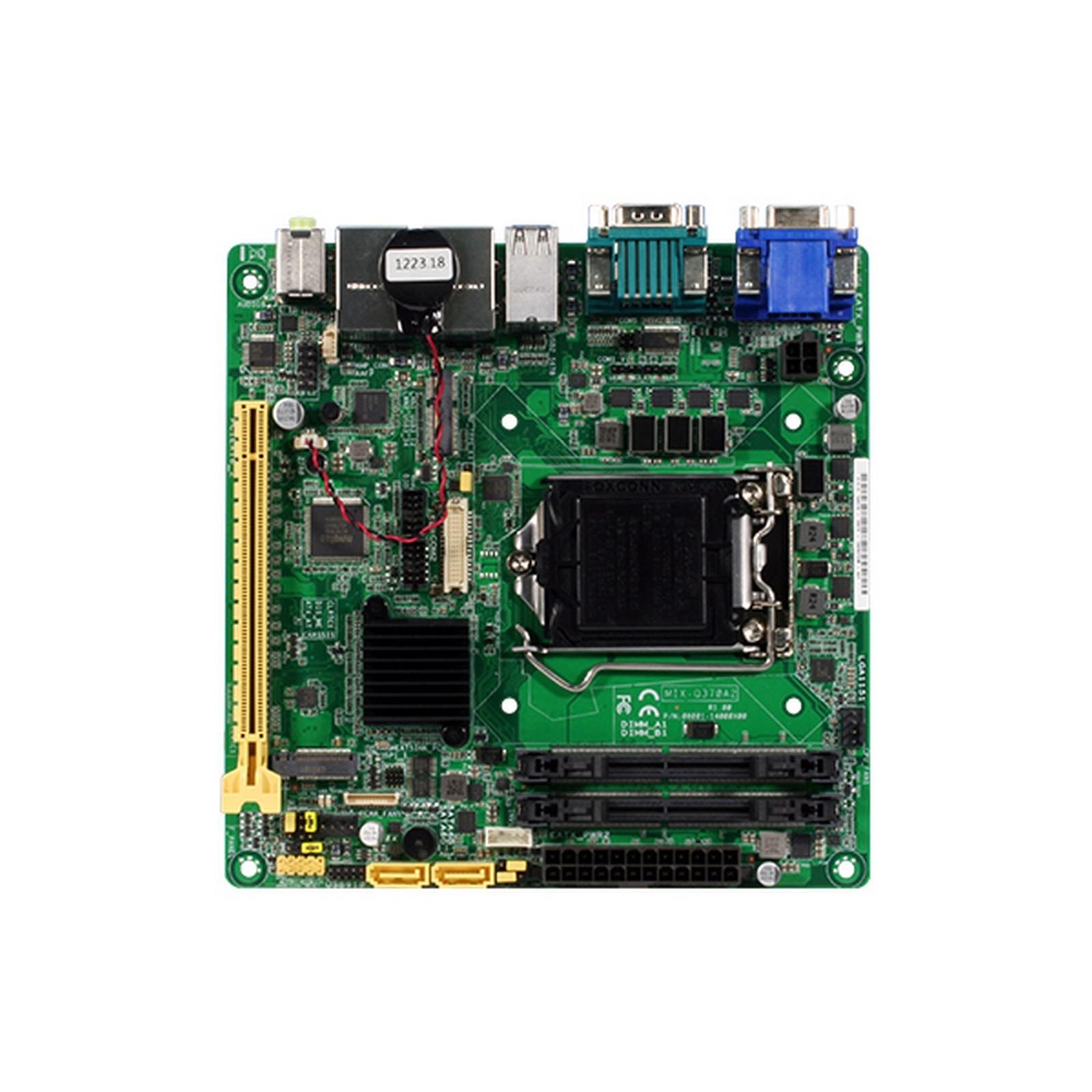

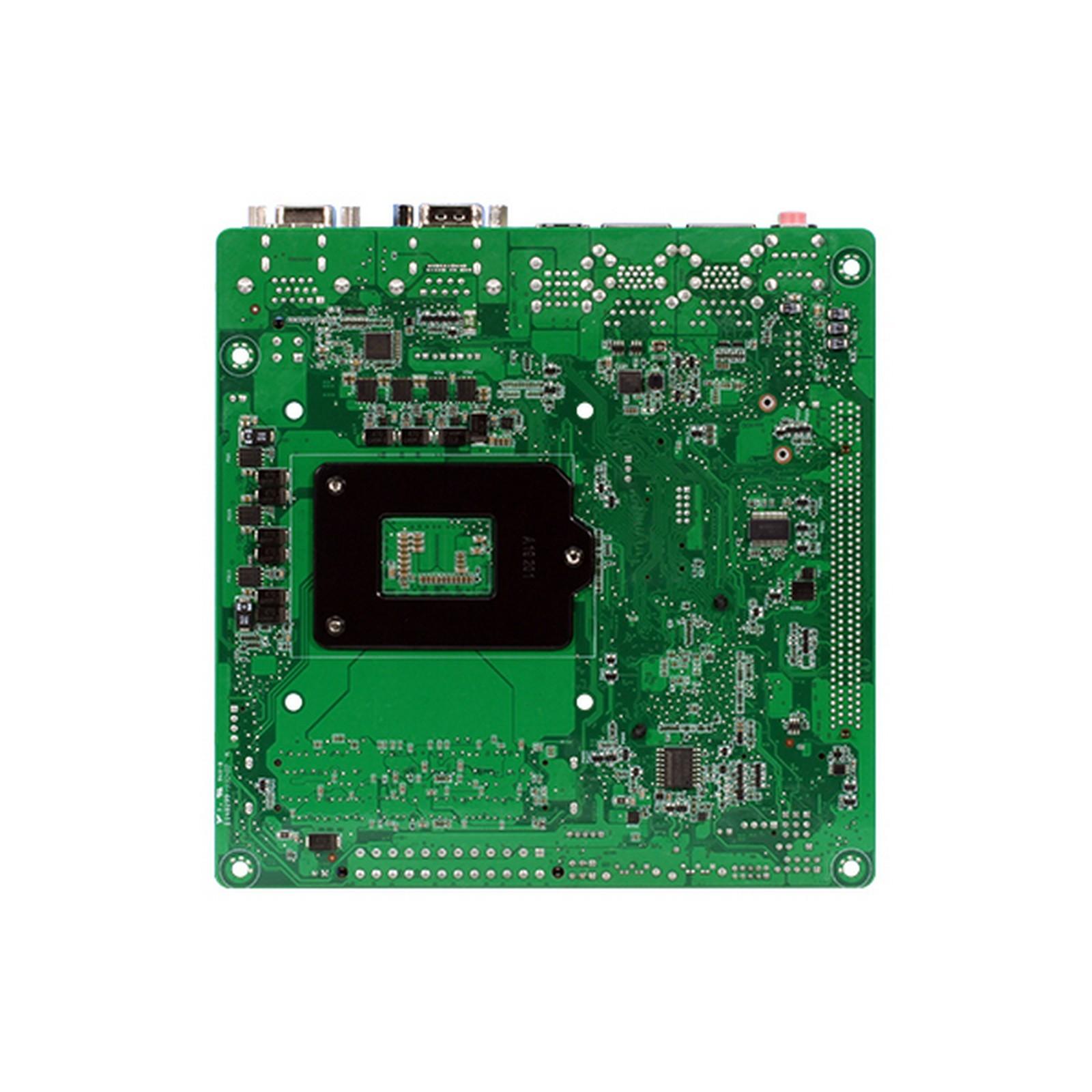

Mini-ITX with 8th/9th Generation Intel® Core™ LGA1151 Socket Processor, Max. 65W TDPs, Giga-LAN x 2
| SYSTEM | |
| PROCESSOR | 8th/9th Gen. Intel® Core™ LGA 1151 socket Processor (formerly Coffee Lake-S), Max. 65W TDPs |
| CHIPSET | Intel® Q370 Express Chipset |
| MEMORY | DDR4 2666/2400/2133 MHz SODIMM x 2, Up to 32GB, Non-ECC, Un-buffered Memory, Dual channel memory architecture |
| I/O CHIPSET | NCT6793D |
| ETHERNET | Intel® PCIe Gb LAN 219LM x 1, Intel® PCIe Gb LAN i211AT x 1 |
| AUDIO | Realtek® ALC887 with Amp. |
| TPM | NPCT650ABBYX TPM2.0 (default: No) |
| EXPANSION SLOT | PCIe3.0 [x16] x 1 |
| BIOS | 256Mbit Flash ROM, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/12V, Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER | 1~255 step by software program |
| SMART FAN CONTROL | CPU Fan/ Chassis Fan |
| WAKE ON LAN/ PXE | Yes (WOL / PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS | |
| GRAPHICS CHIPSET | Intel® UHD Graphics |
| GRAPHICS MULTI DISPLAY | HDMI+VGA+DP+LVDS |
| VGA | Up to 1920 x 1200 @ 60 Hz |
| DVI | — |
| HDMI | Up to 3840 x 2160 @30 Hz(HDMI 1.4b) |
| DISPLAYPORT | Up to 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz |
| LVDS | Up to 1920 x 1200 @60 Hz, Dual Channel 18/24 bit (1 x inverter) |
| EDP | — |
| BACKLIGHT CONTROL | — |
| ENVIRONMENTAL & POWER & ME | |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | ATX |
| OPERATING TEMPERATURE | 32°F ~140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~185°F (-40°C ~85°C) |
| OPERATING HUMIDITY | 0%~90%RH, non-condensing |
| CERTIFICATION | CE & FCC |
| FORM FACTOR | Mini-ITX: 6.7” x 6.7” (170mm x 170mm) |
| WEIGHT | 1.1 lb (0.5 kg) |
| MTBF (HOURS) | 329280 |

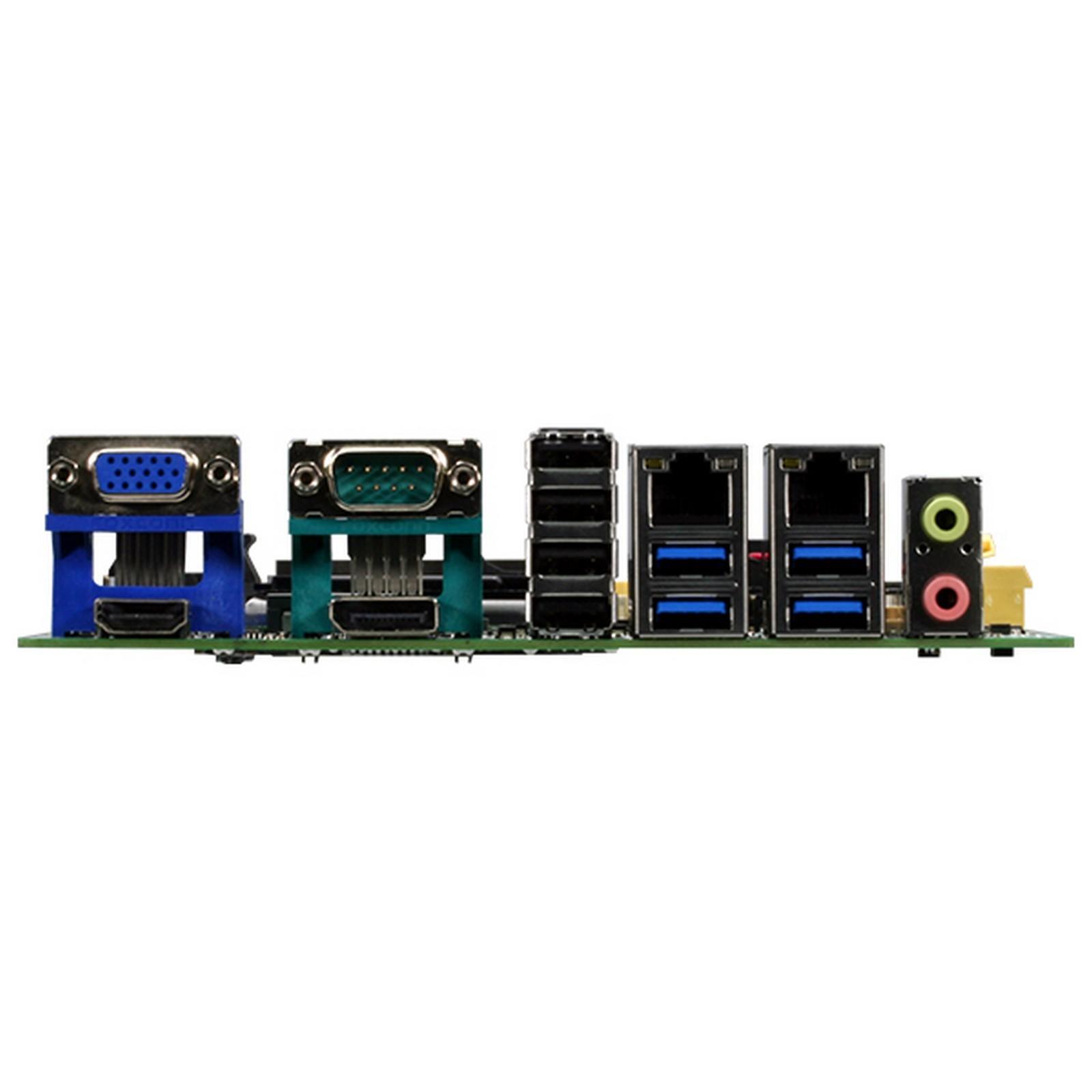

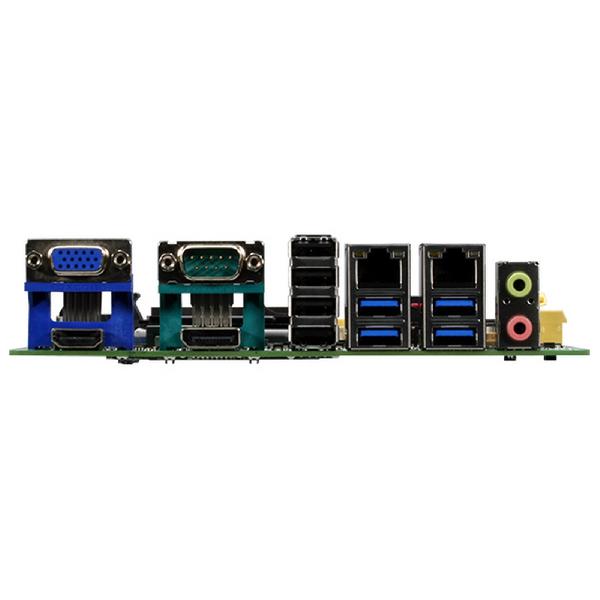

| REAR I/O PORTS | |
| USB | USB 3.2 Gen 2 (10 Gbps) x 4, USB2.0 x 4 |
| DISPLAY I/O | VGA x 1, HDMI x 1, DP x 1 |
| AUDIO I/O | Mic-in x 1, Line-out x 1 |
| LAN I/O | LAN (RJ-45) port x 2 |
| SERIAL PORT | 1x COM(RS485/422/232) |
| PS/2 PORT | — |
| OTHERS | — |
| INTERNAL I/O CONNECTORS | |
| STORAGE | SATA3.0 (6.0Gb/s) x 2, M.2 M-key (22 x 80mm) x 1 |
| USB | USB 2.0 (2 x 5-pin, 2.00mm) x 1 port support additional 2 USB. |
| DISPLAY I/O | LVDS x 1 |
| AUDIO I/O | AAFP x 1, Speaker x 1 |
| SERIAL PORT | Boxer header for COM (RS-232) x 1 |
| PS/2 PORT | — |
| PARALLEL PORT | — |
| DIO | Digital I/O box header x 1 |
| FAN | 4-pin CPU Fan connector x 1, 4-pin Chassis Fan connector x 1 |
| POWER | — |
| OTHERS | Front Panel connector x 1 Chassis Intrusion x 1 Buzzer onboard x 1 CMOS jumper x 1 |
| OS | |
| OS SUPPORT | Windows® 10 64-bit, Linux Ubuntu 18.04 LTS |
| Name | Type | Version | Release Date | |
| MIX-Q370A2 Datasheet | Datasheet | V1.0 | 23 July 2020 |
