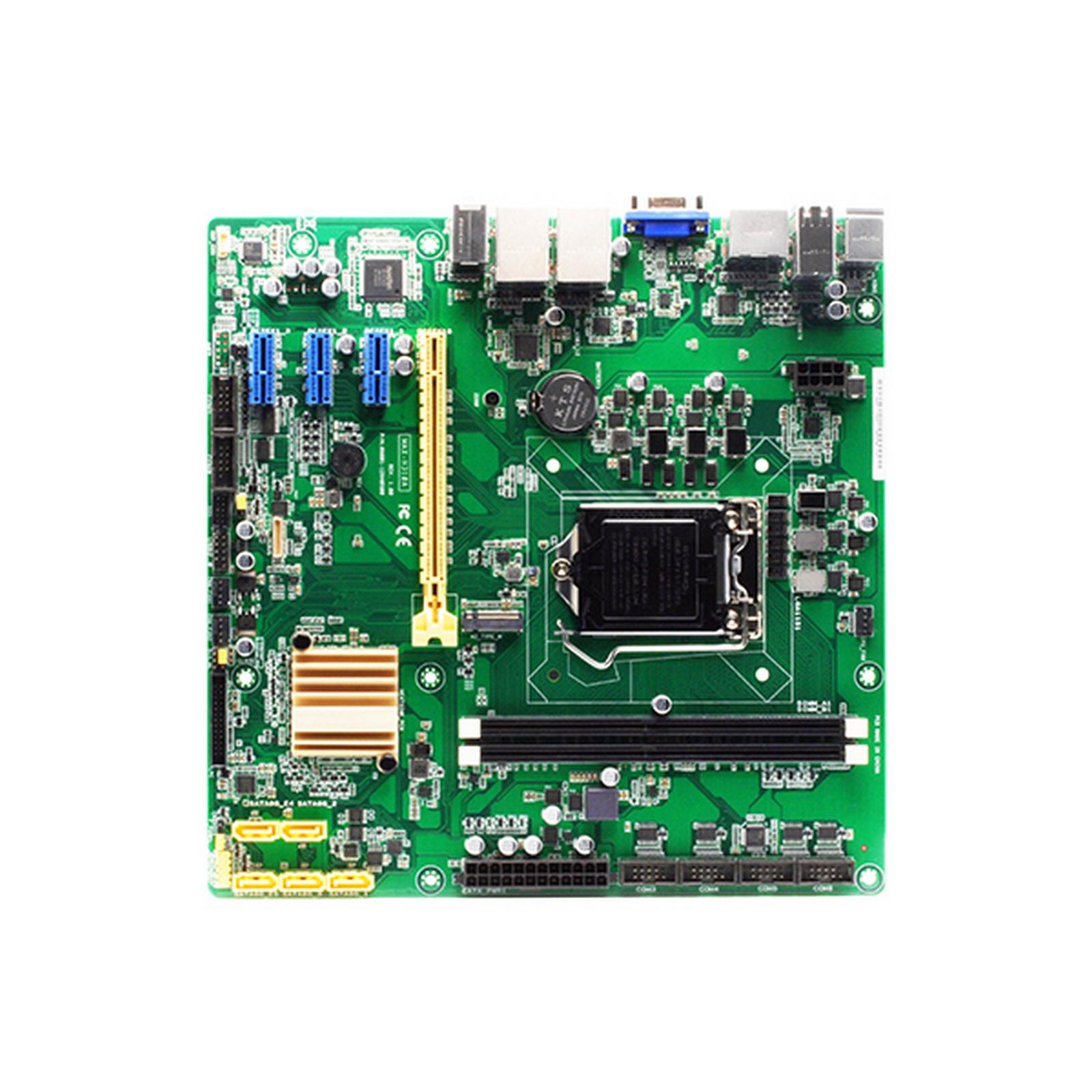

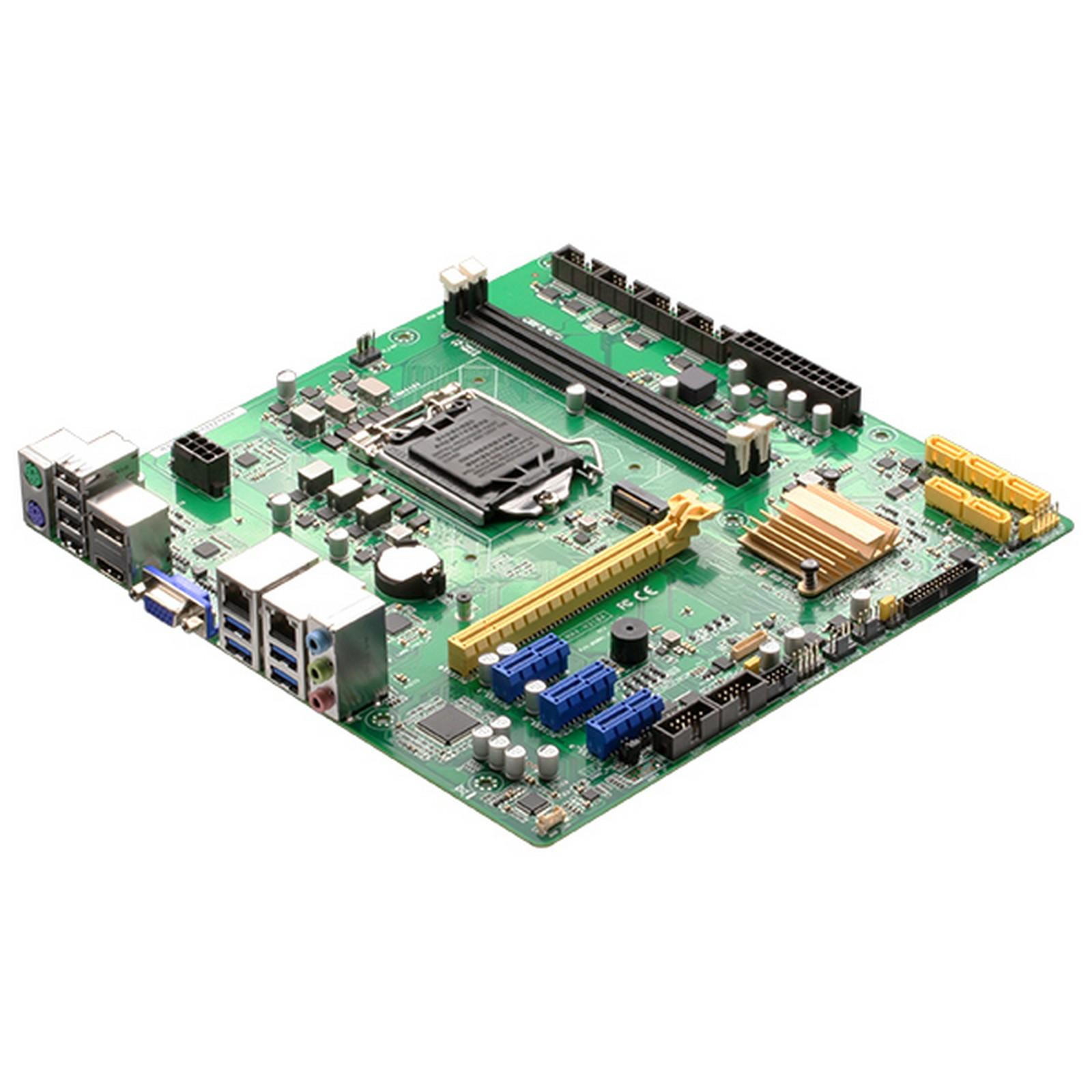

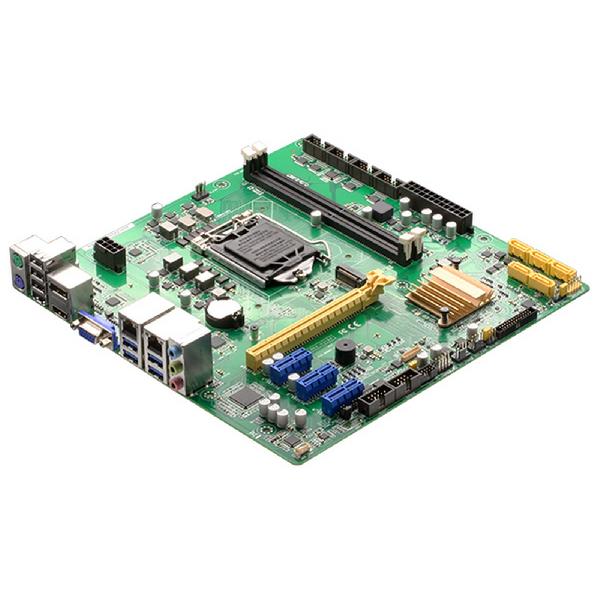

| SYSTEM |
| PROCESSOR | 8th/9th Generation Intel® (Coffee Lake-S/Coffee Lake-S Refresh) Core™ i9/ i7/ i5 /i3, Pentium 14nm LGA 1151 socket Processor |
| CHIPSET | Intel® H310 Express Chipset |
| MEMORY | DIMM x 2, DDR4 (2666/2400/2133 MHz, max. 64GB)
non-ECC, un-buffered memory
Dual-channel memory architecture |
| I/O CHIPSET | NCT6793D+ F81216HD |
| ETHERNET | Intel® PHY i219V Gb LAN x 1
Intel® i211AT Gb LAN x 1
RJ45 x 2 |
| AUDIO | Realtek® ALC887 6-Channel High Definition Audio CODEC |
| TPM | Nuvoton NPCT650ABBYX TPM2.0 onboard (default: No) |
| EXPANSION SLOT | PCIe 3.0[x16] Slot x 1
PCIe 2.0[x1] Slot (open edge) x 3
M.2 2280 M-key (BOM option: PCIe or SATA; default: SATA) x 1 |
| BIOS | 128Mbit Flash ROM, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/System,
Voltage Monitor on Vcore/5V/3.3V/12V,
Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER | 1~255 steps by software program |
| SMART FAN CONTROL | CPU Fan x 1
Chassis Fan x 2 |
| WAKE ON LAN/ PXE | Yes (WOL / PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS |
| GRAPHICS CHIPSET | Intel® UHD Graphics |
| GRAPHICS MULTI DISPLAY | VGA+DP; VGA+HDMI; DP+HDMI |
| VGA | Up to 1920 x 1200 @60Hz (via IT6516B) |
| DVI | — |
| HDMI | Up to 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz,
with Digital Audio |
| DISPLAYPORT | Up to 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz,
with Digital Audio |
| LVDS | — |
| EDP | — |
| BACKLIGHT CONTROL | — |
| ENVIRONMENTAL & POWER & ME |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | 24-pin ATX connector x 1, 8-pin (2x4) ATX 12V Power connector x 1 |
| OPERATING TEMPERATURE | 32°F ~140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~185°F (-40°C ~85°C) |
| OPERATING HUMIDITY | 0%~90%RH, non-condensing |
| CERTIFICATION | CE & FCC Class A |
| FORM FACTOR | Micro-ATX Form Factor, 9.6"x9.6" (244 mm x 244 mm) |
| WEIGHT | 1.76 lb (0.8 Kg) |
| MTBF (HOURS) | 261090 |

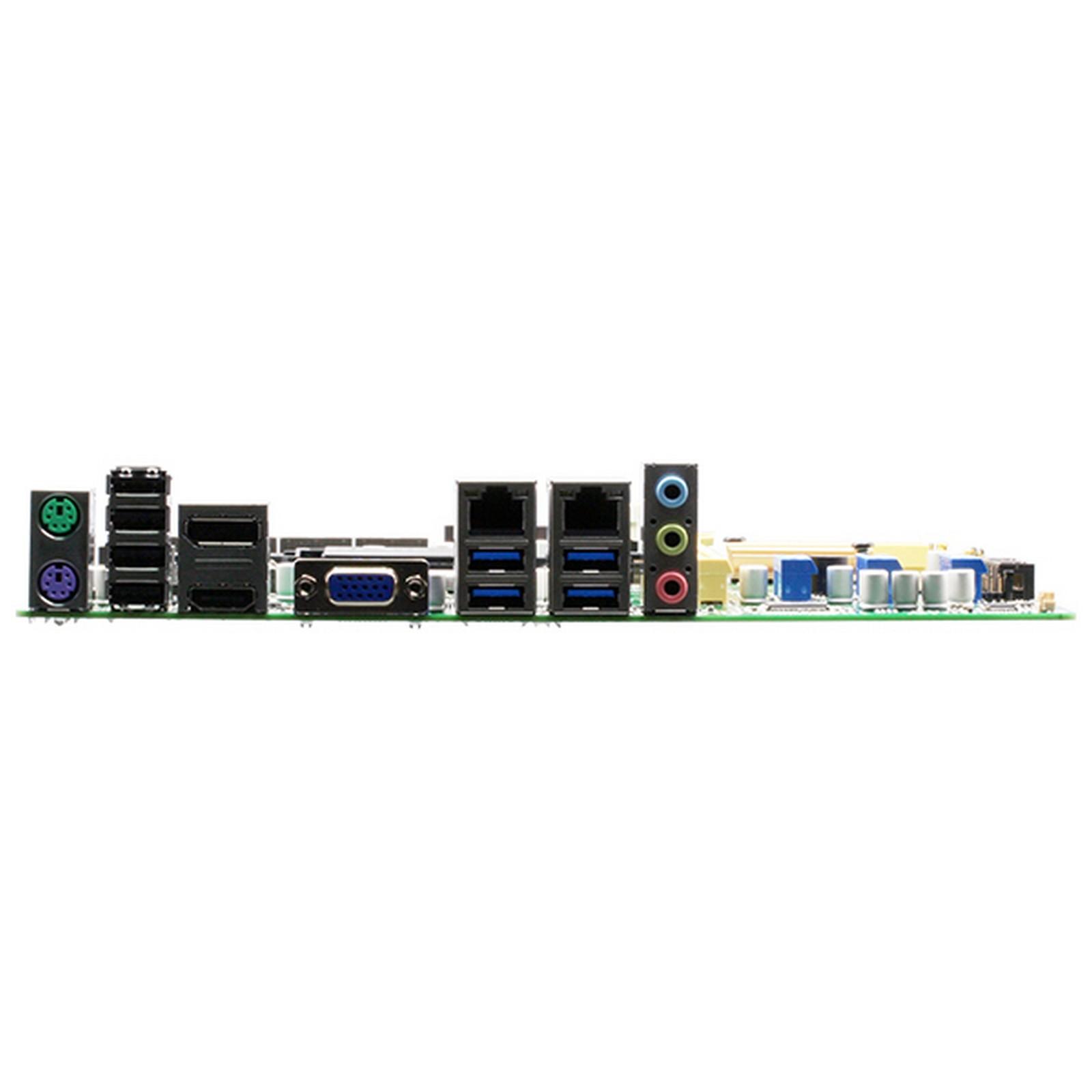

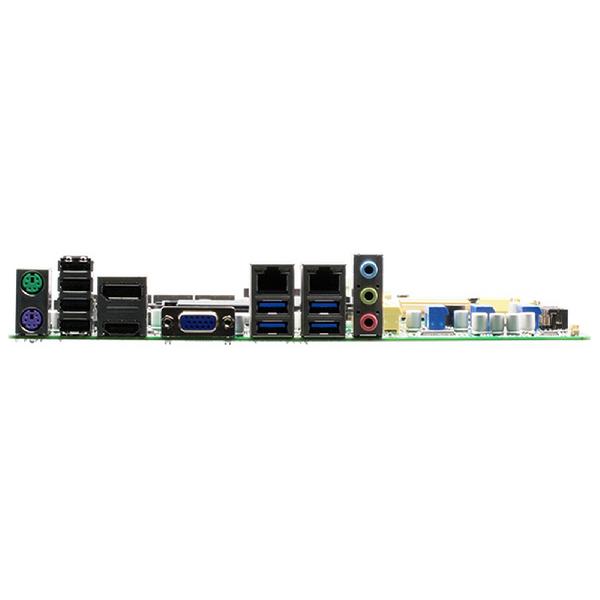

| REAR PANEL I/O PORTS |
| USB | USB 3.2 Gen 1 ports (5 Gbps) x 4,
USB 2.0 ports x 4 |
| DISPLAY I/O | DP x 1, VGA x 1, HDMI x 1 |
| AUDIO I/O | Audio Jack x 3: Line-in, Mic-in, Line-out |
| LAN I/O | LAN (RJ45) ports x 2 |
| SERIAL PORT | — |
| PS/2 PORT | PS/2 stack Port (Keyboard & Mouse) x 1 |
| OTHERS | — |
| INTERNAL I/O CONNECTORS |
| STORAGE | SATA 3 (6.0Gb/s) ports (BOM option: additional 2 SATA) x 3
M.2 2280 M-key (BOM option: PCIex1 or SATA; default: SATA) x 1 |
| USB | USB 2.0 header support additional 2 USB ports (2x5PIN, p=2.54mm) x 1 |
| DISPLAY I/O | — |
| AUDIO I/O | Speaker header (Line-out) x 1, AAFP x 1 |
| SERIAL PORT | RS-232 Boxer headers x 5
RS-232/422/485 Boxer header (COM1, Pin9 supports 5V/12V/RI optional) x 1 |
| PS/2 PORT | — |
| PARALLEL PORT | — |
| DIO | 8-bit Digital I/O interface (In/Out programmable) x 1 |
| FAN | CPU Fan connector (4-pin) x 1
Chassis Fan connector(s) (4-pin) x 2 |
| OTHERS | Chassis intrusion x 1
AT/ATX mode select jumper x 1
Front panel header x 1
Clear CMOS jumper x 1
LPC boxer header x 1 |
| OS |
| OS SUPPORT | Windows® 10 64bit, Linux Ubuntu 64bit (18.04.1/Kernal4.8.0) |
