| SYSTEM |
| PROCESSOR | Intel® 8th/9th Generation (Coffee Lake-S/Coffee Lake-S Refresh) Core™ i9/ i7/ i5 /i3,
Pentium 14nm LGA 1151 socket Processor, Max. 6 Core 95W |
| CHIPSET | Intel® H310 Express Chipset |
| MEMORY | DIMM x 2, DDR4 (2666/2400/2133 MHz, max. 64GB)
non-ECC, un-buffered memory Dual channel memory architecture |
| I/O CHIPSET | NCT6793D+ F81216HD |
| ETHERNET | Intel® PHY i219V Giga LAN x 1 Intel® i211AT Giga LAN x 1 RJ45 x 2 |
| AUDIO | Realtek® ALC887 6-Channel High Definition Audio CODEC |
| TPM | Nuvoton NPCT750AABYX TPM2.0 onboard (optional, default: N/A) |
| EXPANSION SLOT | PCIe 3.0[x16] Slot x 1,
PCIe 2.0[x4] Slot (open edge) x 2(#1: 1Lane #2: Default: 2Lanes, only support 1Lane when Mini PCIe slot is installed.),
PCI x 3,
M.2 2280/2242 M-key (PCIex1/SATA3) x 1,
Mini PCIe + Micro SIM card Slot (optional, default: N/A) |
| BIOS | 128Mbit Flash ROM x 1, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/Chassis,
Voltage Monitor on Vcore/5V/3.3V/12V,
Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER | 1~255 steps by software program |
| SMART FAN CONTROL | CPU Fan/ Chassis Fan x 2 |
| WAKE ON LAN/ PXE | Yes (WOL / PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS |
| GRAPHICS CHIPSET | Intel® Graphics Media Accelerator |
| GRAPHICS MULTI DISPLAY | HDMI+VGA+DP |
| VGA | Up to 1920 x 1200 @60Hz (via IT6516B) |
| DVI | — |
| HDMI | Up to 4096 x 2160 @ 30 Hz |
| DISPLAYPORT | Up to 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz, with Digital Audio |
| LVDS | — |
| BACKLIGHT CONTROL | — |
| ENVIRONMENTAL & POWER & ME |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | 24-pin ATX connector x 1,
8-pin (2x4) ATX 12V Power connector x 1 |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~85°C) |
| OPERATING HUMIDITY | 0% ~ 90%RH, non-condensing |
| CERTIFICATION | CE & FCC Class A |
| FORM FACTOR | ATX Form Factor, 12" x 9.6" (305mm x 244mm) |
| WEIGHT | 1.76 lb (0.8 Kg) |
| MTBF (HOURS) | 285600 |

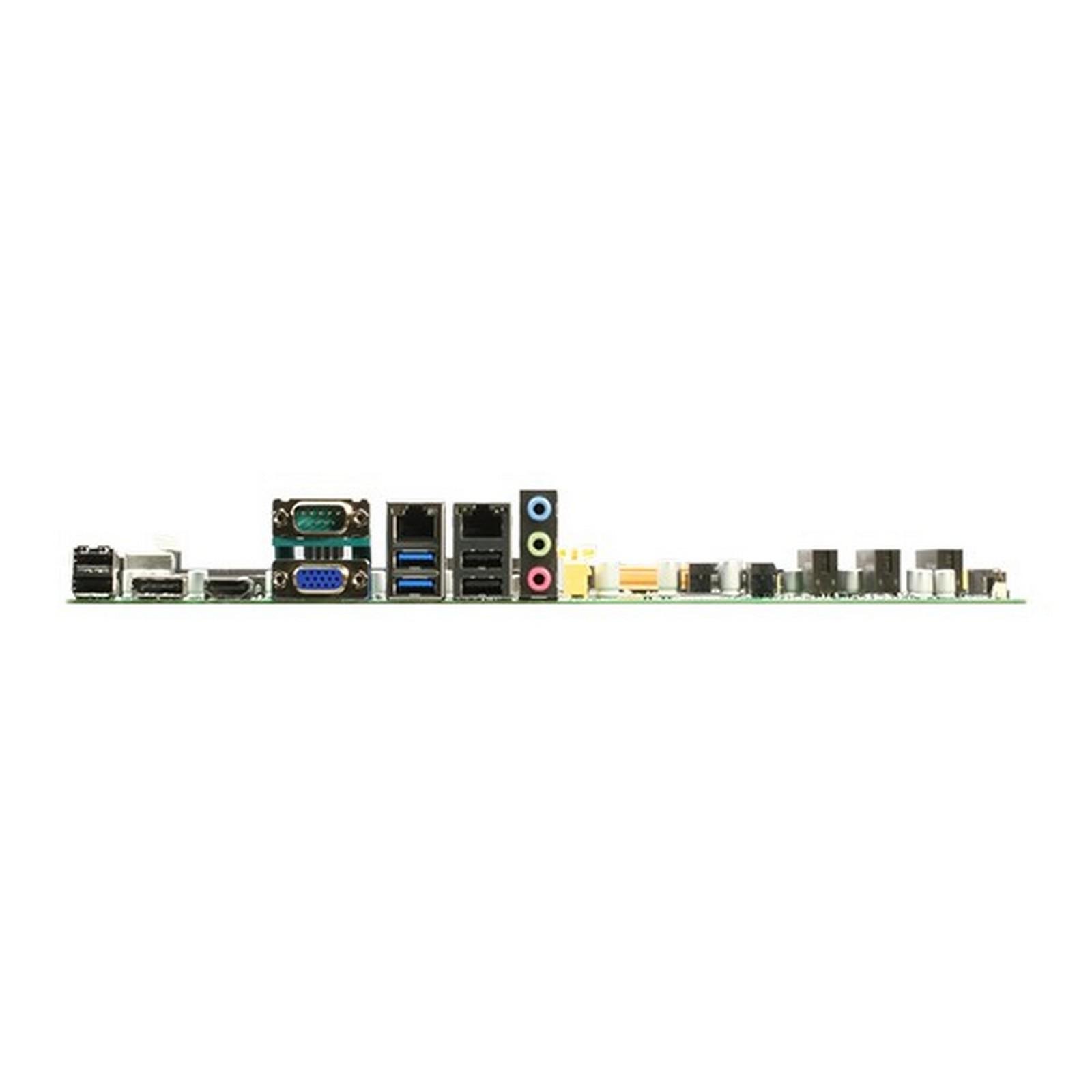

| REAR PANEL I/O PORTS |
| USB | USB 3.2 Gen 1 ports x 2, USB 2.0 ports x 4 |
| DISPLAY I/O | HDMI x 1, VGA x 1, DP x 1 |
| AUDIO I/O | Audio Jack x 3: Line-in, Mic-in, Line-out |
| LAN I/O | LAN (RJ45) ports x 2 |
| SERIAL PORT | DB-9 COM x 1 (supports RS-232/422/485, 5V/12V/RI) |
| PS/2 PORT | — |
| INTERNAL I/O CONNECTORS |
| STORAGE | SATA III (6.0Gb/s) ports x 3, support RAID 0/1/5/10
M.2 2280/2242 M-key (PCIex1/SATA3) x 1 |
| USB | USB 3.2 Gen 1 headers support additional 2 USB ports (2x5PIN, p=2.54mm) x 1,
USB 2.0 Type A (vertical) x 1 |
| DISPLAY I/O | — |
| SERIAL PORT | RS-232 headers x 5 |
| PARALLEL PORT | — |
| DIO | 8-bit Digital I/O interface (In/Out programmable) x 1 |
| FAN | CPU Fan connector(s) (4-pin) x 1,
Chassis Fan connector(s) (4-pin) x 2 |
| POWER | — |
| OTHERS | Chassis Intrusion x 1,
AT/ATX mode select jumper x 1,
Front panel header x 1,
Clear CMOS jumper x 1 |
| OS |
| OS SUPPORT | Windows® 10 64bit, Linux Ubuntu 64 bit (18.04.3/Kernal5) |
