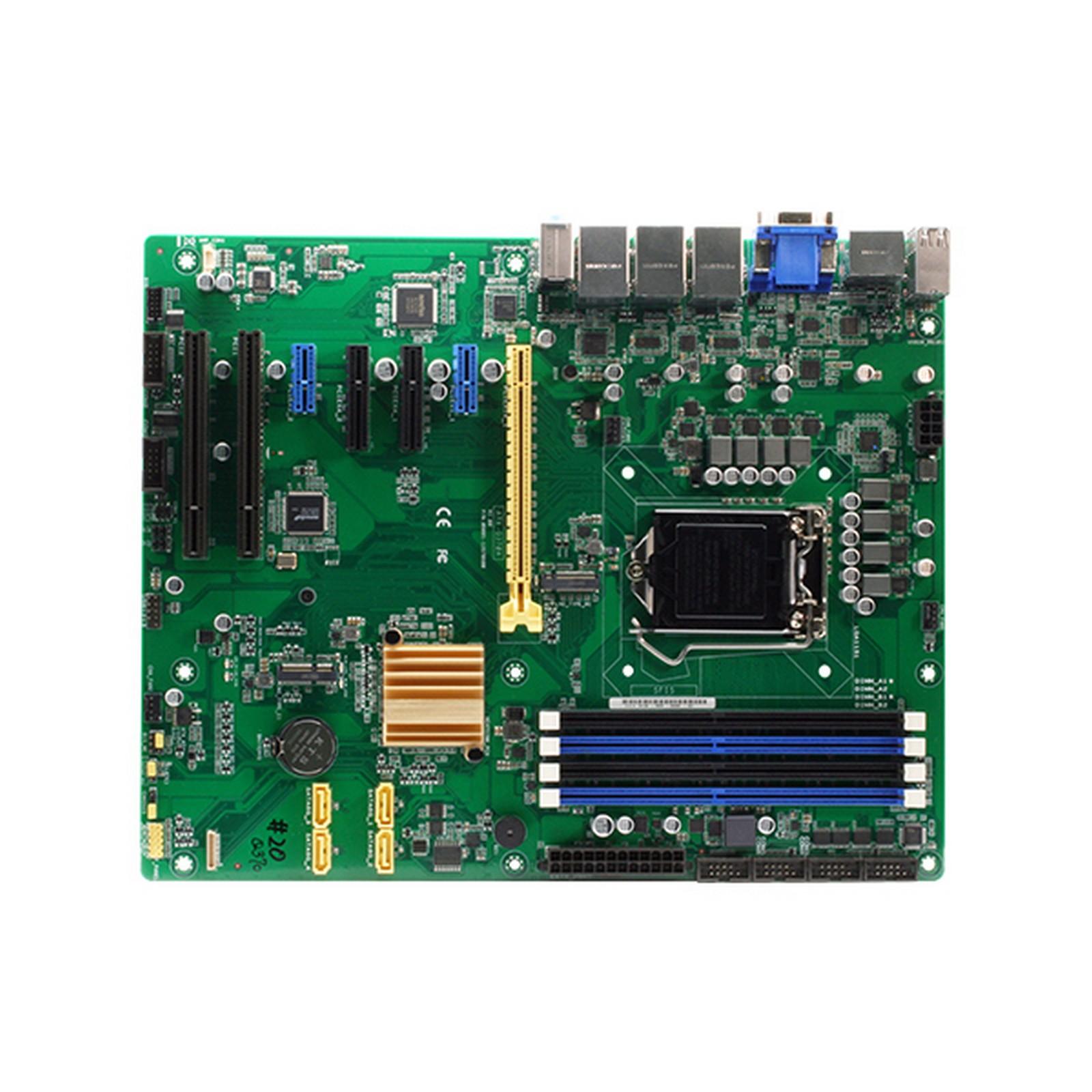

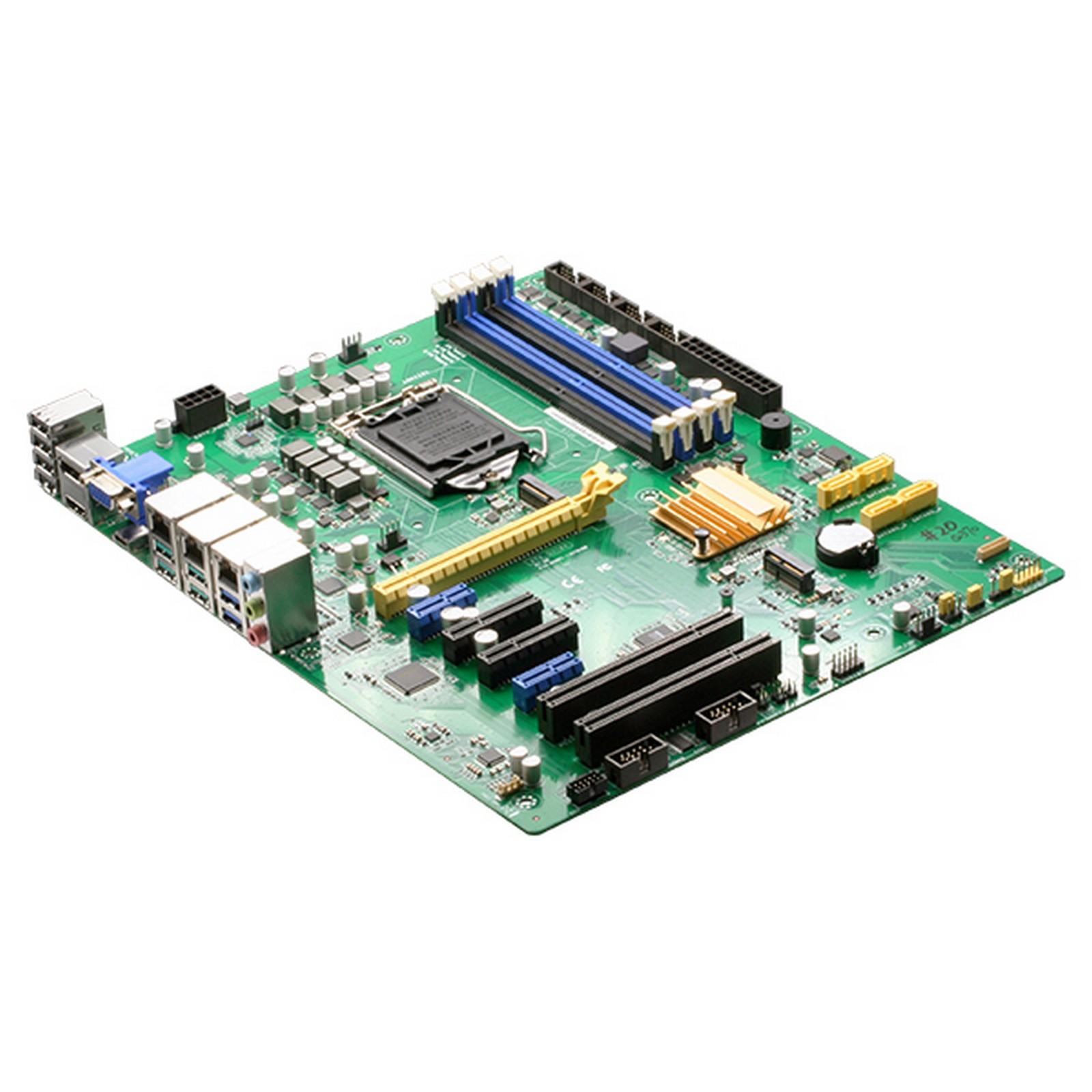

The ATX-C246A is the latest industrial motherboard from AAEON, powered by 8th and 9th Generation Intel® Core™ and Xeon® processors (formerly Coffee Lake, Coffee Lake Refresh). Supporting processors up to 95W TDP and up to 128 GB of memory, the ATX-C246A provides high end computing and expandability with PCIe 3.0, M.2 2280 and M.2 2230 with CNVi support. The ATX-C246A is designed to power applications including industrial networking and workstation applications.
| SYSTEM | |
| PROCESSOR | Intel® 8th/9th Generation (Coffee Lake-S/Coffee Lake-S Refresh) Core™ i9/ i7/ i5 /i3, Pentium 14nm, Celeron™, Xeon E-2200/2100, LGA 1151 socket Processor, max. TDP 8 Core 95W |
| CHIPSET | Intel® C246 Express Chipset |
| MEMORY | DIMM x 4, DDR4 (2666/2400/2133 MHz, max. 128GB) ECC, un-buffered memory Dual channel memory architecture |
| I/O CHIPSET | NCT6793D + F81216HD |
| ETHERNET | Intel® PHY i219LM Giga LAN x 1 (supports Intel® AMT 12.0) Intel® i211AT Giga LAN x 1 (BOM option: i211AT x 2) RJ45 x 2 (BOM option: RJ45 x 3) |
| AUDIO | Realtek® ALC887 6-Channel High Definition Audio CODEC |
| TPM | Nuvoton NPCT750AABYX TPM2.0 onboard |
| EXPANSION SLOT | PCIe 3.0[x16] Slot x 1, PCIe 3.0[x4] Slot (open edge) x 2, PCIe 3.0[x1] Slot (open edge) x 2, PCI x 2, M.2 2230 E-key (PCIex1/USB2.0/CNVi) x 1, M.2 2280 M-key (PCIex4/SATA3) x 1 |
| BIOS | 256Mbit Flash ROM x 1, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/3.3V/12V, Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER | 1~255 steps by software program |
| SMART FAN CONTROL | CPU Fan/ Chassis Fan x 2 |
| WAKE ON LAN/ PXE | Yes (WOL / PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS | |
| GRAPHICS CHIPSET | Intel® Graphics Media Accelerator |
| GRAPHICS MULTI DISPLAY | HDMI+VGA+DP (BOM option: USB 3.2 Gen 2 Gen2-10Gbps Type-C connector (Alternate Mode: USB+DP) x 1) |
| VGA | Up to 1920 x 1200 @60Hz (via IT6516B) |
| DVI | — |
| HDMI | Up to 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz, with Digital Audio |
| DISPLAYPORT | Up to 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz, with Digital Audio |
| LVDS | — |
| BACKLIGHT CONTROL | — |
| ENVIRONMENTAL & POWER & ME | |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | 24-pin ATX connector x 1, 8-pin (2x4) ATX 12V Power connector x 1 |
| OPERATING TEMPERATURE | 32°F ~140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~185°F (-40°C ~85°C) |
| OPERATING HUMIDITY | 0%~90%RH, non-condensing |
| CERTIFICATION | CE & FCC Class A |
| FORM FACTOR | ATX Form Factor, 12"x9.6" (305mm x 244mm) |
| WEIGHT | 1.76 lb (0.8 Kg) |
| MTBF (HOURS) | 281410 |

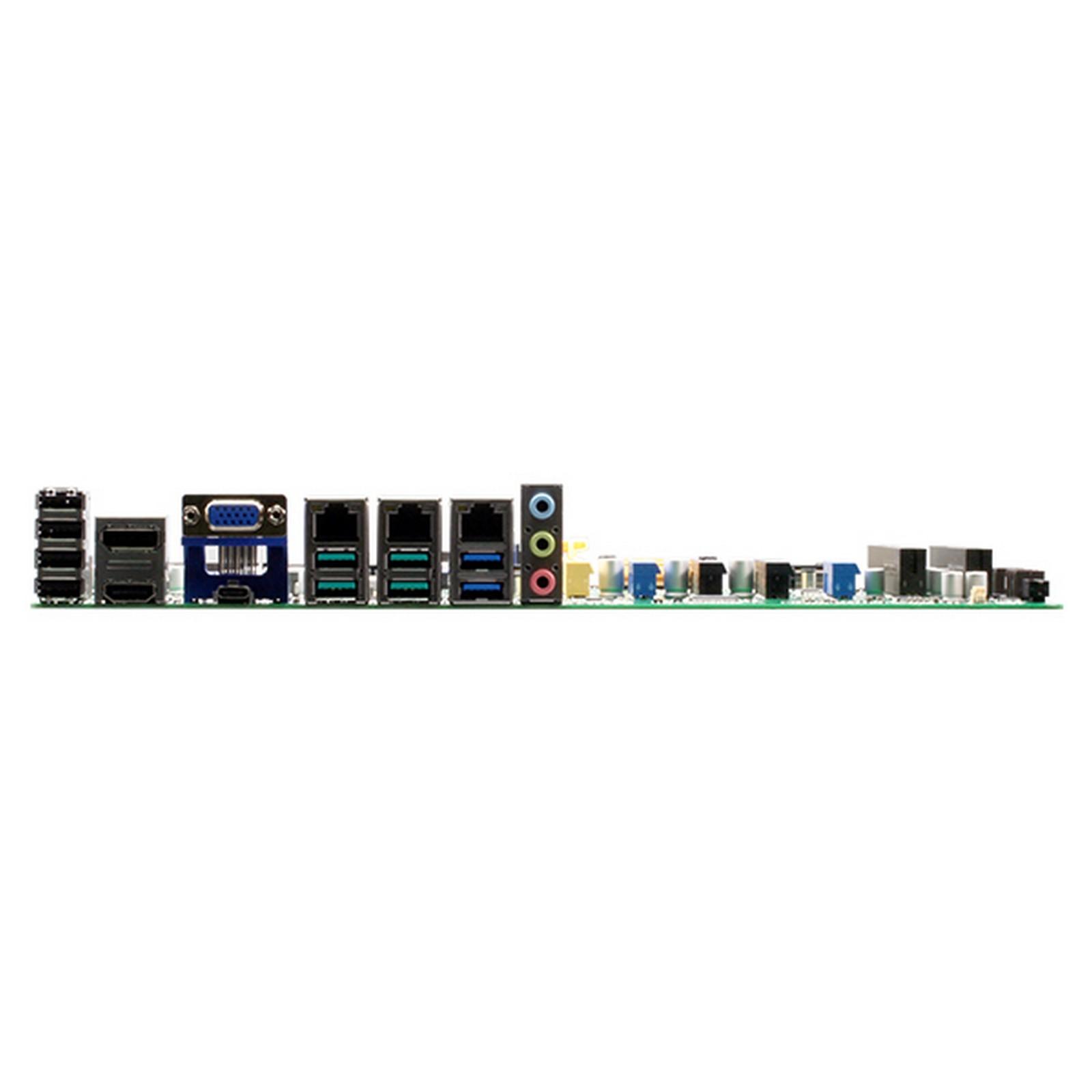

| REAR PANEL I/O PORTS | |
| USB | USB 3.2 Gen 2 ports (10 Gbps) x 4, USB 3.2 Gen 1 ports (5 Gbps) x 2, USB 2.0 ports x 4 |
| DISPLAY I/O | HDMI x 1, VGA x 1, DP x 1, USB Type-C x 1 (optional) |
| AUDIO I/O | Audio Jack x 3: Line-in, Mic-in, Line-out |
| LAN I/O | LAN (RJ45) ports x 2 (BOM option: RJ45 x 3) |
| SERIAL PORT | — |
| PS/2 PORT | — |
| INTERNAL I/O CONNECTORS | |
| STORAGE | SATA III (6.0Gb/s) ports x 4, support RAID 0/1/5/10 M.2 2280 M-key (PCIex4/SATA3) x 1 |
| USB | USB 2.0 headers x 1 support additional 2 USB ports (2x5PIN, p=2.54mm) |
| DISPLAY I/O | — |
| SERIAL PORT | 5 x RS-232 headers 1 x RS-232/422/485 (COM1, supports 5V/12V/RI optional) |
| PARALLEL PORT | — |
| DIO | 8-bit Digital I/O interface (In/Out programmable) x 1 |
| FAN | CPU Fan connector(s) (4-pin) x 1 Chassis Fan connector(s) (4-pin) x 2 |
| POWER | — |
| OTHERS | Chassis Intrusion x 1 AT/ATX mode select jumper x 1 Front panel header x 1 Clear CMOS jumper x 1 |
| OS | |
| OS SUPPORT | Windows® 10 64bit, Linux Ubuntu 64bit (18.04.1/Kernal4.8.0) |
| Name | Type | Version | Release Date | |
| ATX-C246A Datasheet | Datasheet | V3.0 | 25 November 2020 |
