UPC-CRST02 (UP Expansion Modules)

Home  >   AAEON  >   UP Boards and UP Systems  >
UP Boards  >   UP Expansion Modules

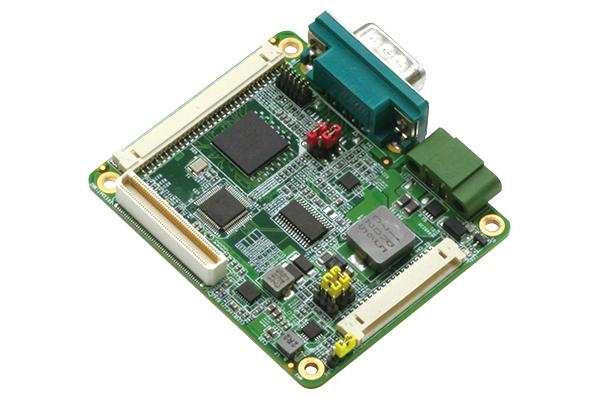

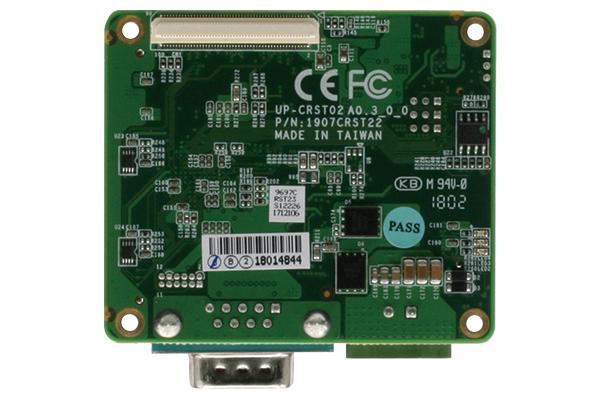

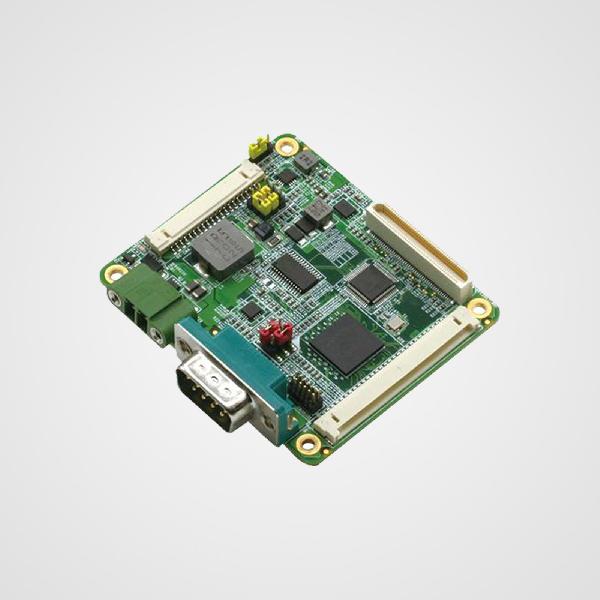

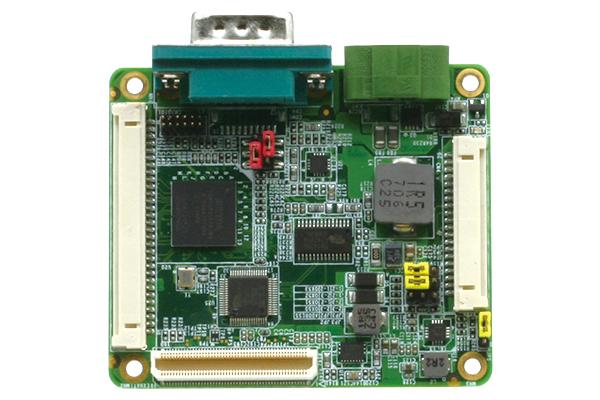

Low Speed Carrier Board for UP Core Series

Product Feature

  • RS-232/422/485 x 1
  • 12-24V Power Input x 1
  • MAX10 FPGA for 40pin Setting x 1

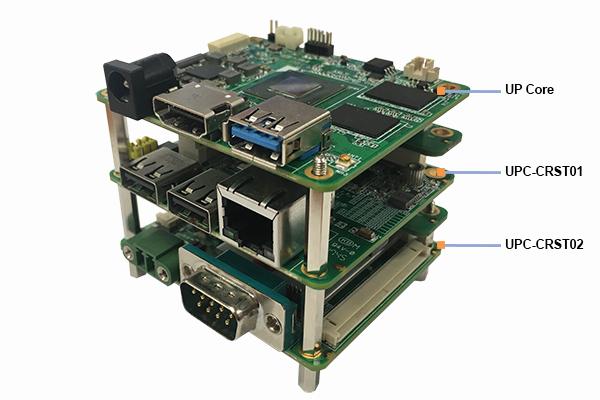

AAEON currently produces two standard carrier boards for the UP Core.

The high-speed board features a LAN port, two USB2.0 ports, a 2-channel PCIe switch, Minicard and SD Card slots, and a uSIM Card reader.

The low-speed board features a COM port and a 12V~24V power input.

system

ICMAX10 FPGA for 40pin setting x 1
2-CH FULL-SPEED USB UART x 1
RS-232/485/422 transceiver x 1
EEPROM on I2C0 4Kb with Jumper for A0~A2 address x 1

i/o placements

External PortsRS-232/422/485 Connector (DB9) x 1
12-24V Power input (+-10%) x 1
Internal ConnectorJumper for RS-232/422/485 x 1
Power LED x 1
100PIN board-board connector(M) x 1
100PIN board-board connector(F) x 1
30 pin wafer box header for HAT 40 IO pins x 1
20 pin wafer box header for FPGA MAX10 reserved pins x 1

others

Form Factor56.5 mm × 66 mm
CertificationCE/FCC Class A
Operating Temperature0°C ~ 60°C
Operating Humidity10%~80%RH, non-condensing
