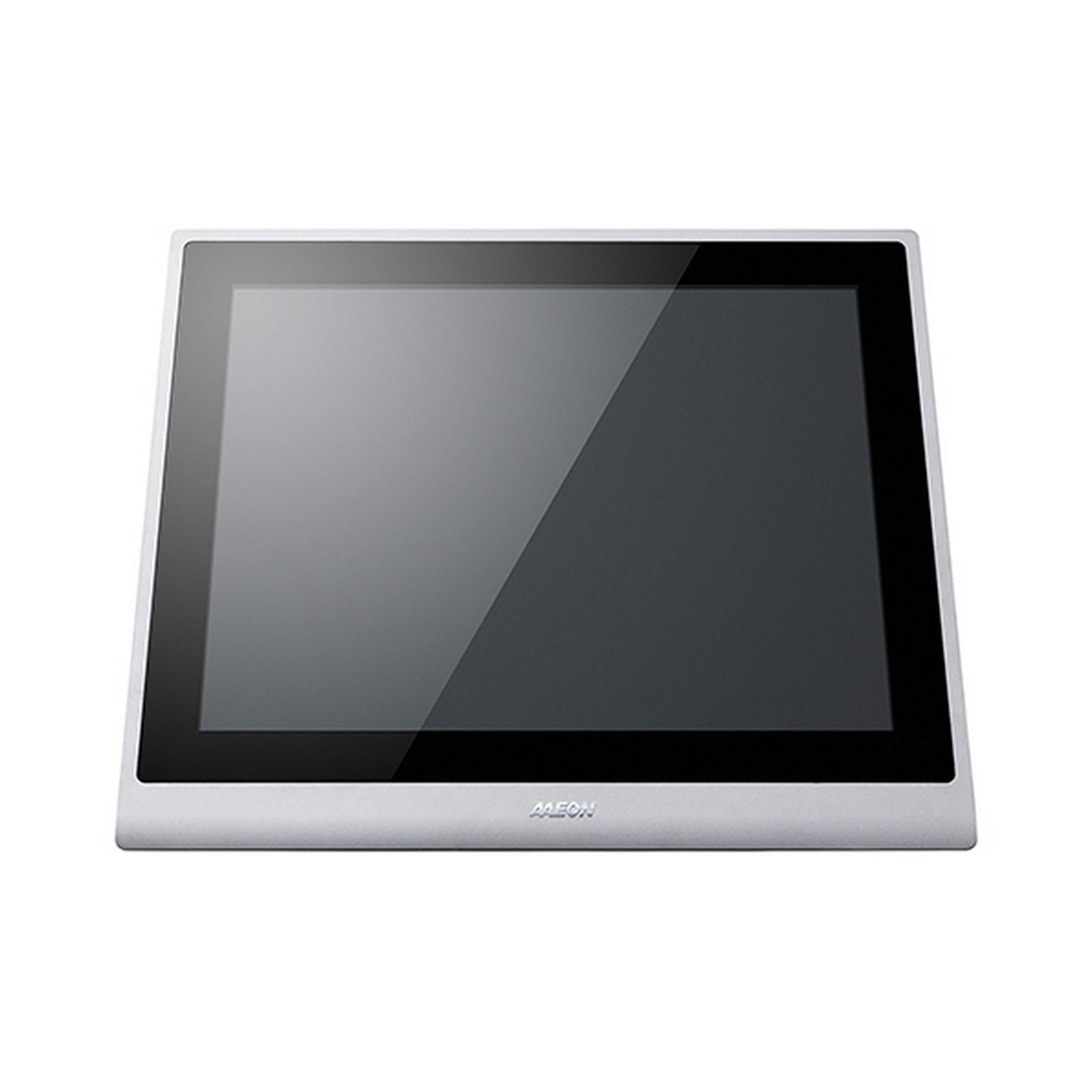

The OMNI-5155L from AAEON is a rugged, flexible and feature packed all-in-one panel PC built for any budget. The OMNI-5155L is powered by the Intel® Celeron® J1900 processor and up to 8 GB of RAM, providing the processing power needed for industrial applications and factory automation. It features a tough IP65 rated front panel and innovative passive cooling design which allows operation in temperatures as low as -10°C up to 55°C.

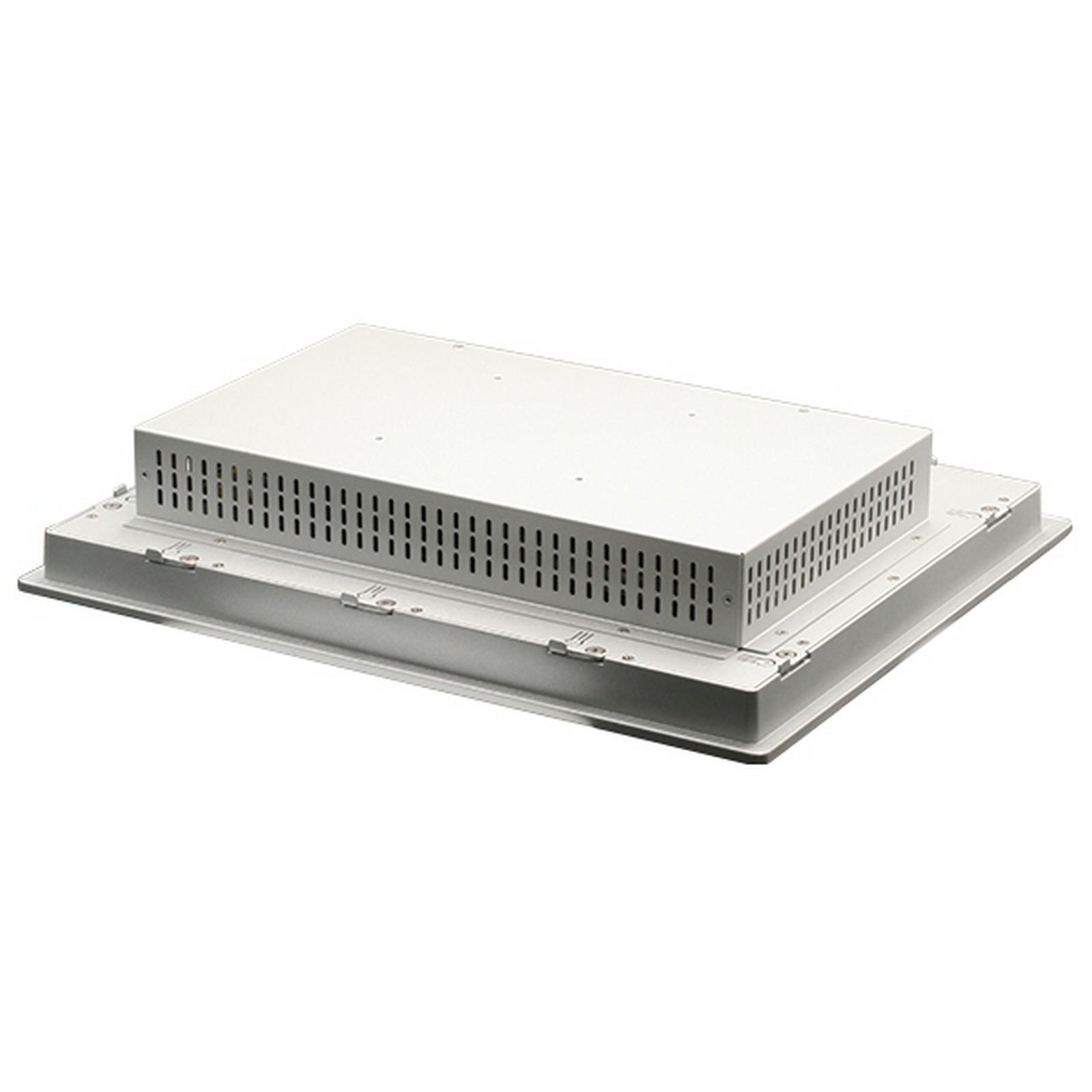

The OMNI-5155L is easy to integrate into any factory or kiosk with a rich compliment of I/O features, such as dual COM ports, Gigabit Ethernet, and both HDMI and VGA monitor outputs. The OMNI-5155L is also designed with our innovative built-in panel mount bracket, making it easy to install and maintain. With AAEON support and industry rugged design, the OMNI-5155L is built to provide long lasting service without a huge price tag.
| SYSTEM | |
| PROCESSOR | Intel® Celeron® J1900 Processor 2.00 GHz |
| SYSTEM MEMORY | DDR3L 1333 MHz SODIMM x 2 up to 8 GB |
| ETHERNET | Realtek PCIe Gb LAN 8111G x 2 |

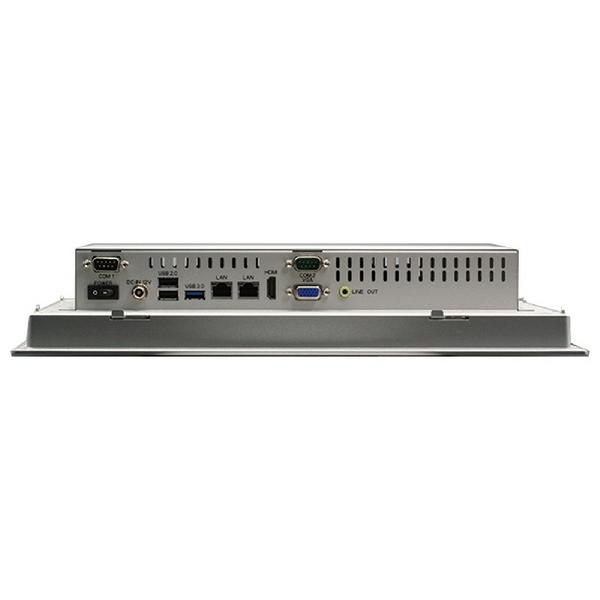

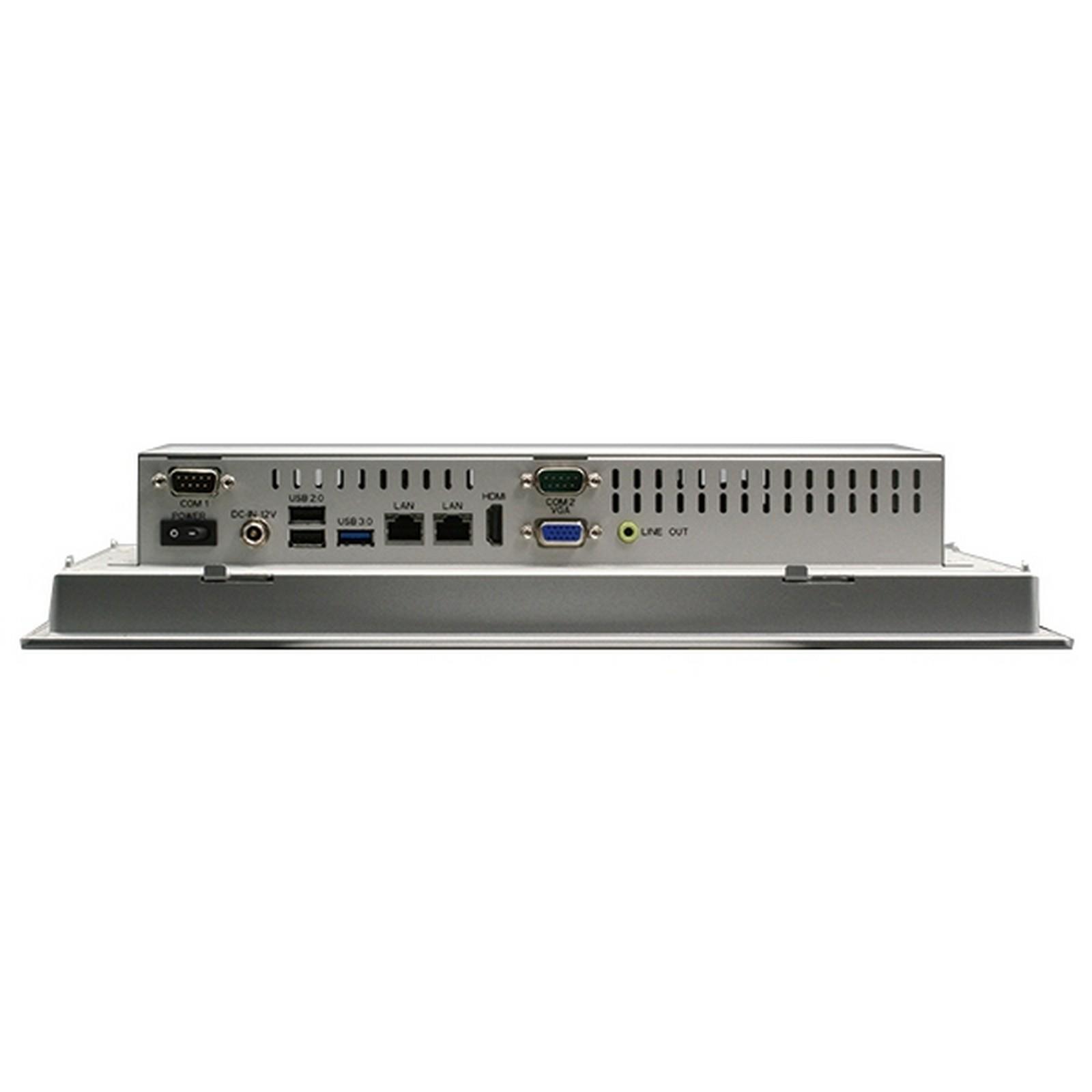

| I/O PORT | USB 2.0 Type A x 2 USB 3.2 Gen 1 Type A x 1 DB-9 Type RS-232/422/485 x 1 DB-9 Type RS-232 x 1 RJ-45 Type for 10/100/1000 Base-TX x 2 DB-15 x 1 for VGA HDMI x 1 Audio Jack x 1 for Line out DC Jack x1 for 12 Vdc power input |
| STORAGE DISK DRIVE | 2.5" SATA HDD bay x 1 |
| EXPANSION SLOT | Internal Full-size Mini-Card x 1 / Half-size Mini-Card x 1 |
| OS SUPPORT | Windows® 7, Windows® 8, Windows® 10, Linux kernel 2.6.x or higher |
| MECHANICAL | |
| FRONT PANEL | Aluminum design (IP65 Front Frame) |

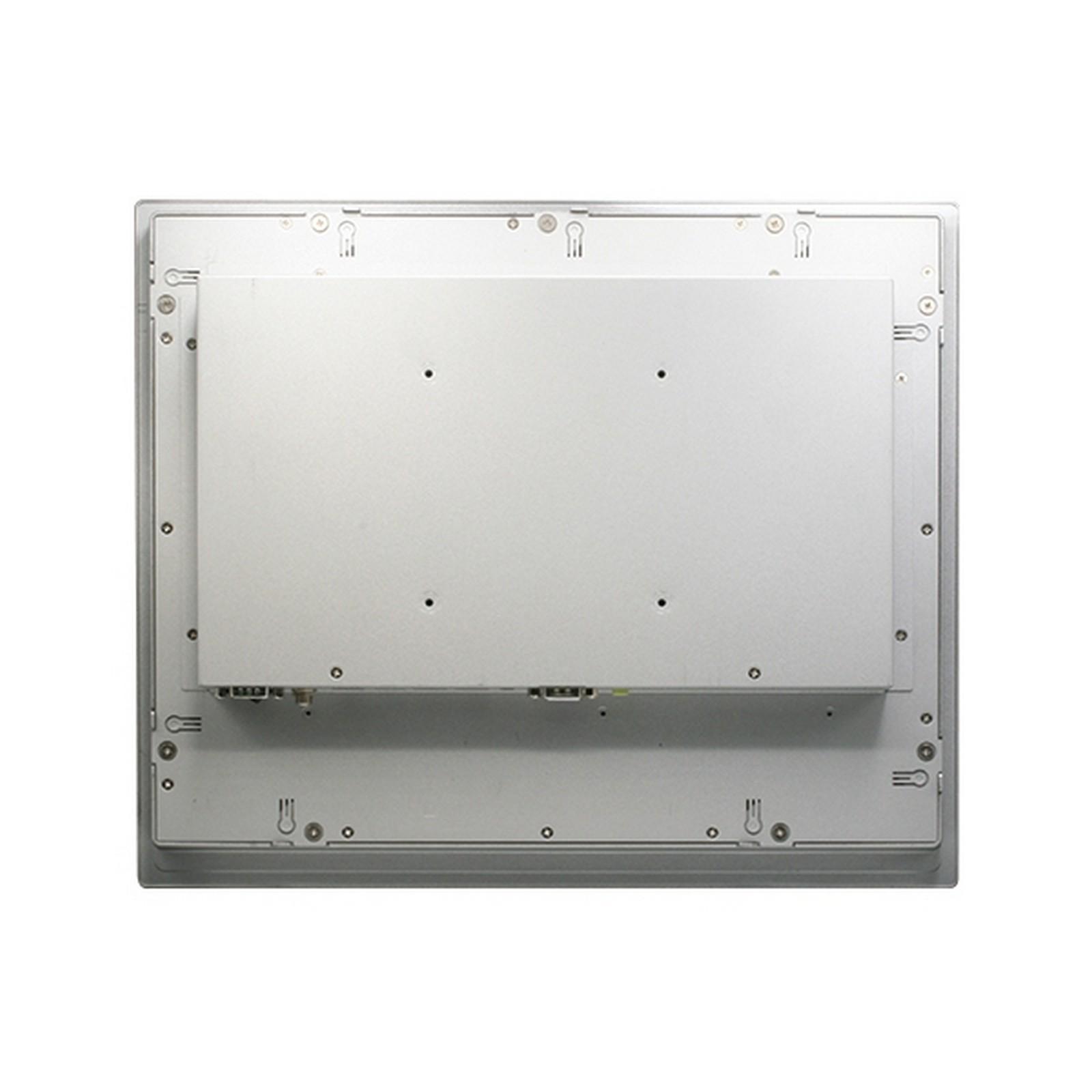

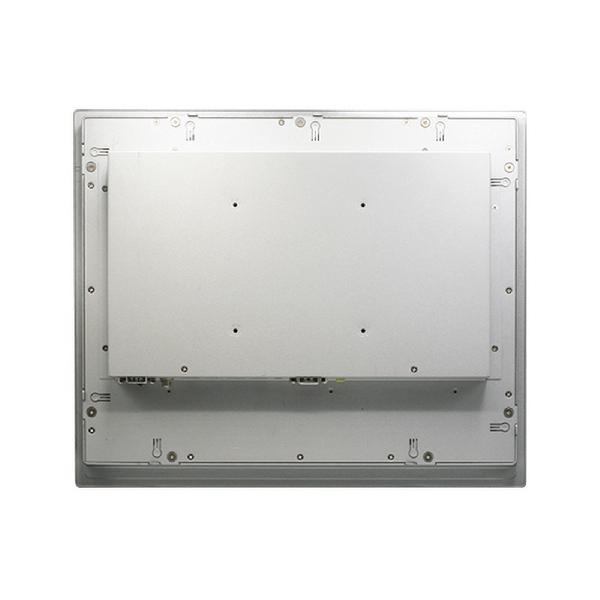

| MOUNTING | VESA 100x100 / Panel Mount |
| DIMENSION | 14.53” x 12” x 2.63” (369mm x 304mm x 67mm) |
| CARTON DIMENSION | 20.08” x 9.84” x 18.11” (510mm x 250mm x 460m |
| GROSS WEIGHT | 12.12 lb (5.5 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 14°F ~ 131°F (-10°C ~ 55°C) with 0.5 m/s airflow |
| STORAGE TEMPERATURE | -4°F ~ 158°F (-20°C ~ 70°C) |
| STORAGE HUMIDITY | 90% @40°C; non-condensing |
| POWER SUPPLY | |
| DC INPUT | 12V DC in |
| LCD | |
| DISPLAY TYPE | 15" TFT-LCD, LED |
| MAX. RESOLUTION | 1024 (H) x 768 (V) |
| MAX. COLORS | 16.2M color |
| LUMINANCE | 300 cd/m² |
| VIEWING ANGLE | 176° (H), 176° (V) |
| BACK LIGHT | LED |
| BACK LIGHT MTBF (HOURS) | 70,000 |
| TOUCH SCREEN | |
| TYPE | 5-wire resistive |
| LIGHT TRANSMISSION | 80% ± 2% |
| Name | Type | Version | Release Date | |
| OMNI-5155L, datasheet | Datasheet | V2.0 | 26 July 2019 |
