ACP-1104

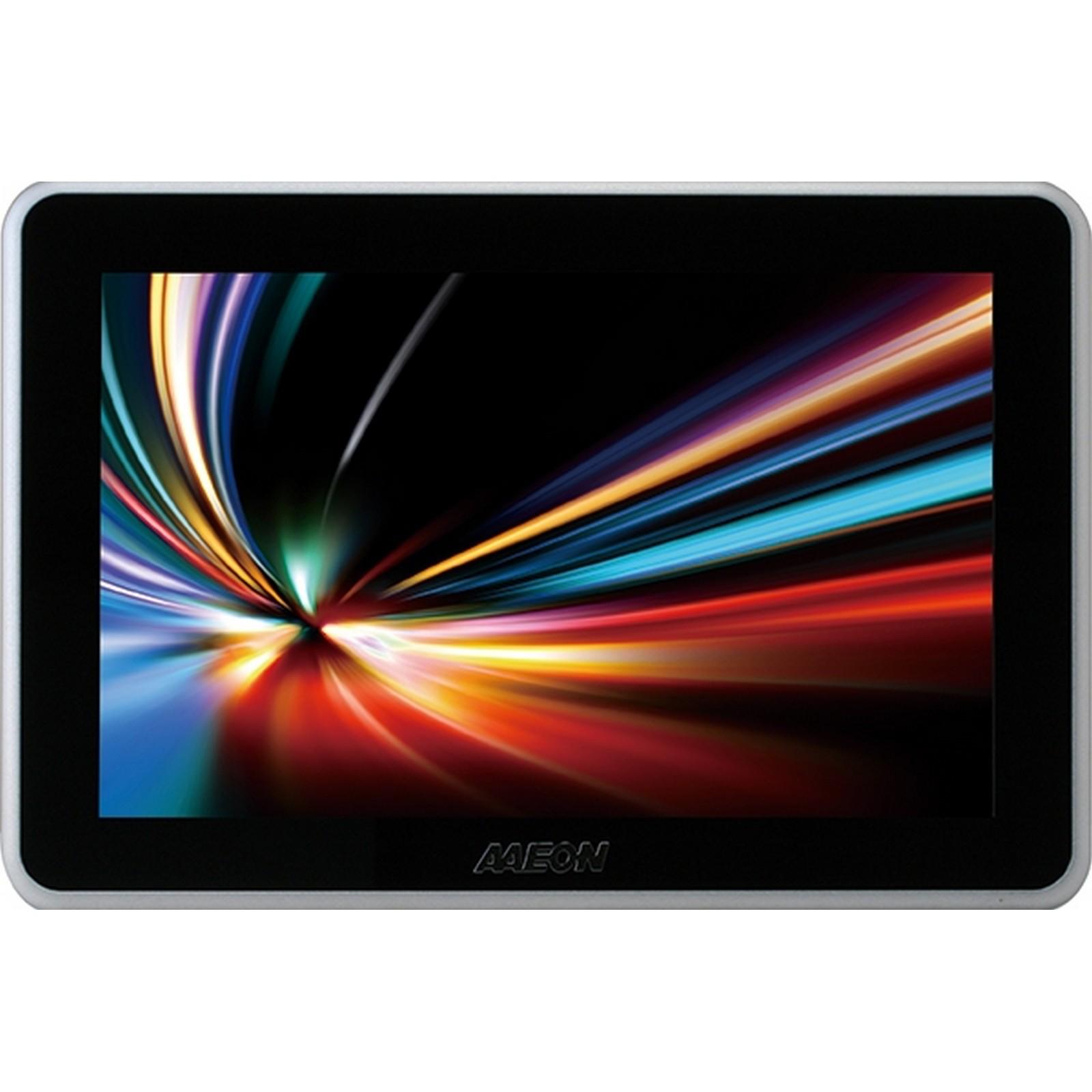

The 10.1" ACP-1104 continues to feature a projected capacitive touchscreen with a 7H scratchproof glass and an ultra-slim profile that is proved to be popular among users of its predecessor, the ACP-1103. However, though physically similar, the ACP-1104 is powered by the advanced quad-core J1900 processor by Intel, effectively boosting its general performance and also broadening its usuable OS.

Additional features such as more LAN ports for system redundancy and Digital I/Os make the panel an ideal choice for applications in factory automation and monitoring, machine vision, and the burgeoning IoT solutions.

SYSTEM
PROCESSOR	Intel® Celeron® J1900 processor, 2 GHz Intel® N2807 processor, 1.58 GHz
SYSTEM MEMORY	204-pin DDR3L 1333MHz SODIMM x 1, default 2 GB, up to 8 GB (J1900) 204-pin DDR3L 1333MHz SODIMM x 1, default 2 GB, up to 4 GB (N2807)
LCD/CRT CONTROLLER	—
ETHERNET	10/100/1000Base-TX, RJ-45 x 2

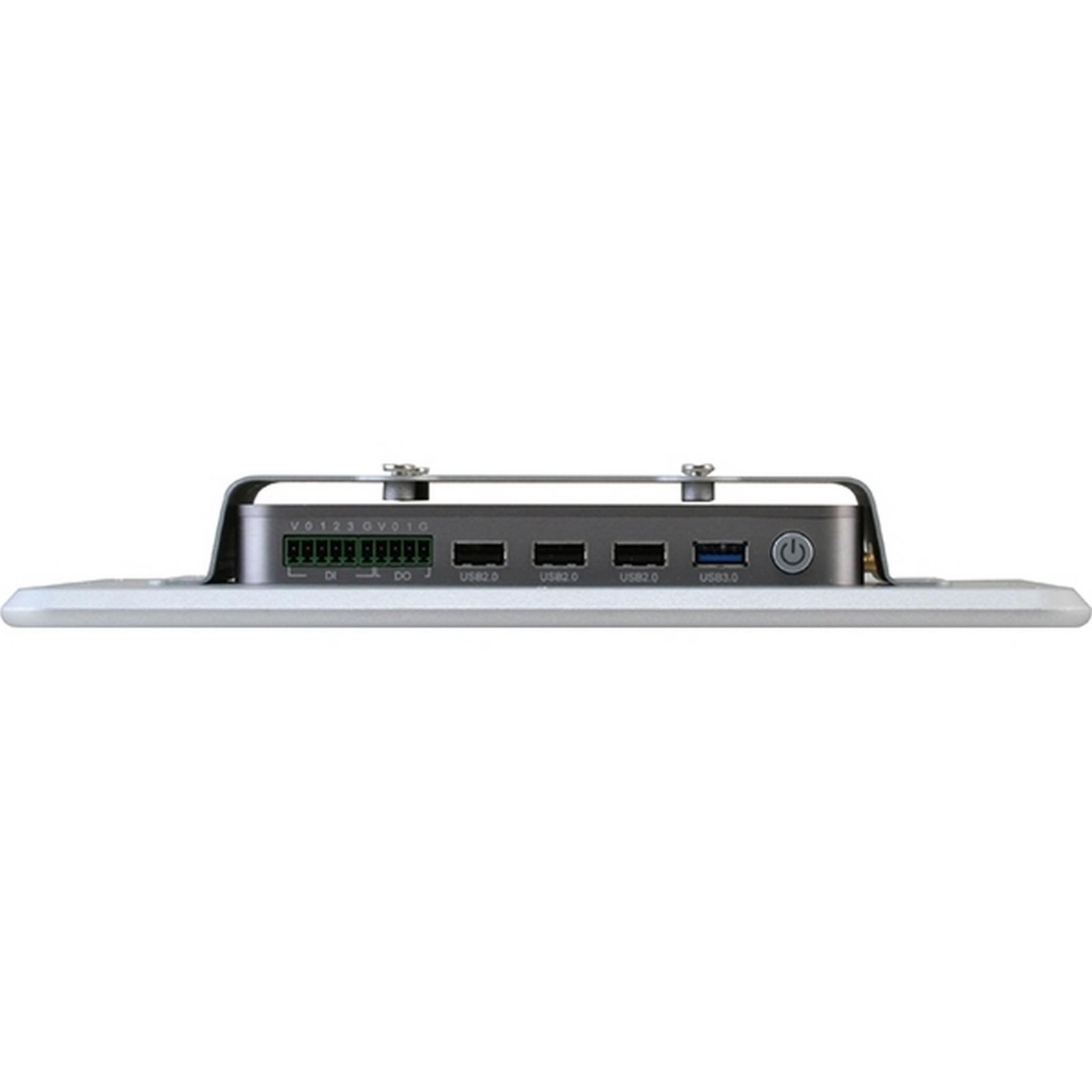

I/O PORT	RS-232/422/485 x 2 ( RJ-45 connector ) USB 2.0 type A x 3 USB 3.2 Gen 1 type A x 1 HDMI x 1 DI/O (4 DI, 2 DO) BIOS selection Power button x 1 Lockable power connector x 1
STORAGE DISK DRIVE	Half size mSATA x 1 (Installation by AAEON recommeded)
EXPANSION SLOT	Full size Mini-Card x 1
OS SUPPORT	Windows® 7, Windows® 8.1, Windows® 10, Linux kernel 2.6.3 or higher, Android 4.4.4
MECHANICAL
CONSTRUCTION	Aluminum Design
MOUNTING	VESA 75/ Panel mount/ Stand
DIMENSION	10.47” x 7.22” x 1.81” (266 x 183.5 x 30mm)
CARTON DIMENSION	13.58” x 7.87” x 9.65” (345 x 200 x 245mm)
GROSS WEIGHT	5.5 lb (2.5 kg)
NET WEIGHT	—
ENVIRONMENTAL
OPERATING TEMPERATURE	32°F ~ 113°F (0°C ~ 45°C) without airflow 32°F ~ 122°F (0°C ~ 50°C) with airflow
STORAGE TEMPERATURE	-4°F ~ 158°F (-20°C ~ 70°C)
STORAGE HUMIDITY	5%~90% @40°C, non-condensing
VIBRATION	1 Grms/ 5~ 500Hz/ operation
SHOCK	15 G peak acceleration (11 msec. duration)
EMC	CE/FCC class A
POWER SUPPLY
DC INPUT	DC 12V with lockable power adapter
LCD
DISPLAY TYPE	10.1" TFT-LCD, LED
MAX. RESOLUTION	1280 x 800
MAX. COLORS	262k
LUMINANCE	300 cd/m²
VIEWING ANGLE	170°(H), 170°(V)
BACK LIGHT	LED
BACK LIGHT MTBF (HOURS)	—
TOUCHSCREEN
TYPE	Projected capacitive multi-touch
LIGHT TRANSMISSION	—

Name		Type	Version	Release Date
ACP-1104, datasheet		Datasheet	V2.0	11 September 2019
