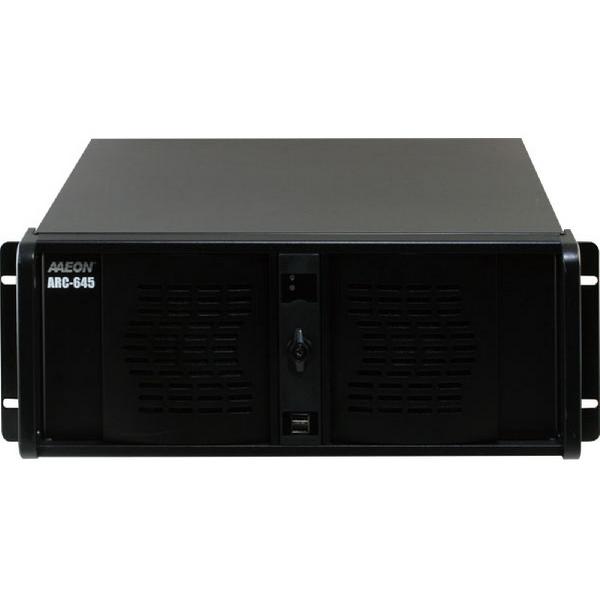

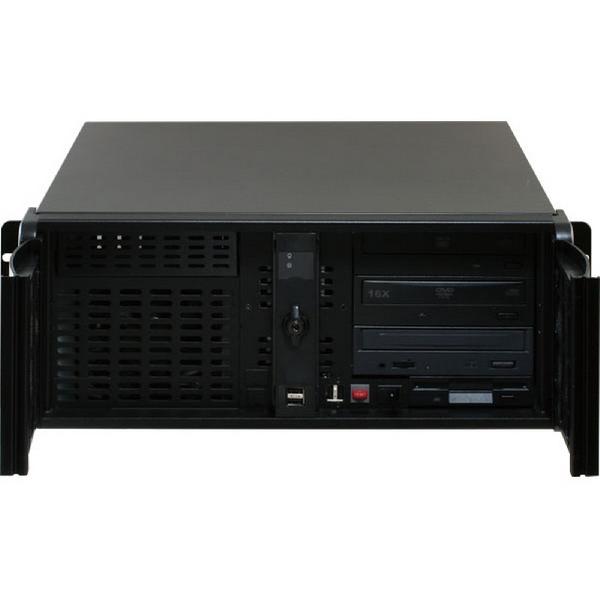

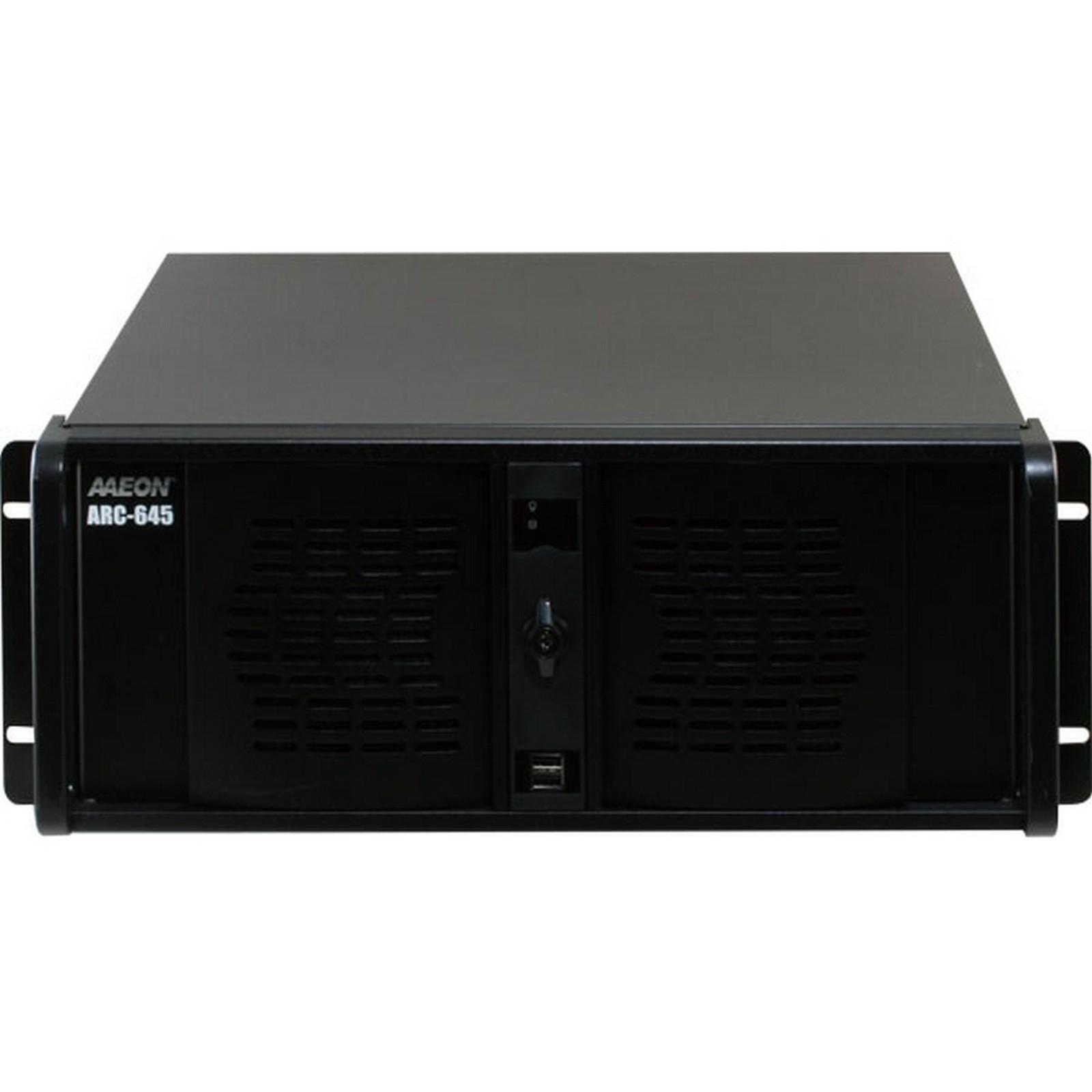

The ARC-645 is a 4U Rackmount industrial computer chassis that offers one front panel 3.5" drive bay and three front panel 5.25" disk drive bays for Removable Hard Disks or optical disk drives. It supports two internal 3.5" disk drive bay for Hard Disks.

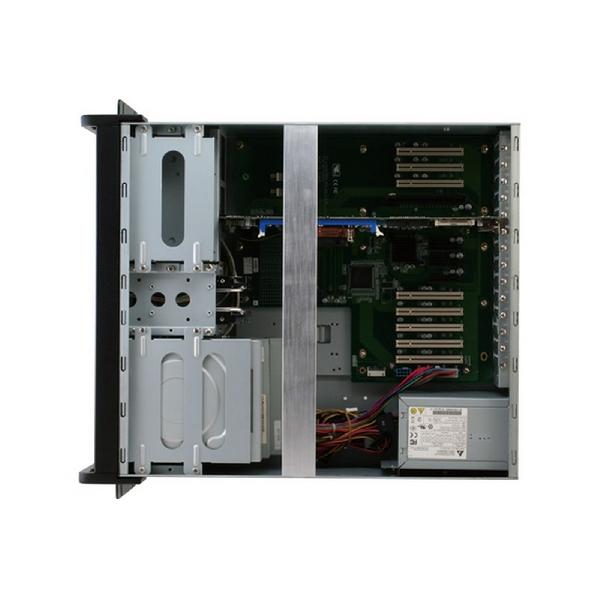

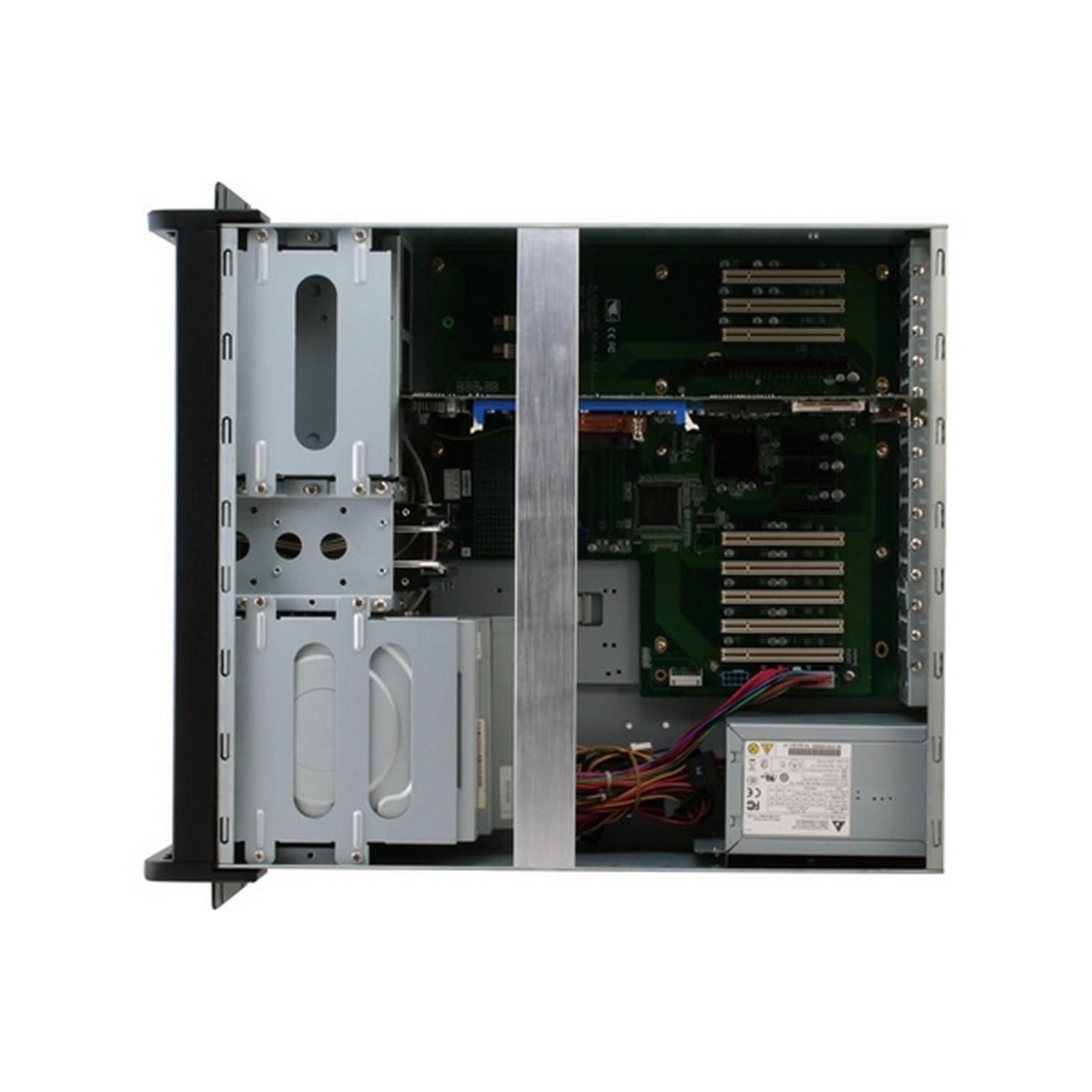

The ARC-645 chassis comes with shock-resistant measures to protect storage devices. A 14-slot ISA/PICMG bus passive backplate is used to provide many expansion opportunities. It also comes equipped with a standard PS2 AT/ATX or mini redundant power supply.
| SYSTEM | |
| CONSTRUCTION | 1.2 mm SECC Zinc-coated Steel |
| STORAGE | External: 3.5” Drive Bay x 1 5.25” Drive Bay x 4 Internal: 3.5” Drive Bay x 2 |
| SYSTEM FAN | 12 cm Ball Bearing Fan with Removable Filter x 1 |
| FRONT PANEL | Power ON/OFF Switch x 1 Reset Button x 1 Power ON LED x 1 Hard Disk Drive Active LED x 1 USB Port x 4 |

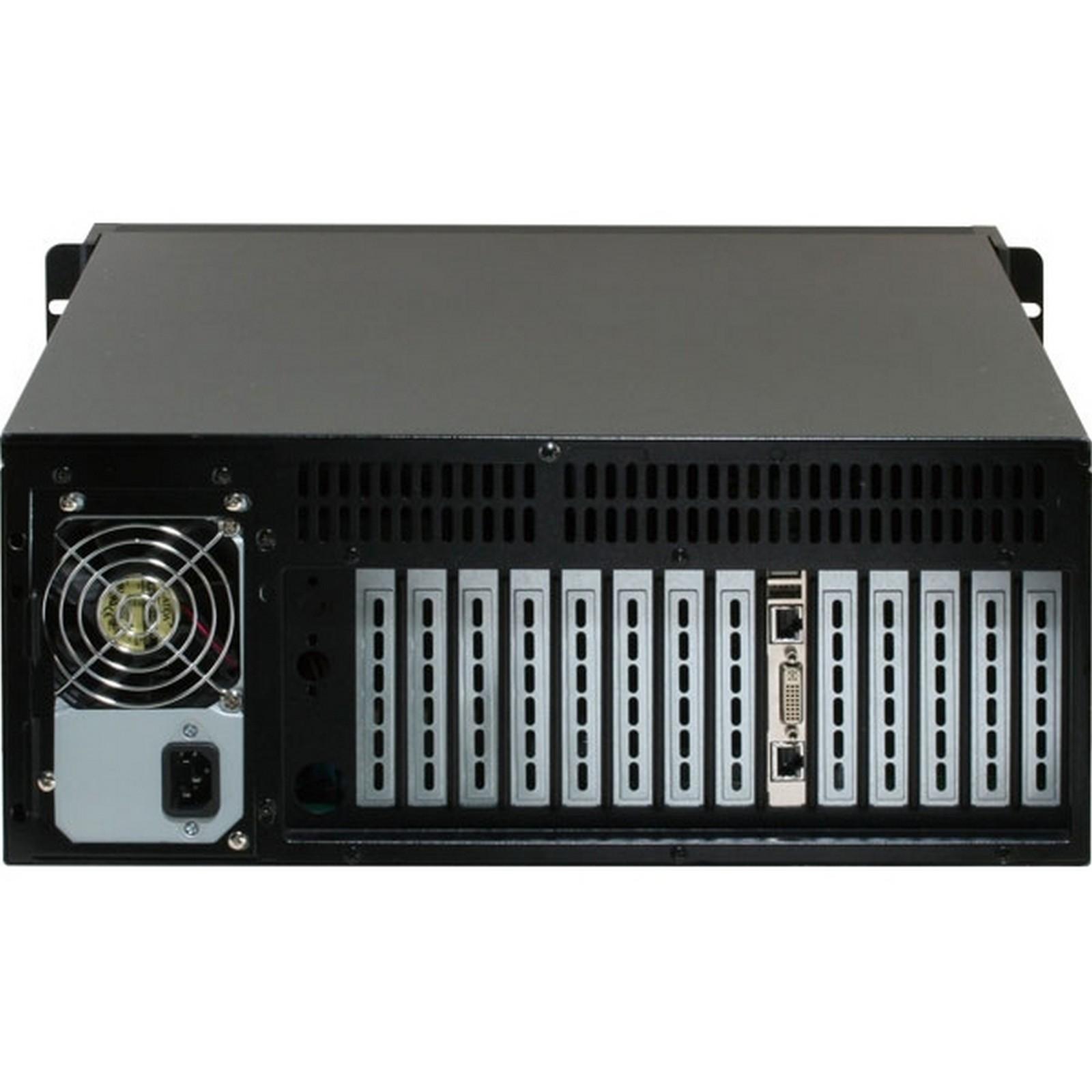

| REAR PANEL | AT Keyboard Cut-out x 1 14 Slots (including system slot), supports max. 339 mm (length) for expansion card |
| COLOR | Black |
| CARTON DIMENSION | 21.6” (W) x 27” (D) x 12.4” (H) (548mm x 685mm x 315mm) |
| NET WEIGHT | 26.4 lb (12 kg) |
| GROSS WEIGHT | 30.8 lb (14 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 32°F ~ 122°F (0°C ~ 50°C) |
| STORAGE TEMPERATURE | -4°F ~ 176°F (-20°C ~ 80°C) |
| STORAGE HUMIDITY | 10 ~ 90% @ 40°C, non-condensing |
| VIBRATION | 0.5 Grms/ 5 ~ 500Hz/ operation (2.5” Hard Disk Drive) 1.5 Grms/ 5 ~ 500Hz/ non operation |
| SHOCK | 15 G peak acceleration (11 m sec. duration), operation 30 G peak acceleration (11 m sec. duration), non operation |
| EMC | CE/FCC Class A |
| Name | Type | Version | Release Date | |
| ARC-645, datasheet | Datasheet | V1.0 | 11 Febuary 2015 |
