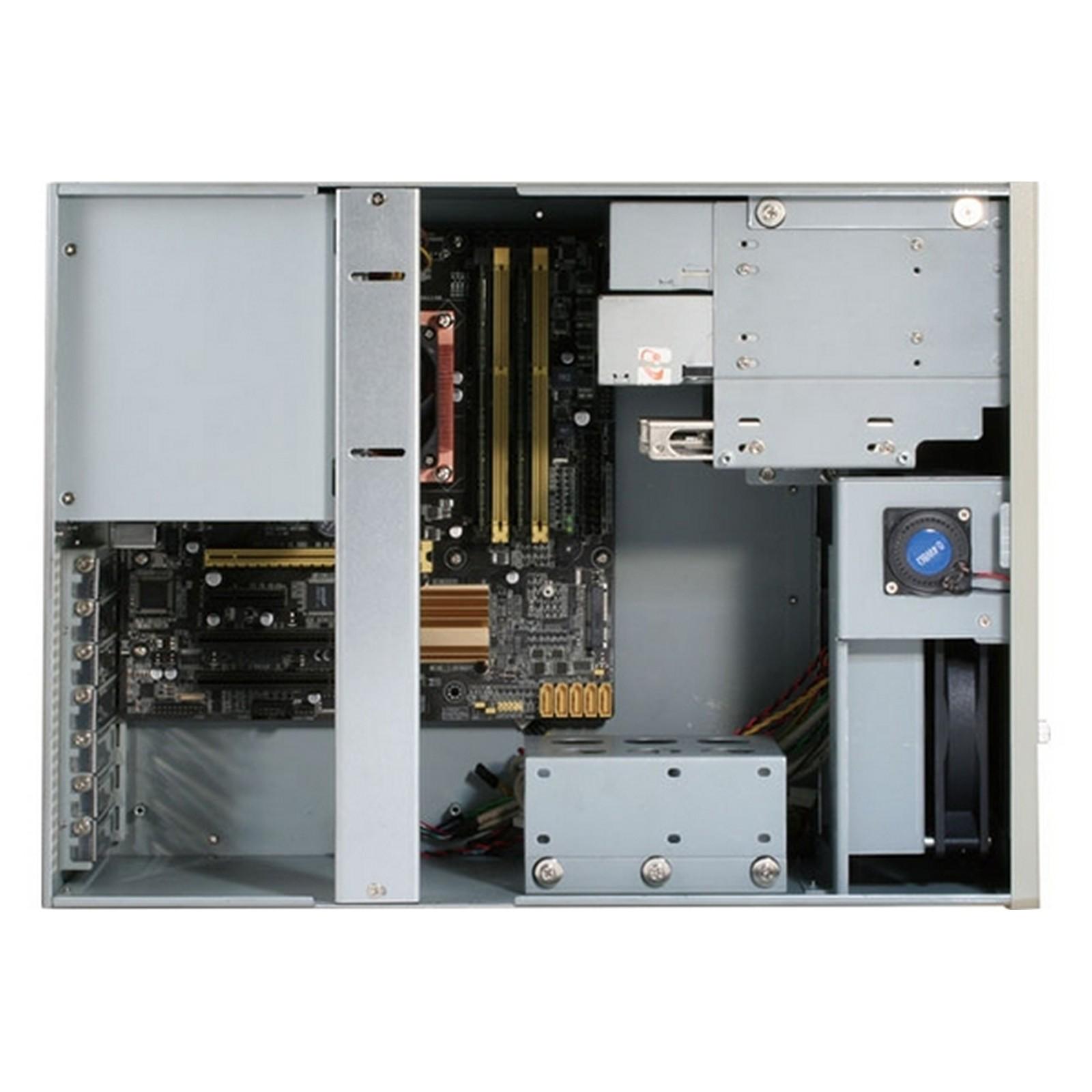

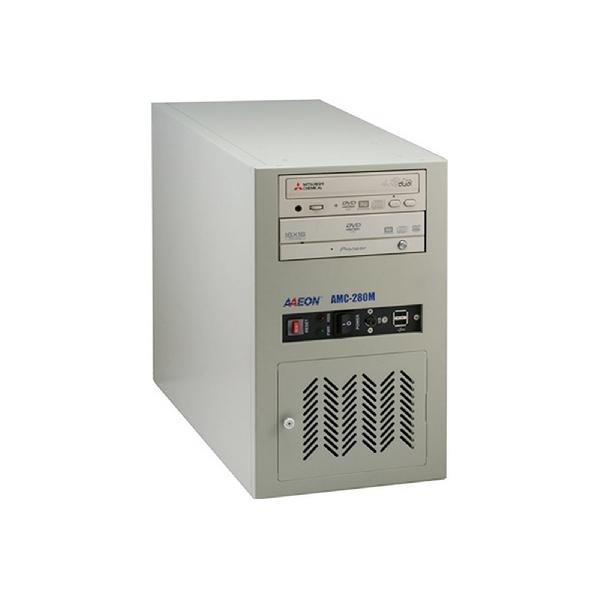

The 7-slot AMC-280M wallmount chassis sports two 5.25" external drive bays, one 3.5" internal drive bay (one more addable), and support for ATX, uATX, and mini-ITX form factor. Standard PS2 AT/ATX power supply is used.
| SYSTEM | |
| CONSTRUCTION | Heavy-duty Steel |
| FRONT PANEL | Power ON/OFF Switch x 1 Reset Button x 1 Power ON LED x 1 Hard Disk Drive Active LED x 1 PS/2 Keyboard Connector x 1 USB x 2 |

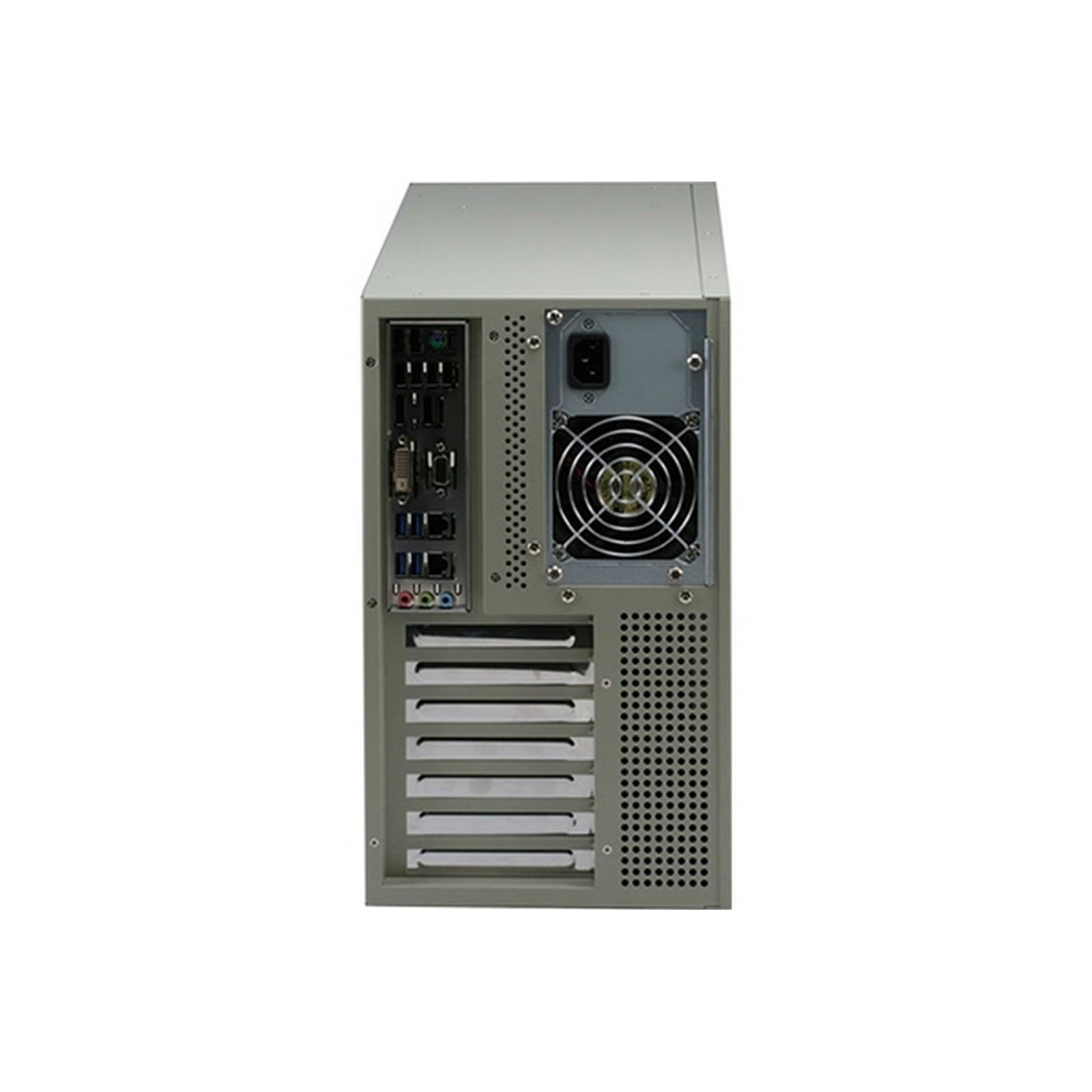

| REAR PANEL | I/O Bracket provided by motherboard mfg 7 slots, supports max. 312 mm (length) for expansion card |
| COLOR | White |
| DIMENSION (W X D X H) | 7.7” (W) x 17.7” (D) x 13” (H) (196mm x 450mm x 330mm) |
| CARTON DIMENSION | 11.1” (W) x 20.3” (D) x 18” (H) (281mm x 515mm x 457mm) |
| NET WEIGHT | 19.8 lb (9 kg) |
| GROSS WEIGHT | 22 lb (10 kg) |
| STORAGE | External: 5.25” External Drive Bay x 2 Internal: Up to 3.5” Drive Bay x 1 Optional: Two 3.5 HDD Bay Cage |
| SYSTEM FAN | 12cm Ball Bearing Fan with Removable Filter x 1 |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 32°F ~ 122°F (0°C ~ 50°C) |
| STORAGE TEMPERATURE | -4°F ~ 176°F (-20°C ~ 80°C) |
| STORAGE HUMIDITY | 10 ~ 90% @ 40°C, non-condensing |
| VIBRATION | 0.5 Grms/ 5 ~ 500Hz/ operation |
| SHOCK | 15 G peak acceleration (11 m sec. duration), operation |
| EMC | CE/ FCC Class A |
| Name | Type | Version | Release Date | |
| AMC-280M, datasheet | Datasheet | V1.0 | 12 Febuary 2015 |
